MSI France  |  SKU: S78-440L0F0-P83

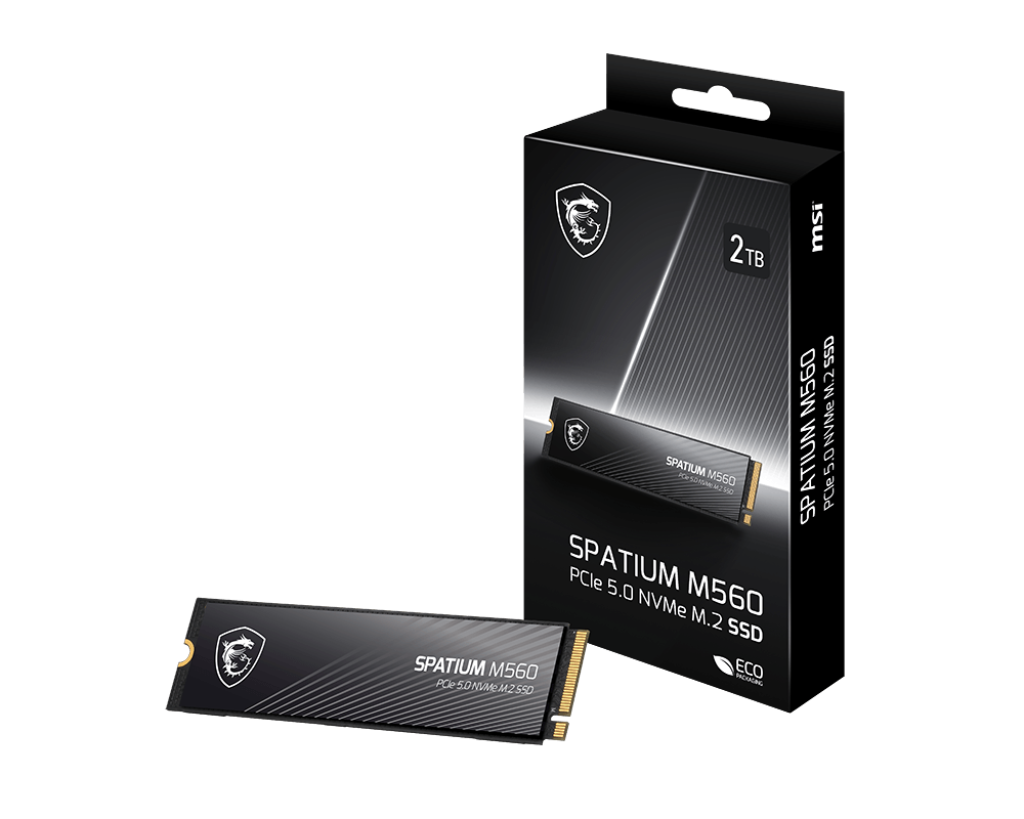

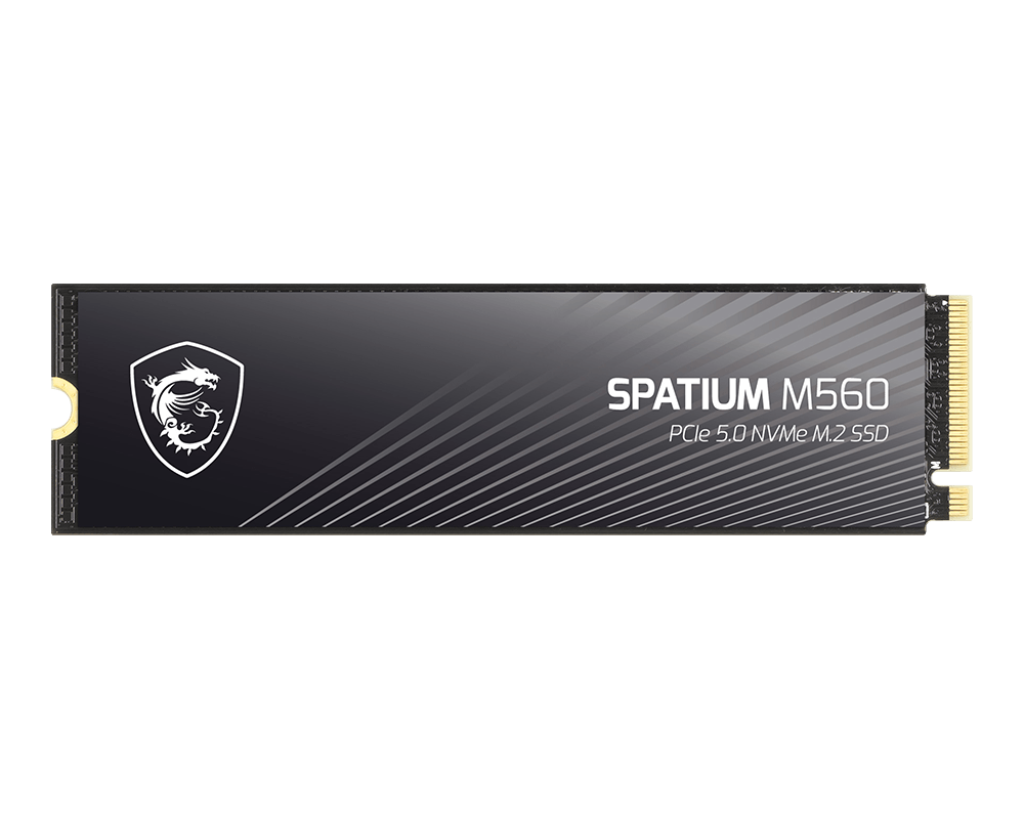

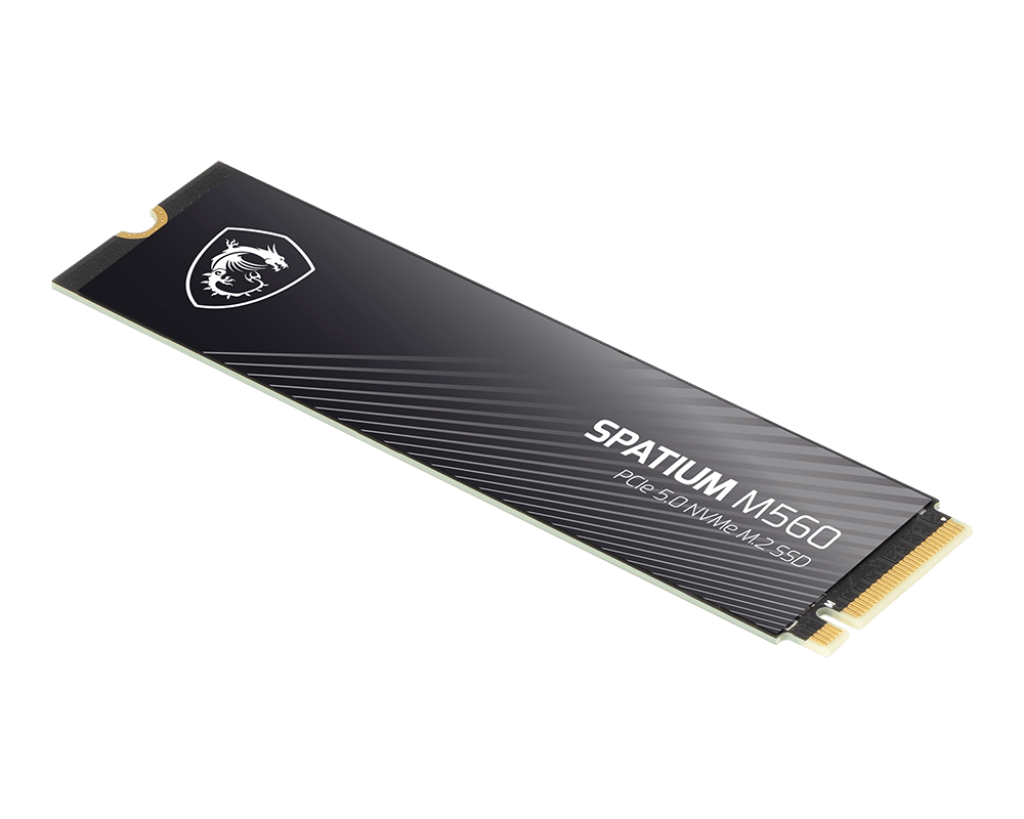

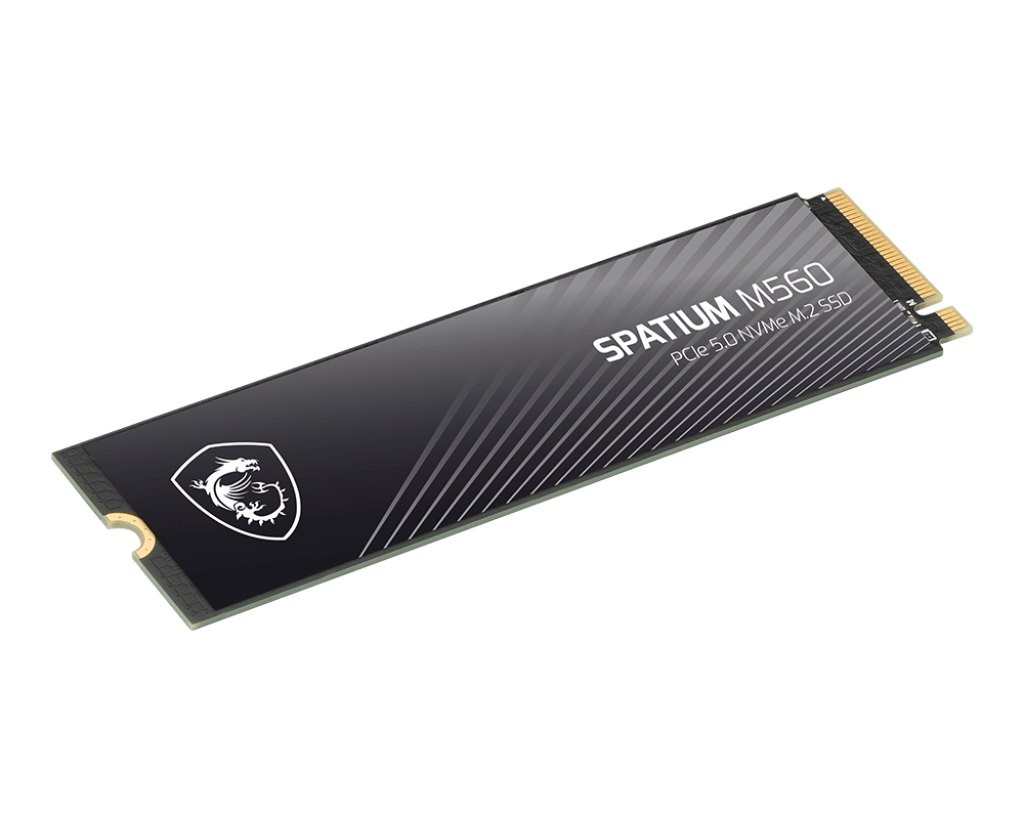

SSD | SPATIUM M560 PCIe 5.0 NVMe M.2 1TB


to see prices

La date de livraison

Garantie

5 Year Warranty

Free Package

  • Support de l'interface PCIe Gen5x4 et compatible à la norme NVMe 2.0
  • Vitesse de lecture séquentielle allant jusqu'à 10 300 Mb/s
  • Vitesse d'écriture séquentielle allant jusqu'à 8700 Mb/s
  • Maximum de 1200 téraoctets écrits
  • Fonctions intégrées de protection de données et de correction des erreurs
  • Capacité de stockage de 1 To à 2 To dans un format M.2 2280
  • Adapté aux PC portables et de bureau
  • Garantie de 5 ans
  • Fiche technique
    Model Name SPATIUM M560 PCIe 5.0 NVMe M.2
    Capacity 1TB
    Controller PHISON E31T
    Flash Memory 3D NAND
    Form Factor M.2 2280
    Interface PCIe Gen5x4, NVMe 2.0
    Compatibility PCIe Gen5 /PCIe Gen4 / Gen3 / Gen2 / Gen1
    Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
    Sequential Read up to (MB/s) 10,200
    Sequential Write up to (MB/s) 8,400
    Random Read 4KB up to (IOPS) 1,300,000
    Random Write 4KB up to (IOPS) 1,400,000
    Maximum Operating Power (W) 5.9
    Idle Power PS3 (mW) 50
    Low Power L1.2 (mW) 3.5
    Operating Temperatures 0°C – 70°C
    Storage Temperatures 40°C – 85°C
    Terabytes Written (TBW) 600
    Mean Time Between Failure (MTBF) Up to 1,500,000 Hours
    Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
    Advanced Features TRIM (Performance Optimization, OS support required)
    SMART (Self-Monitoring, Analysis and Reporting Technology)
    LDPC (Low Density Parity Check) ECC Algorithm
    End to End Data Path Protection
    APST (Autonomous Power State Transition)
