MSI España  |  SKU: 911-7E26-024

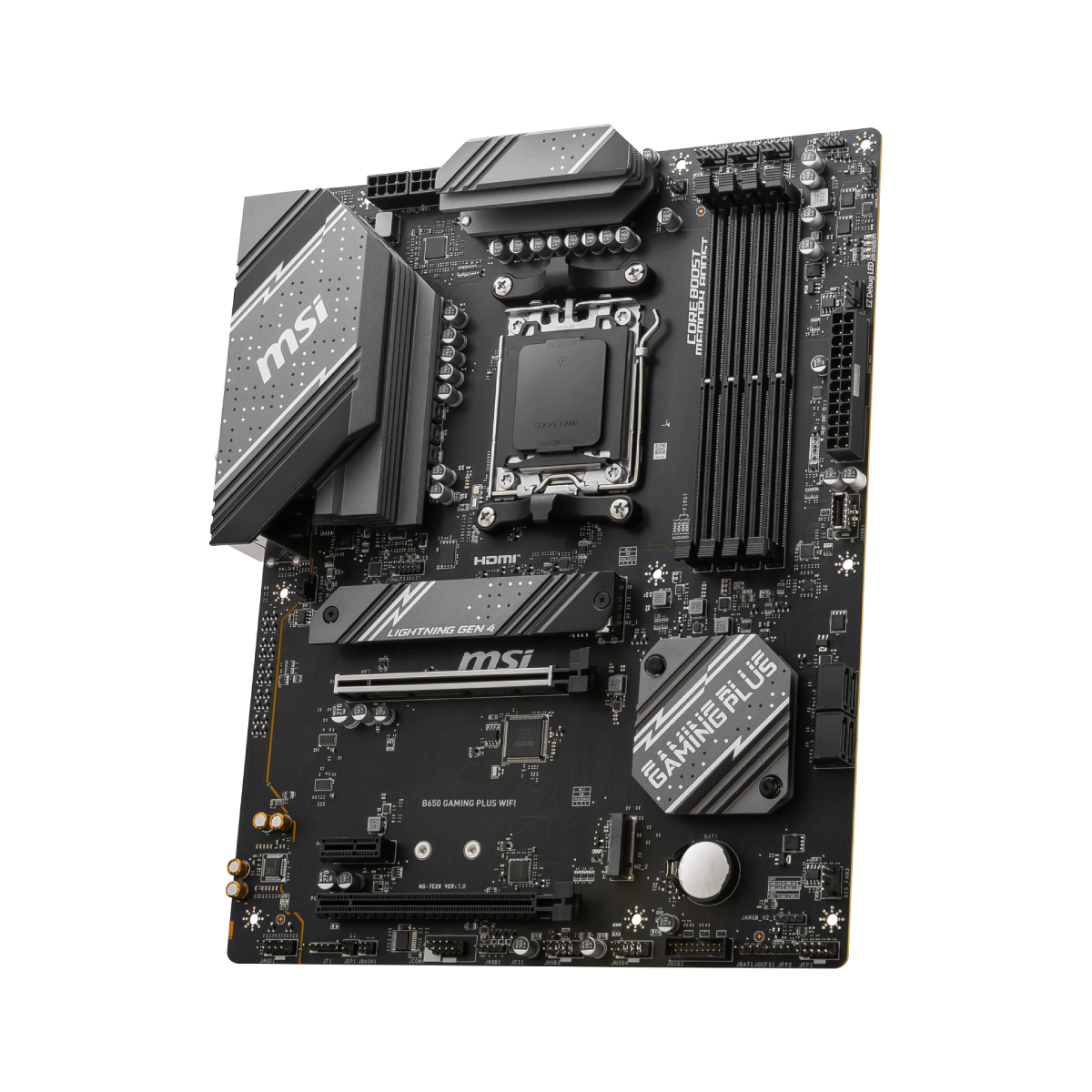

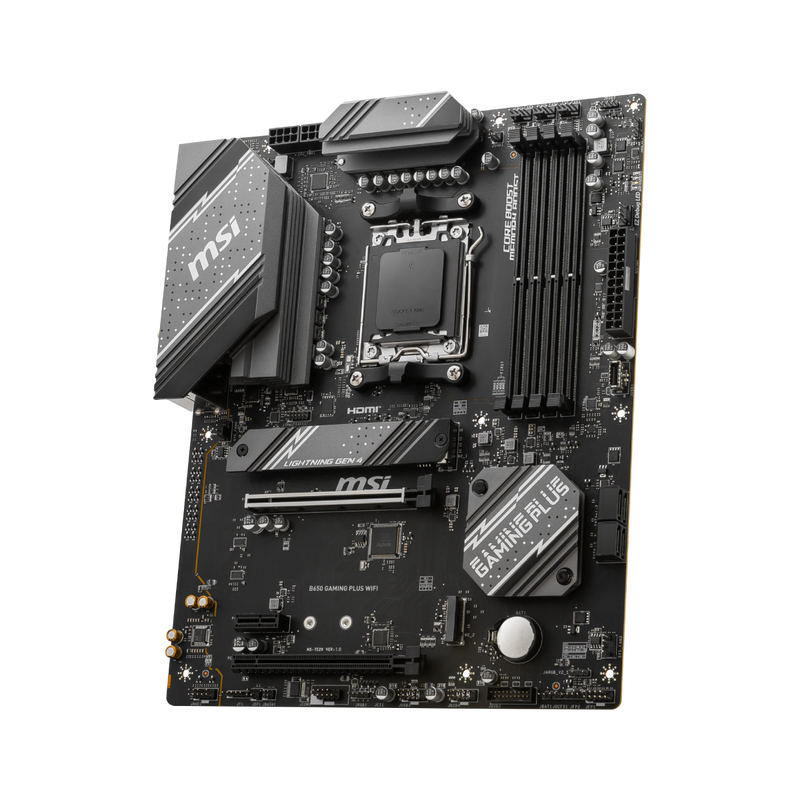

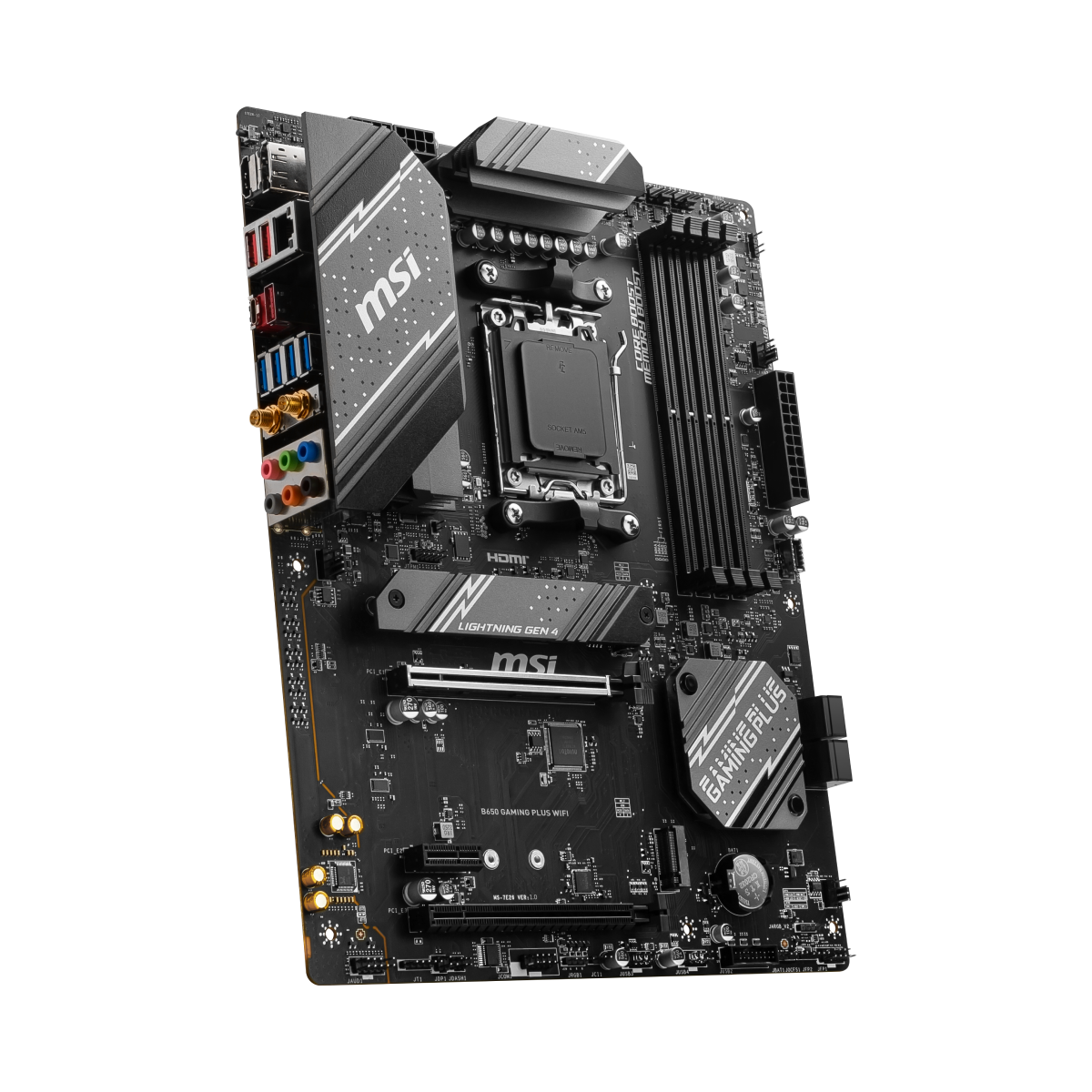

MSI B650 GAMING PLUS WIFI | Placa Base


to see prices

fecha de entrega

Garantizar

3 Year Warranty

Free Package

  • AM5
  • AMD B650
  • ATX

B650 GAMING PLUS WIFI

Características:

  • Compatible con los procesadores de sobremesa AMD Ryzen™ serie 8000 / 7000.
  • Admite memoria DDR5, doble canal DDR5 7200+MHz (OC)
  • Diseño de alimentación mejorado: sistema de alimentación Duet Rail 12+2+1, conectores de alimentación de CPU duales de 8 patillas, Core Boost, Memory Boost.
  • Solución térmica premium: Disipador térmico ampliado, almohadillas térmicas para MOSFET con un valor nominal de 7 W/mK, choke pads adicionales y M.2 Shield Frozr están diseñados para sistemas de alto rendimiento y trabajo ininterrumpido.
  • Experiencia de juego a la velocidad del rayo: Ranuras PCIe 4.0, Lightning Gen 4 x4 M.2 con M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
  • Solución LAN 2,5G con Wi-Fi 6E: Solución de red mejorada para uso profesional y multimedia. Proporciona una conexión de red segura, estable y rápida
  • PCB de alta calidad: PCB de 6 capas fabricado con cobre de 2 onzas de espesor
  • Audio Boost: Recompensa a tus oídos con una calidad de sonido de estudio para que disfrutes de la experiencia de juego más envolvente

Chipset AMD B650
CPU Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

  • 1DPC 1R Max speed up to 7200+ MHz
  • 1DPC 2R Max speed up to 6000+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory

Supports AMD EXPO
Onboard Graphics
  • 1x HDMI™ (Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*)
  • 1x DisplayPort (Supports DP1.4, maximum resolution of 4K 60Hz*)

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 2x PCI-E x16 slot (Qty)
    • Supports x16/x4 or x8/x8/x4 (For Ryzen™ 7000 Series processors)
    • Supports x8/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
    • Supports x4/x4 (For Ryzen™ 5 8500G processor)
  • 1x PCI-E x1 slot (Qty)
    • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Multi-GPU AMD MULTI-GPU Support
Storage
  • 2x M.2 (Qty)
    • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
    • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 4x SATA 6G (Qty)
    • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
RAID
  • Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 3x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Front)
  • 1x USB 20Gbps Type C (Rear)
LAN Realtek® 8125BG 2.5G LAN
WIRELESS LAN & BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 4x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  1. DisplayPort
  2. 2.5G LAN
  3. USB 3.2 Gen 2 10Gbps (Type-A)
  4. USB 3.2 Gen 1 5Gbps (Type-A)
  5. Wi-Fi / Bluetooth
  6. Audio connectors
  7. Flash BIOS Button
  8. HDMI™
  9. USB 3.2 Gen 2 10Gbps (Type-A)
  10. USB 3.2 Gen 2x2 20Gbps (Type-C)
OPERATING SYSTEM Support for Windows® 11 64-bit
Windows® 10 64-bit
PCB Info ATX
243.84mmx304.8mm
BOX CONTENT
