MSI España  |  SKU: 911-7E17-001

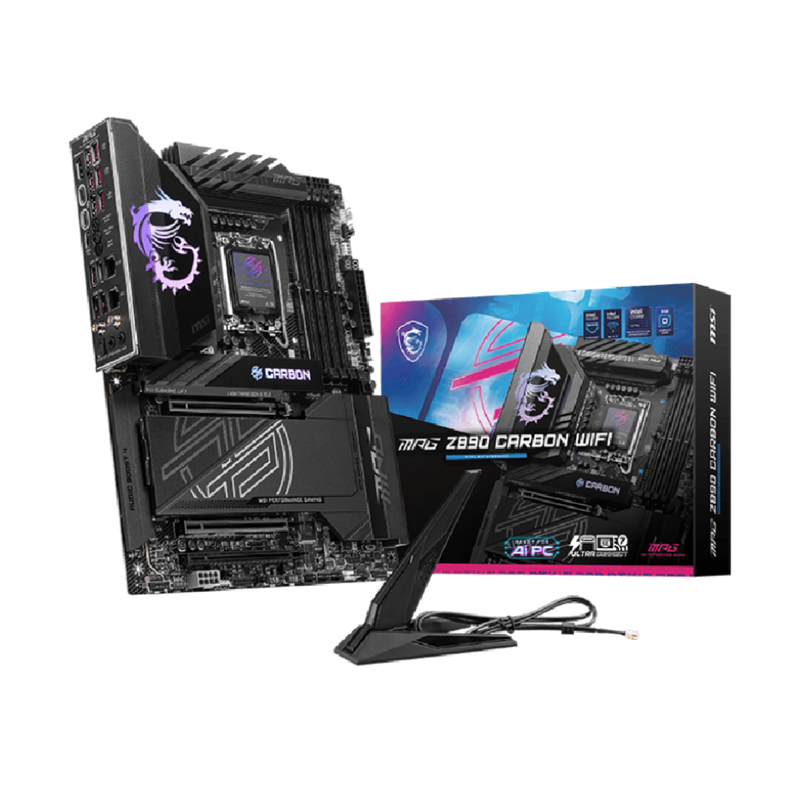

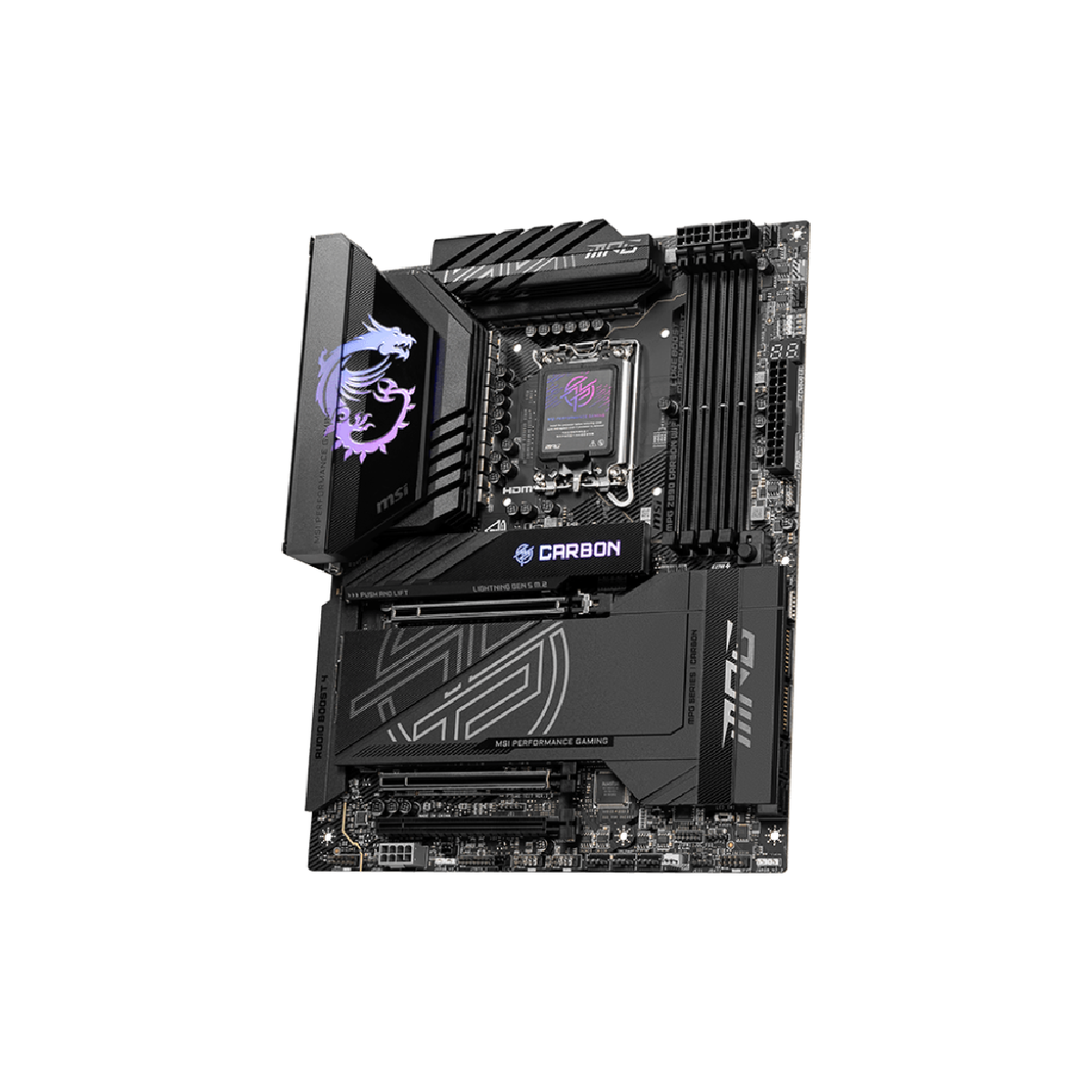

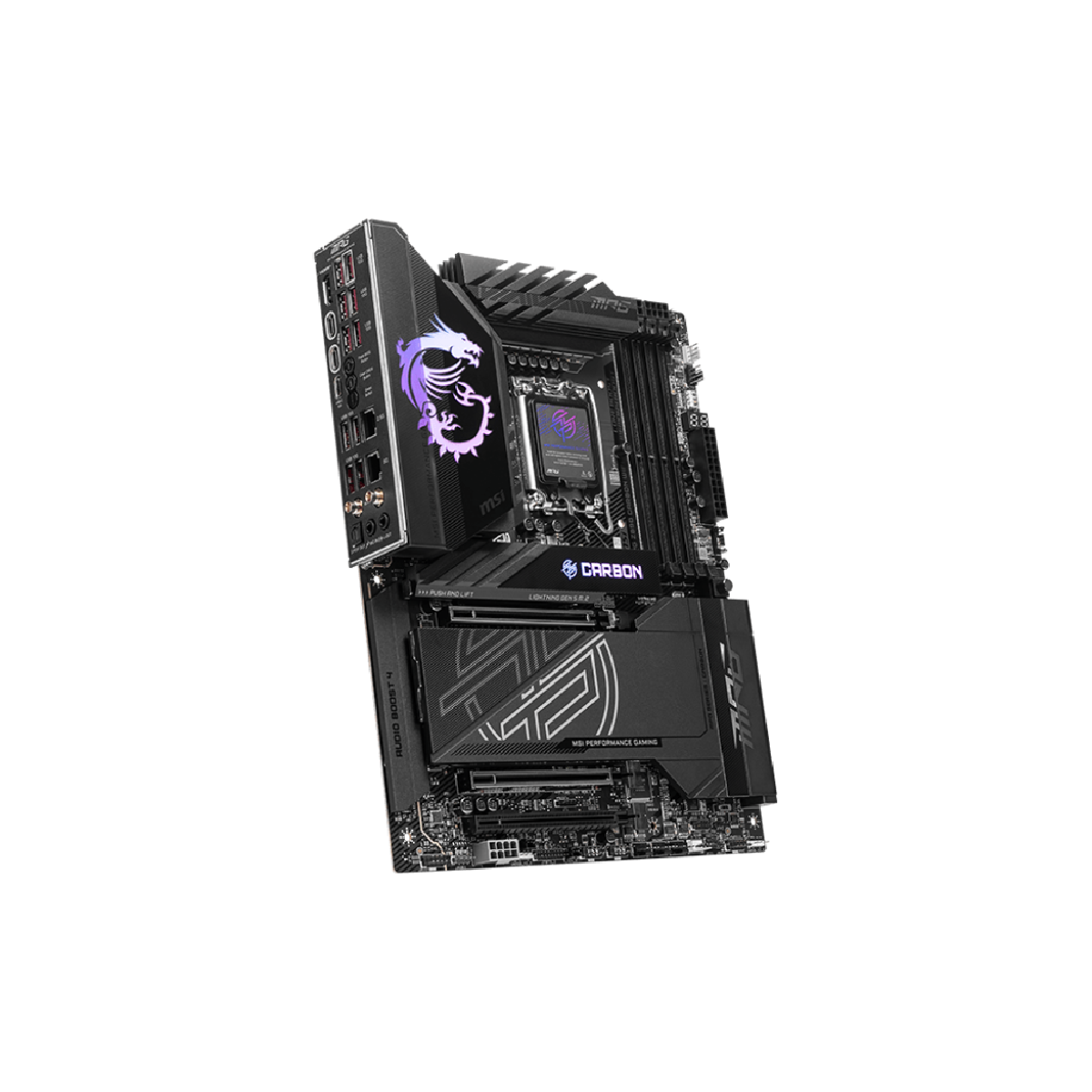

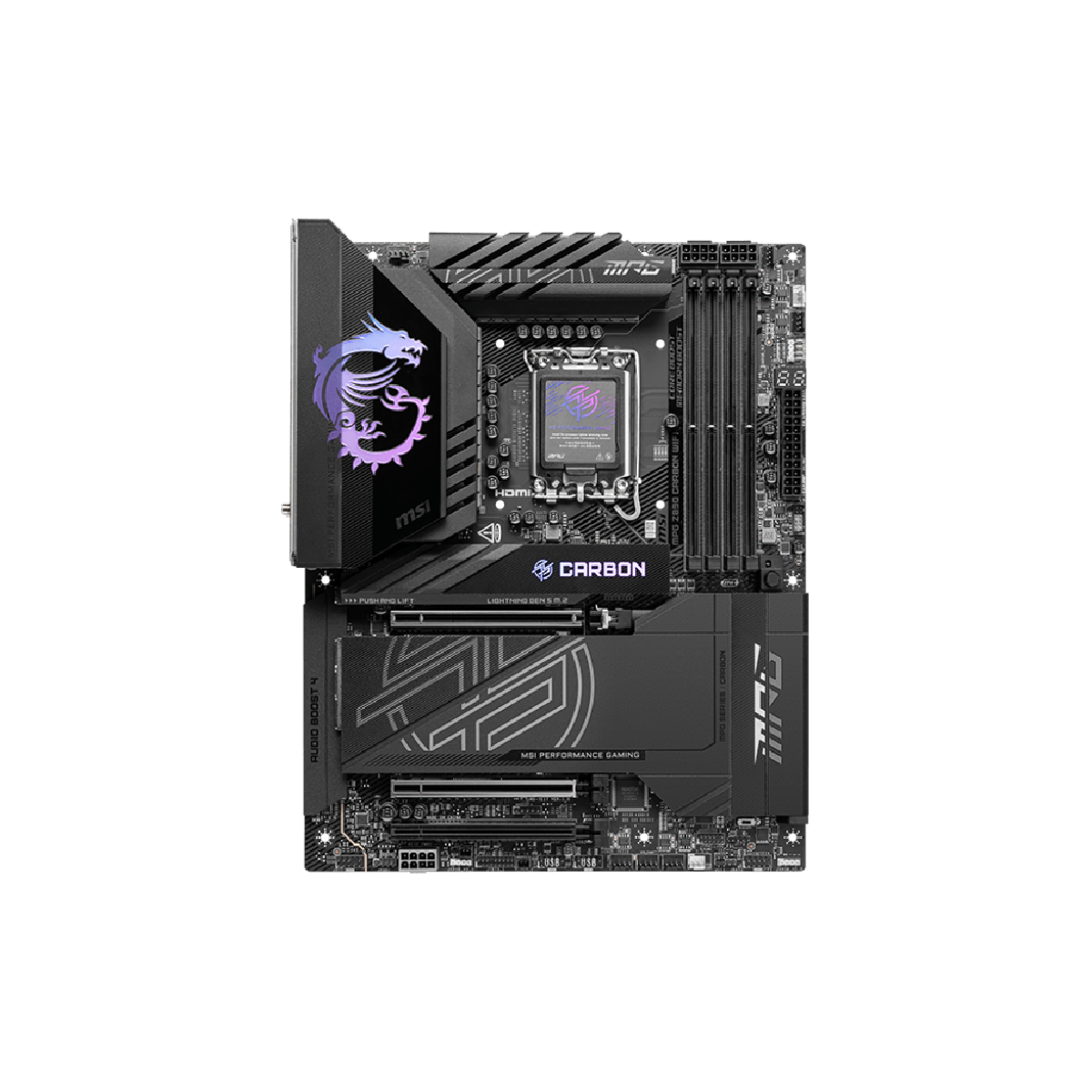

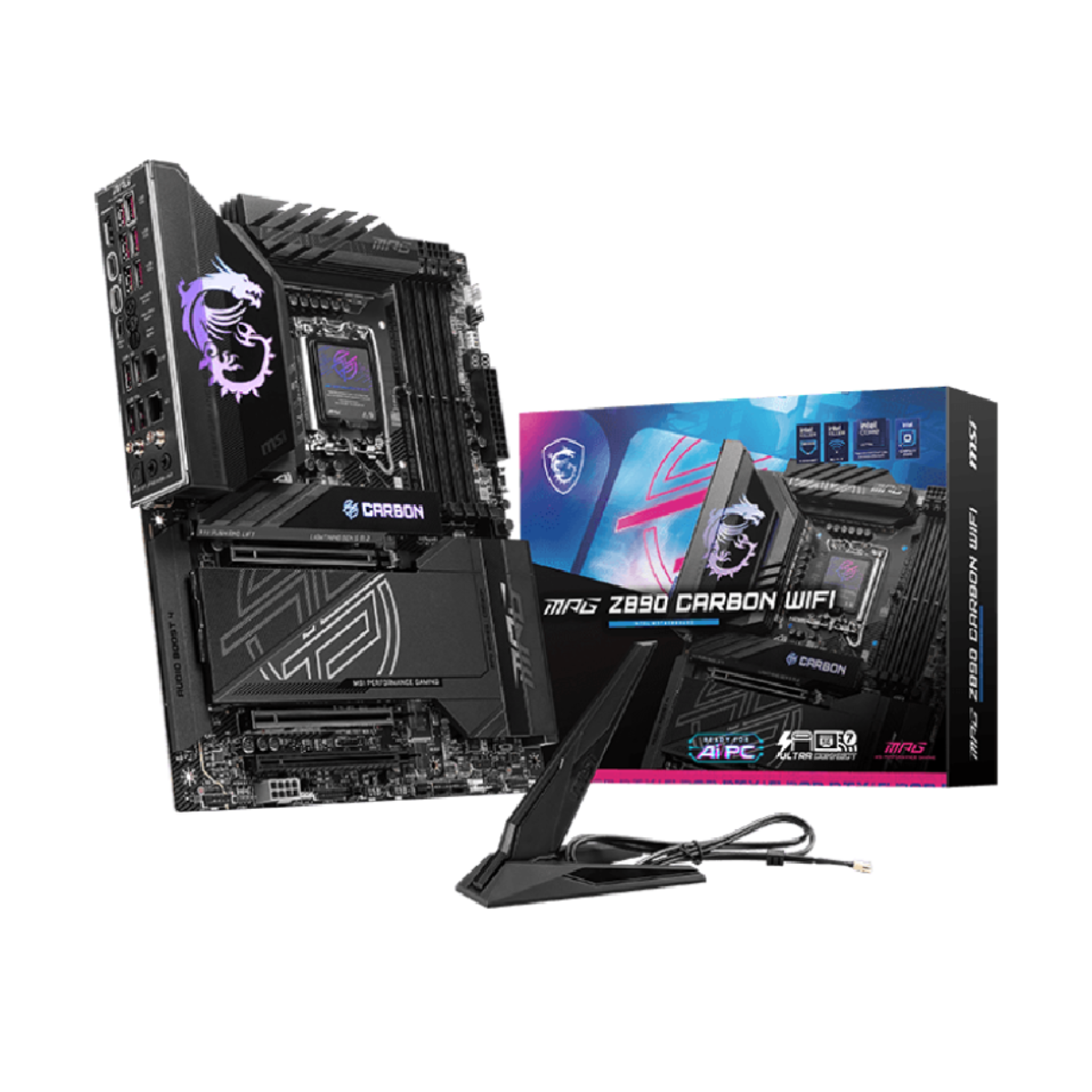

MSI MPG Z890 CARBON WIFI | Placa Base


to see prices

fecha de entrega

Garantizar

3 Year Warranty

Free Package

  • LGA 1851
  • Intel Z890
  • ATX

MPG Z890 CARBON WIFI

  • Compatible con procesadores Intel® Core™ Ultra (Serie 2) para el socket LGA 1851
  • Compatible con memoria DDR5, hasta 9200+ MT/s (OC)
  • Rendimiento ultra: Sistema de energía directo de 20+1+1+1 fases, conectores de alimentación de CPU de 8 pines dobles, Core Boost, Memory Boost, PCB de 8 capas hecho con cobre de 2oz espesado y material de nivel grado servidor
  • Frozr Guard: Disipador ampliado con tubo de calor, almohadillas térmicas MOSFET con una clasificación de 7W/mK, almohadillas térmicas adicionales para chokes y M.2 Shield Frozr están diseñados para sistemas de alto rendimiento y una experiencia de juego continua
  • EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II y EZ Antena
  • Experiencia de juego ultrarrápida: Ranura PCIe 5.0, Lightning Gen 5 M.2
  • Conexión ultra: Thunderbolt™ 4, Intel® Killer™ LAN 5G + LAN 2.5G con solución Wi-Fi 7: la última solución para uso profesional y multimedia, que ofrece una transmisión de datos y red segura, estable y de alta velocidad
  • Audio Boost 4: Disfruta de sonido de calidad de estudio para la experiencia de juego más inmersiva

Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
  • The DIMM slots on this motherboard have single-sided latches.
  • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
    For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
ThundeboltTM 4 ports, supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 3x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E1 supports BIOS adjustment to x8+x4+x4*
  • PCI_E2 supports BIOS adjustment to x4+x4*
Audio Realtek® ALC1220P Codec
7.1-Channel USB High Defination Audio
Supports S/PDIF output
Storage 5x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
4x SATA 6G (Qty)

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
  • Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices
  • Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
Onboard Thunderbolt 2x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
10x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)

*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN 1x Intel® Killer™ E5000B 5G LAN
1x Intel® I226V 2.5G LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
1x PUMP_SYS Fan
5x System Fan
1x ARGB+FAN+USB2.0 Header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.
  Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED
1x EZ Digit Debug LED

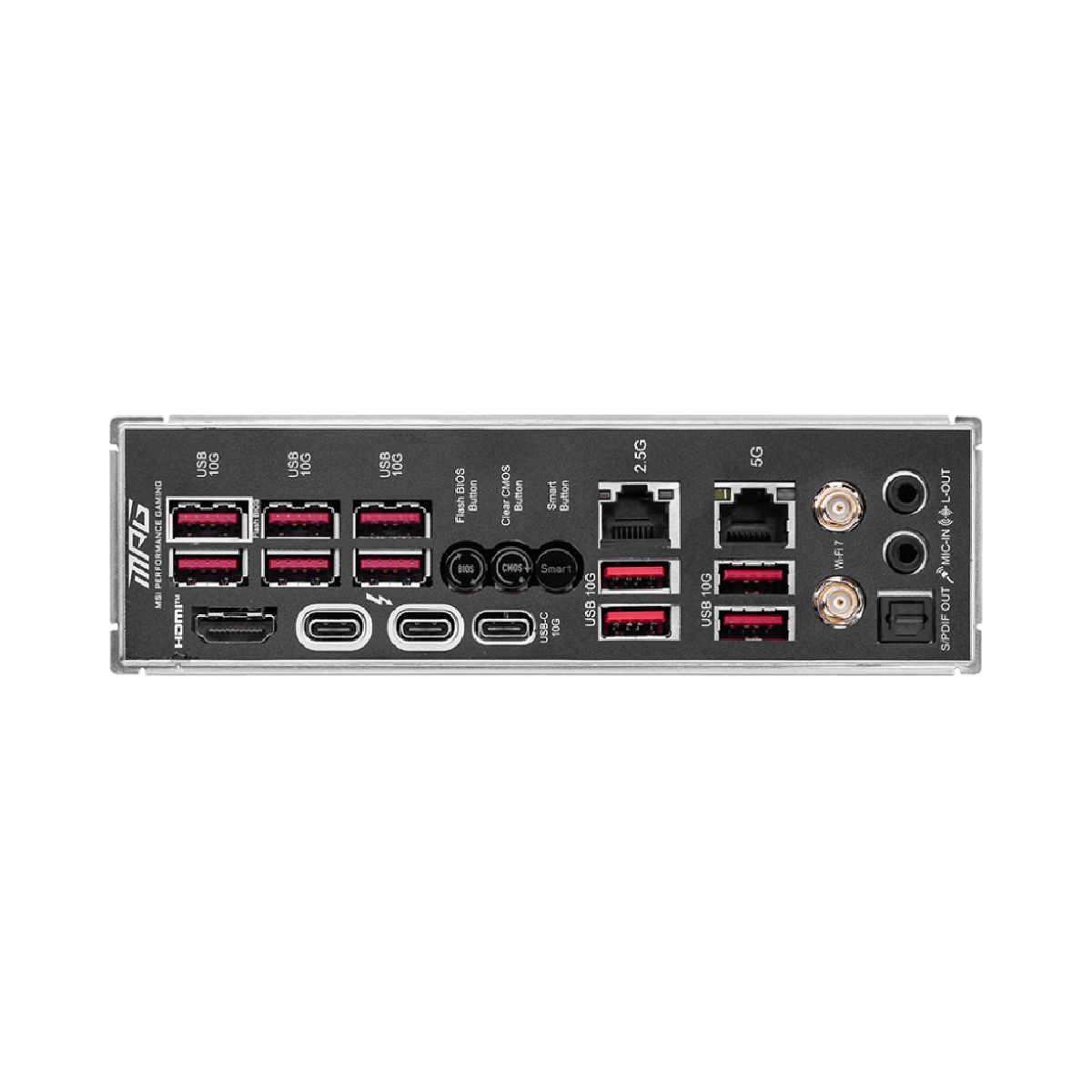

BACK PANEL PORTS
  1. USB 10Gbps Type-A
  2. Flash BIOS Button
  3. Clear CMOS Button
  4. Smart Button
  5. 2.5G LAN
  6. 5G LAN
  7. Audio Connectors
  8. HDMI™
  9. Thunderbolt 4
  10. USB 10Gbps Type-C
  11. USB 10Gbps Type-A
  12. Wi-Fi / Bluetooth
  13. Optical S/PDIF Out
OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
PCB Info ATX
243.84mmx304.8mm
