MSI España  |  SKU: 911-7E02-026

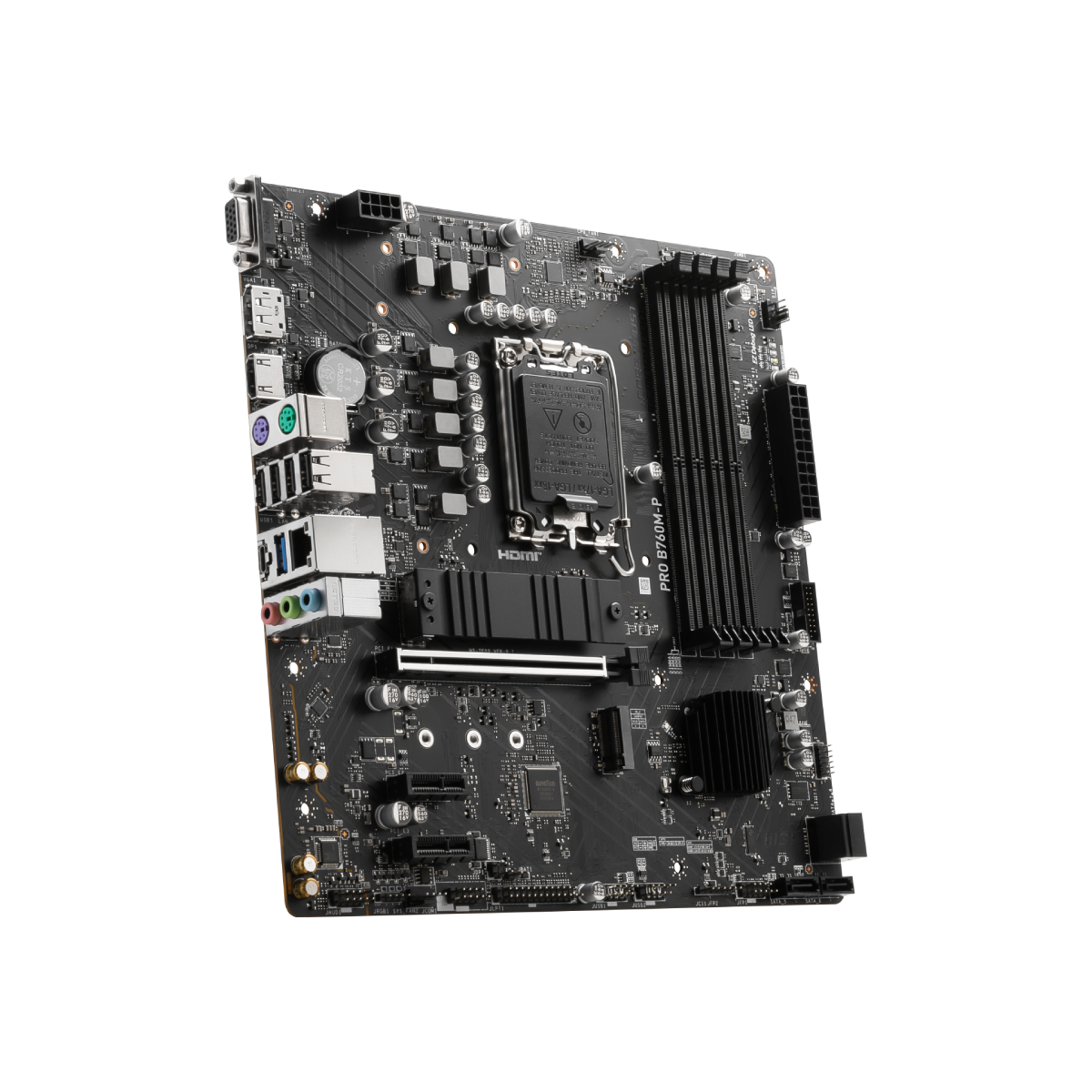

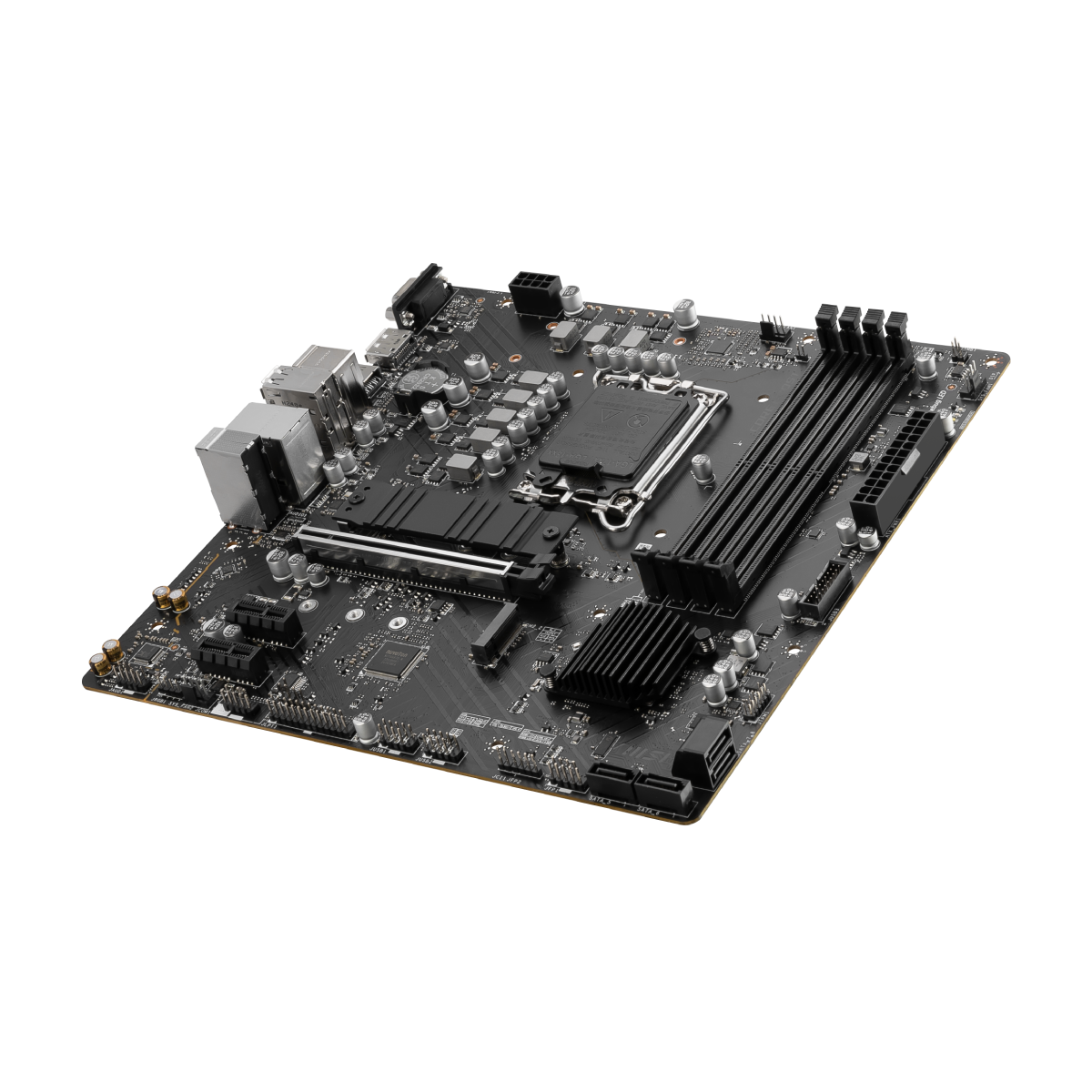

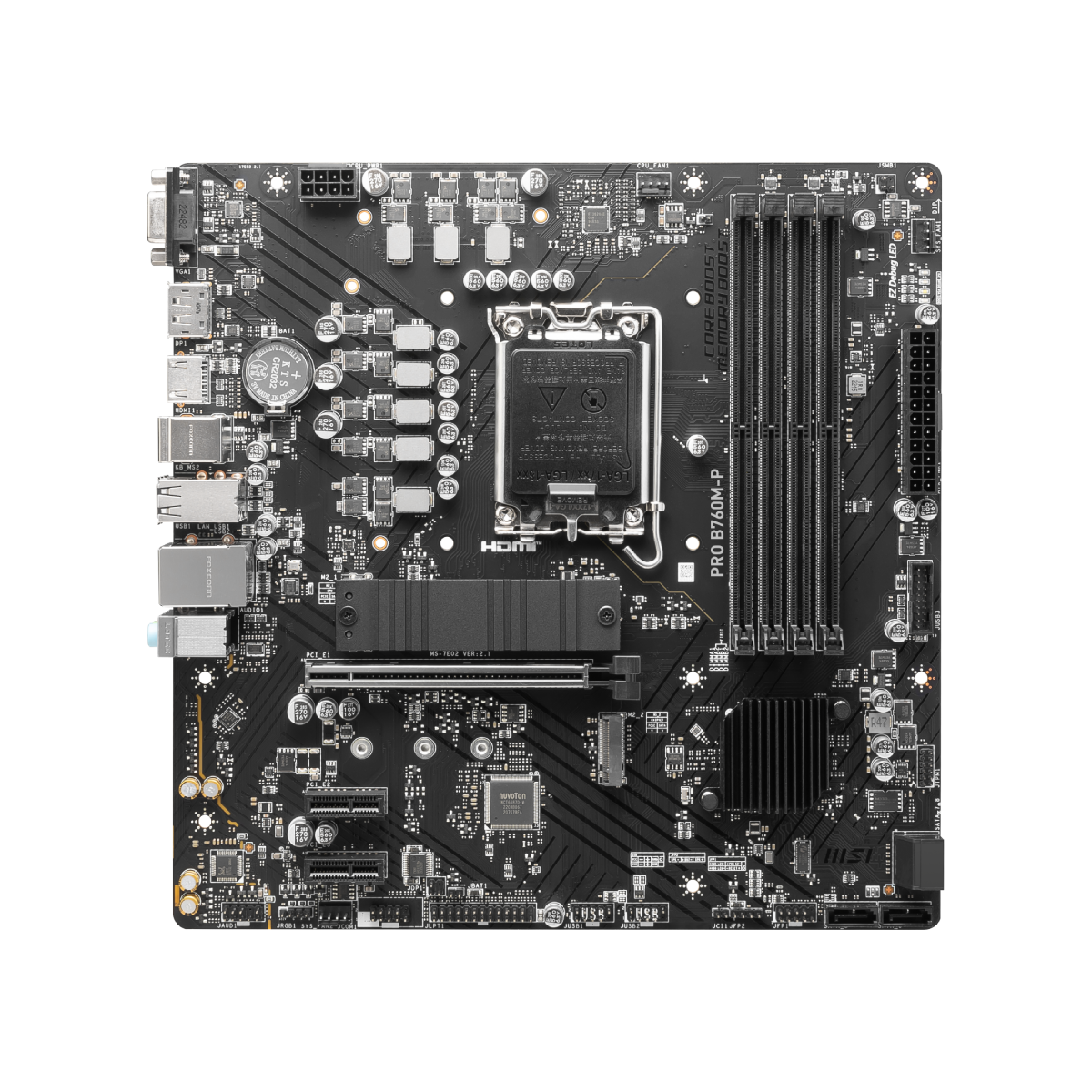

MSI PRO B760M-P | Placa Base


to see prices

fecha de entrega

Garantizar

3 Year Warranty

Free Package

  • LGA 1700
  • Intel B760
  • mATX

PRO B760M-P

Características:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Chipset INTEL B760
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory

4x DDR5, Maximum Memory Capacity 256GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

  • 1DPC 1R Max speed up to 6800+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics
  • 1x HDMI™ (Support HDMI™ 1.4, maximum resolution of 4K 30Hz*)
  • 1x DisplayPort (Support DP 1.4, maximum resolution of 4K 60Hz*)
  • 1x D-Sub (Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz)

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 1x PCI-E x16 slot (Qty)
  • 2x PCI-E x1 slot (Qty)
    • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
    • PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage
  • 2x M.2 (Qty)
    • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G (Qty)

* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 1x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 10Gbps Type C (Rear)
LAN Realtek® RTL8111H Gigabit LAN
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Printer Port (JLPT)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
LED FEATURE 4x EZ Debug LED

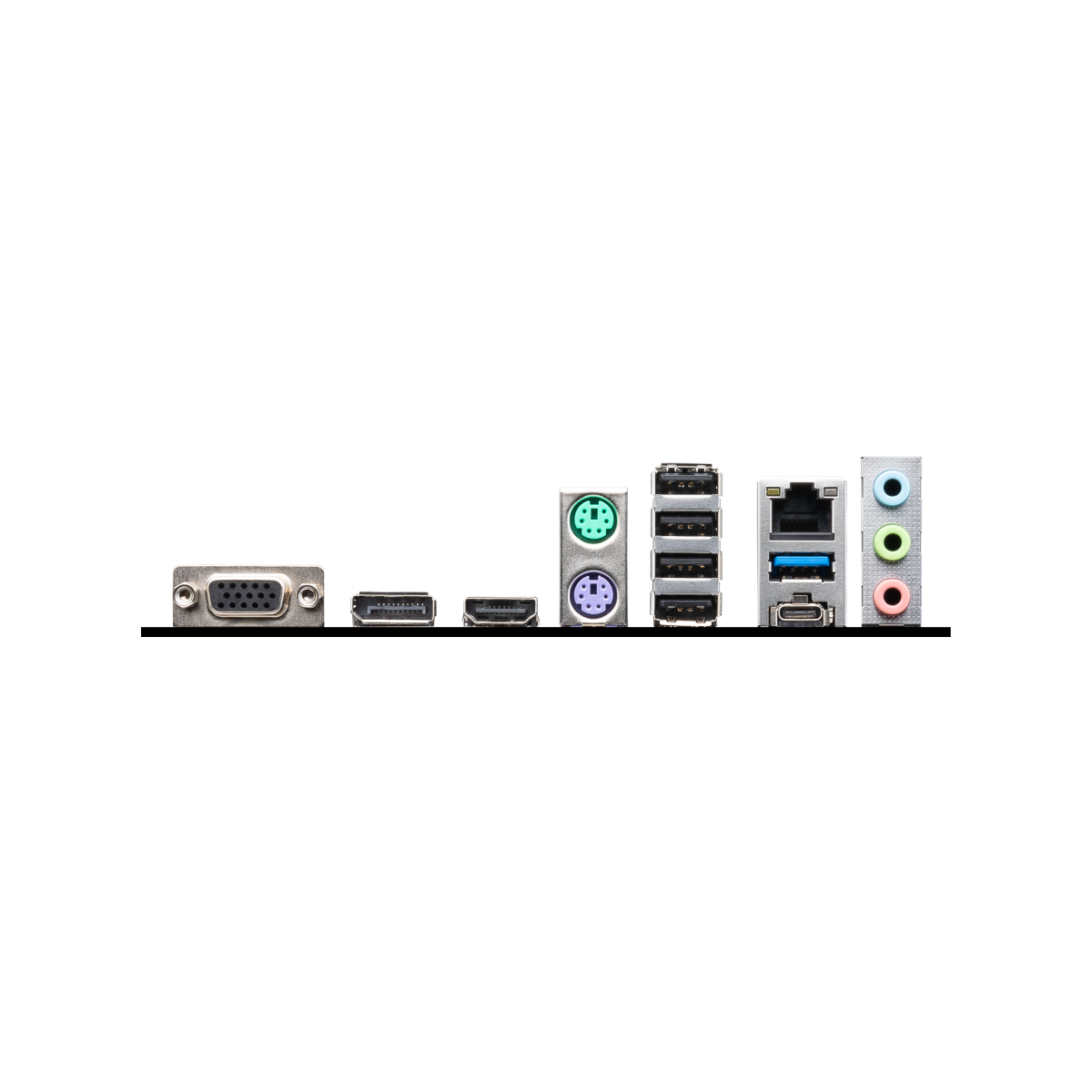

BACK PANEL PORTS
  1. VGA
  2. DisplayPort
  3. HDMI™
  4. Keyboard / Mouse
  5. USB 2.0
  6. LAN port
  7. Audio Connectors
  8. USB 3.2 Gen 1 5Gbps (Type-A)
  9. USB 3.2 Gen 2 10Gbps (Type-C)
OPERATING SYSTEM Support for Windows® 11 64-bit
Windows® 10 64-bit
BOX CONTENT
PCB Info mATX
243.84mmx243.84mm
