MSI España  |  SKU: 911-7E61-001

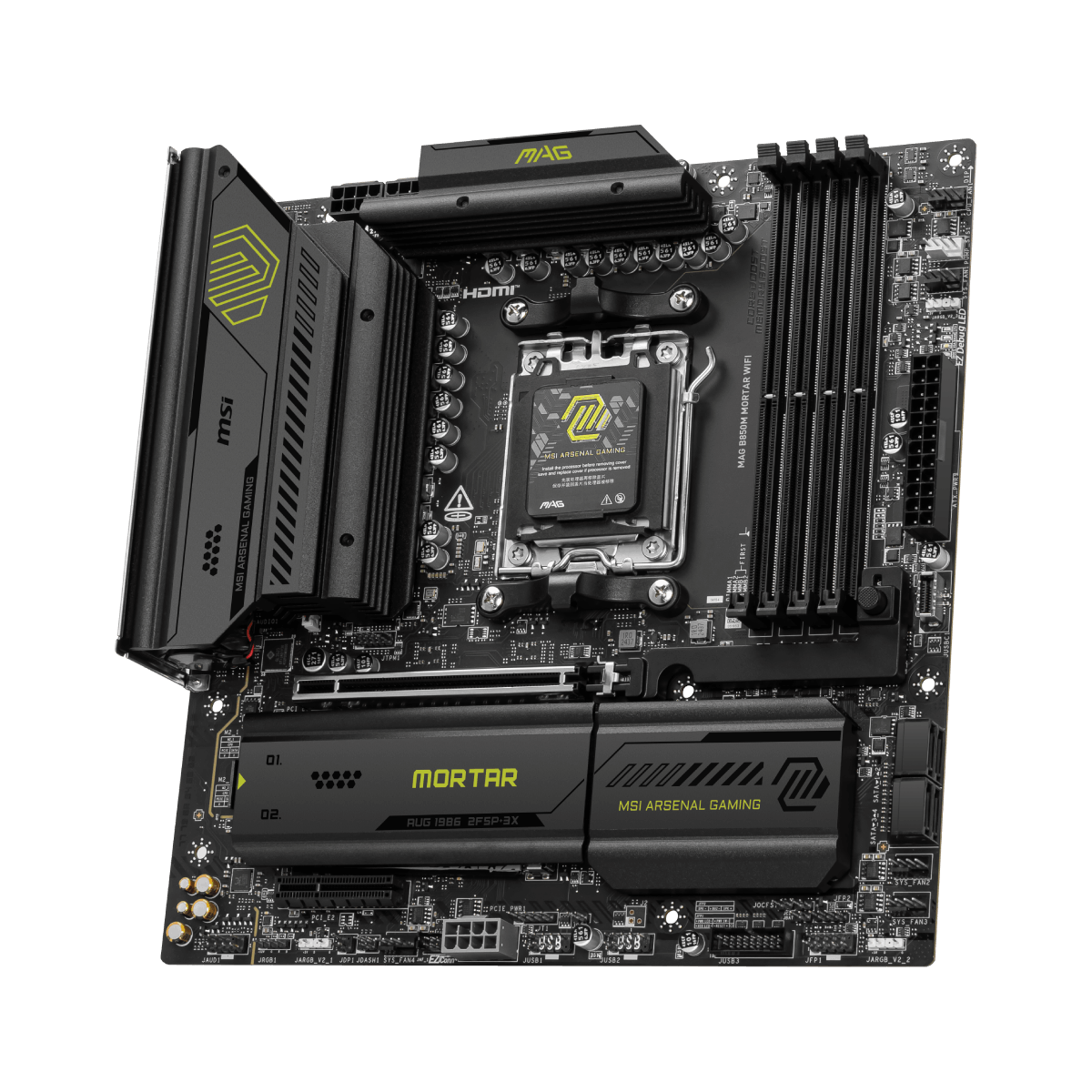

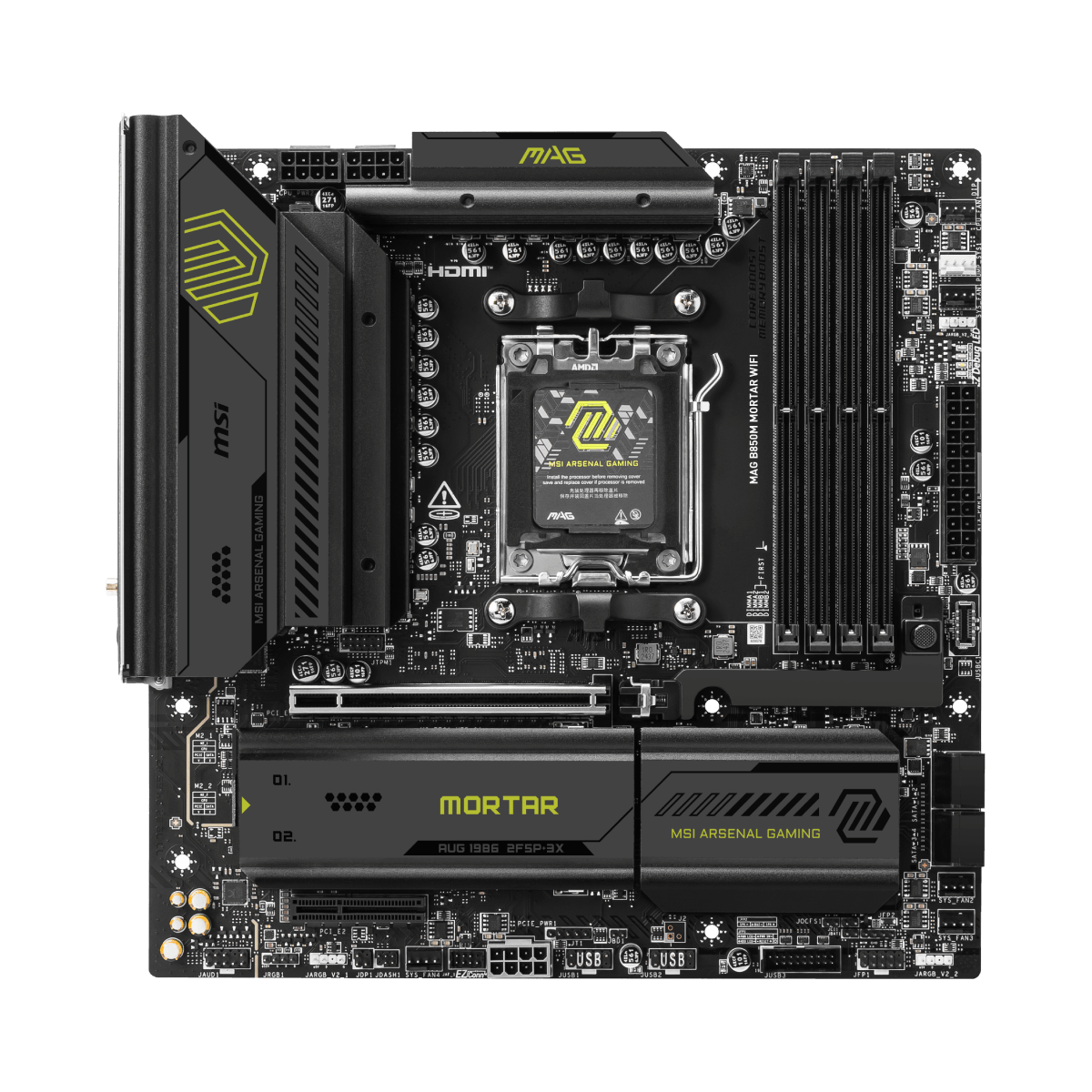

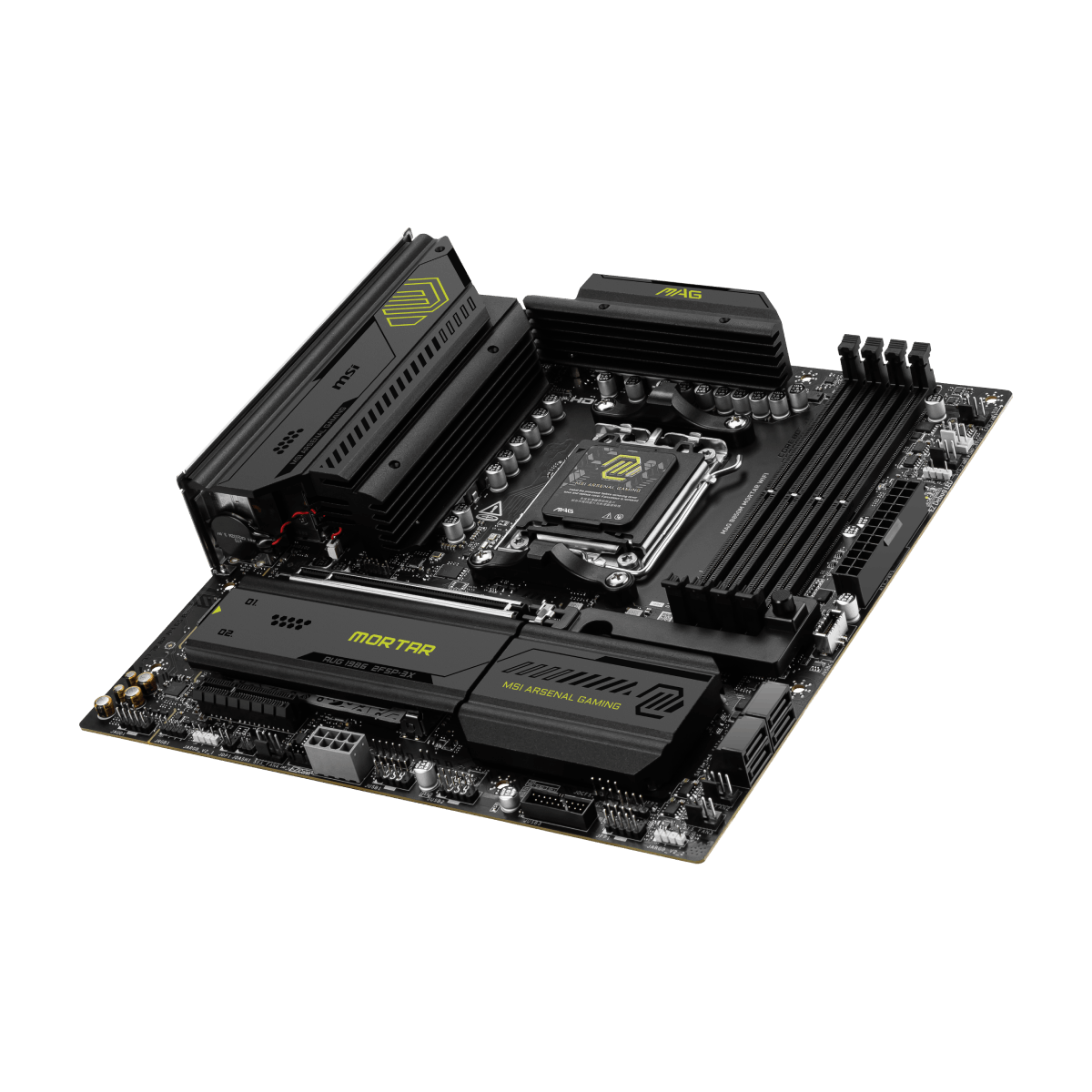

MSI MAG B850M MORTAR WIFI | Placa Base


to see prices

fecha de entrega

Garantizar

3 Year Warranty

Free Package

  • AM5
  • AMD B850
  • mATX

MAG B850M MORTAR WIFI

Características:

  • Compatible con procesadores de escritorio AMD Ryzen™ Serie 9000 / 8000 / 7000
  • Compatible con memoria DDR5, canal dual DDR5 8200+ MT/s (OC)
  • Rendimiento ultra: Sistema de alimentación Duet Rail de 12+2+1 fases, conectores de alimentación de CPU duales de 8 pines, Core Boost, Memory Boost, PCB de 8 capas fabricado con cobre engrosado de 2 oz
  • Frozr Guard: Disipador extendido, almohadillas térmicas MOSFET con una conductividad de 7W/mK, almohadillas térmicas adicionales para chokes y EZ M.2 Shield Frozr II, diseñados para sistemas de alto rendimiento y funcionamiento continuo
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, liberación EZ PCIe y EZ Antenna
  • Experiencia gaming ultrarrápida: Ranura PCIe 5.0, Lightning Gen 5 x4 M.2, USB Tipo-C 20G
  • LAN 5G con solución Wi-Fi 7: La solución más reciente para uso profesional y multimedia, que ofrece redes y transmisión de datos seguras, estables y de alta velocidad
  • Audio Boost 5: recompensa tus oídos con calidad de sonido de nivel estudio para una experiencia gaming inmersiva

Chipset AMD B850
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max. overclocking frequency:

  • 1DPC 1R Max speed up to 8200+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 6400+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard only have single-sided latch.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
  • 1x HDMI™
    • Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 1x PCI-E x16 slot (Qty)
  • 1x PCI-E x4 slot
    • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E1 slot
    • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio
  • Realtek® ALC4080 Codec
  • 7.1-Channel USB High Performance Audio
  • Supports up to 32-bit/384kHz playback on front panel
  • Supports S/PDIF output
Storage
  • 3x M.2 (Qty)
    • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
  • 4x SATA 6G (Qty)
  • M2_1 slot
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
  • M2_2 slot
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
  • M2_3 slot
  • Supports up to PCIe 4.0 x2

** Please refer to the manual for M.2 SSD heatsink restrictions
Multi-GPU AMD MULTI-GPU Support
RAID
  • Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
USB
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 3x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
  • 1x USB 10Gbps Type C (Front)
  • 1x USB 20Gbps Type C (Rear)
LAN Realtek® 8126-VB 5G LAN
Internal IO
  • 1x Power Connector (ATX_PWR)
  • 2x Power Connector (CPU_PWR)
  • 1x Power Connector (PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x PUMP_SYS Fan
  • 4x System Fan
  • 1x ARGB+FAN Header (JAF_1)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector (JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector (JRGB)
  • 1x TPM pin header (Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
  • Wi-Fi 7 Solution
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED
1x EZ Memory Detection LED

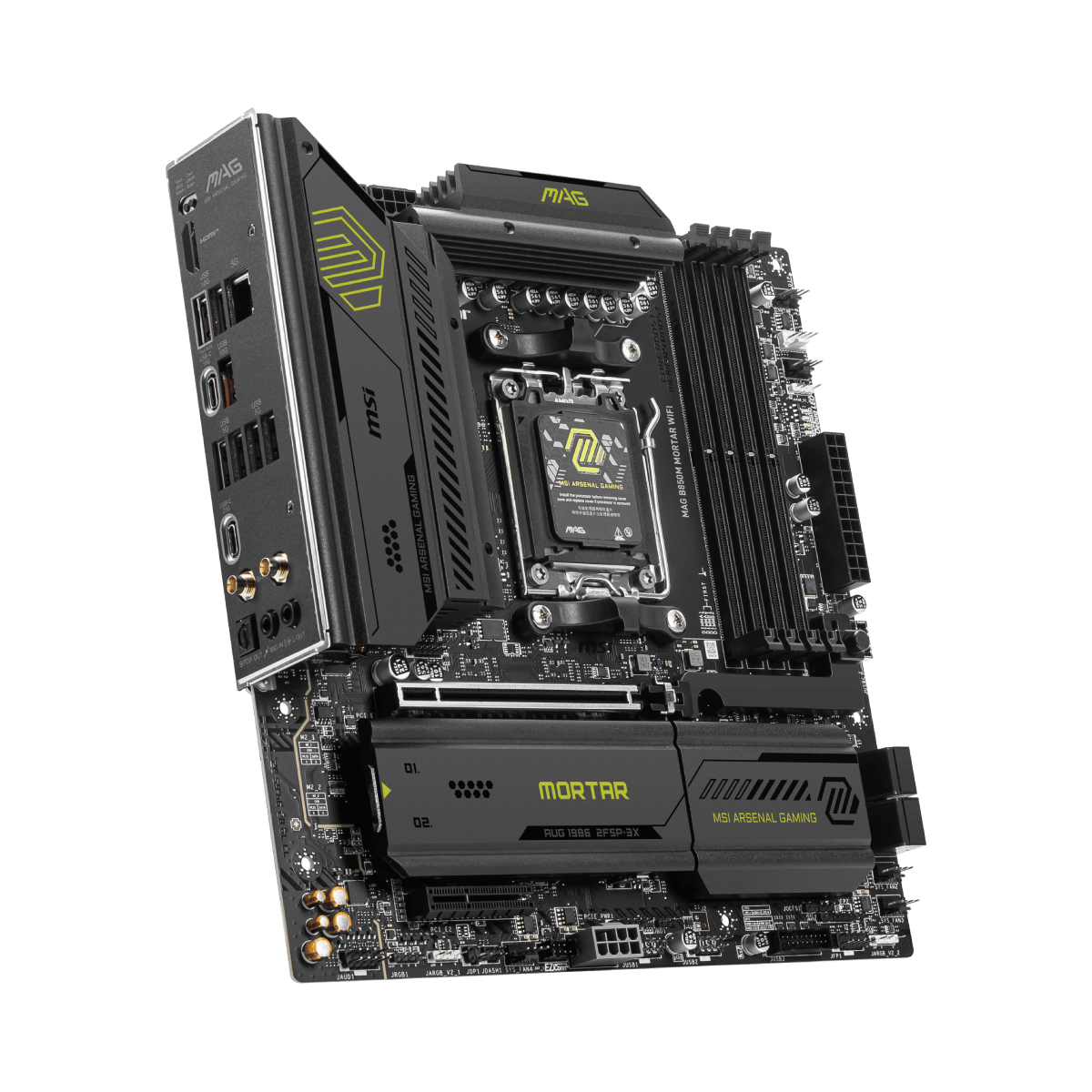

BACK PANEL PORTS
  1. Clear CMOS Button
  2. 5G LAN
  3. USB 10Gbps Type-A
  4. USB 5Gbps Type-A
  5. Audio Connectors
  6. Flash BIOS Button
  7. HDMI™
  8. USB 10Gbps Type-A
  9. USB 10Gbps Type-C
  10. USB 20Gbps Type-C
  11. Wi-Fi / Bluetooth
  12. Optical S/PDIF Out
OPERATING SYSTEM Support for Windows® 11 64-bit

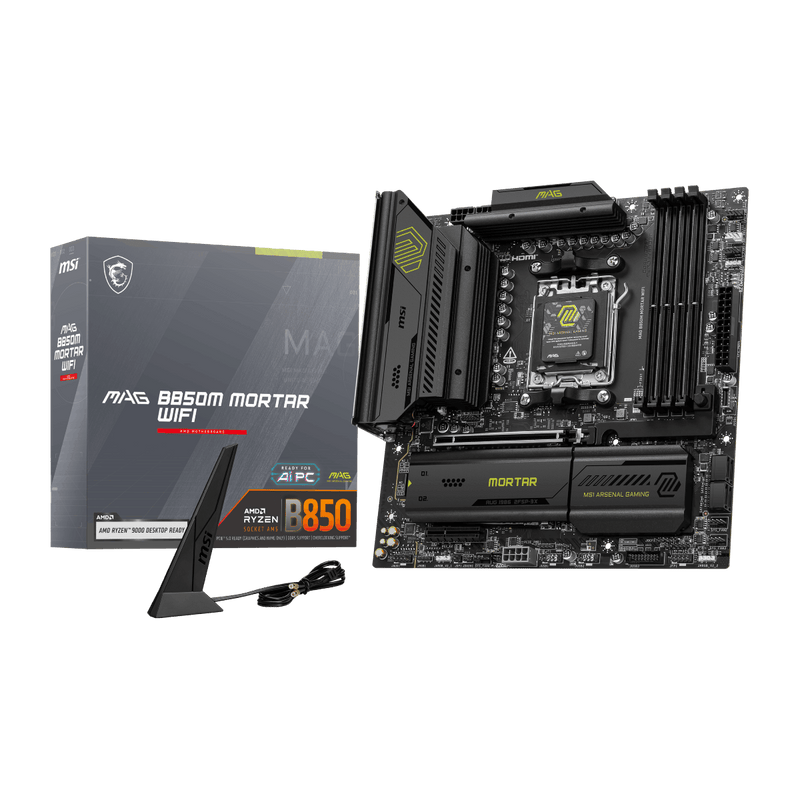

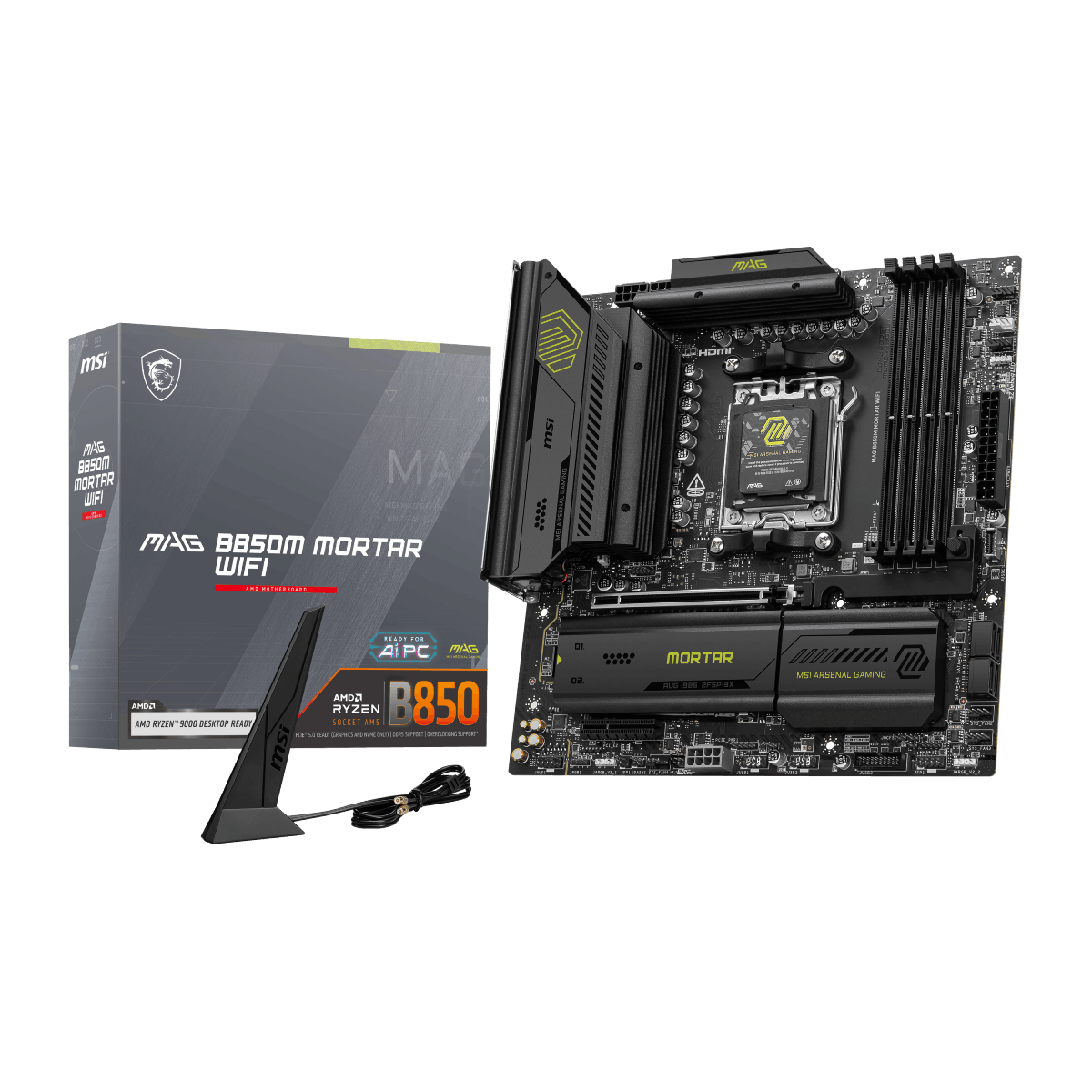

BOX CONTENT
PCB Info mATX
243.84mmx243.84mm
