MSI España  |  SKU: 911-7E41-002

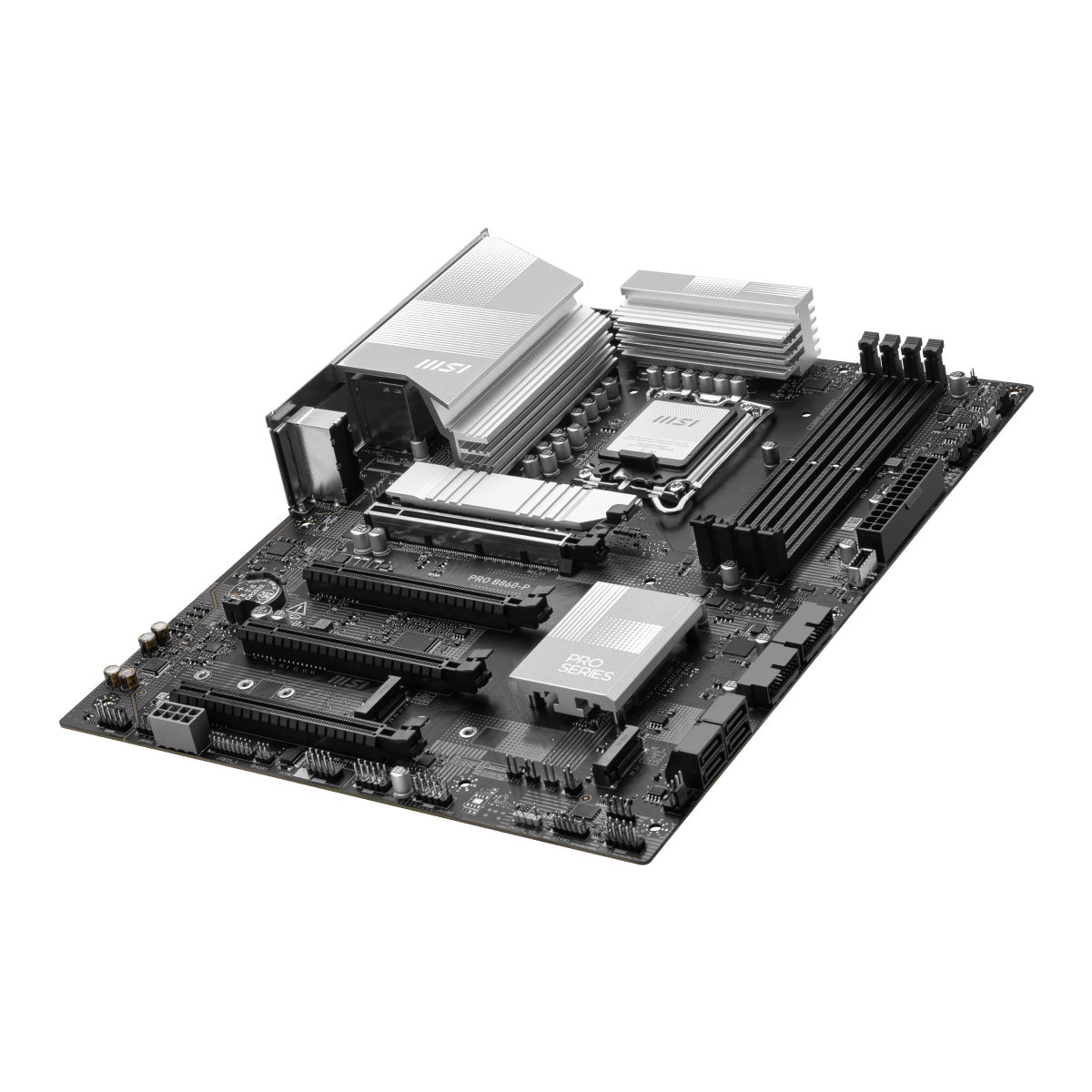

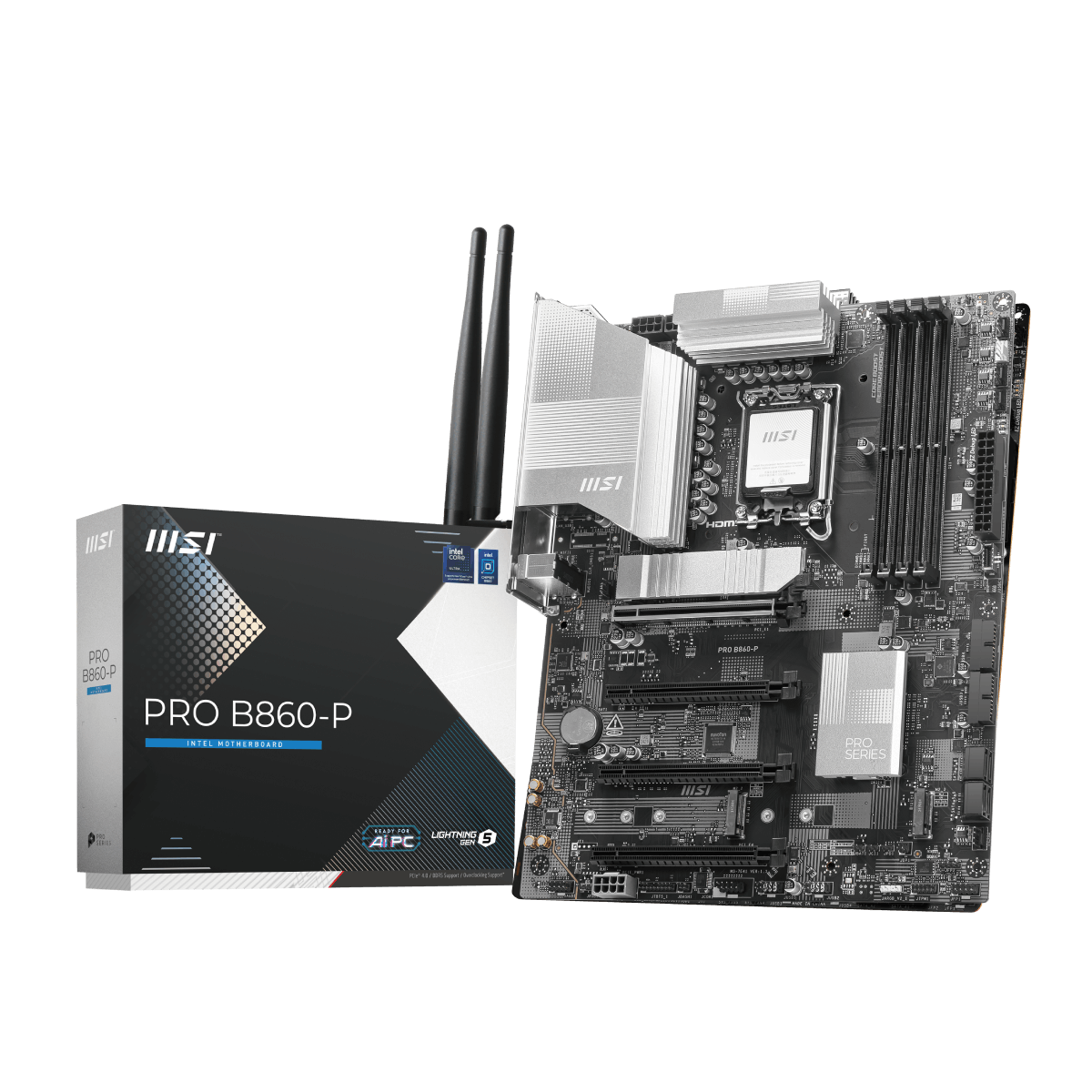

MSI PRO B860-P | Placa Base


to see prices

fecha de entrega

Garantizar

3 Year Warranty

Free Package

  • LGA 1851
  • Intel B860
  • ATX

PRO B860-P

Características:

  • Compatibilidad con procesadores Intel® Core™ Ultra (Serie 2) para socket LGA 1851
  • Soporte para memoria DDR5, canal dual DDR5 8800+ MT/s (OC)
  • Ultra Rendimiento: Sistema de alimentación Duet Rail 12+1+1+1 con P-PAK, conectores de alimentación para CPU de 8+4 pines, Core Boost, Memory Boost y PCB de 6 capas de grado servidor
  • Frozr Guard: Disipador extendido, almohadillas térmicas MOSFET con clasificación de 7W/mK, almohadillas térmicas adicionales para chokes y EZ M.2 Shield Frozr II, diseñados para un sistema de alto rendimiento y experiencia continua
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II y EZ Antenna
  • Experiencia de juego ultrarrápida: ranura PCIe 5.0 y Lightning Gen 5 x4 M.2
  • Puerto Thunderbolt™ 4 y LAN 5G: la última solución para uso profesional y multimedia, ofreciendo transmisión de datos y redes seguras, estables y de alta velocidad
  • Audio Boost: Disfruta de calidad de sonido de nivel de estudio para la experiencia de juego más inmersiva

Chipset INTEL B860
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

  • 1DPC 1R Max speed up to 8800+ MT/s
  • 1DPC 2R Max speed up to 7200+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

The DIMM slots on this motherboard only have single-sided latches.
Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
  • 1x HDMI™
    • Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
  • 1x DisplayPort
    • Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
  • 1x Type-C DisplayPort
    • Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 4x PCI-E x16 slot (Qty)
    • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
    • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    • PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage
  • 3x M.2 (Qty)
    • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
  • 4x SATA 6G (Qty)

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Onboard Thunderbolt
  • 1x Thunderbolt4 ports (Rear)
    • Supports up to 40Gbps transfer rate with Thunderbolt devices
    • Supports up to 20Gbps transfer rate with USB4 devices
    • Supports up to 10Gbps transfer rate with USB 3.2 devices
    • Supports up to 5V/3A,15W power charging
    • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
    • Supports up to 8K display
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 4x USB 5Gbps Type A (Front)
  • 2x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Front)
LAN Realtek® 8126 5Gbps LAN
Internal IO
  • 1x Thunderbolt5 card connector(JTBT5, support RTD3)
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Power Connector(PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x PUMP_SYS Fan
  • 4x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 4x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  1. DisplayPort
  2. USB 2.0
  3. USB 5Gbps Type-A
  4. 5G LAN
  5. Audio Connectors
  6. HDMI™
  7. Thunderbolt™ 4 40Gbps (Type-C)
  8. USB 10Gbps Type-A
  9. Clear CMOS Button
OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
PCB Info ATX
243.84mmx304.8mm
