MSI España  |  SKU: 911-7D91-046

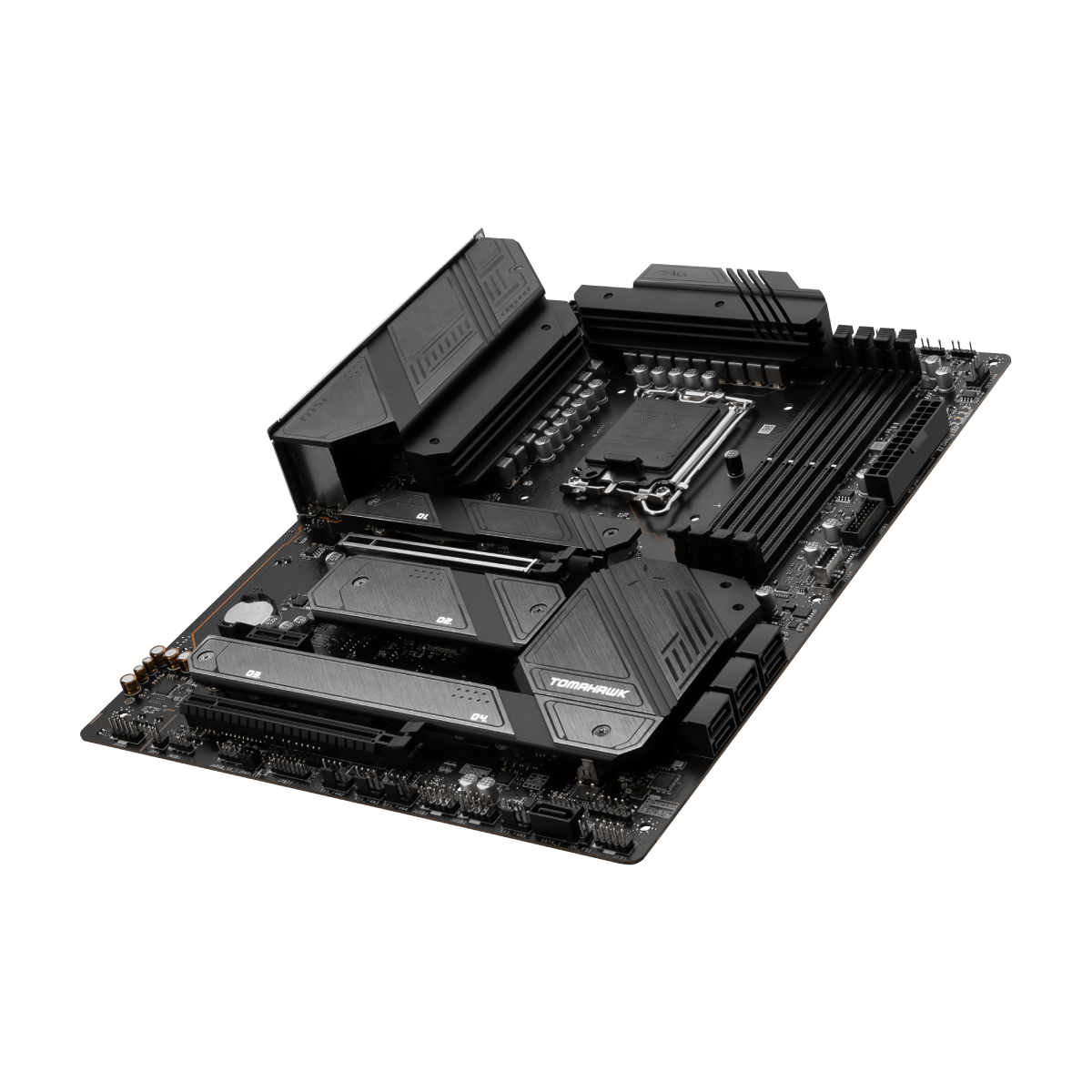

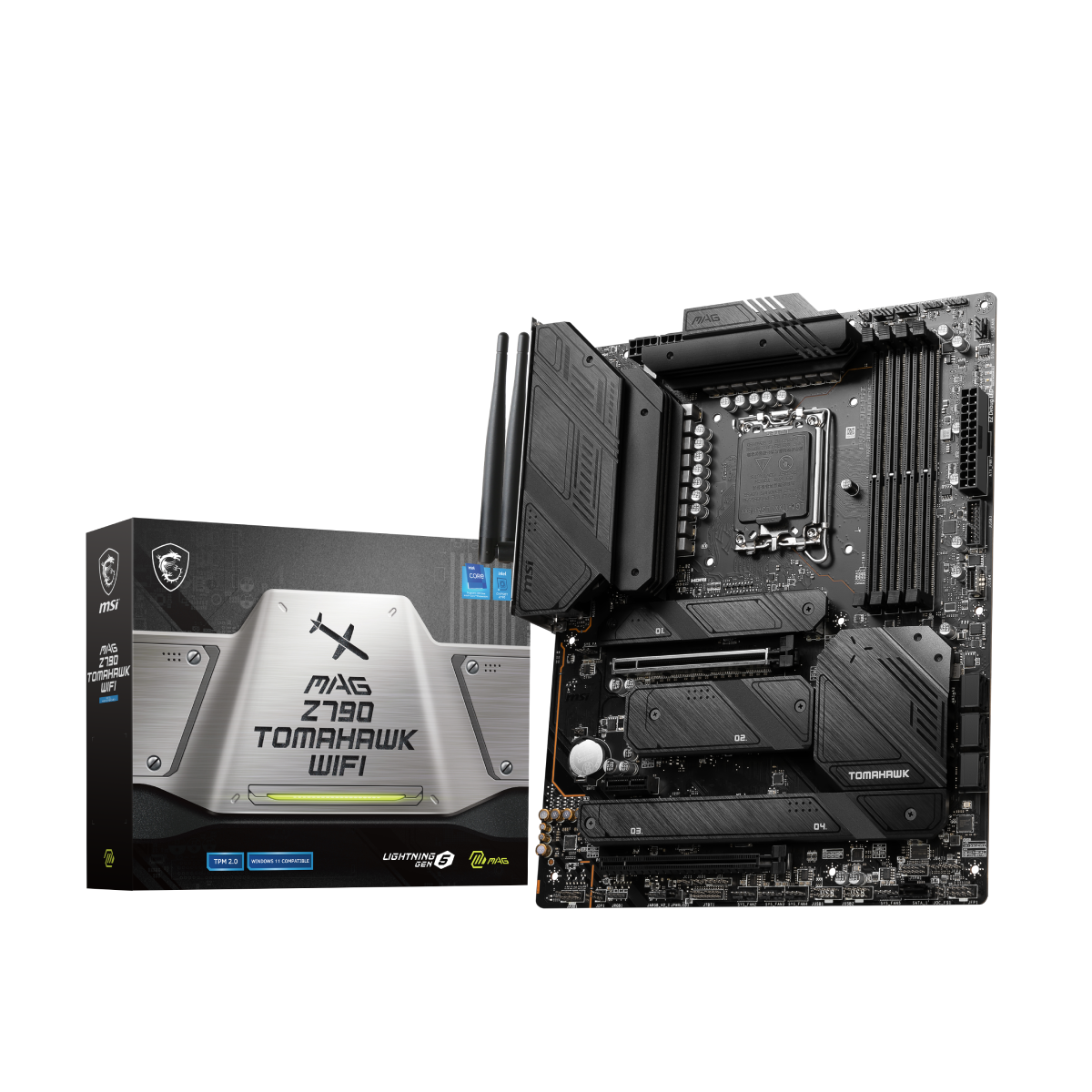

MSI MAG Z790 TOMAHAWK WIFI | Placa Base


to see prices

fecha de entrega

Garantizar

3 Year Warranty

Free Package

  • LGA 1700
  • Intel Z790
  • ATX

MAG Z790 TOMAHAWK WIFI

Características:

  • Soporta procesadores Intel® Core™ de 14.ª/ 13.ª/ 12.ª generación, Intel® Pentium® Gold y Celeron® para socket LGA 1700
  • Soporta memoria DDR5, hasta 7200+(OC) MHz
  • Diseño de alimentación mejorado: Arreglo de alimentación espejada de 16+1+1, conectores de alimentación de CPU de doble 8 pines, Core Boost, Memory Boost
  • Experiencia de juego rápida como el rayo: Ranura PCIe 5.0, M.2 Lightning Gen 4 x4, USB 3.2 Gen 2x2
  • Solución térmica premium: Diseño de disipador extendido y M.2 Shield Frozr construidos para sistemas de alto rendimiento y trabajo sin parar
  • AUDIO BOOST 5: Recompensa tus oídos con una calidad de sonido de nivel profesional para la experiencia de juego más inmersiva
  • PCB de alta calidad: PCB de 6 capas hecho con cobre de 2 onzas y material de nivel de servidor

Chipset INTEL Z790
CPU
  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors
  • Intel® Pentium® Gold and Celeron® Processors
Memory

4x DDR5, Maximum Memory Capacity 256GB

Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

  • 1DPC 1R Max speed up to 7200+ MHz
  • 1DPC 2R Max speed up to 6600+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics
  • 1x HDMI™ (Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*)
  • 1x DisplayPort (Support DP 1.4, maximum resolution of 8K 60Hz*)

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage
  • 4x M.2 (Qty)
    • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
    • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • 7x SATA 6G (Qty)
Slot
  • 2x PCI-E x16 slot (Qty)
    • Supports x16/x4
  • 1x PCI-E x1 slot (Qty)
    • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
LAN Intel® 2.5Gbps LAN
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

* SATA_A1_A2 do not support RAID function.
USB
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 4x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
  • 1x USB 10Gbps Type C (Front)
  • 1x USB 20Gbps Type C (Rear)
WIRELESS LAN & BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 6x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x TBT connector (JTBT, supports RTD3)
  • 1x Tuning Controller connector(JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
LED FEATURE 4x EZ Debug LED

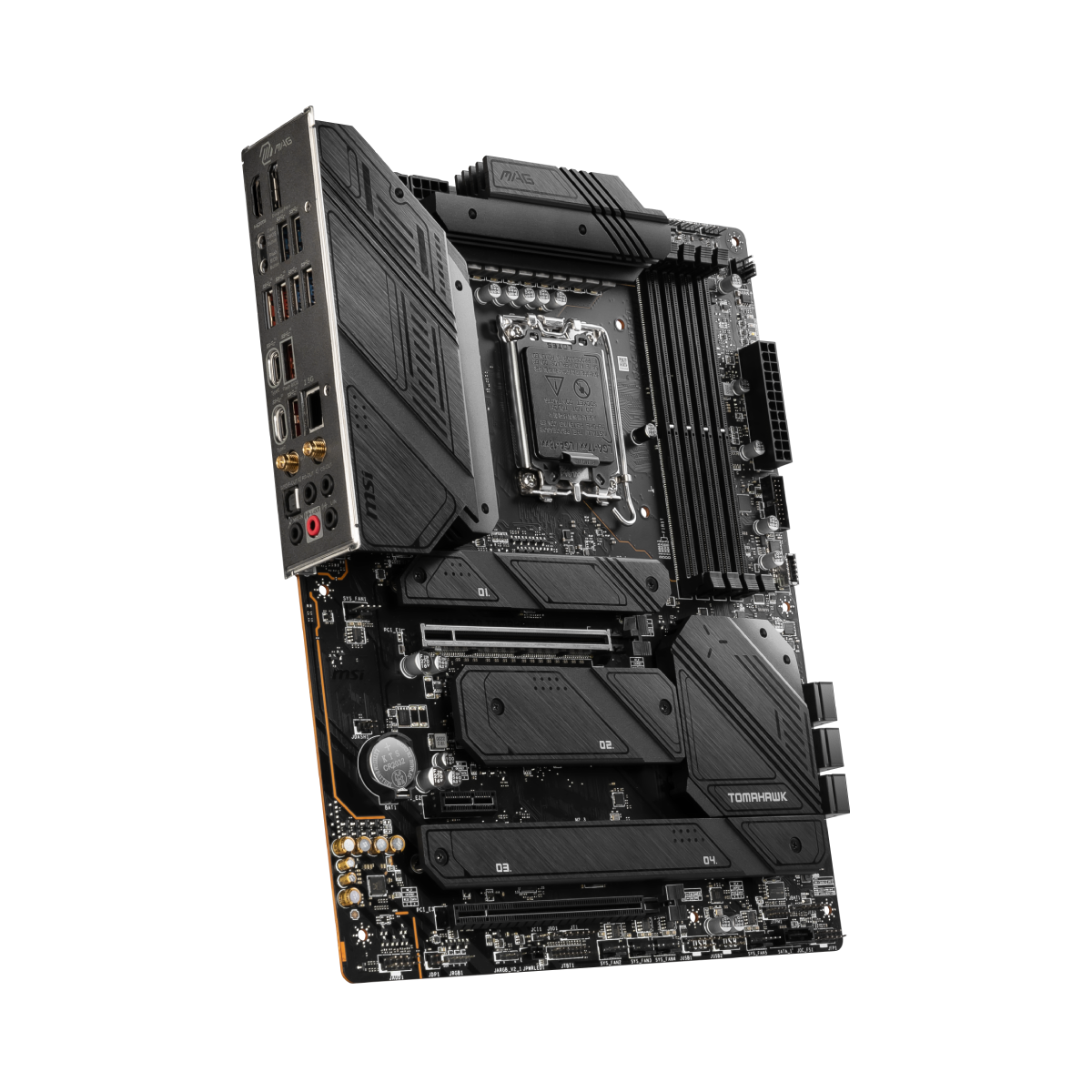

BACK PANEL PORTS
  1. DisplayPort 1.4
  2. USB 3.2 Gen 1 5Gbps Type-A
  3. USB 3.2 Gen 2 10Gbps Type-A
  4. 2.5G LAN Port,
  5. HD Audio Connectors
  6. HDMI™ 2.1 Port
  7. Clear CMOS Button
  8. Flash BIOS Button
  9. USB 3.2 Gen 2 10Gbps Type-C
  10. USB 3.2 Gen 2x2 20Gbps Type-C
  11. Wi-Fi / Bluetooth Antenna
  12. Optical S/PDIF OUT
OPERATING SYSTEM Support for Windows® 11 64-bit
Windows® 10 64-bit
PCB Info ATX
243.84mmx304.8mm
