MSI France  |  SKU: 936-B0A921-226

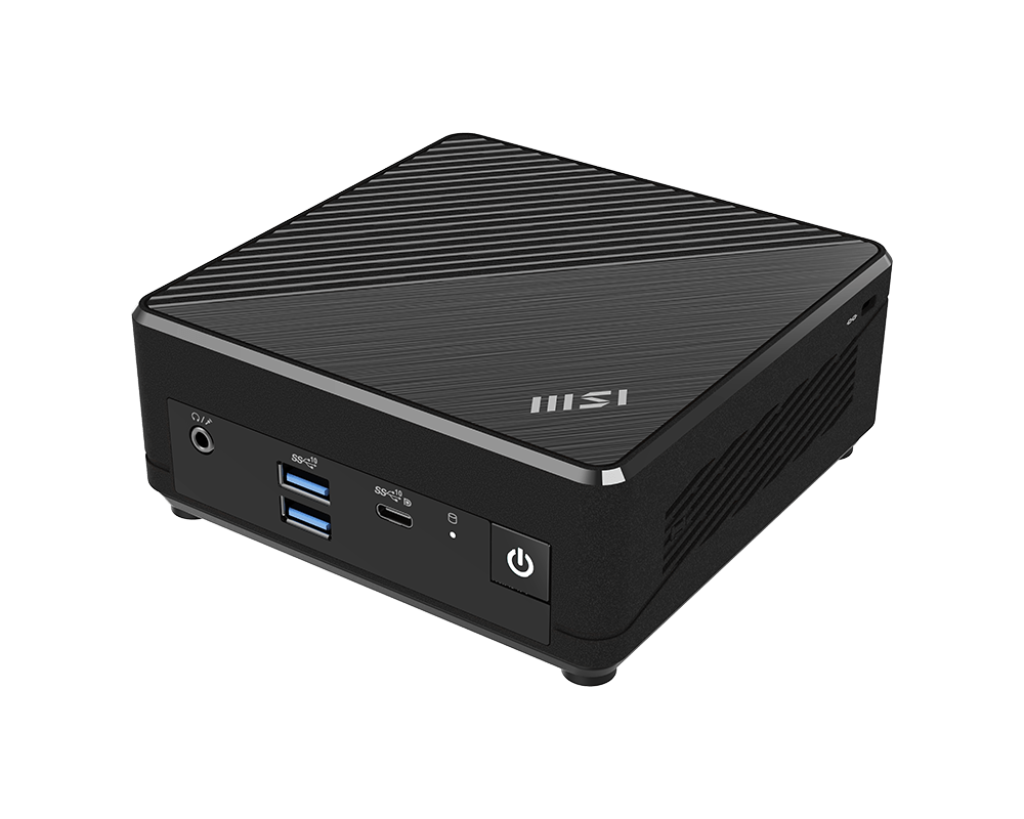

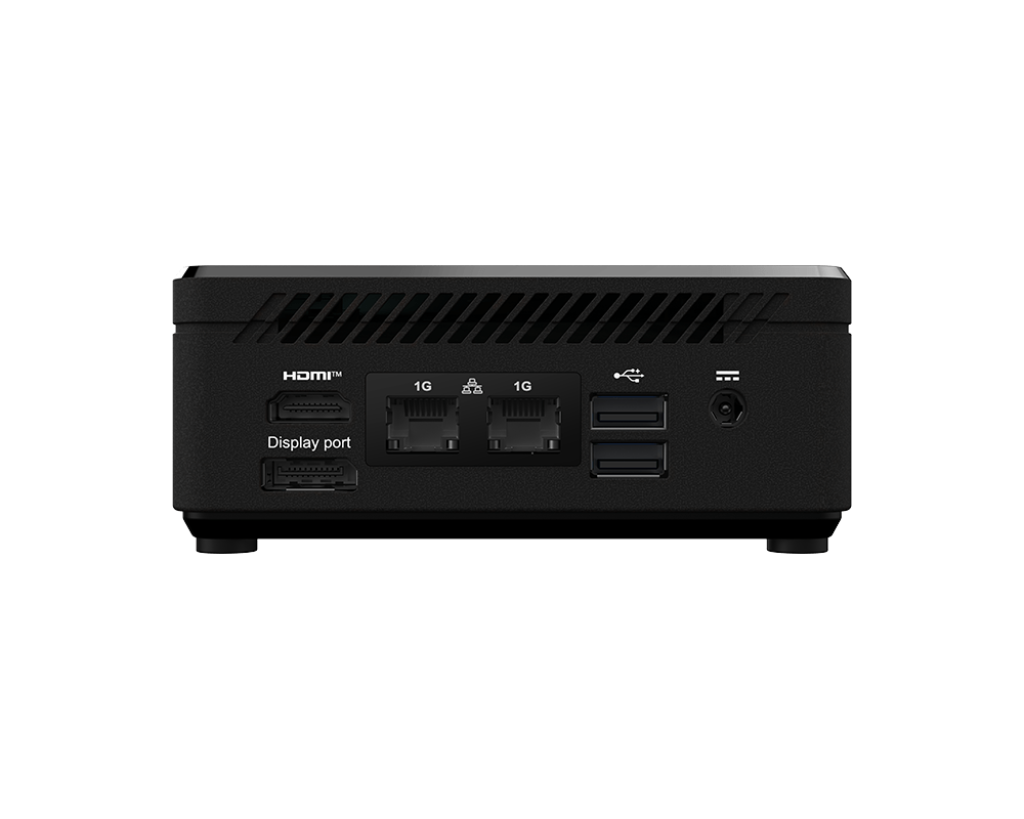

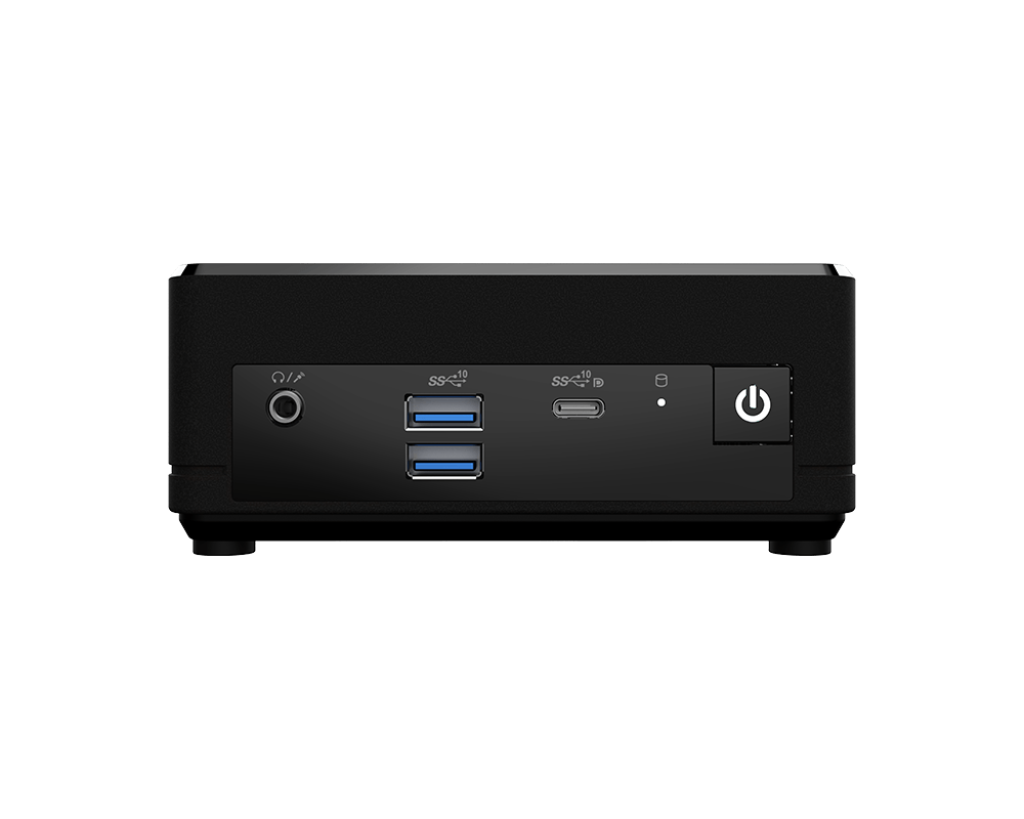

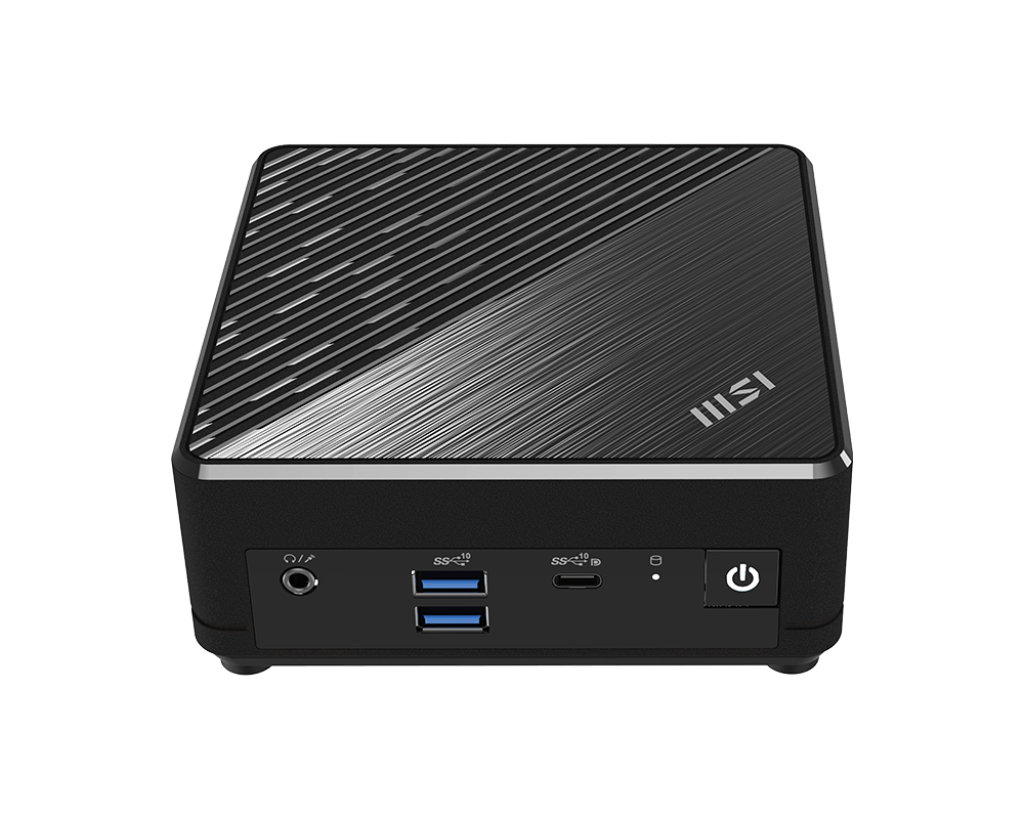

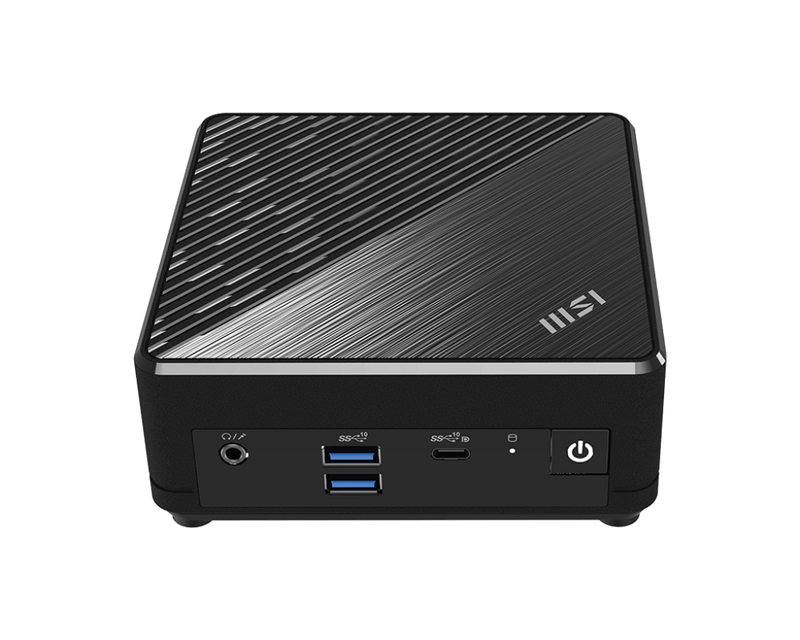

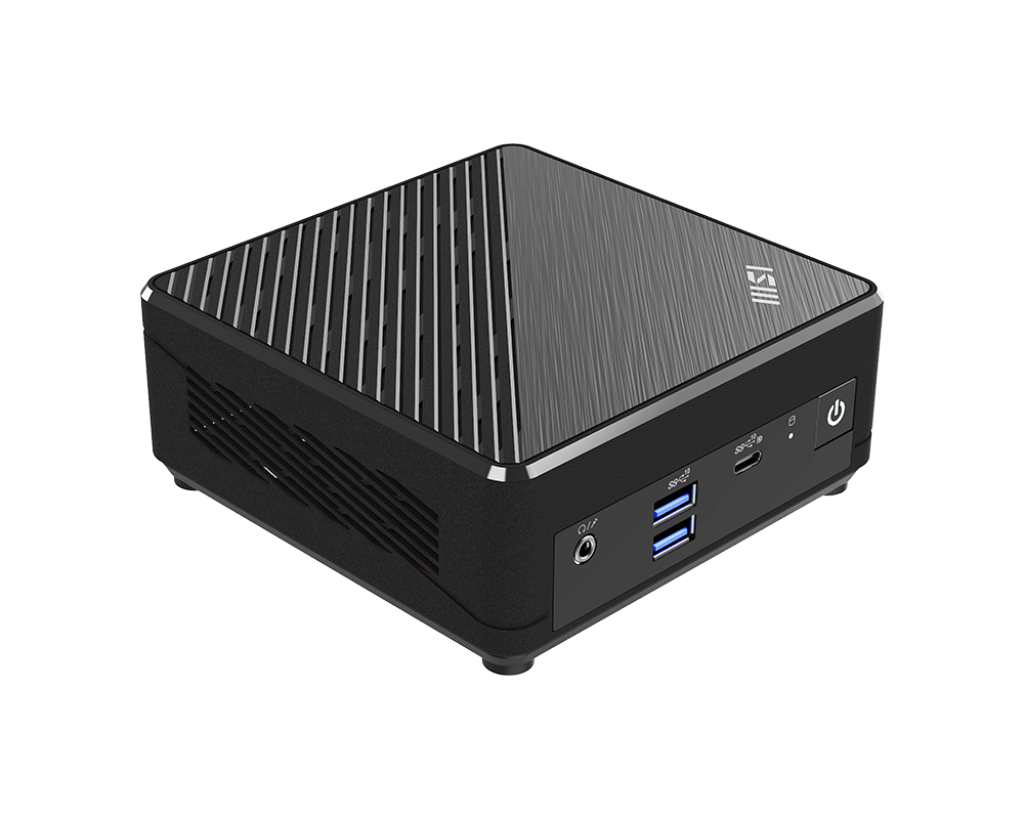

PC barebone | Cubi N ADL S-226BEU


to see prices

La date de livraison

Garantie

2 Year Warranty

Free Package

  • Intel® Processor N200
  • Processeur Intel Alder Lake
  • Support de la résolution 4K UHD
  • Supporte la connexion simultanée de trois écrans externes
  • Deux connecteurs LAN pour une connexion internet et intranet
  • Ports USB 3.2 Gen2 pour des transferts de données rapides et fluides
  • Module dTPM 2.0 pour une bonne sécurité des données
  • Support de la fixation VESA
  • Support de MSI Cloud Center et MSI Center

  • Fiche technique
OS N/A
Operating Systems N/A
Part No 936-B0A921-226
MKT Name Cubi N ADL S
MKT Spec Cubi N ADL S-226BEU
Color ID1/Black-Black-Black
SKU Number N/A
Chipsets Soc
Memory Size N/A
Memory Type N/A
Memory Speed N/A
Module Type SO-DIMM
Memory Slot(Total) 1
Memory Slot(Free) 1
Max Capacity Max 16GB
CPU Number Intel Processor N200
CPU Clock 1GHz
CPU Cores 4
TDP 6W
Max Turbo Frequency up to 3.70 GHz
Cache 6 MB
Threads 4
Audio Chipset Realtek ALC256
Audio Type 2.1 Channel HD Audio
SSD Interface N/A
SSD Form Factor N/A
SSD Config N/A
SSD Size N/A
mSATA slots(Free) 0
M.2 slots(Total) 1
M.2 slots(Free) 1
2.5" Drive Bays(Total) N/A
2.5" Drive Bays (Free) 0
3.5" Drive Bays(Free) 0
LAN 2x Realtek RTL8111H
WLAN Version 802.11ac 1x1+BT
BT Version 5
USB 3.2 Gen 2 Type C N/A
USB 3.2 Gen 2 Type A N/A
Mic-in/Headphone-out combo 1
USB 2.0 Type A (R) 2
RJ45 2
HDMI out 1x (v2.1)
DP out 1x (v1.4)
Lock type Kensington Lock
Warranty 36months
Weight (Net kg) 0.69
Weight (Gross kg) 1.54
Product Dimension (WxDxH) (mm) 124 x 124 x 53.7
Product Dimension (WxDxH) (inch) 4.88 x 4.88 x 2.11
Inside Carton Dimension (WxDxH) (mm) 205 x 220 x 94
Inside Carton Dimension (WxDxH) (inch) 8.07 x 8.66 x 3.7
Net Weight (lbs) 1.52
Gross Weight (lbs) 3.4
USB 3.2 Gen 2 (10G) Type C 1x USB 3.2 Gen 2 Type C (DisplayPort Alternate)
USB 3.2 Gen 2 (10G) Type A 2
VESA size 100 x 100 mm
Regulatory Compliance FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
AC Adaptor 1
Power Cord 1
Quick Guide 2
VESA Mount kit 1
EAN 4711377301862
