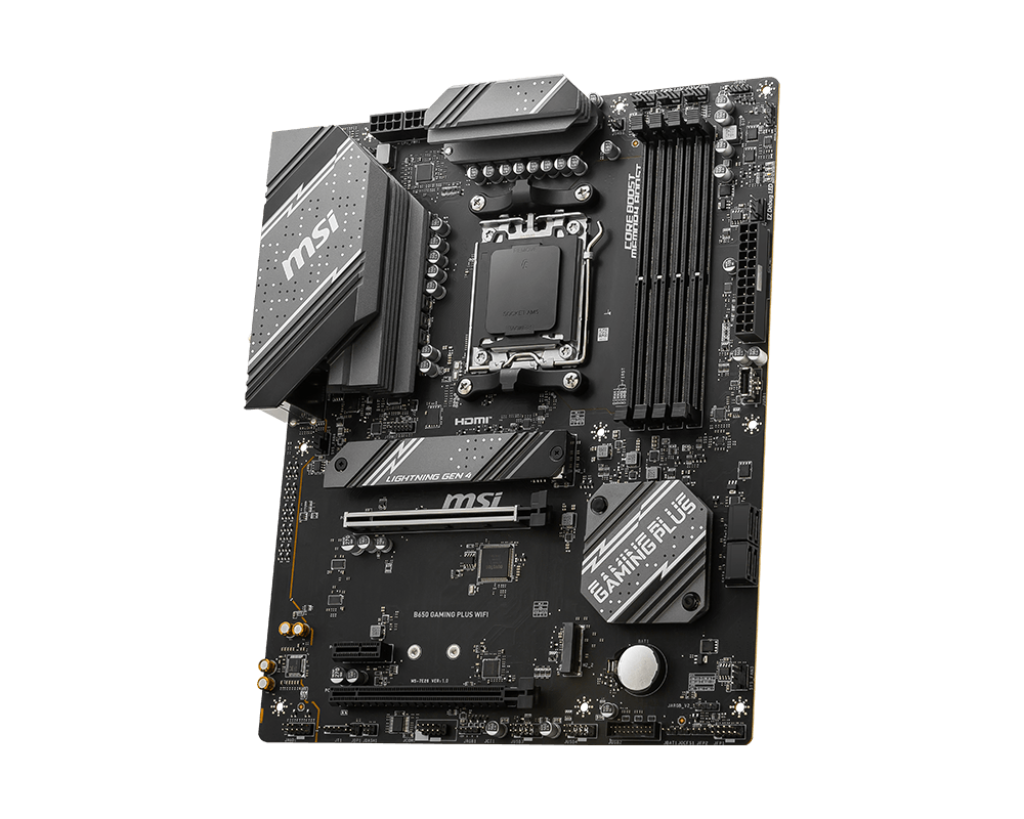

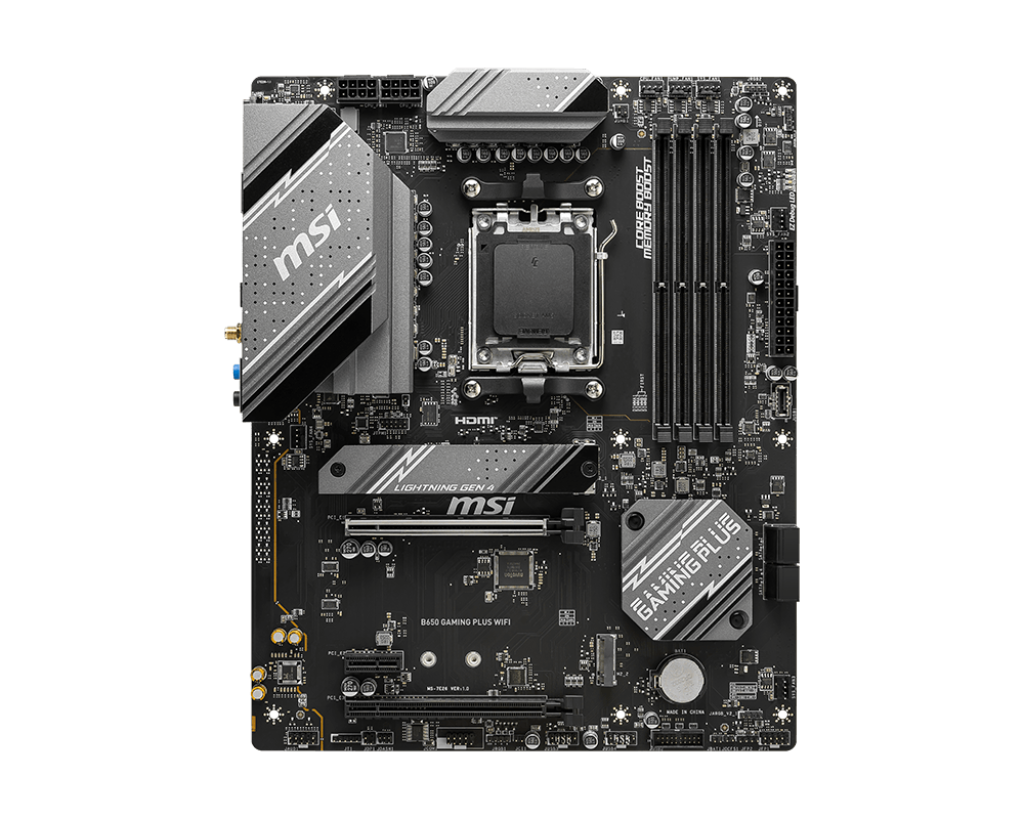

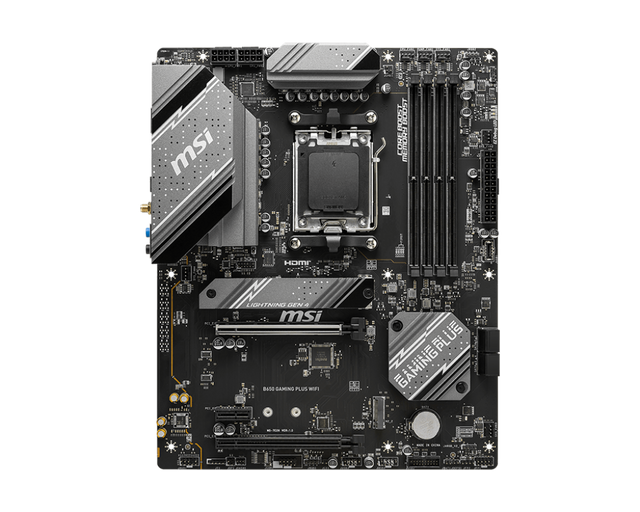

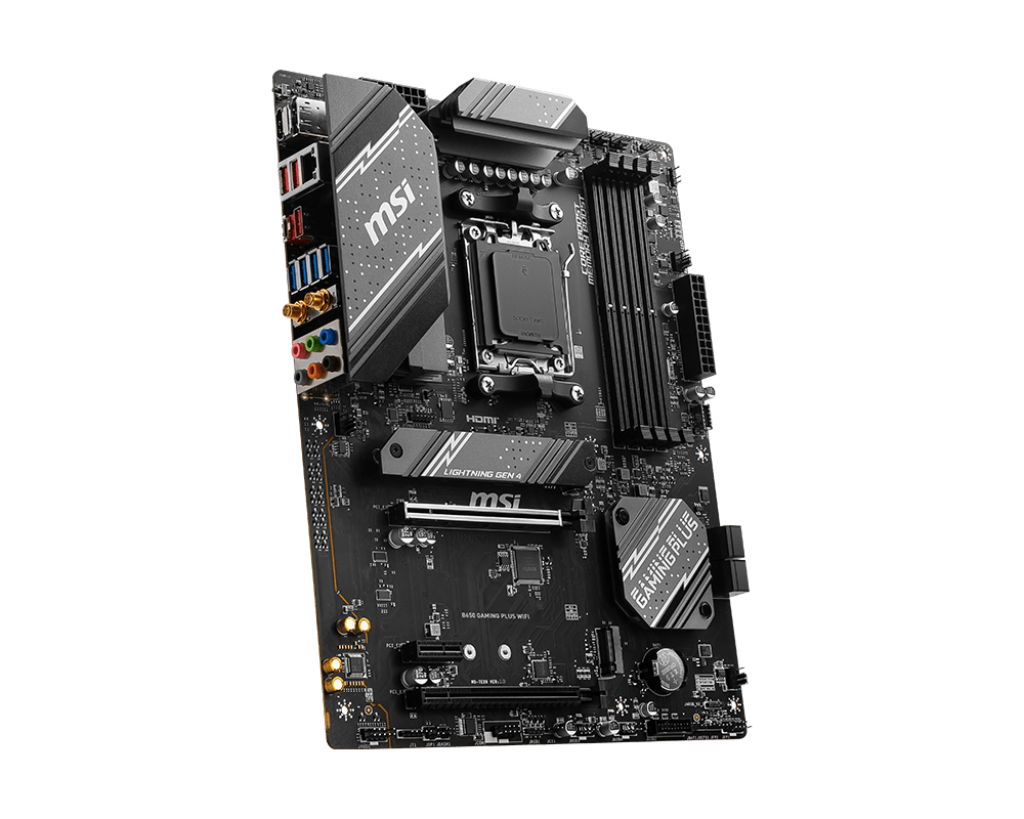

MSI Motherboard B650 GAMING PLUS WIFI
MSI Motherboard B650 GAMING PLUS WIFI
Regular price
€159,00€ EUR
Regular price
€189,00€ EUR
Sale price
€159,00€ EUR
Unit price
per
Couldn't load pickup availability
B650 GAMING PLUS WIFI
- Unterstützt AMD Ryzen™ 7000 / 8000 Desktop Prozessoren
- DDR5 Arbeitsspeicher, bis zu 7200MHz
- Erweitertes Leistungsdesign: 12+2+1 Duet-Rail-System, Dual 8-pin Stromversorgung, Core-Boost, Memory-Boost
- Premium Thermalmanagment: Erweiterter Kühlkörper, M.2 Shield-Frozr für einen kühlen SSD Betrieb
- Blitzschnelle Übertragungsstandards: PCIe 4.0, Lightning 4.0, M.2 mit M.2 Shield-Frozr
- 2,5G LAN mit Wi-Fi 6E: Verstärkte Netzwerklösung für störungsfreie Datenübertragungen
- Hochwertiges 6 Ebenen PCB mit verstärkten Kupferbahnen
- Audio Boost: Klang in Studioqualität für maximale Konzentration auf dem Schlachtfeld
| Chipset | AMD B650 |
| CPU | Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed |
| LAN | Realtek® 8125BG 2.5G LAN |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot (Qty) • Supports x16/x4 or x8/x8/x4 (For Ryzen™ 7000 Series processors) • Supports x8/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4/x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Multi-GPU | AMD MULTI-GPU Support |
| RAID | Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |

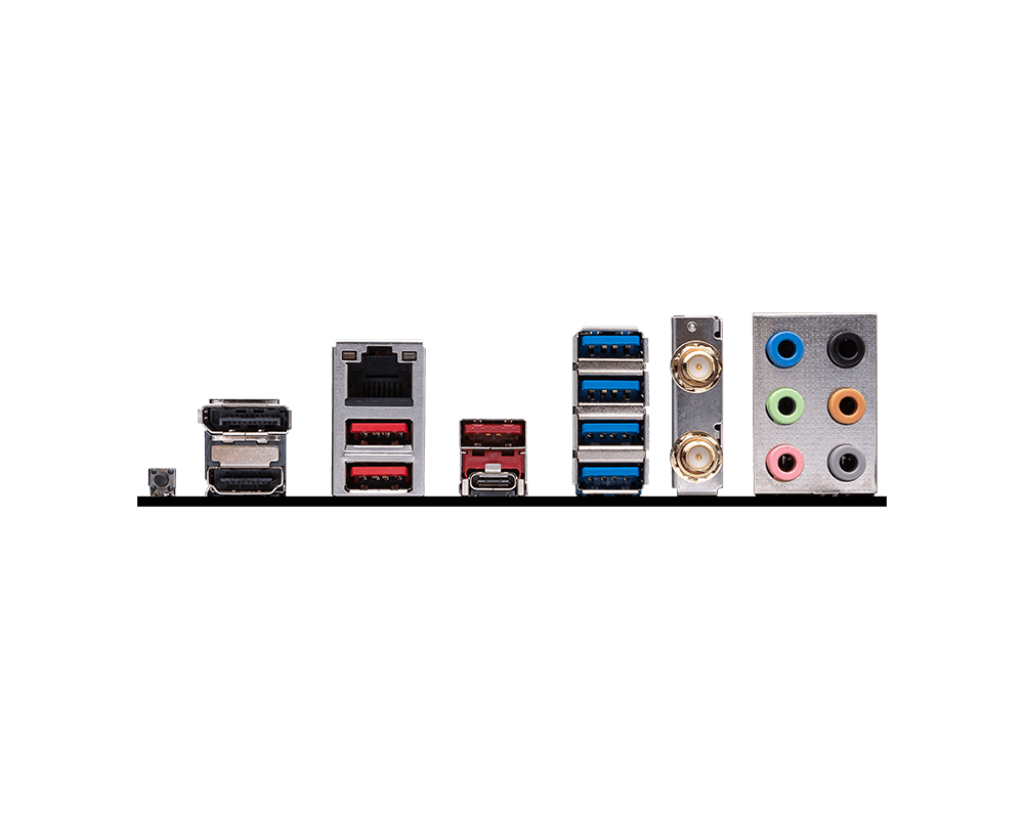

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | ATX 243.84mmx304.8mm |
| BOX CONTENT |  |
