MSI Deutschland | SKU:
936-B0A811-082

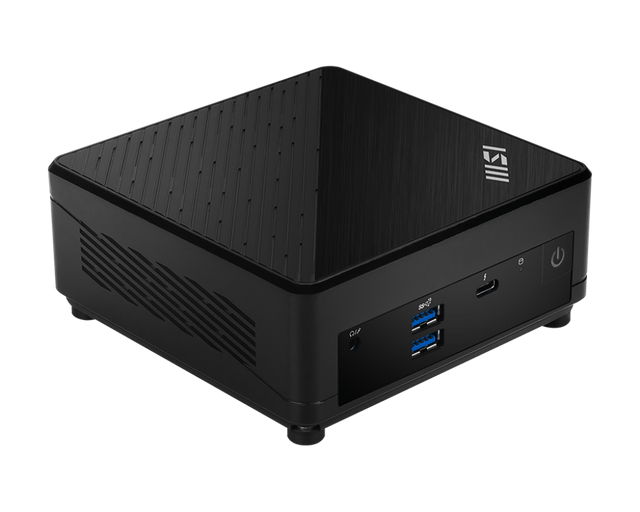

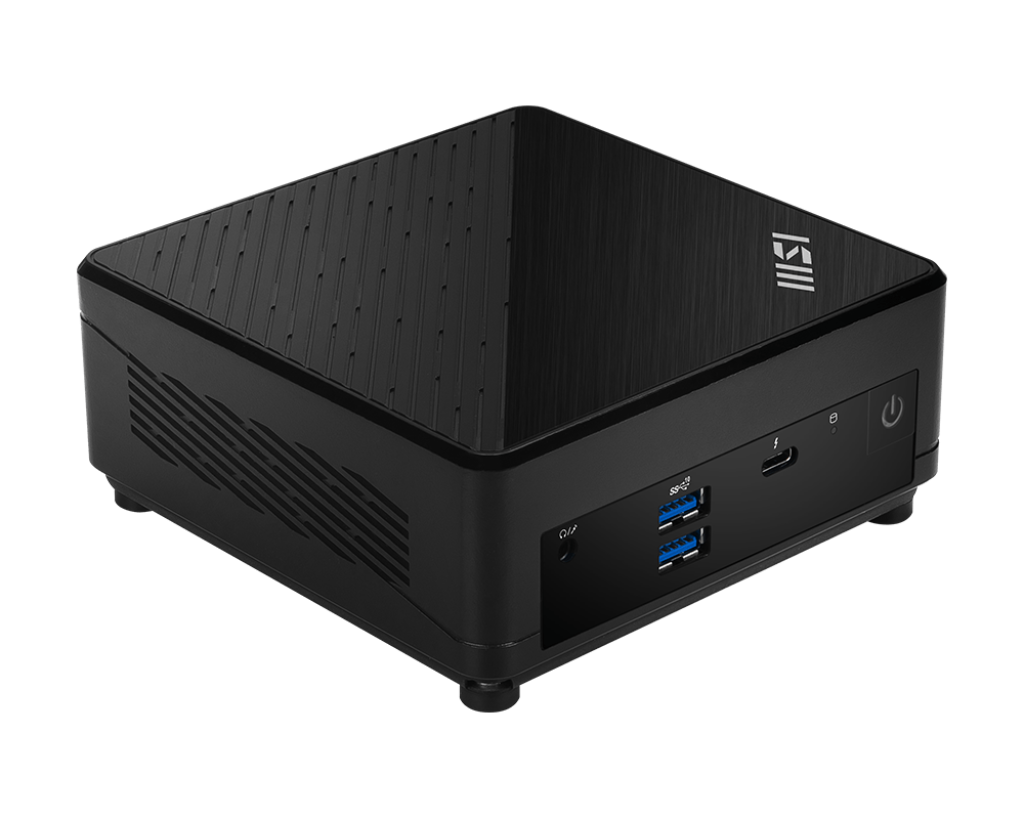

MSI Mini Barebone PC Cubi 5 12M-022BDE
Couldn't load pickup availability
Liefertermin
Liefertermin
Garantie
Garantie
2 Year Warranty
Free Package
- Intel® Core™ i3-1215U
- Intel Core i3-1215U der 12. Generation

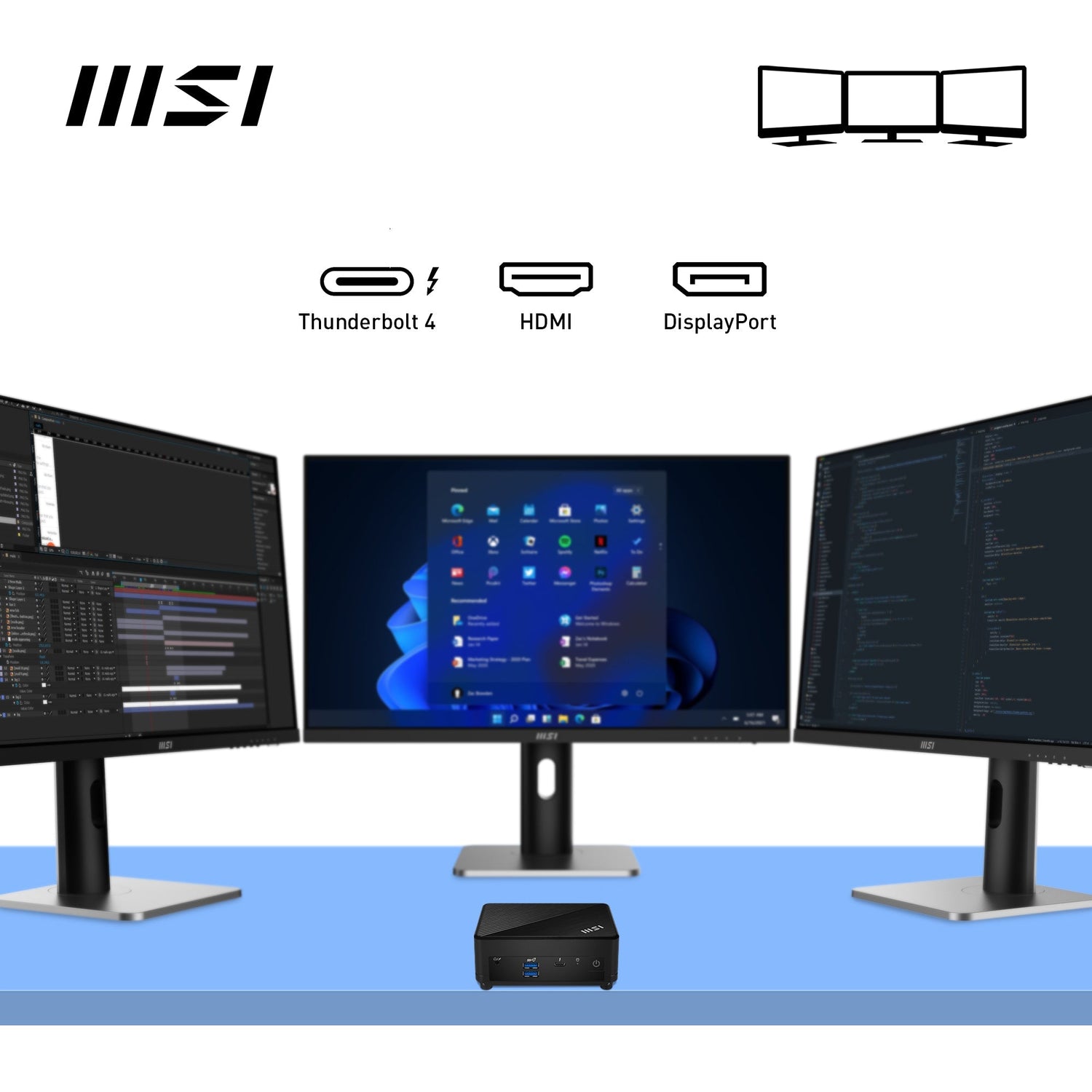

- Unterstützt drei Displays gleichzeitig für mehr Produktivität
- Thunderbolt 4 bietet die schnellste, vielseitigste Verbindung zu jedem Dock, Display oder Datengerät & NAS
- Dual LAN: der beste Weg, um Ihre Daten zu sichern und Hacker abzuwehren (mit MSI exklusivem BIOS)
- Dank WiFi 6-Technologie 75 % geringere Latenz

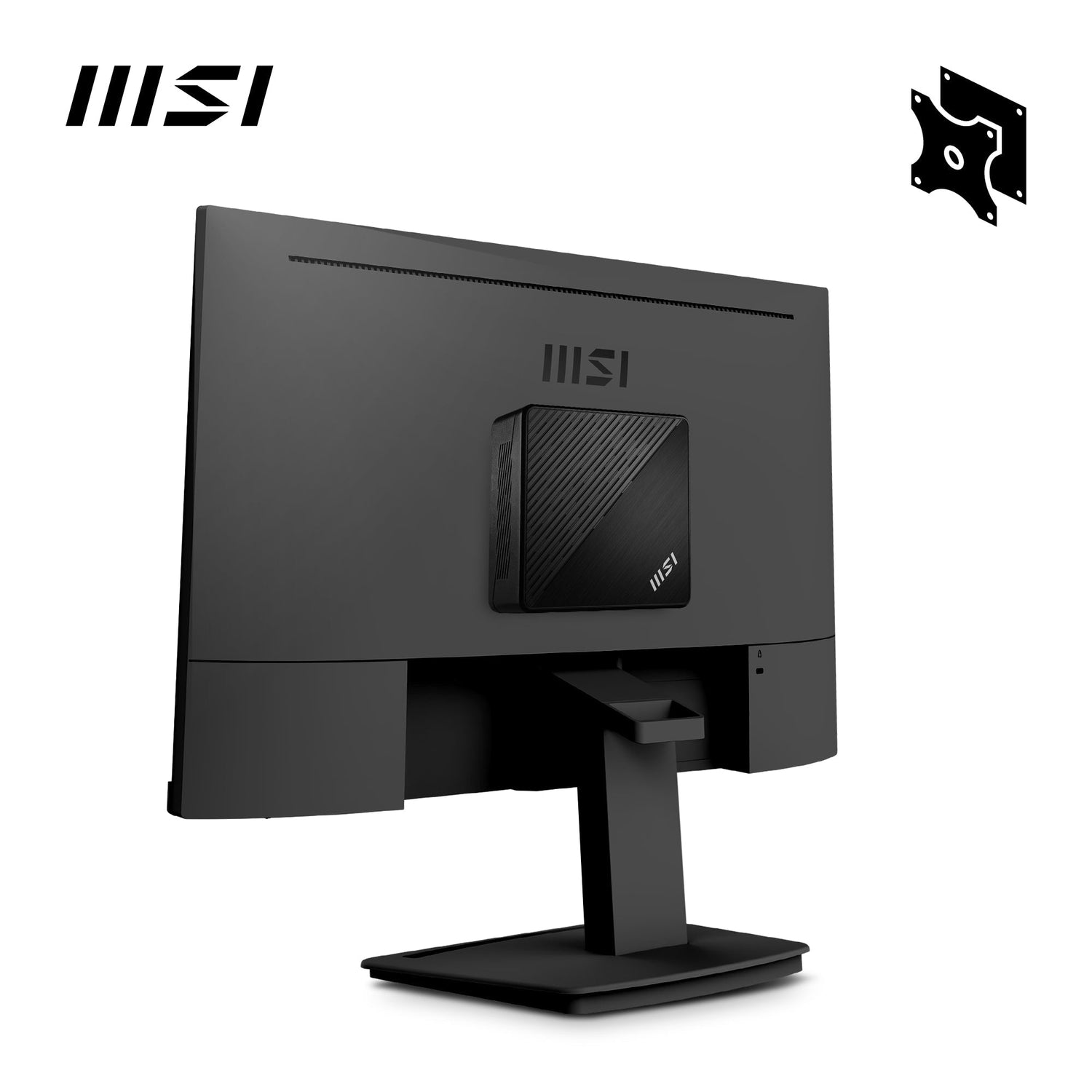

- Unterstützt Standard-VESA-Montage zum Befestigen an einem Monitor
| Part No | 936-B0A811-082 |
| Betriebssystem | N/A |
| MKT Name | Cubi 5 12M |
| MKT Spec | Cubi 5 12M-022BDE |
| Color | ID1/Black-Black-Black |
| SKU Number | 936-B0A811-022 |
| CPU Number | Intel Core i3-1215U |
| CPU Clock | 1.2GHz |
| CPU Cores | 6 |
| TDP | 15W |
| Cache | 10 MB Intel® Smart Cache |
| Threads | 8 |
| Chipsets | Soc |

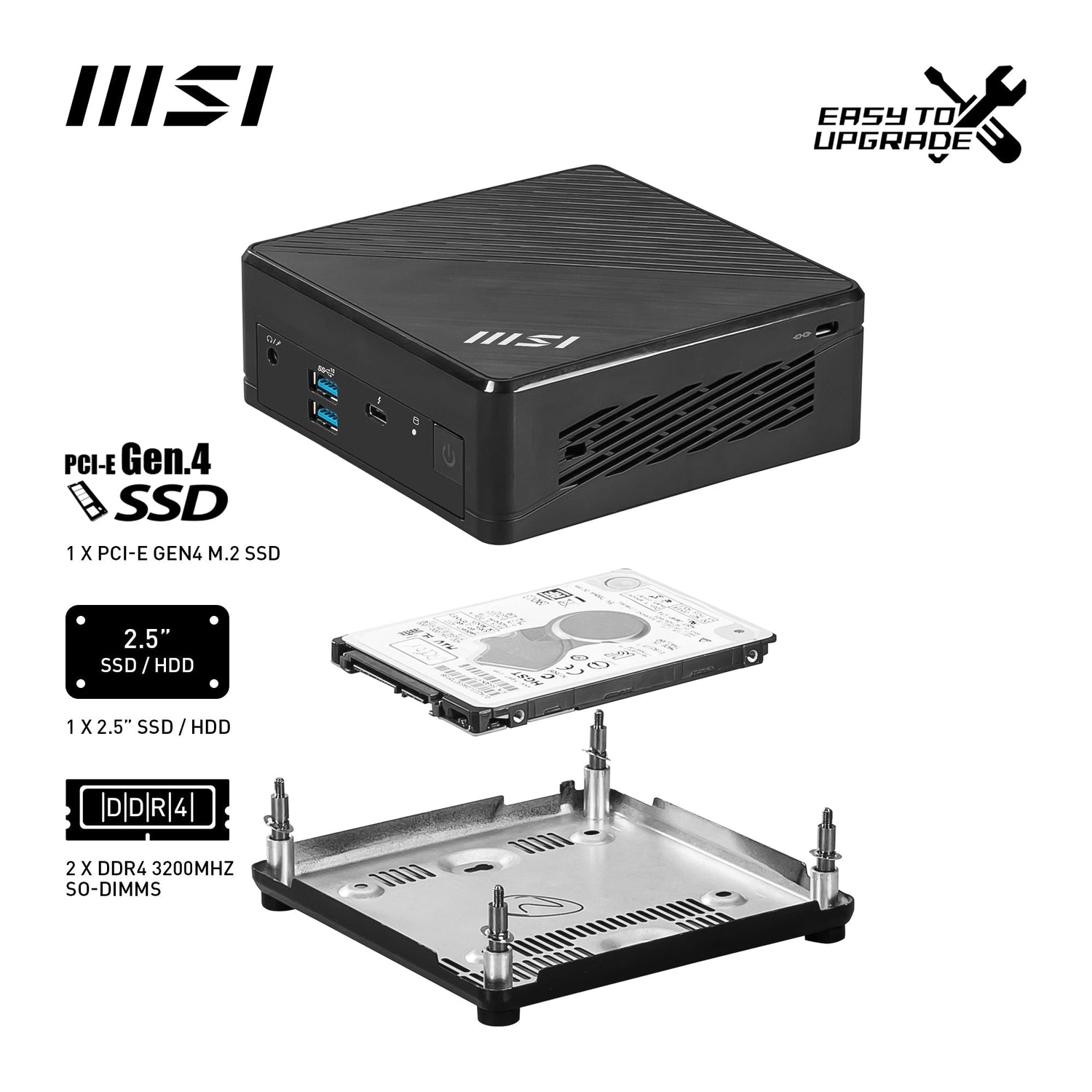

| Arbeitsspeicher | Module Type SO-DIMMMemory Slot(Total) 2Memory Slot(Free) 2Max Capacity Max 64GB |
| SSD Interface | N/A |
| Speicher | M.2 slots(Total) 1M.2 slots(Free) 12.5" Drive Bays(Total) 12.5" Drive Bays (Free) 13.5" Drive Bays(Free) 0mSATA slots(Free) 0 |
| Audio | Realtek ALC256, 2.1 Channel HD Audio |

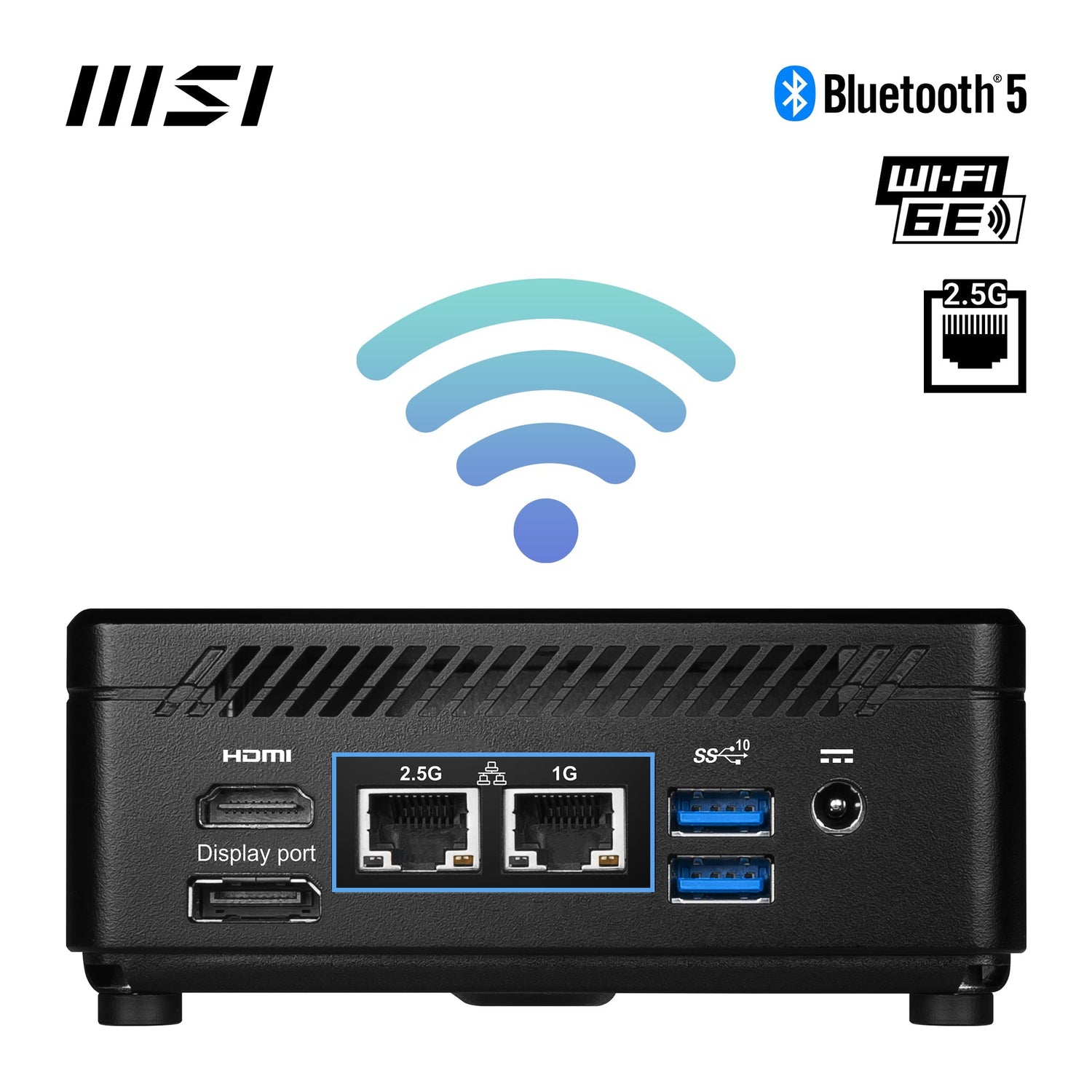

| LAN | 1x Realtek RTL8111H+1x Realtek RTL8125BG-CG |
| WLAN Version | Wi-Fi 6E+BT |
| BT Version | 5.3 |
| Model | B0A8 |
| Thunderbolt | 1x (ThunderBolt 4) |
| Entity MKT Name | Cubi 5 12M-022BDE |

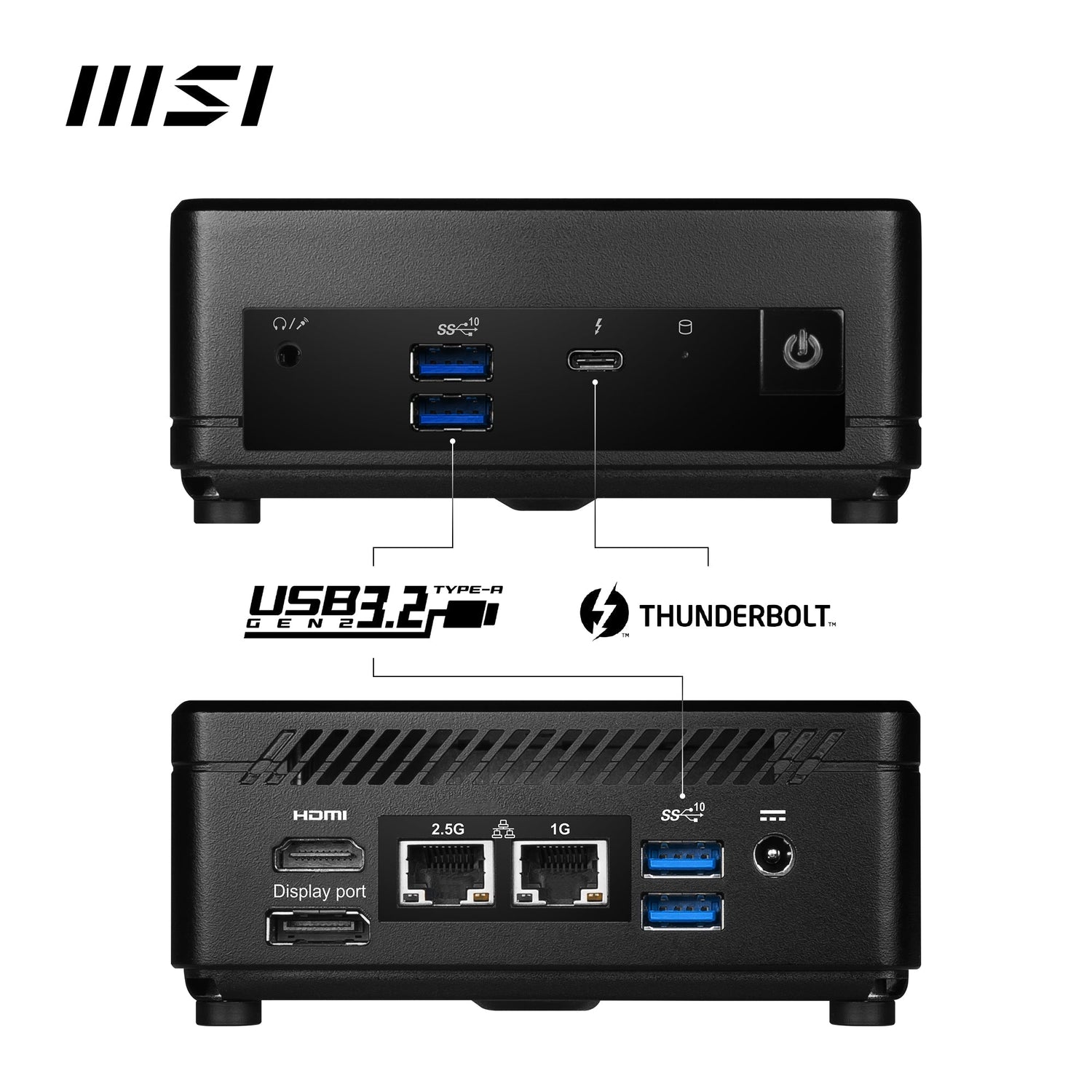

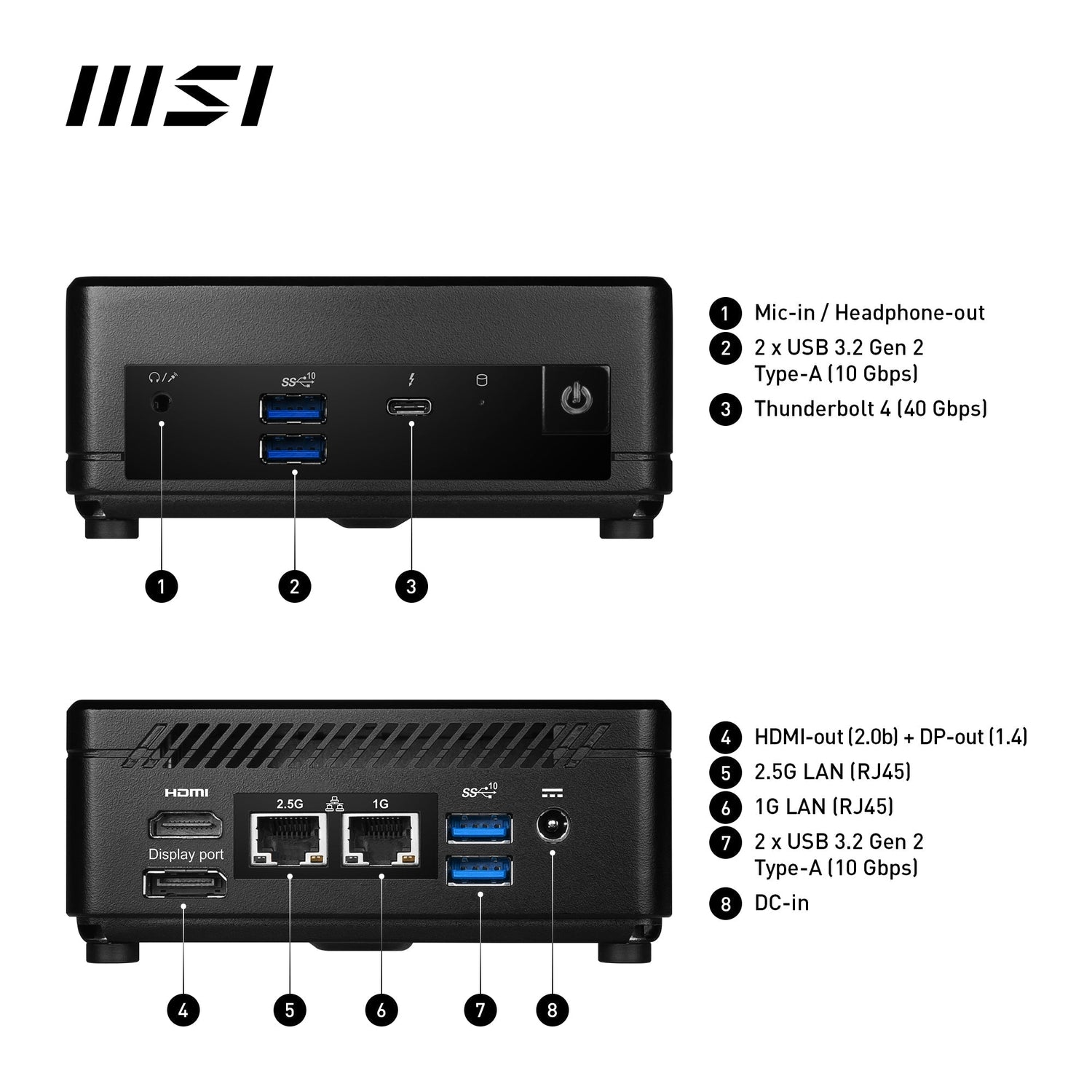

| Schnittstellen (Vorne) | 2 x USB 3.2 Gen 2 Type A |
| Mic-in/Headphone-out combo | 1 |
| Schnittstellen (Rückseite) | 2 x USB 3.2 Gen 2 Type A (R) |
| RJ45 | 2 |
| HDMI out | 1x (v2.0b) |
| DP out | 1x (v1.4) |
| Memory Size | N/A |
| Memory Type | N/A |
| Memory Speed | N/A |
| Module Type | SO-DIMM |
| Memory Slot(Total) | 2 |
| Memory Slot(Free) | 2 |
| Max Capacity | Max 64GB |
| Power | 65W, ADAPTOR |
| VESA size | 100 x 100 mm |

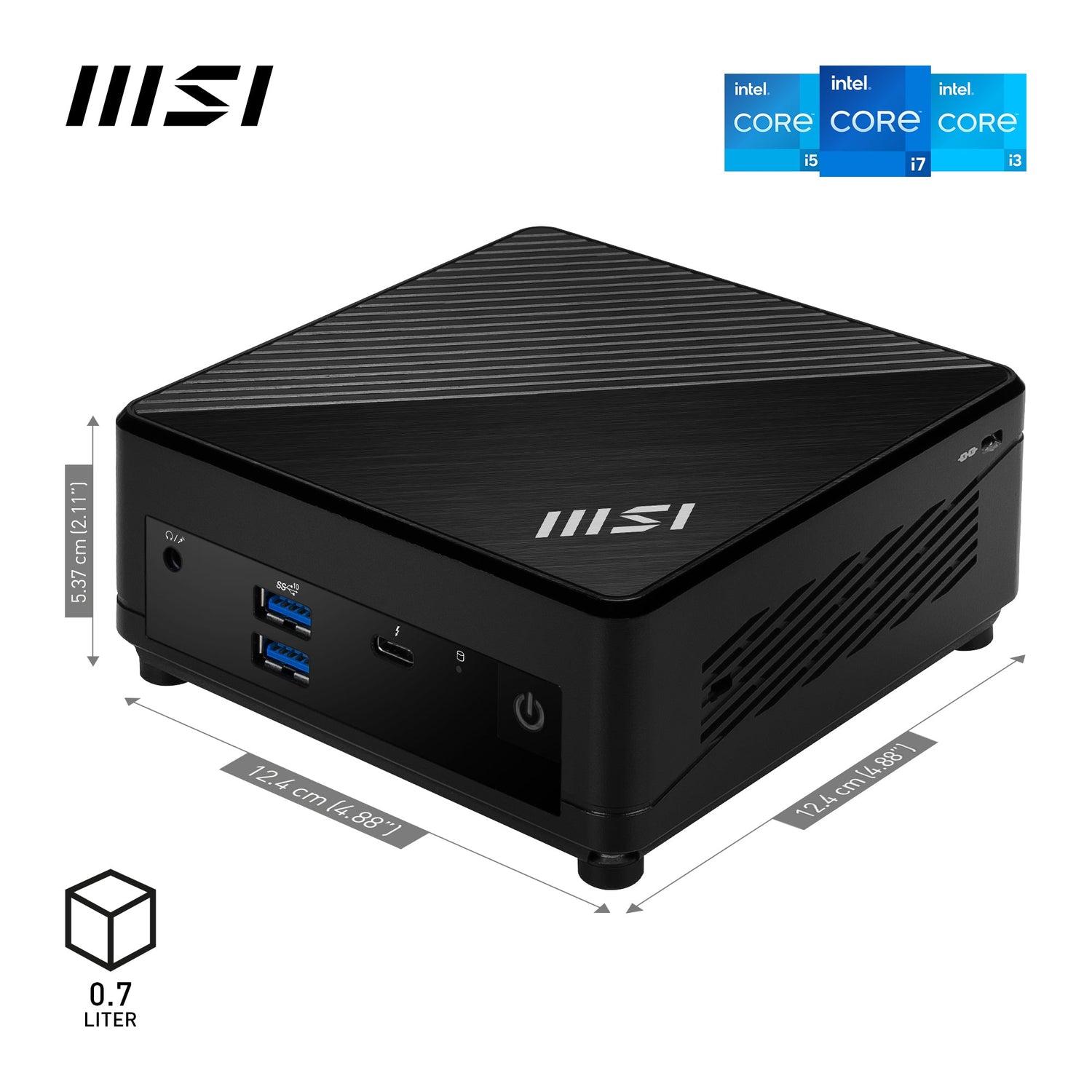

| Product Dimension (WxDxH) (mm) | 124 x 124 x 53.7 |
| Product Dimension (WxDxH) (inch) | 4.88 x 4.88 x 2.11 |
| Inside Carton Dimension (WxDxH) (mm) | 205 x 220 x 94 |
| Inside Carton Dimension (WxDxH) (inch) | 8.07 x 8.66 x 3.7 |
| Outer Carton Dimension Standard (WxDxH) (mm) | 221 x 506 x 469 |
| Outer Carton Dimension Standard (WxDxH) (inch) | 8.7 x 19.92 x 18.46 |
| Weight (Net kg) | 0.59 |
| Net Weight (lbs) | 1.3 |
| Weight (Gross kg) | 1.33 |
| Gross Weight (lbs) | 2.93 |
| Liter | 0.66L |
| Pint | 0.66L |
| Max Turbo Frequency | up to 4.40 GHz |
| CPU Core Name | ALDER LAKE |
| CPU Socket | FCBGA-1744pin |
| Operating, Storage Temperature | 0° C ~ 35° C ; -20° C ~ 60° C |
| CPU Cooler | Air cooling |
| Operating, Storage Humidity | 0% ~ 85%;0% ~ 90% |
| Regulatory Compliance | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick) |
| Warranty | 24months |
| Power Cord | 1 |
| AC Adaptor | 1 |
| Warranty Card | N/A |
| Quick Guide | 3 |
| VESA Mount kit | 1 |
| EAN | 4711377060226 |
| Audio Chipset | Realtek ALC256 |
| Audio Type | 2.1 Channel HD Audio |
| SSD Form Factor | N/A |
| SSD Config | N/A |
| SSD Size | N/A |
| mSATA slots(Free) | 0 |
| M.2 slots(Total) | 1 |
| M.2 slots(Free) | 1 |
| 2.5" Drive Bays(Total) | 1 |
| 2.5" Drive Bays (Free) | 1 |
| 3.5" Drive Bays(Free) | 0 |
| WLAN | INTEL/AX211.NGWG.NV |
| USB 3.2 Gen 2 Type A | 2 |
| USB 3.2 Gen 2 Type A (R) | 2 |
| USB 3.2 Gen 2 (10G) Type A (R) | 2 |
| USB 3.2 Gen 2 (10G) Type A | 2 |
| Power Switch | 1 |
