MSI Deutschland  |  SKU: 911-7D91-029

MSI Mainboard MPG Z790 EDGE WIFI


to see prices

Liefertermin

Garantie

3 Year Warranty

Free Package

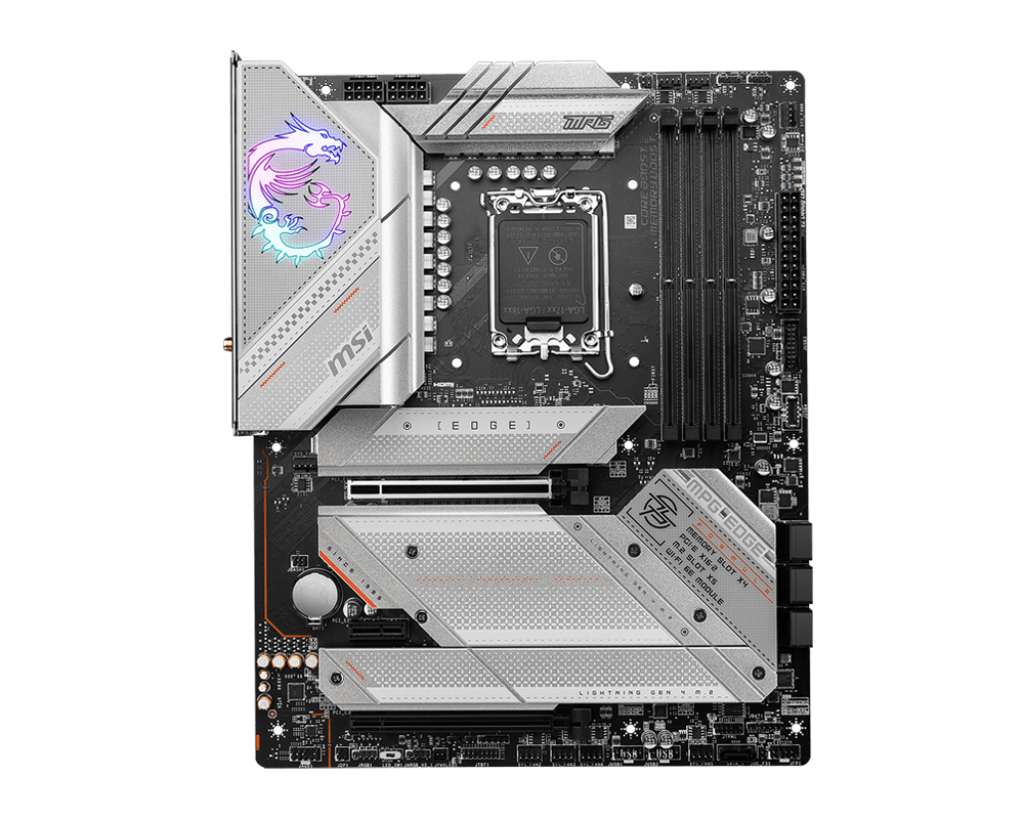

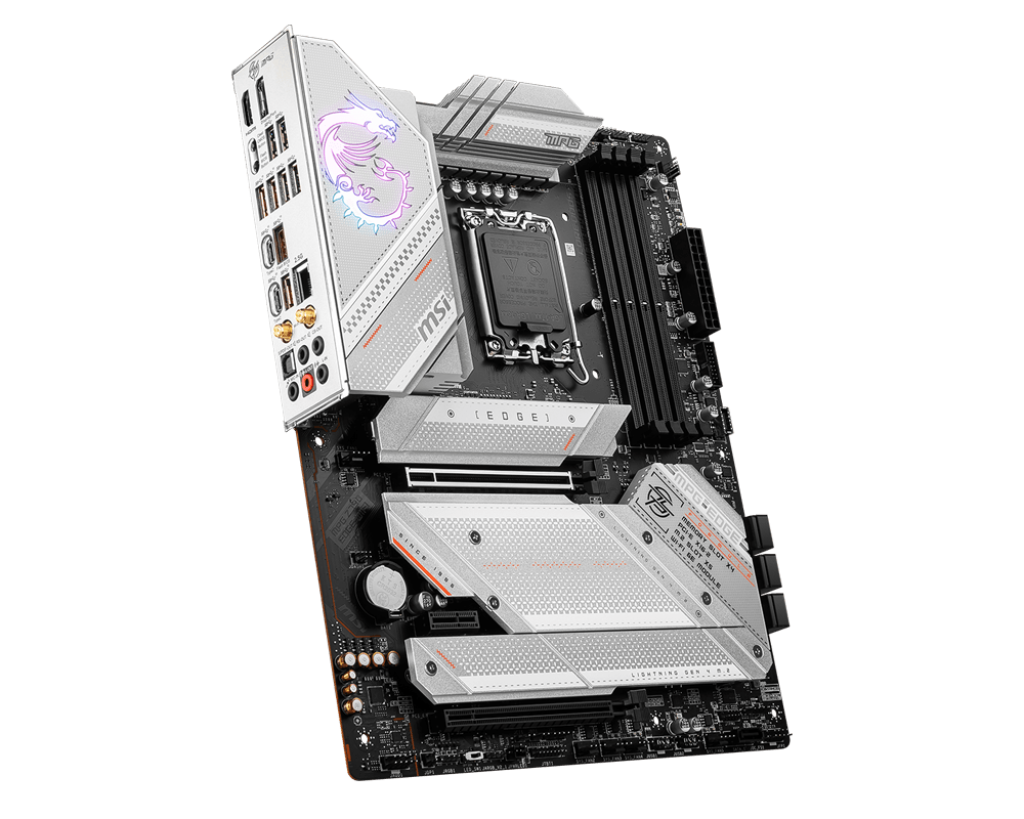

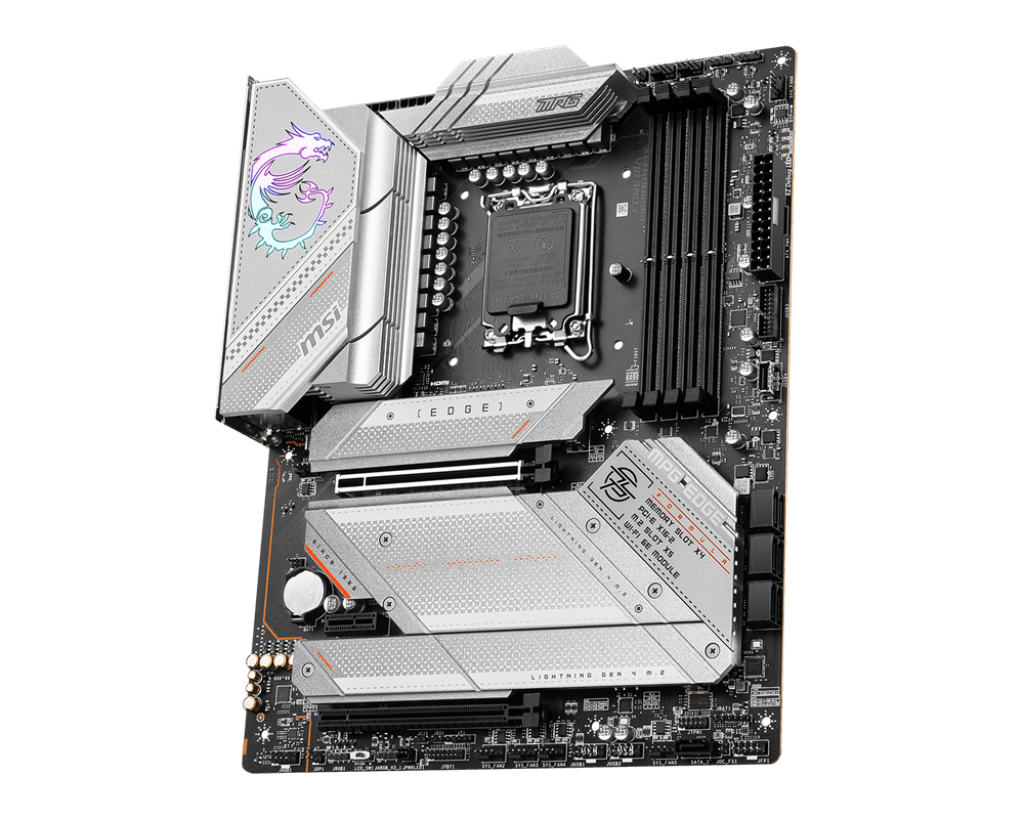

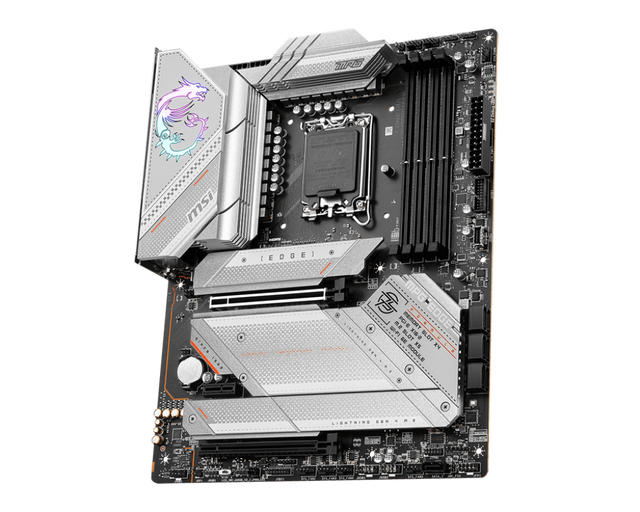

MPG Z790 EDGE WIFI

  • Unterstützt 12. und 13. Gen Intel® Core™, Pentium® Gold und Celeron® Prozessoren für LGA 1700 Sockel
  • Unterstützt DDR5 Memory, bis zu 7200+(OC) MHz
  • Blitzschnelles Gaming: PCIe 5.0-Steckplätze, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Verbessertes Stromdesign: 16+1+1 Duet Rail Power System, zwei 8-polige CPU-Stromanschlüsse, Core Boost, Memory Boost
  • Premium Kühllösung: Ein vergrößerter Kühlkörper mit Heatpipe, MOSFET-Wärmeleitpads mit 7 W/mk, zusätzliche Drosselwärmeleitpads und M.2 Shield Frozr sind für ein Hochleistungssystem und Non-Stop-Gaming ausgelegt
  • 2.5G LAN und Wi-Fi 6E: Hochmoderne Netzwerklösung für den professionellen und multimedialen Einsatz. Bietet eine sichere, stabile und schnelle Netzwerkverbindung
  • AUDIO BOOST 5: Erlebe ein intensives Gaming-Erlebnis mit Sound in Studioqualität
  • Hochwertiges PCB: 6 Schichten PCB, hergestellt aus 2oz dickem Kupfer und Material auf Server-Niveau
  • Vorinstalliertes I/O Shield: Besserer EMI-Schutz und einfacherer Einbau

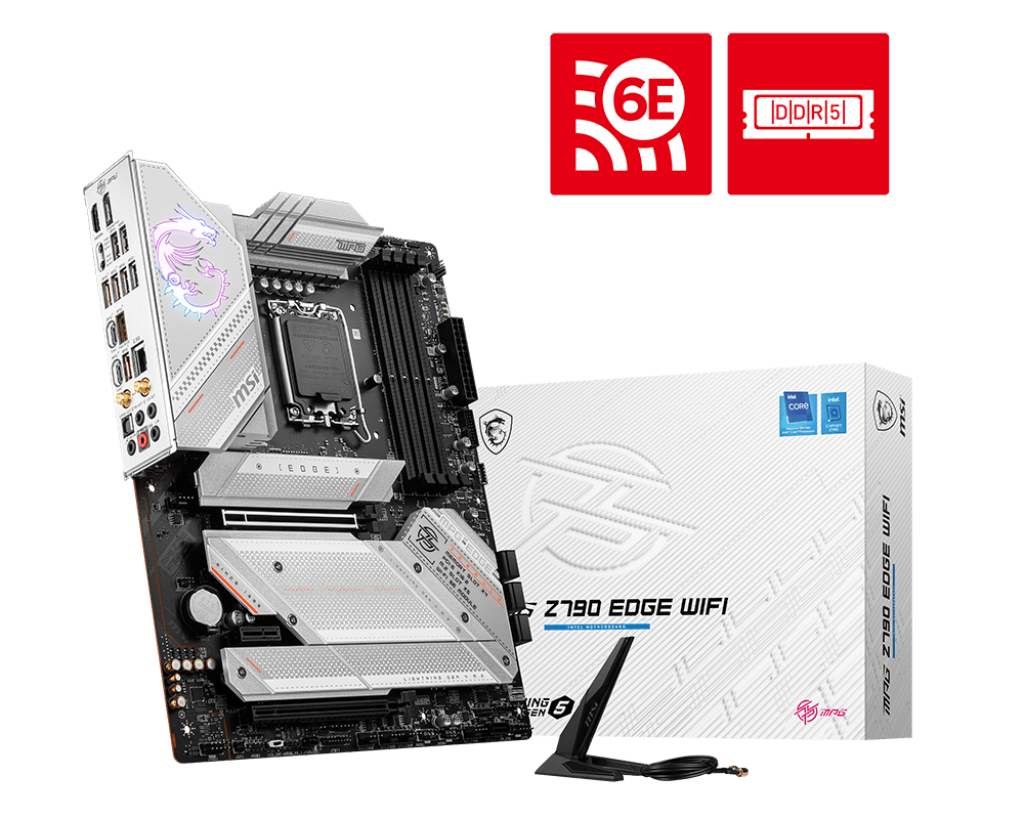

    • BOX CONTENT
    PCB Color BLACK/Matt
    PCB Layer 6L
    PCB Form Factor size 243.84mmx304.8mm
    PCB Form Factor ATX
    PCB Version 3.1
    OS Support Support for Windows® 11 64-bit, Windows® 10 64-bit

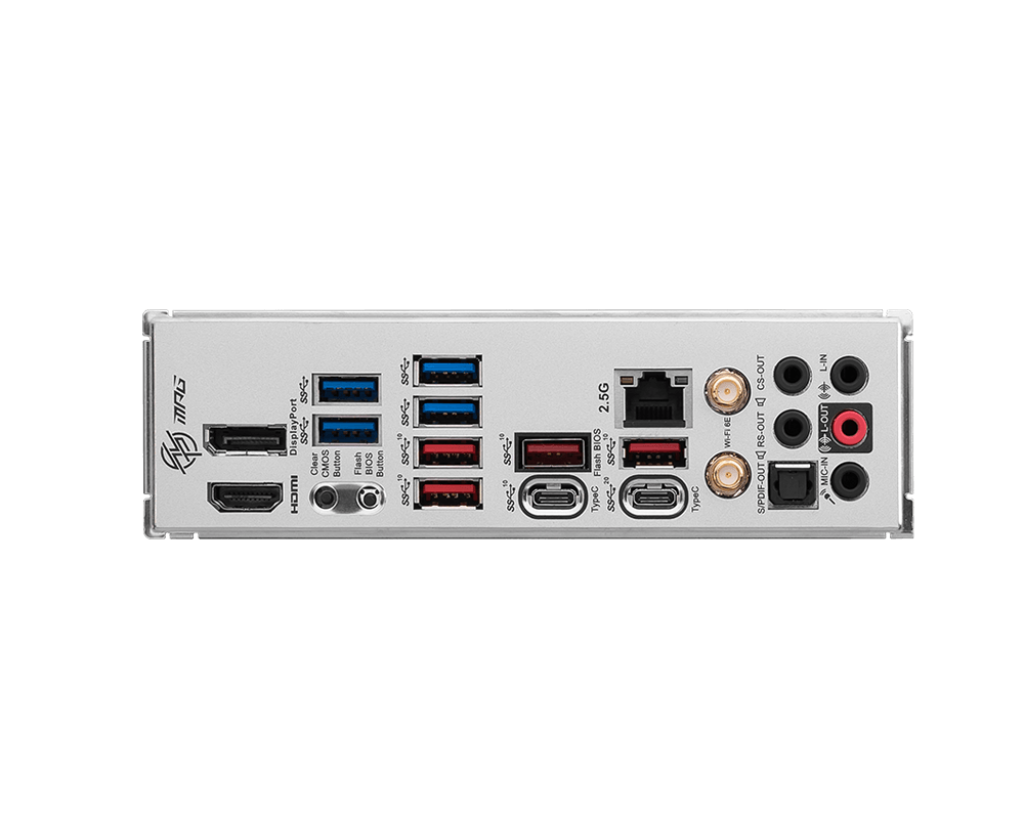

    I/O Description
    1. Display Port
    2. USB 3.2 Gen 1 5 Gbps (Type-A)
    3. USB 3.2 Gen 2 10Gbps (Type-A)
    4. 2.5G LAN
    5. Wi-Fi / Bluetooth
    6. Audio Connectors
    7. HDMI™
    8. Clear CMOS / Flash BIOS
    9. USB 3.2 Gen 2 10Gbps (Type-A)
    10. USB 3.2 Gen 2 10Gbps (Type-C)
    11. USB 3.2 Gen 2x2 20Gbps (Type-C)
    12. Optical S/PDIF Out
    LED control 4x EZ Debug LED
    1x EZ LED Control switch
    Battery (BAT1) 1
    LED Demo Connect (JPWRLED) 1
    V-check point N/A
    USB 3.2 Gen 2x2 Type C ports 0
    USB 3.2 Gen2 Type C ports 1
    USB 3.2 Gen2 Type A ports 0
    USB 3.2 Gen1 Type C ports 0
    USB 3.2 Gen1 Type A ports 2
    USB 2.0 ports 4
    VROC pinheader 0
    OC dashboard connector(JDASH1) 0
    Jumper of Water Block 0
    TPM pin header(Support TPM 2.0) 1
    CORSAIR Connector(JCORSAIR) N/A
    RGB LED connector(JRGB) 1
    Addressable RGB LED connector(JRAINBOW) N/A
    Addressable V2 RGB LED connector (JARGB_V2) 3
    Tuning Controller connector(JDASH) 1
    80 port LED (POST) 0
    TBT connector (JTBT, supports RTD3) 1
    Thermal Sensor connectors(T_SEN) N/A
    Refresh BIOS (JSPI) 0
    Com Port (JCOM) 0
    Printer Port (JLPT) 0
    Front Audio (JAUD) 1
    Slow Mode Booting Jumper(JSLOW) 0
    Water Flow connector 0
    Chassis Intrusion (JCI) 1
    Front Panel (JFP) 2
    Extend Fan 0
    System Fan 6
    Pump Fan 1
    CPU Fan 1
    Front Type-C Quick Charge Connector(PD_PWR1) 0
    Power Connector(PCIE_PWR 4pin or 6 pin) 0
    Power Connector(CPU_PWR) 2
    Power Connector(ATX_PWR) 1
    Audio Channel 7.1-Channel USB High Performance Audio
    Supports up to 32-Bit/384 kHz playback on front panel
    Audio codec Realtek® ALC4080 Codec
    Wi-Fi Note * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11."
    Bluetooth SPEC Supports Bluetooth® 5.3, FIPS, FISMA
    Wi-Fi Detail SPEC The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Wi-Fi Module Intel® Wi-Fi 6E
    LAN Chip Intel® 2.5Gbps LAN
    USB 3.2 Gen2x2 Type C (Front) 0
    USB 3.2 Gen2x2 Type C (Rear) 1
    USB 3.2 Gen2 Type C (Front) 1
    USB 3.2 Gen2 Type A (Front) 0
    USB 3.2 Gen2 Type C (Rear) 1
    USB 3.2 Gen2 Type A (Rear) 4
    USB 3.2 Gen1 Type C (Front) 0
    USB 3.2 Gen1 Type A (Front) 2
    USB 3.2 Gen1 Type C (Rear) 0
    USB 3.2 Gen1 Type A (Rear) 4
    USB 2.0 (Front) 4
    USB 2.0 (Rear) 0
    SATA Note * SATA_A1~A2 do not support RAID function.
    SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
    SATA 6G from ASM1064 (Qty) 0
    SATA 6G from ASM1061 (Qty) 2
    SATA 6G (Qty) 7
    M.2_7 NA
    M.2_7 (SATA mode) N/A
    M.2_7 (Gen3/Gen4/Gen5) N/A
    M.2_7 Source N/A
    M.2_6 N/A
    M.2_6 (SATA mode) N/A
    M.2_6 (Gen3/Gen4/Gen5) N/A
    M.2_6 Source N/A
    M.2_5 2280/2260
    M.2_5 (SATA mode) N/A
    M.2_5 (Gen3/Gen4/Gen5) PCIe 4.0 x4
    M.2_5 Source Chipset
    M.2_4 2280/2260/2242
    M.2_4 (SATA mode) N/A
    M.2_4 (Gen3/Gen4/Gen5) PCIe 4.0 x4
    M.2_4 Source Chipset
    M.2_3 2280/2260/2242
    M.2_3 (SATA mode) Yes
    M.2_3 (Gen3/Gen4/Gen5) PCIe 4.0 x4
    M.2_3 Source Chipset
    M.2_2 2280/2260
    M.2_2 (SATA mode) N/A
    M.2_2 (Gen3/Gen4/Gen5) PCIe 4.0 x4
    M.2_2 Source Chipset
    M.2_1 22110/2280/2260
    M.2_1 (SATA mode) N/A
    CPU Socket SOCKET1700
    M.2_1 (Gen3/Gen4/Gen5) PCIe 4.0 x4
    M.2_1 Source CPU
    Segment Name Intel Z
    M.2 (Qty) 5
    U.2 (Qty) N/A
    Series Name Intel
    AMD MULTI-GPU Support N/A
    SLI slot spacing N/A
    SLI support slot N/A
    Supports NVIDIA® SLI™ Technology N/A


    PCI_E3 source Chipset
    PCI_E3 bandwidth x4
    PCI_E3 Gen PCIe 4.0
    PCI_E2 source Chipset
    PCI_E2 bandwidth x1
    PCI_E2 Gen PCIe 3.0
    PCI_E1 source CPU
    PCI_E1 bandwidth x16
    PCI_E1 Gen PCIe 5.0
    PCI slot (Qty) N/A
    PCI-E x1 slot (Qty) 1
    PCI-E x16 slot (Qty) 2
    Thunderbolt4 (USB-C) ports Q’ty N/A
    Thunderbolt chip N/A
    Onboard Graphics note *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Display Port SPEC Support DP 1.4, maximum resolution of 8K 60Hz*
    HDMI SPEC Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
    Type-C DisplayPort N/A
    D-Sub N/A
    DisplayPort 1
    HDMI 1
    Memory Note Supports Intel® XMP3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Memory Support Detail Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7200+ MHz
    • 1DPC 2R Max speed up to 6600+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz
    Maximum Memory Capacity 128GB
    Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Memory Type DDR5
    Memory Qty 4
    Series Intel
    Marketing Name MPG Z790 EDGE WIFI
    CPU Support Note LGA 1700
    CPU Support Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
    Chipset Marketing Name Z790
    Platform INTEL
