MSI España  |  SKU: 911-7D98-051

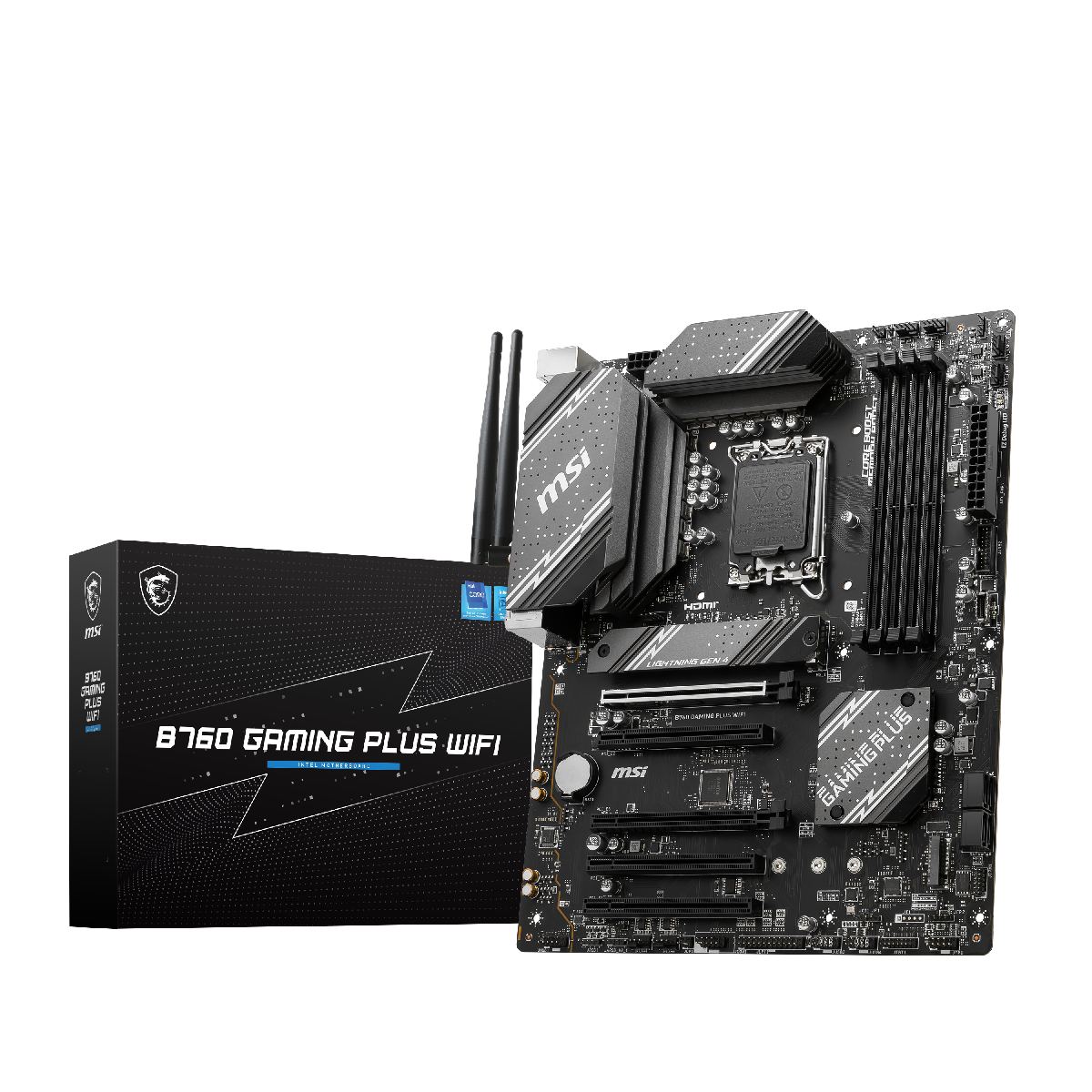

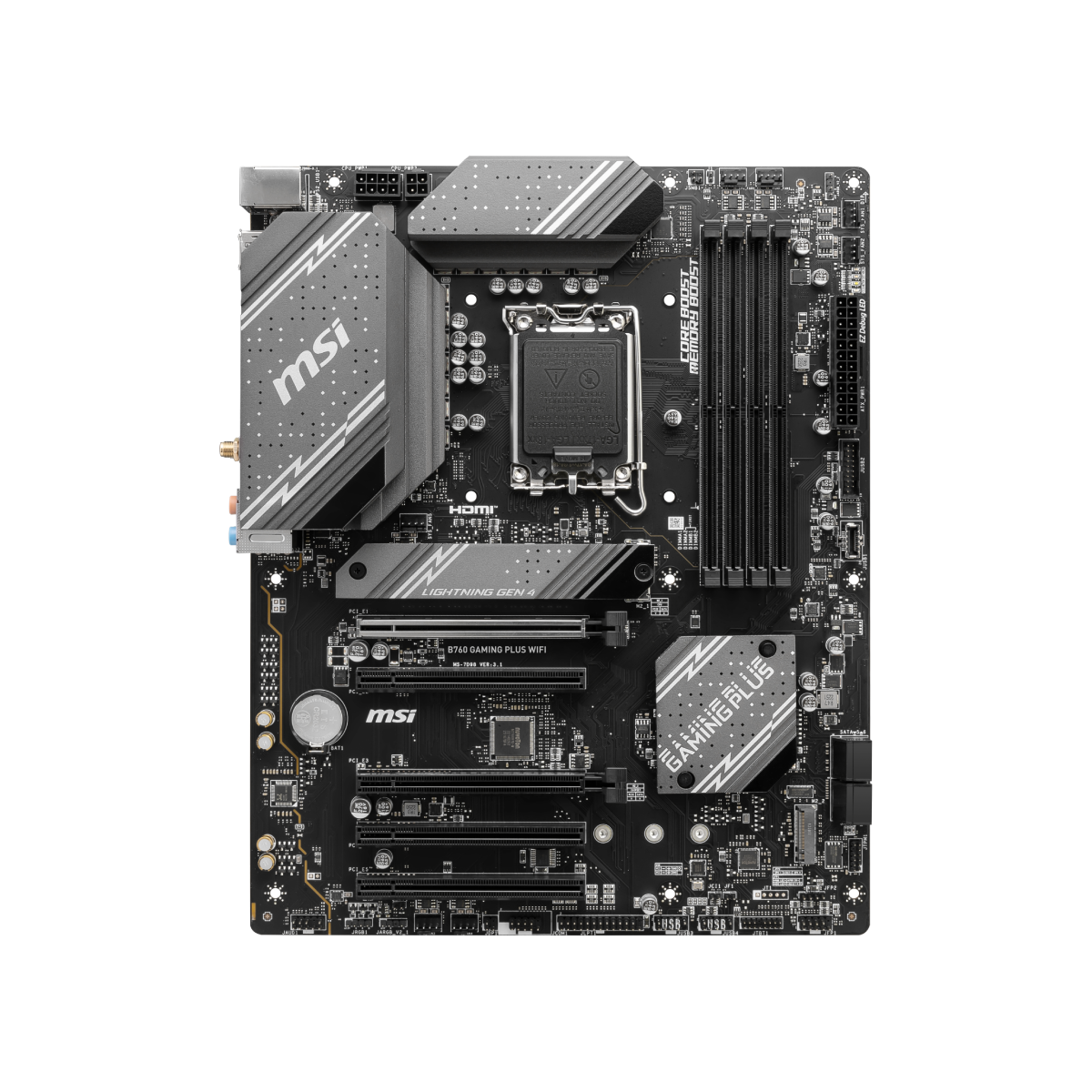

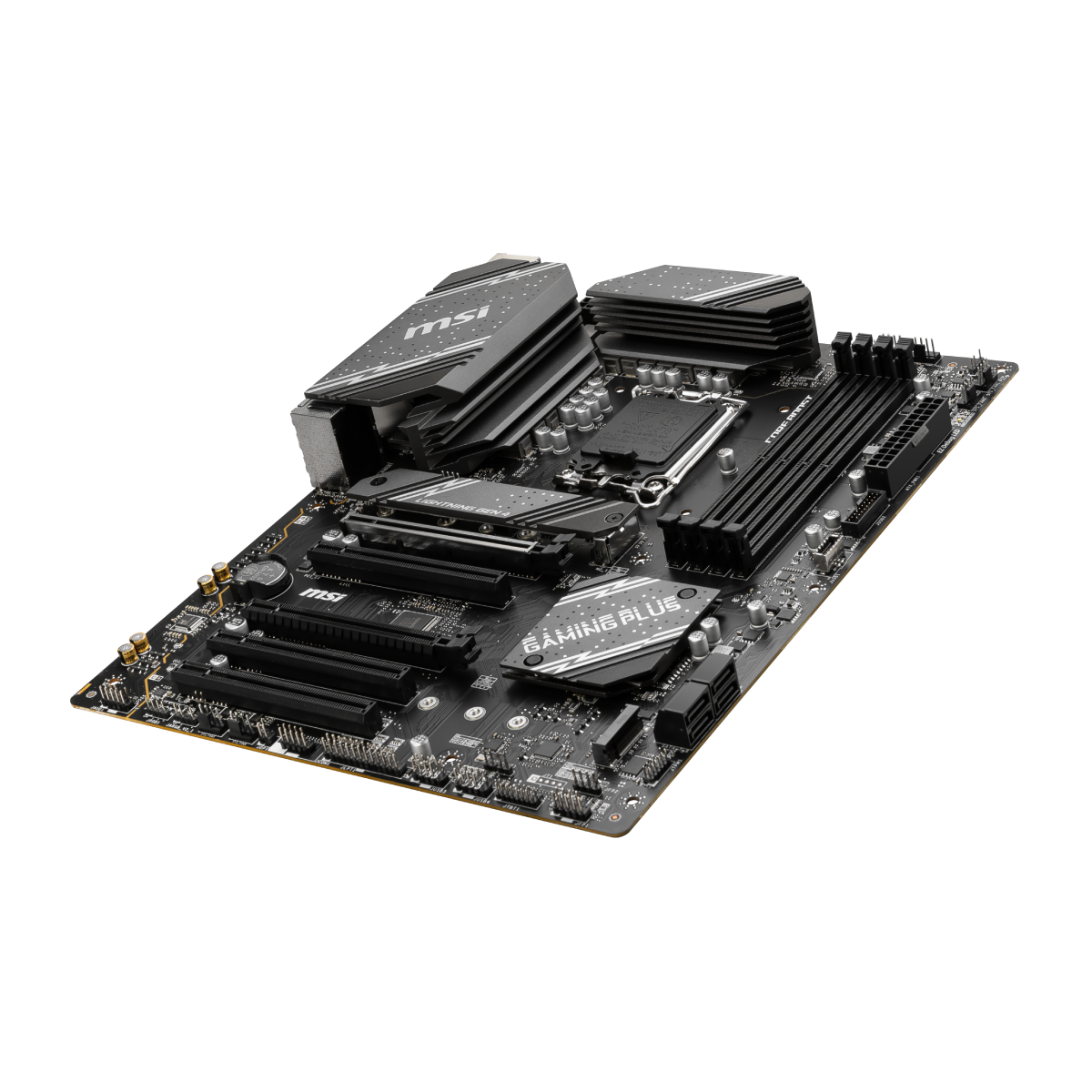

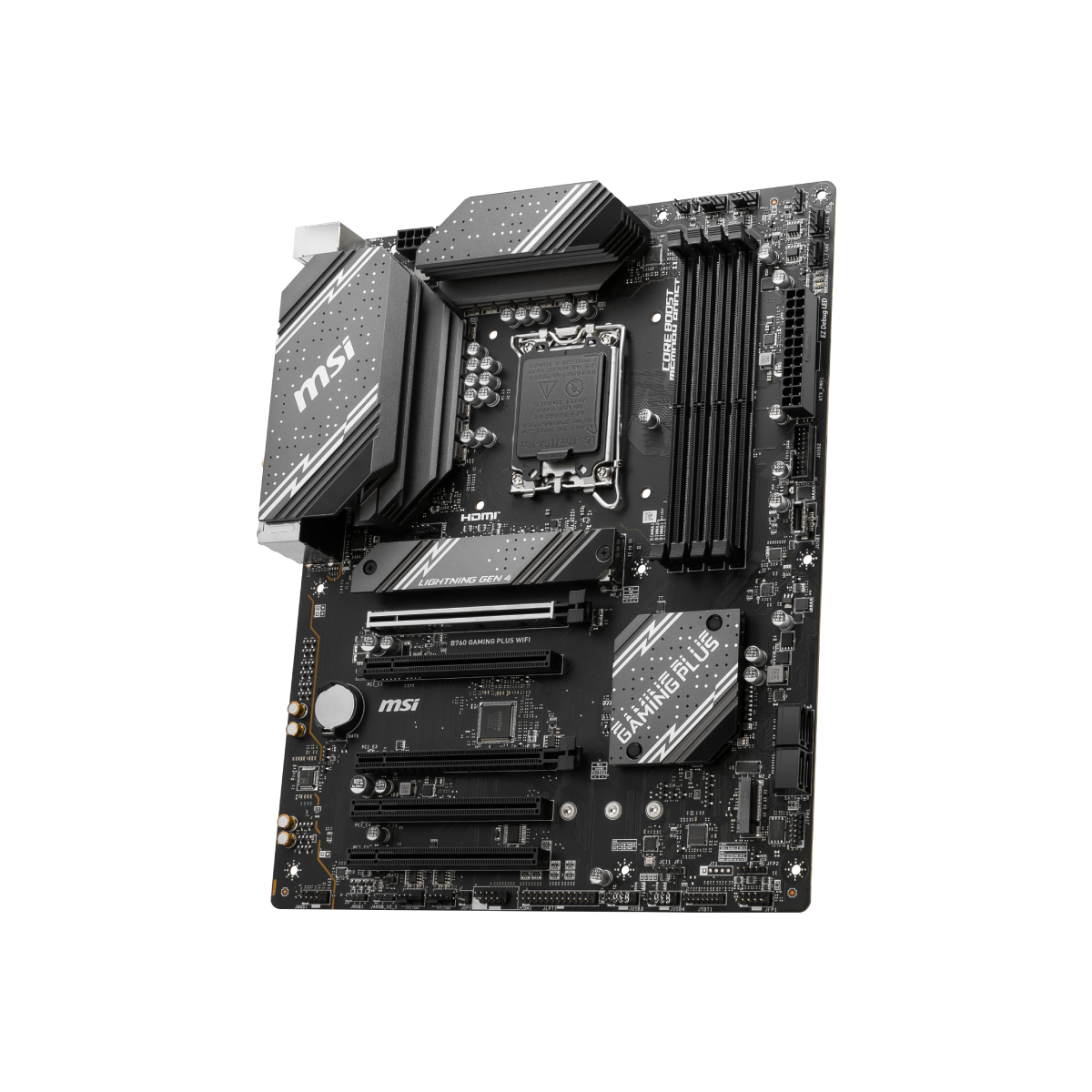

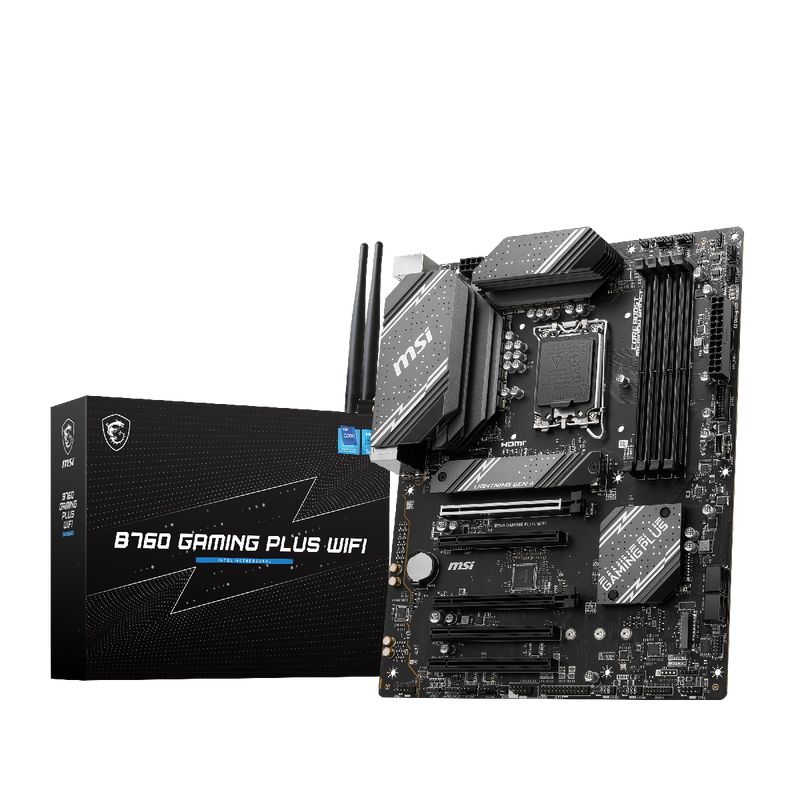

MSI B760 GAMING PLUS WIFI | Placa Base


to see prices

fecha de entrega

Garantizar

3 Year Warranty

Free Package

  • Intel B760

B760 GAMING PLUS WIFI

  • Compatible con procesadores Intel® Core™ de 14ª/ 13ª/ 12ª generación, procesadores Intel® Pentium® Gold y Celeron® para zócalo LGA 1700.
  • Admite memoria DDR5, doble canal DDR5 6800+MHz (OC)
  • Diseño de alimentación mejorado: sistema de alimentación Duet Rail 12+1 con P-PAK, conectores de alimentación de CPU de 8 patillas + 4 patillas, Core Boost, Memory Boost.
  • Solución térmica premium: Disipador térmico ampliado, almohadillas térmicas MOSFET de 7 W/mK, choke pads adicionales y M.2 Shield Frozr para un sistema de alto rendimiento y una experiencia de juego ininterrumpida.
  • Experiencia de juego a la velocidad del rayo: Ranura PCIe 4.0, Lightning Gen 4 x4 M.2 con M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
  • Solución LAN 2.5G y Wi-Fi 6 Solución de red mejorada para uso profesional y multimedia. Proporciona una conexión de red segura, estable y rápida
  • PCB de alta calidad: PCB de 6 capas fabricado con cobre de 2 onzas de espesor
  • AUDIO BOOST: Recompensa a tus oídos con una calidad de sonido de estudio para disfrutar de la experiencia de juego más envolvente.

Chipset INTEL B760
CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors

Intel® Pentium® Gold and Celeron® Processors

LGA 1700
Memory

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

  • 1DPC 1R Max speed up to 6800+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics
  • 1x HDMI™
  • Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
  • 1x DisplayPort
  • Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 5x PCI-E x16 slot (Qty)
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
  • 2x M.2 (Qty)
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G (Qty)
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
  • 2x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
LAN Realtek® RTL8125BG 2.5G LAN
WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
LED FEATURE 4x EZ Debug LED

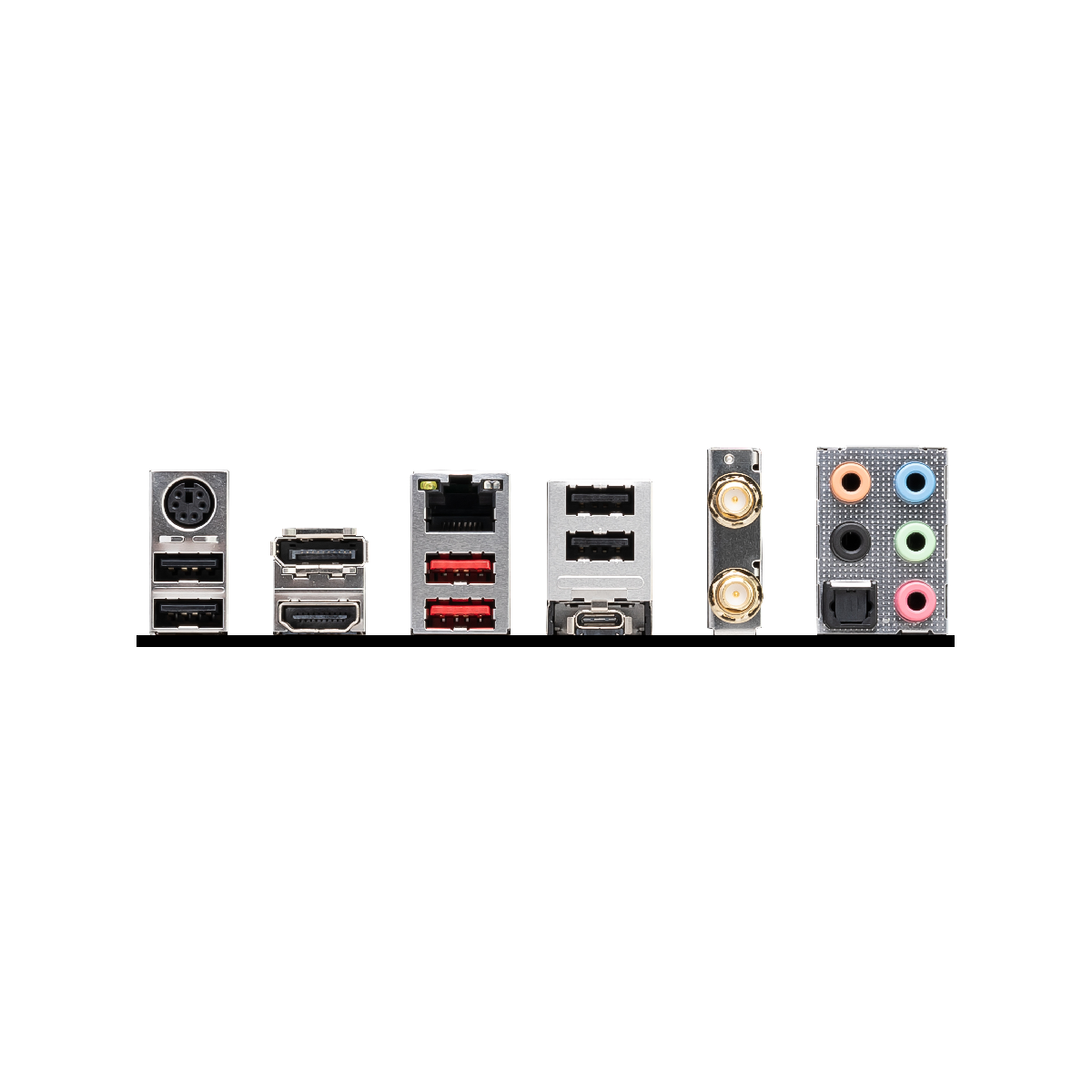

BACK PANEL PORTS
  1. Keyboard / Mouse
  2. DisplayPort
  3. 2.5G LAN
  4. USB 2.0
  5. Wi-Fi / Bluetooth
  6. Audio Connectors
  7. USB 2.0
  8. HDMI™
  9. USB 3.2 Gen 2 10Gbps (Type-A)
  10. USB 3.2 Gen 2 10Gbps (Type-C)
  11. S/PDIF-OUT
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info ATX
243.84mmx304.8mm
