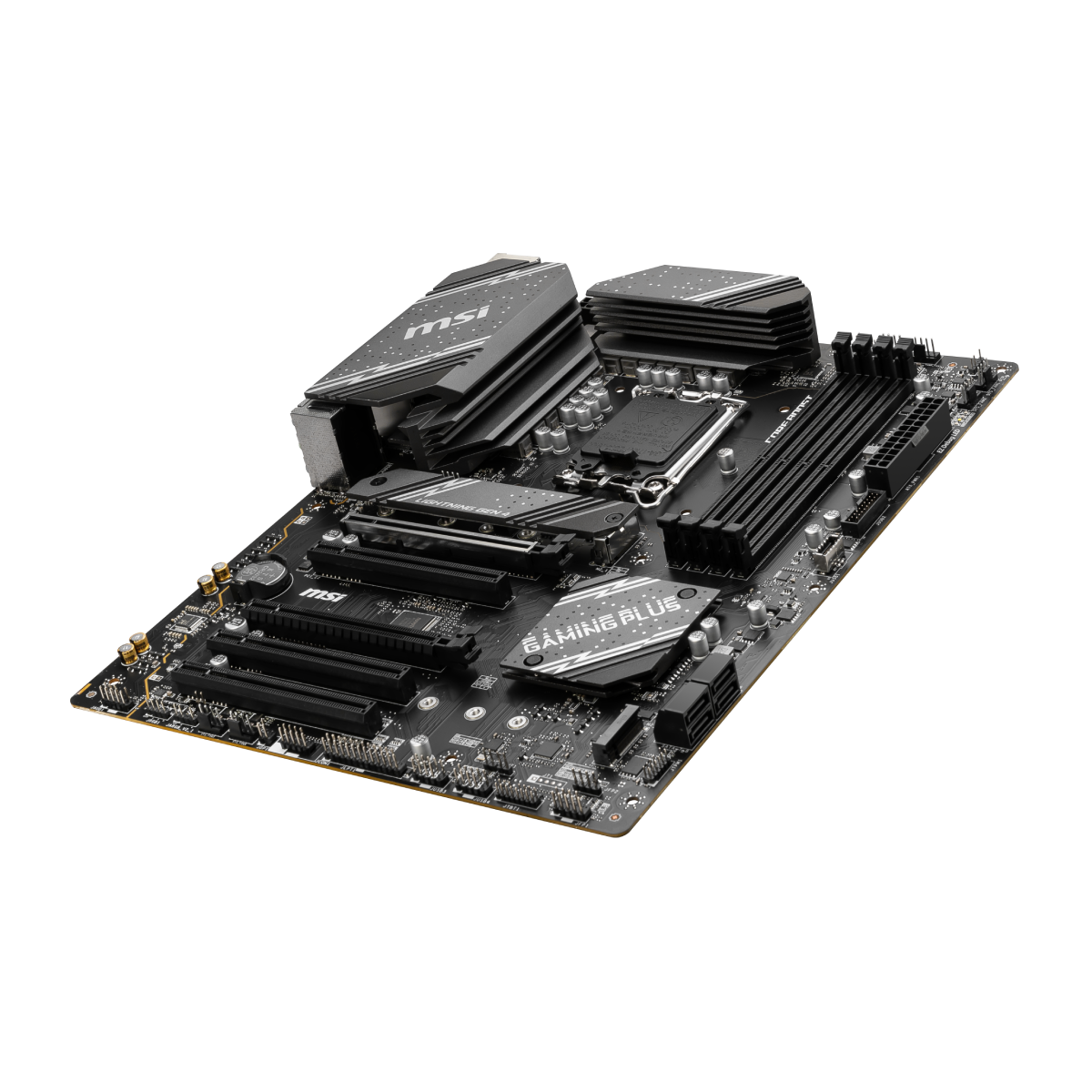

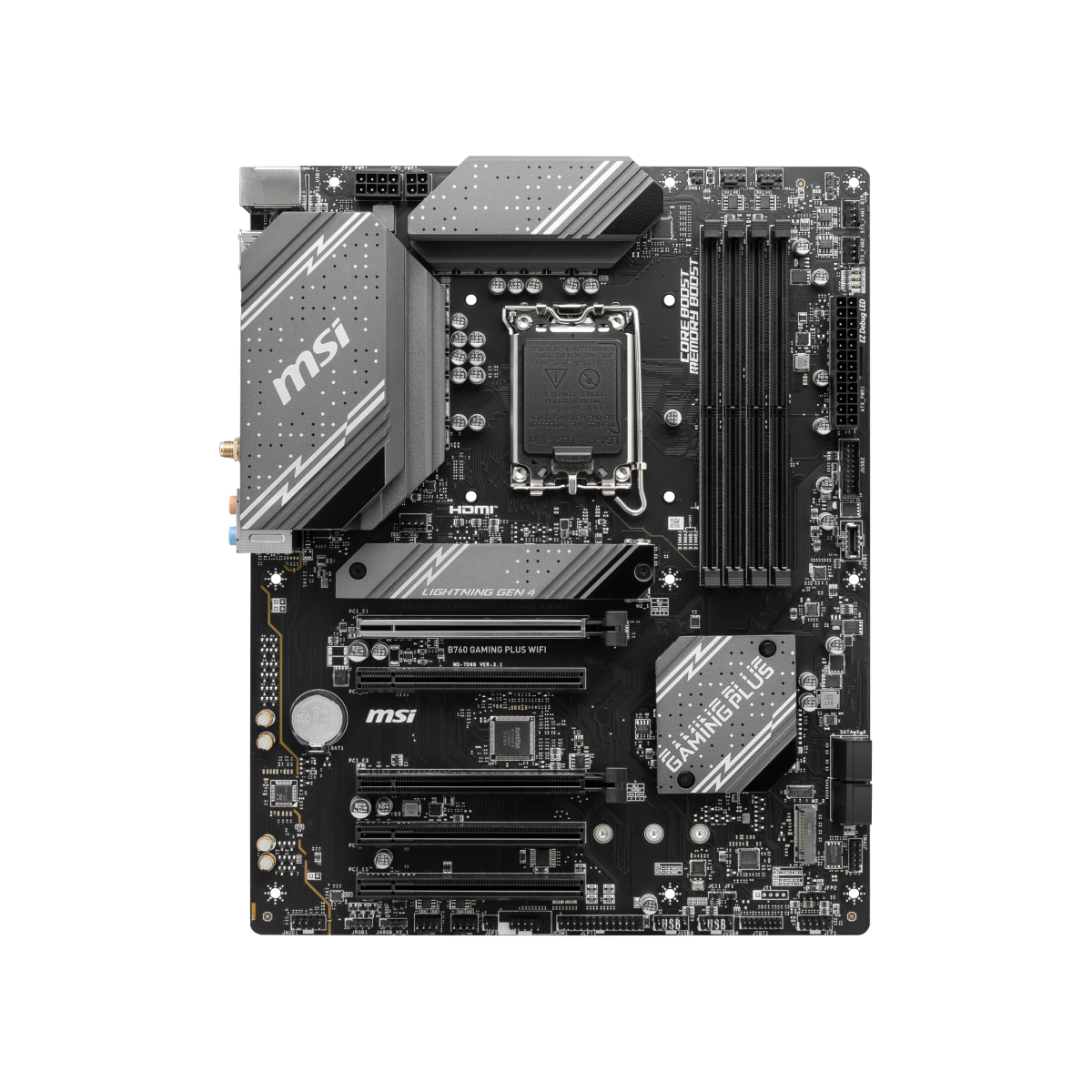

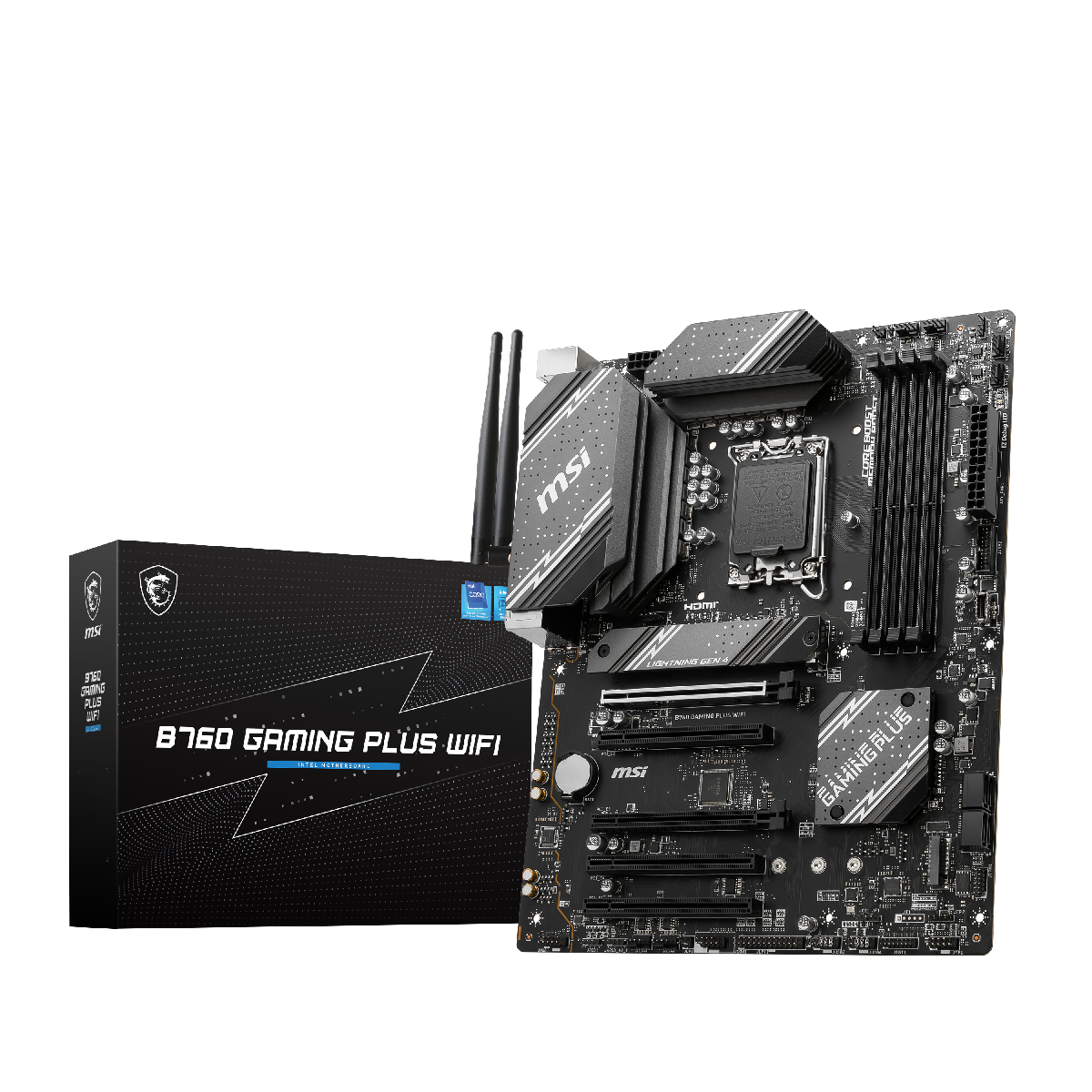

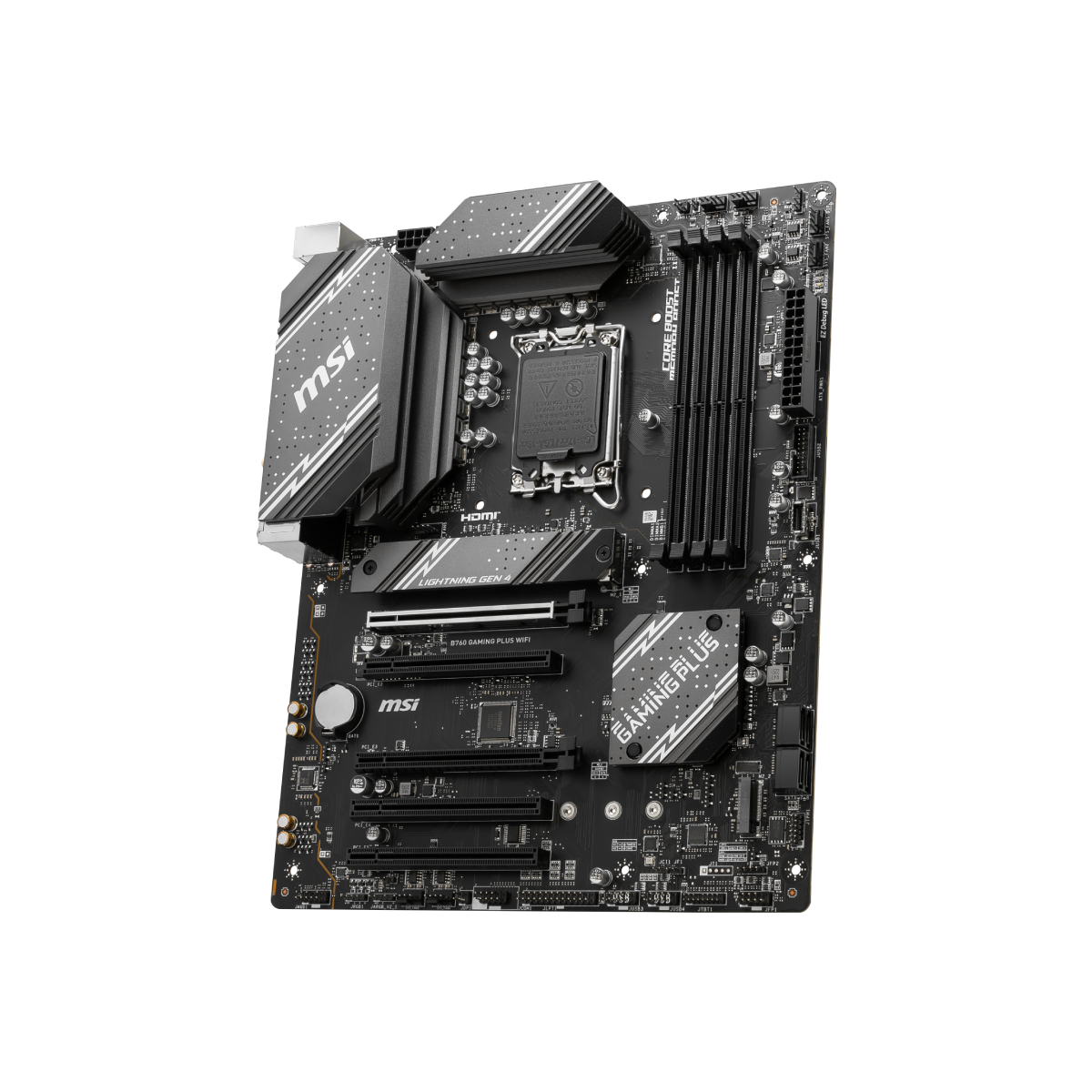

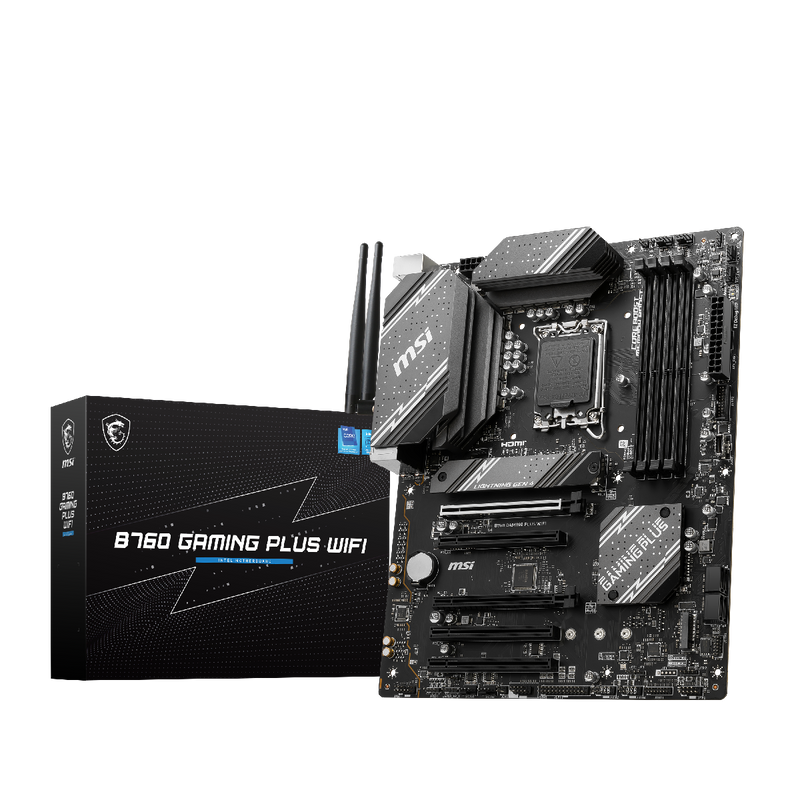

MSI B760 GAMING PLUS WIFI | Placa Base
Free Package
- Intel B760
B760 GAMING PLUS WIFI
Características:
- Compatible con procesadores Intel® Core™ de 14ª/ 13ª/ 12ª generación, procesadores Intel® Pentium® Gold y Celeron® para zócalo LGA 1700.
- Admite memoria DDR5, doble canal DDR5 6800+MHz (OC)
- Diseño de alimentación mejorado: Sistema de alimentación Duet Rail 12+1 con P-PAK, conectores de alimentación de CPU de 8 patillas + 4 patillas, Core Boost, Memory Boost.
- Solución térmica premium: Disipador térmico ampliado, almohadillas térmicas MOSFET de 7 W/mK, choke pads adicionales y M.2 Shield Frozr para un sistema de alto rendimiento y una experiencia de juego ininterrumpida.
- Experiencia gaming ultrarrápida: Ranura PCIe 4.0, Lightning Gen 4 x4 M.2 con M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
- LAN 2.5G y Wi-Fi 6: Solución de red mejorada para uso profesional y multimedia. Proporciona una conexión de red segura, estable y rápida
- PCB de alta calidad: PCB de 6 capas fabricado con cobre de 2 onzas de espesor
- AUDIO BOOST: Recompensa a tus oídos con una calidad de sonido de estudio para disfrutar de la experiencia de juego más envolvente.
| Chipset | INTEL B760 |
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory |
4x DDR5, Maximum Memory Capacity 256GB Max. overclocking frequency:
Supports Intel® XMP 3.0 OC |
| Onboard Graphics |
|
| Slot |
|
| Storage |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
|
| LAN | Realtek® RTL8125BG 2.5G LAN |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio |
|
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |

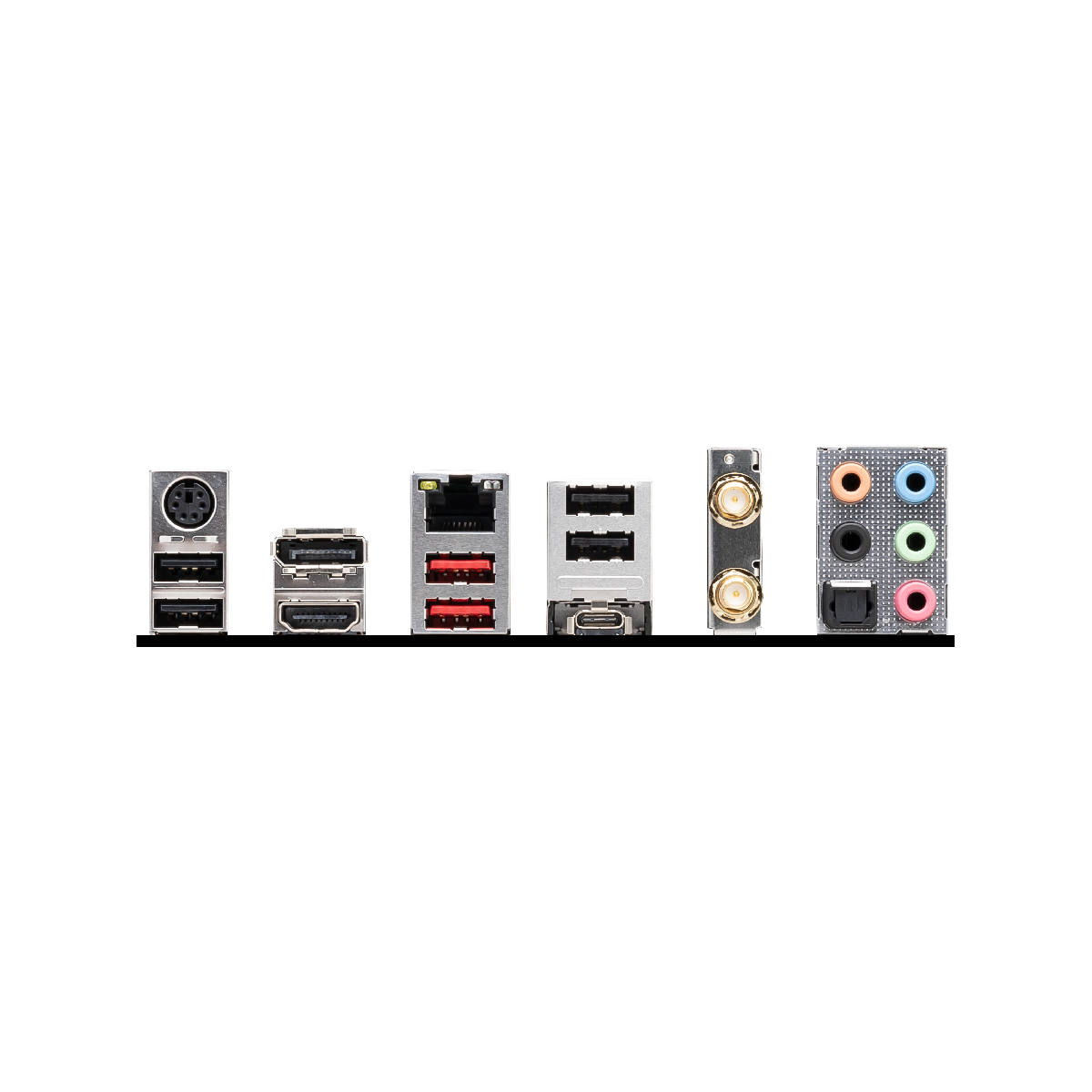

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | ATX 243.84mmx304.8mm |
| BOX CONTENT |  |
