MSI España  |  SKU: 911-7C56-085

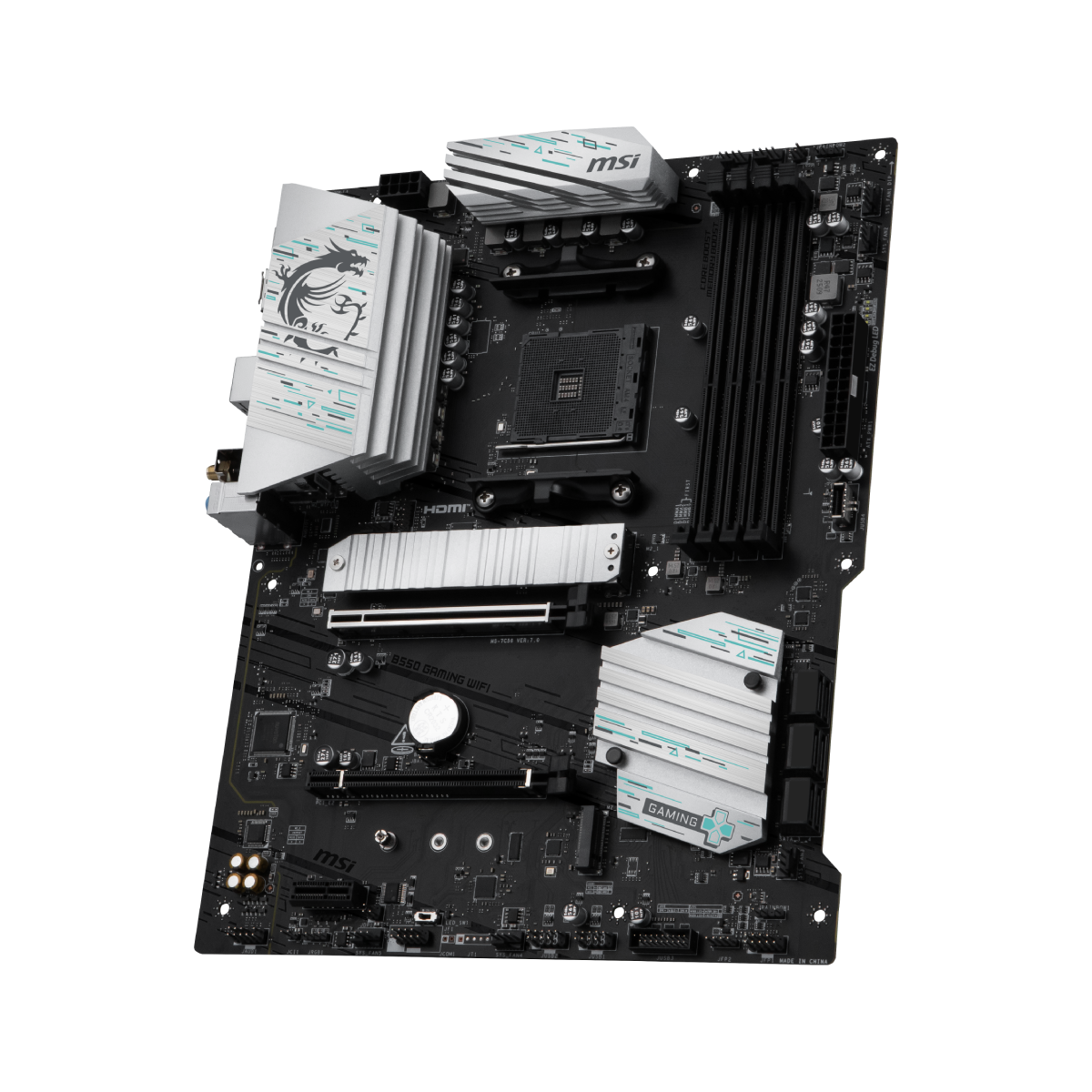

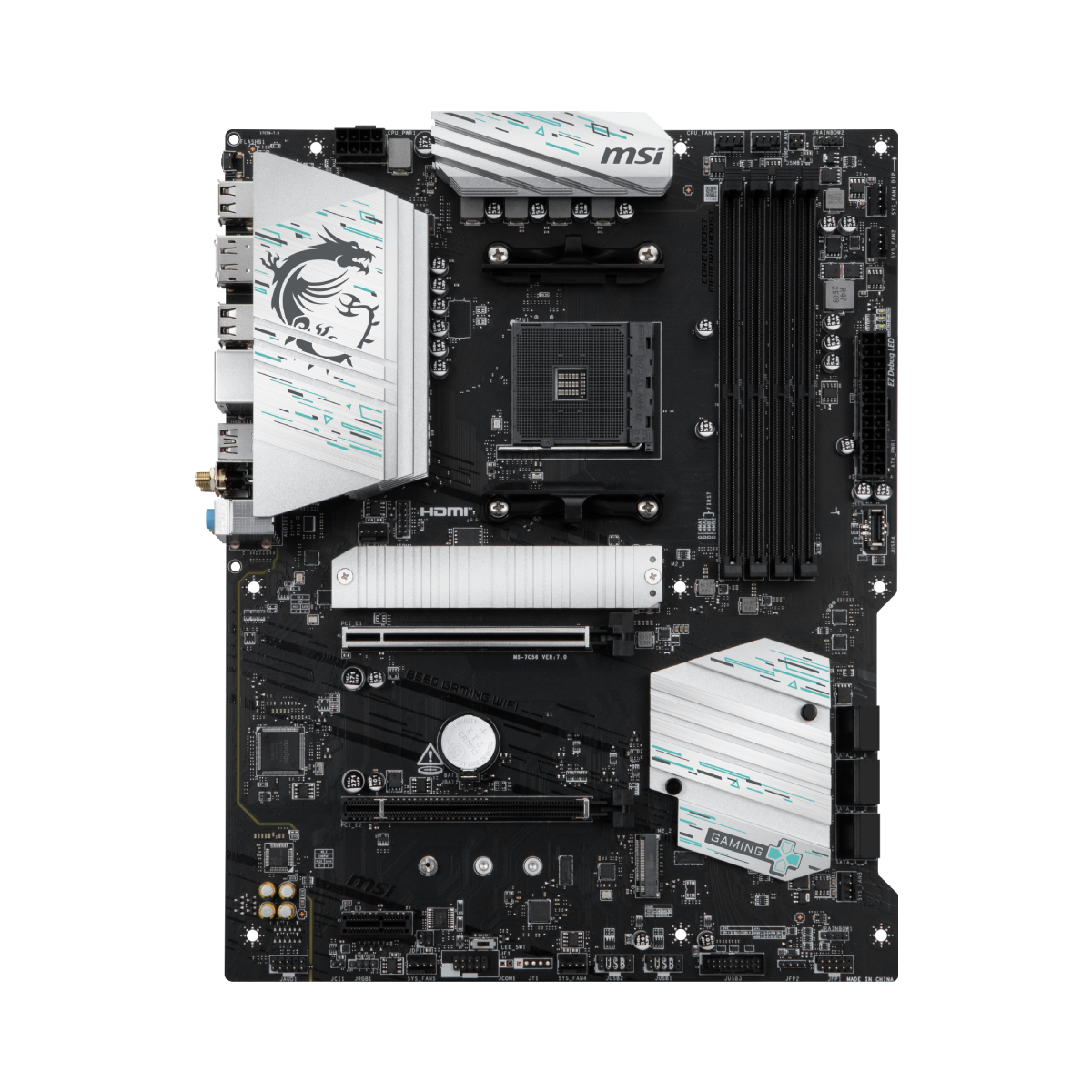

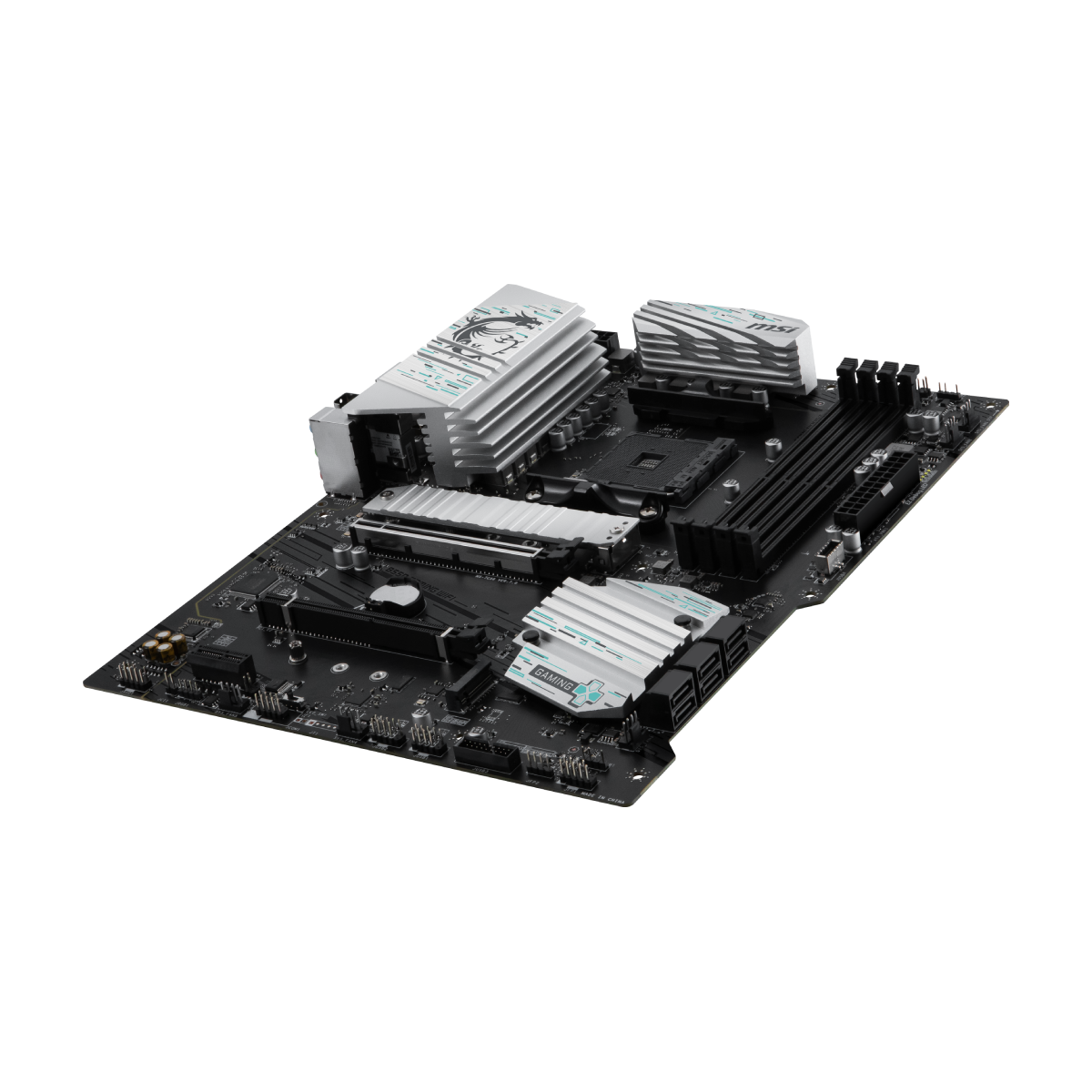

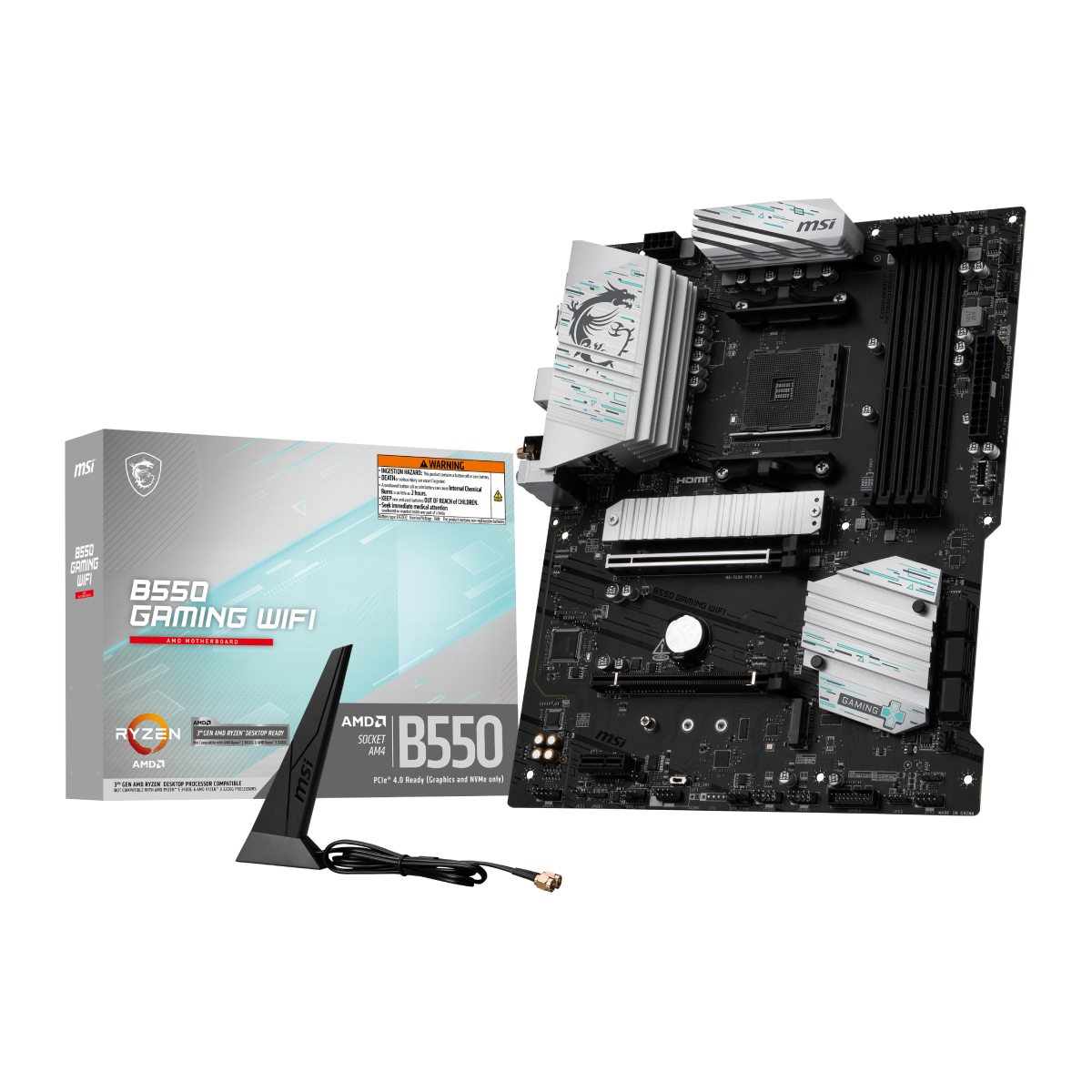

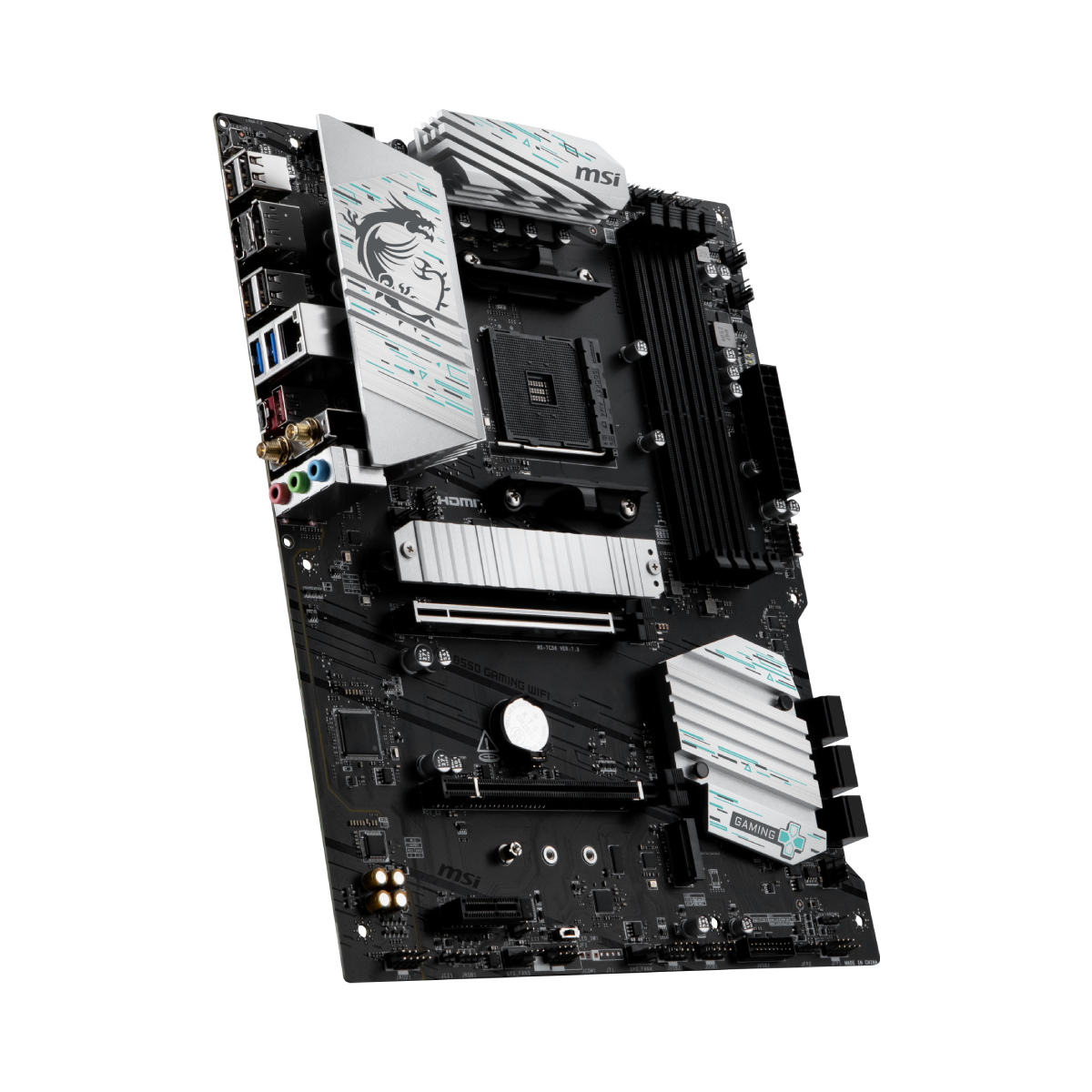

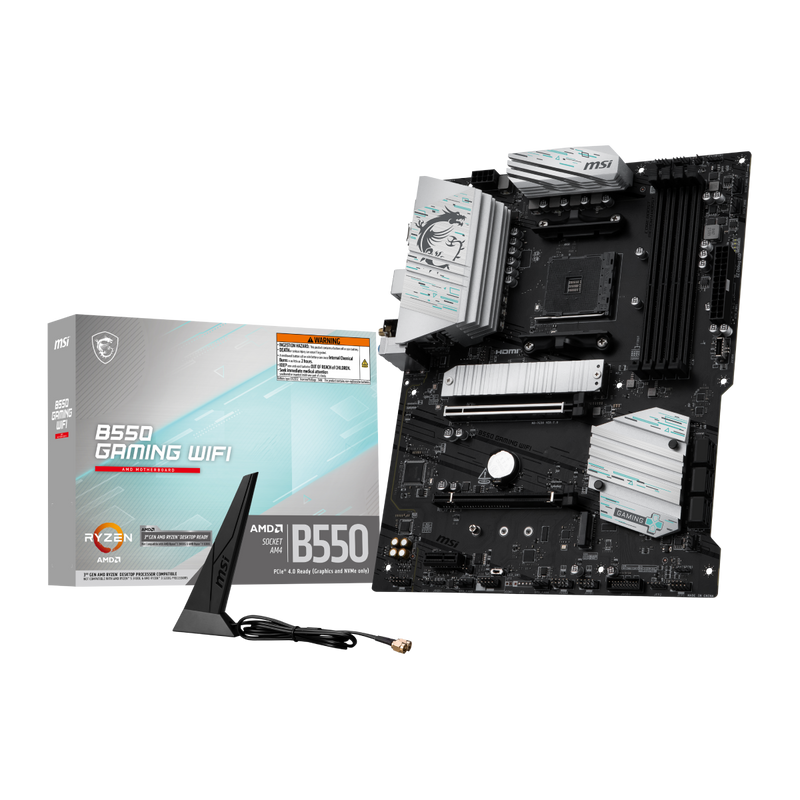

MSI B550 GAMING WIFI | Placa Base


to see prices

fecha de entrega

Garantizar

3 Year Warranty

Free Package

  • AM4
  • AMD B550
  • ATX

B550 GAMING WIFI

Características:

  • Compatible con procesadores AMD Ryzen™ serie 5000, serie 5000 G, serie 4000 G y serie 3000
  • Ultra rendimiento: Sistema de alimentación Duet Rail de 10+2+1 fases (55 A DrMOS), conector de alimentación de CPU de 8 pines, Core Boost, Memory Boost, PCB de 4 capas con cobre endurecido de 2 oz
  • Compatible con memoria DDR4, hasta 4400 (OC) MHz
  • Frozr Guard: Disipador térmico ampliado, almohadillas térmicas MOSFET con una potencia nominal de 7 W/mK, almohadillas térmicas adicionales para bobinas y M.2 Shield Frozr, diseñados para sistemas de alto rendimiento y una experiencia ininterrumpida
  • Experiencia gaming ultrarrápida: Ranura PCIe 4.0, Lightning Gen 4 x4 M.2, USB tipo C frontal
  • Conectividad de alta velocidad: Solución Wi-Fi 5 con LAN 1G: la última solución para uso profesional y multimedia, que ofrece una red y una transmisión de datos seguras, estables y de alta velocidad
  • Audio Boost: Deleita tus oídos con una calidad de sonido de nivel profesional para disfrutar de la experiencia gaming más inmersiva

Chipset AMD B550
CPU Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Socket AM4
Memory

4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE

  • 1DPC 1R Max speed 4800 MHz
  • 1DPC 2R max speed 3866 MHZ
  • 2DPC 1R max speed 4000 MHZ
  • 2DPC 2R max speed 3600 MHZ

  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory

Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
  • 1x HDMI™
    • Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
  • 1x DisplayPort
    • Support DisplayPort 1.2, maximum resolution of 4K 60Hz*
Slot
  • 2x PCI-E x16 slot (Qty)
  • 1x PCI-E x1 slot (Qty)
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
  • PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
  • Realtek® ALC897
  • 7.1-Channel High Definition Audio
Storage
  • 2x M.2 (Qty)
    • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
    • M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280 devices
  • 6x SATA 6G (Qty)
Multi-GPU AMD MULTI-GPU Support
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
  • 1x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
LAN Realtek® 8111H 1G LAN
Internal IO
  • 1x Power Connector (ATX_PWR)
  • 1x Power Connector (CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 6x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 2x Addressable RGB LED connector (JRAINBOW)
  • 1x RGB LED connector (JRGB)
  • 1x TPM pin header (Support TPM 2.0)
  • 4x USB 2.0 ports
  • 1x USB 5Gbps Type A ports
  • 1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH Wi-Fi 5 Solution
Supports Bluetooth® 5.0
LED FEATURE 4x EZ Debug LED

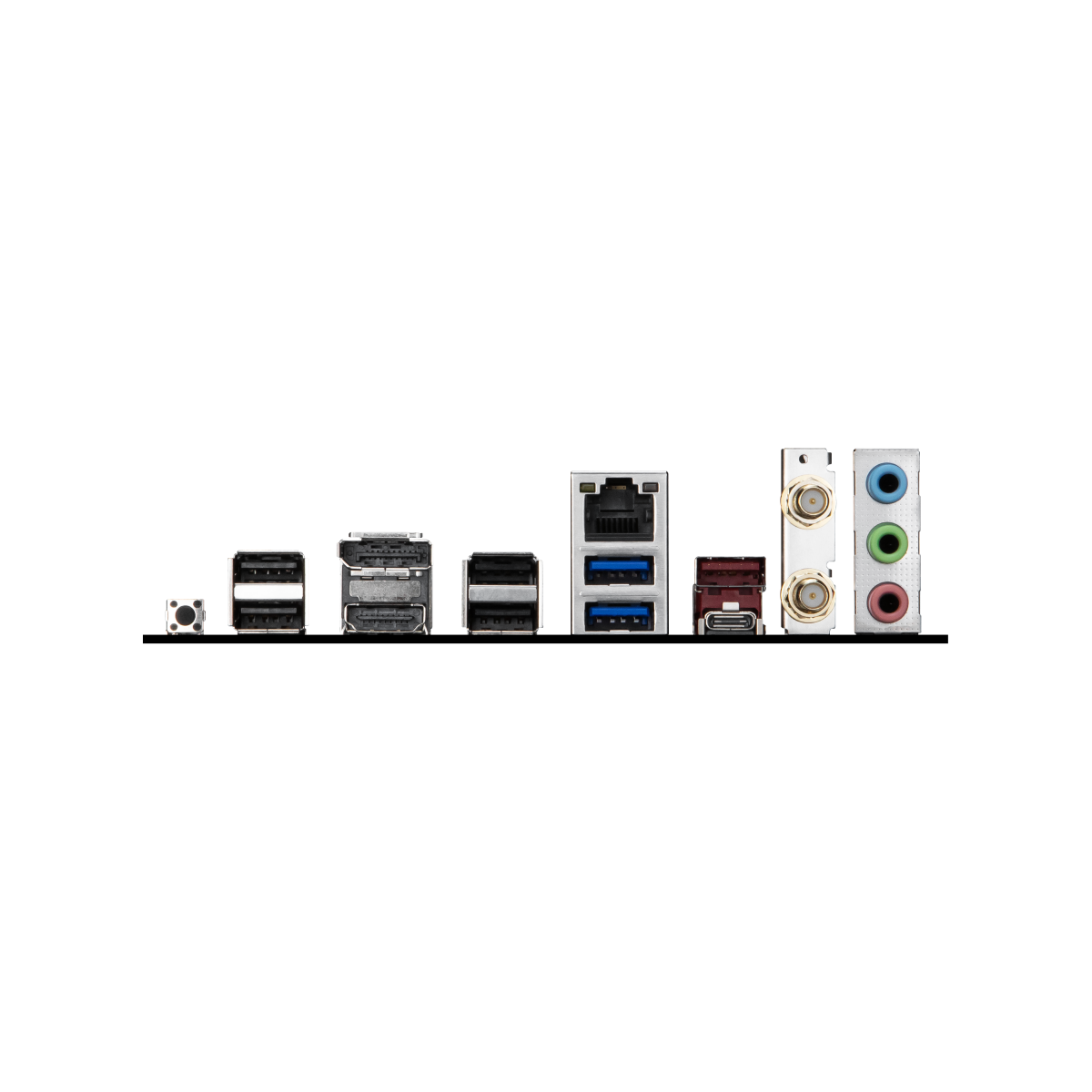

BACK PANEL PORTS
  1. USB 2.0
  2. DisplayPort 1.2
  3. 1G LAN
  4. USB 10Gbps (Type-A)
  5. Wi-Fi / Bluetooth
  6. Audio Connectors
  7. Flash BIOS Button
  8. HDMI™
  9. USB 2.0
  10. USB 5Gbps (Type-A)
  11. USB 10Gbps (Type-C)
OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
PCB Info ATX
243.84mmx304.8mm
