MSI España  |  SKU: 911-7E57-002

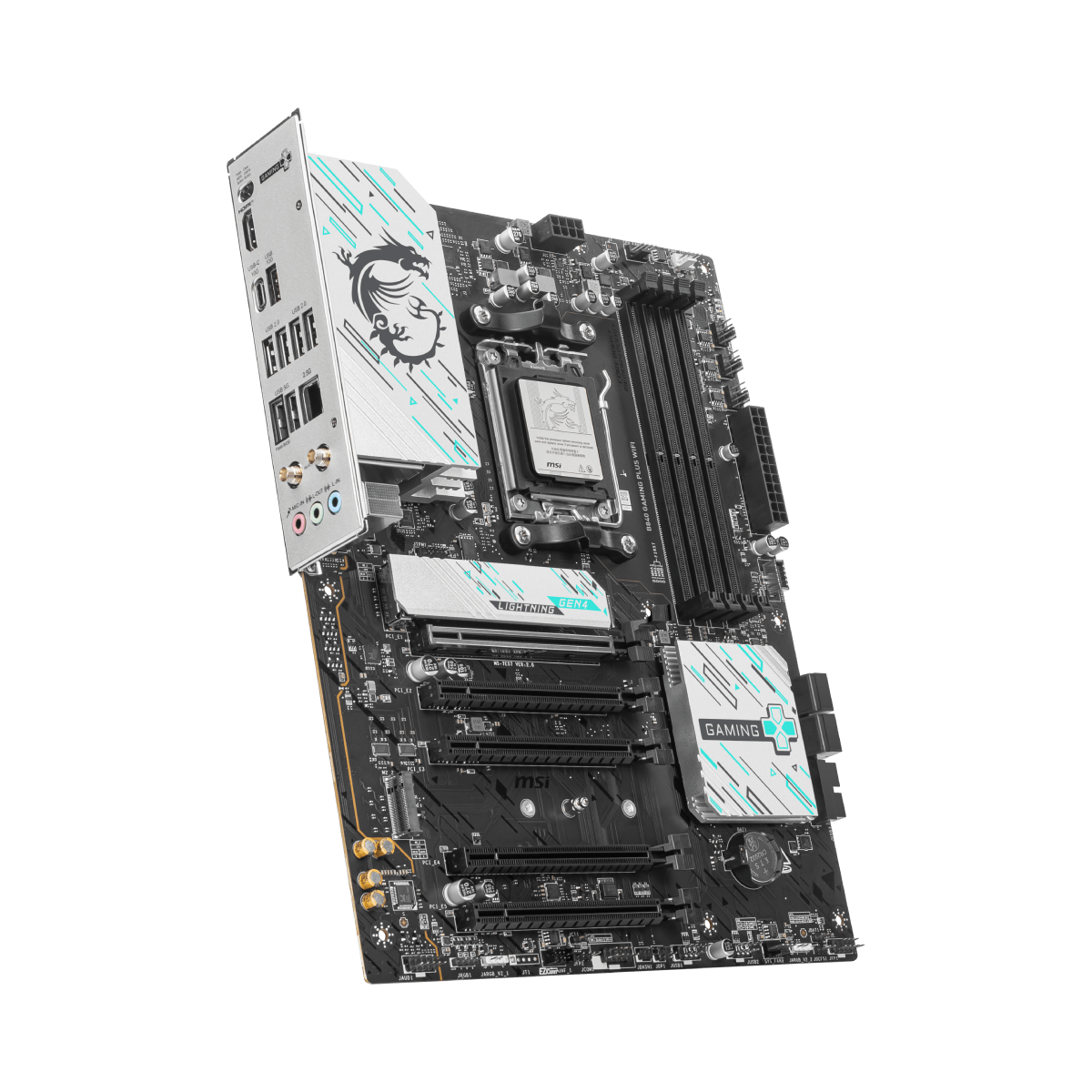

MSI B840 GAMING PLUS WIFI | Placa Base


to see prices

Ongoing campaigns

Garantizar

3 Year Warranty

Free Package

  • AM5
  • AMD B840
  • ATX

B840 GAMING PLUS WIFI

Características:

  • Soporta procesadores de escritorio AMD Ryzen™ 9000 / 8000 / 7000 Series
  • Soporta memoria DDR5, canal dual DDR5 8000+ MT/s (OC)
  • Frozr Guard: Disipador extendido, almohadillas térmicas MOSFET clasificadas para 7W/mK, almohadillas térmicas adicionales para el choke y EZ M.2 Shield Frozr II, diseñados para un sistema de alto rendimiento y experiencia sin interrupciones
  • Conectividad de alta velocidad: Wi-Fi 7 a velocidad completa con LAN de 2.5G - La última solución para uso profesional y multimedia, ofreciendo una red segura, estable y de alta velocidad para transmisión de datos
  • Rendimiento ultra alto: 7+2+1 fases de energía directa para la CPU, conector de alimentación de 8 pines para la CPU, Core Boost, Memory Boost, PCB de 6 capas con cobre grueso de 2oz
  • Experiencia gaming ultra rápida: ranura PCIe 4.0, Lightning Gen 4 x4 M.2, USB Type-C frontal
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II y EZ Antenna
  • Audio Boost: Recompensa a tus oídos con calidad de sonido de grado de estudio para una experiencia gaming inmersiva

Chipset AMD B840
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max. overclocking frequency:
  • 1DPC 1R Max speed up to 8000+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 5600+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

*CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 5x PCI-E x16 slot (Qty)
    • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    • PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
    • PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset)
    • PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E1 slot
    • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio Realtek® ALC897
7.1-Channel High Definition Audio
Storage
  • 2x M.2 (Qty)
    • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
  • 4x SATA 6G (Qty)
    • M2_2 slot

Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor)

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 NVMe storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
  • 1x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
LAN Realtek® 8125BG 2.5G LAN
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x PUMP_SYS Fan
  • 4x System Fan
  • 1x ARGB+FAN Header (JAF_1)2
  • x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x Tuning Controller connector (JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector (JRGB)
  • 1x TPM pin header (Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH
  • Wi-Fi 7 Solution
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED

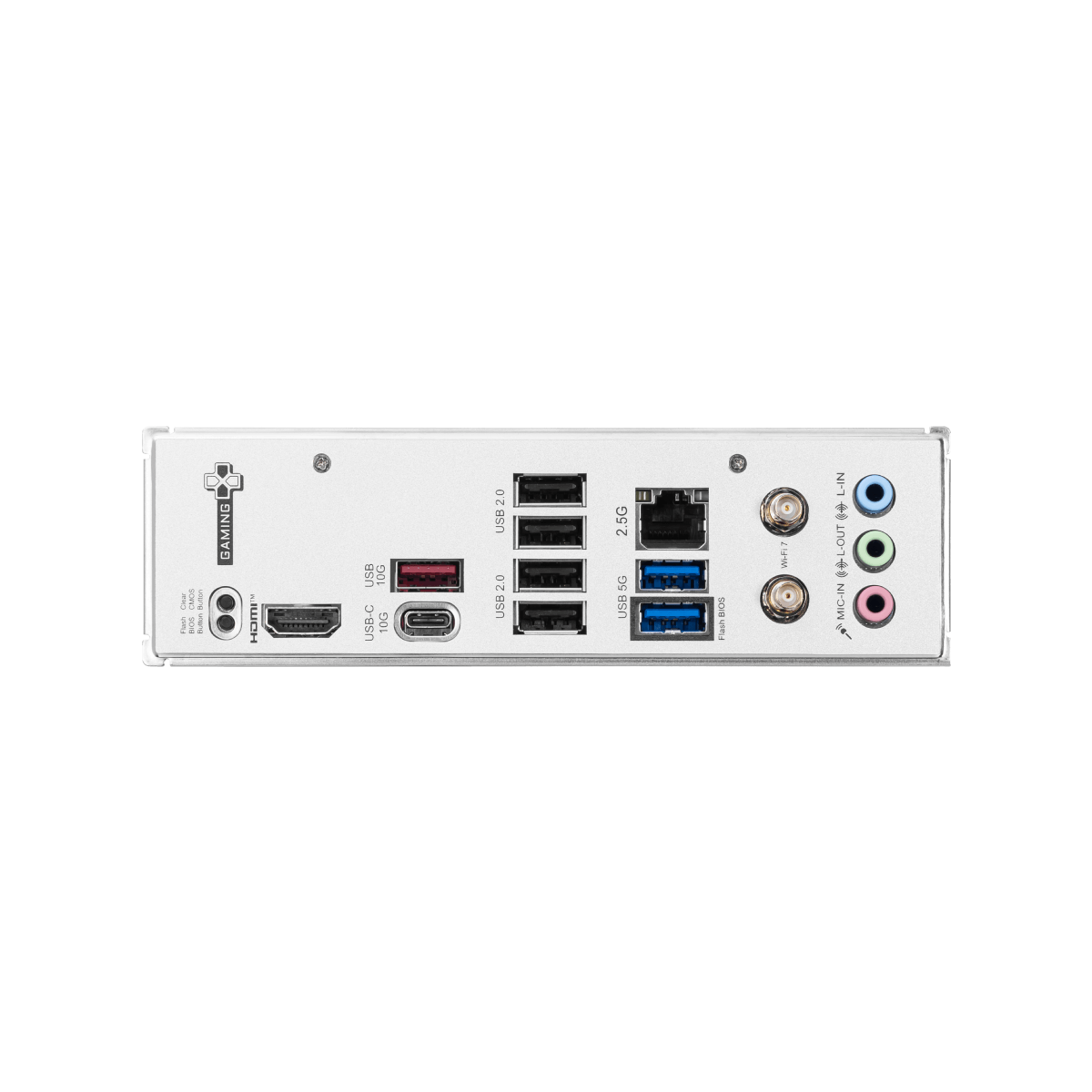

BACK PANEL PORTS
  1. Clear CMOS Button
  2. USB 10Gbps (Type-A)
  3. USB 2.0
  4. 2.5G LAN
  5. Wi-Fi / Bluetooth
  6. Audio connectors
  7. Flash BIOS Button
  8. HDMI™ 2.1 Port
  9. USB 10Gbps (Type-C)
  10. USB 5Gbps (Type-A)
OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
PCB Info ATX
243.84mmx304.8mm
