MSI España  |  SKU: 911-7E56-030

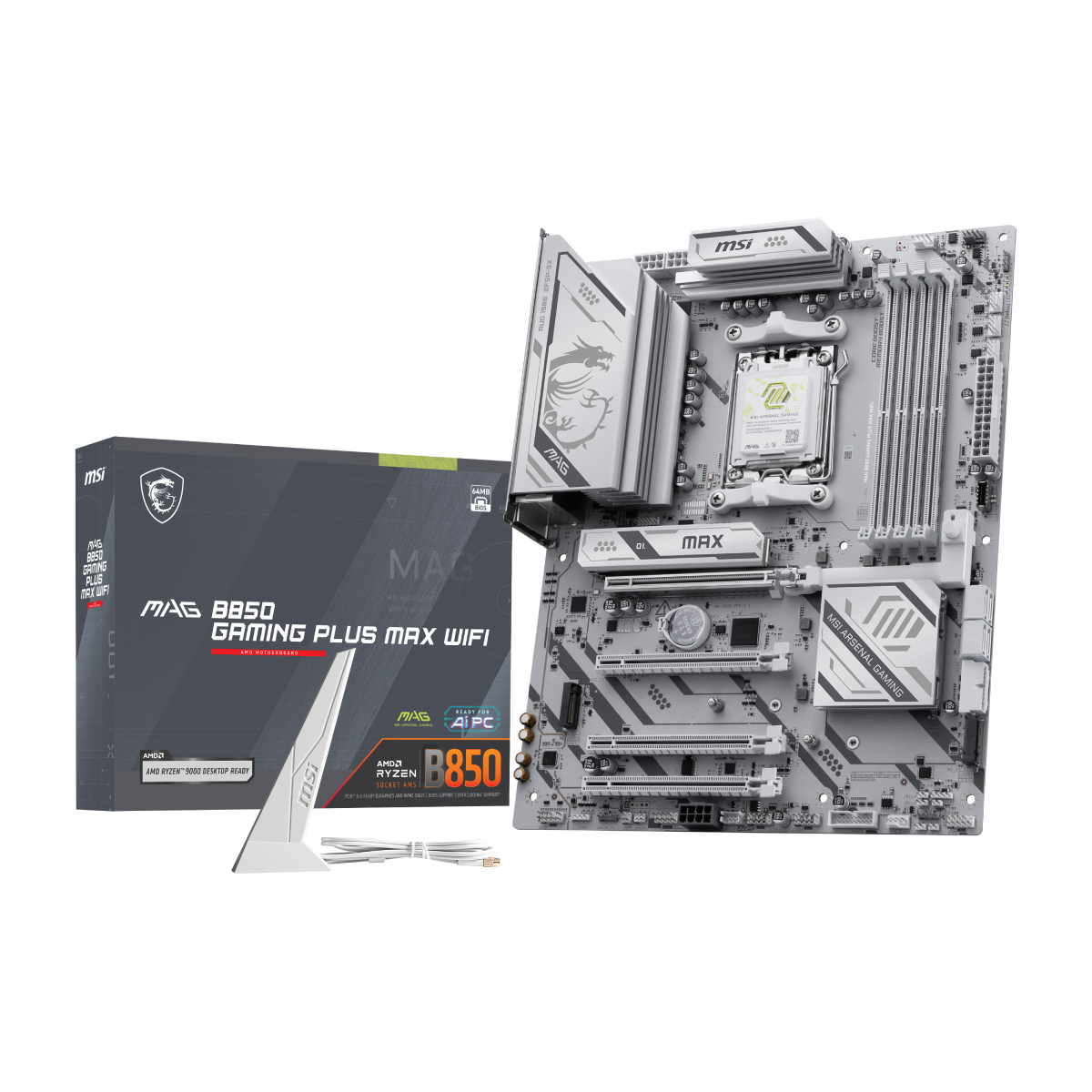

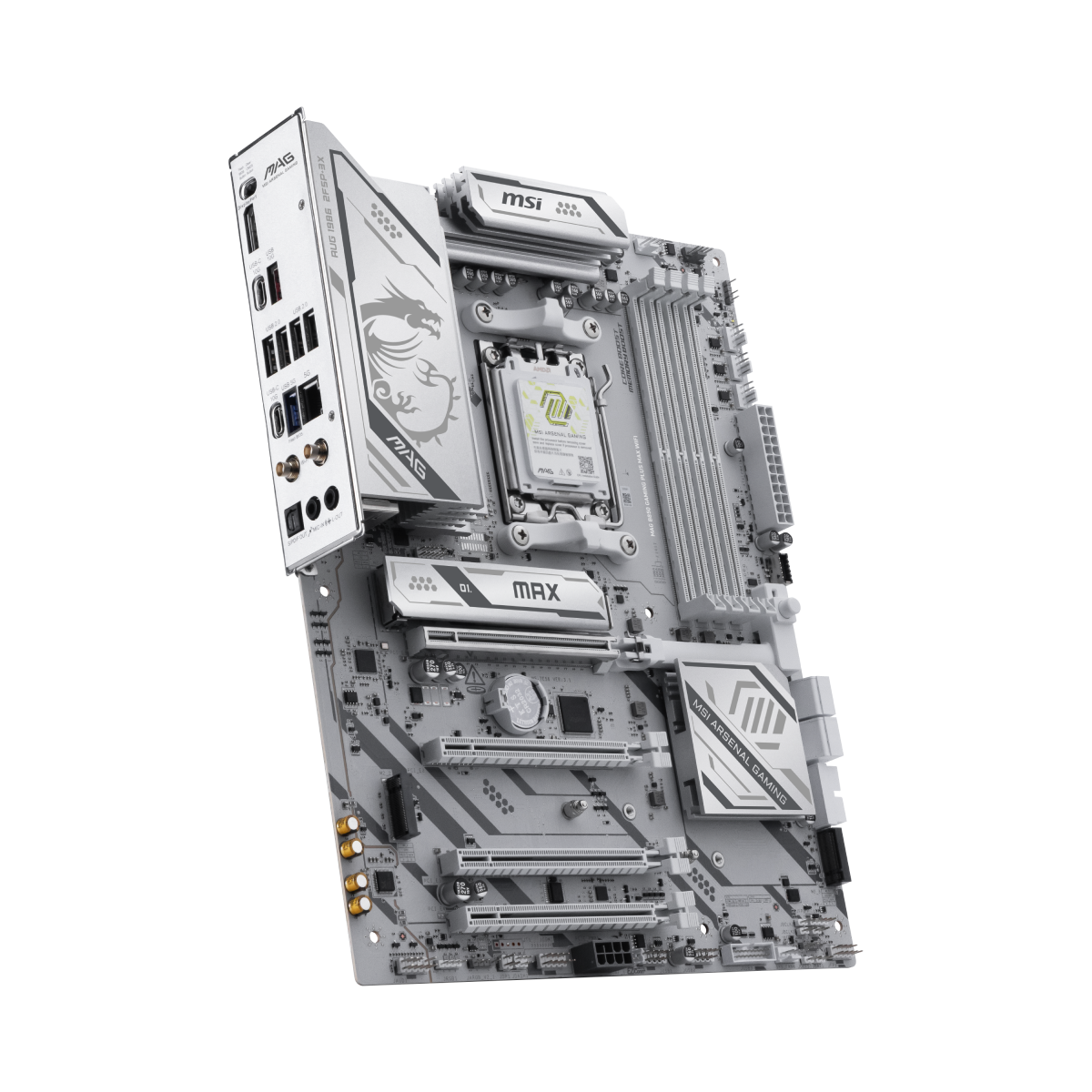

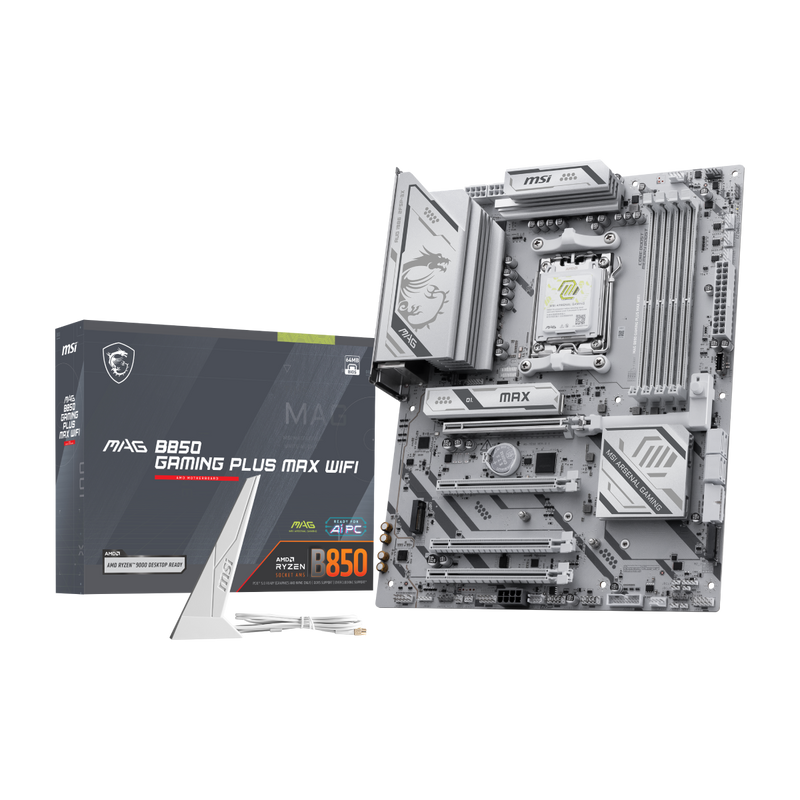

MSI MAG B850 GAMING PLUS MAX WIFI | Placa Base


to see prices

Ongoing campaigns

Garantizar

3 Year Warranty

Free Package

  • AM5
  • AMD B850
  • ATX

MAG B850 GAMING PLUS MAX WIFI

Características:

  • Soporte de procesadores: Compatible con los procesadores de escritorio de las series AMD Ryzen™ 9000, 8000 y 7000
  • Soporte de memoria: Compatible con memoria DDR5, de doble canal (Dual Channel) a 8200+ MT/s (OC)
  • Rendimiento Ultra: Sistema de alimentación 12+2+1 Duet Rail, conectores de alimentación de CPU dobles de 8 pines, tecnologías Core Boost y Memory Boost, y un circuito impreso (PCB) de 6 capas fabricado con cobre grueso de 2 oz y materiales de calidad de nivel de servidor
  • Frozr Guard: Disipador térmico extendido, almohadillas térmicas de MOSFET de 7W/mK, almohadillas térmicas adicionales para los estranguladores (chokes) y EZ M.2 Shield Frozr II, diseñados para sistemas de alto rendimiento
  • EZ DIY (Fácil montaje): Incluye los sistemas EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release y EZ Antenna
  • Experiencia gaming ultrarrápida: Ranura PCIe 5.0, ranura Lightning Gen 5 x4 M.2 y conector USB Tipo C frontal
  • LAN 5G con solución Wi-Fi 7: La tecnología más reciente para uso profesional y multimedia, que ofrece transmisiones de datos y redes seguras, estables y de alta velocidad
  • Audio Boost: Consiente a tus oídos con una calidad de sonido de nivel de estudio para lograr la experiencia gaming más inmersiva

Chipset AMD B850
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:

  • 1DPC 1R Max speed up to 8200+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

The DIMM slots on this motherboard have single-sided latches.Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.


Onboard Graphics
  • 1x DisplayPort
    • Support DisplayPort 1.2 with HBR2, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 4x PCI-E x16 slot (Qty)
    • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    • PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E1 slot
    • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

*PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot.
Audio
  • Realtek® ALC897
  • 7.1-Channel High Definition Audio
Storage
  • 3x M.2 (Qty)
    • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
  • 4x SATA 6G (Qty)
  • M2_1 slot
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
  • M2_2 slot
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 3.0 x4 (For Ryzen™ 8500/ 8300 Series processors)

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
  • Supports RAID 0 and RAID 1 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 1x USB 5Gbps Type A (Rear)
  • 4x USB 5Gbps Type A (Front)
  • 1x USB 10Gbps Type A (Rear)
  • 2x USB 10Gbps Type C (Rear)
  • 1x USB 10Gbps Type C (Front)
LAN Realtek® 8126 5G LAN
Internal IO
  • 1x Power Connector (ATX_PWR)
  • 2x Power Connector (CPU_PWR)
  • 1x Power Connector (PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x PUMP_SYS Fan
  • 4x System Fan
  • 1x ARGB+FAN Header (JAF_1)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x Tuning Controller connector (JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector (JRGB)
  • 1x TPM pin header (Support TPM 2.0)
  • 4x USB 2.0 ports
  • 4x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
  • Wi-Fi 7 Solution
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED
1x EZ Memory Detection LED
BACK PANEL PORTS
  1. Clear CMOS Button
  2. USB 10Gbps (Type-A)
  3. USB 2.0
  4. 5G LAN
  5. Wi-Fi / Bluetooth
  6. Audio connectors
  7. Flash BIOS Button
  8. DisplayPort
  9. USB 10Gbps (Type-C)
  10. USB 10Gbps (Type-C)
  11. USB 5Gbps (Type-A)
  12. S/PDIF-OUT
OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
PCB Info ATX
243.84mmx304.8mm
