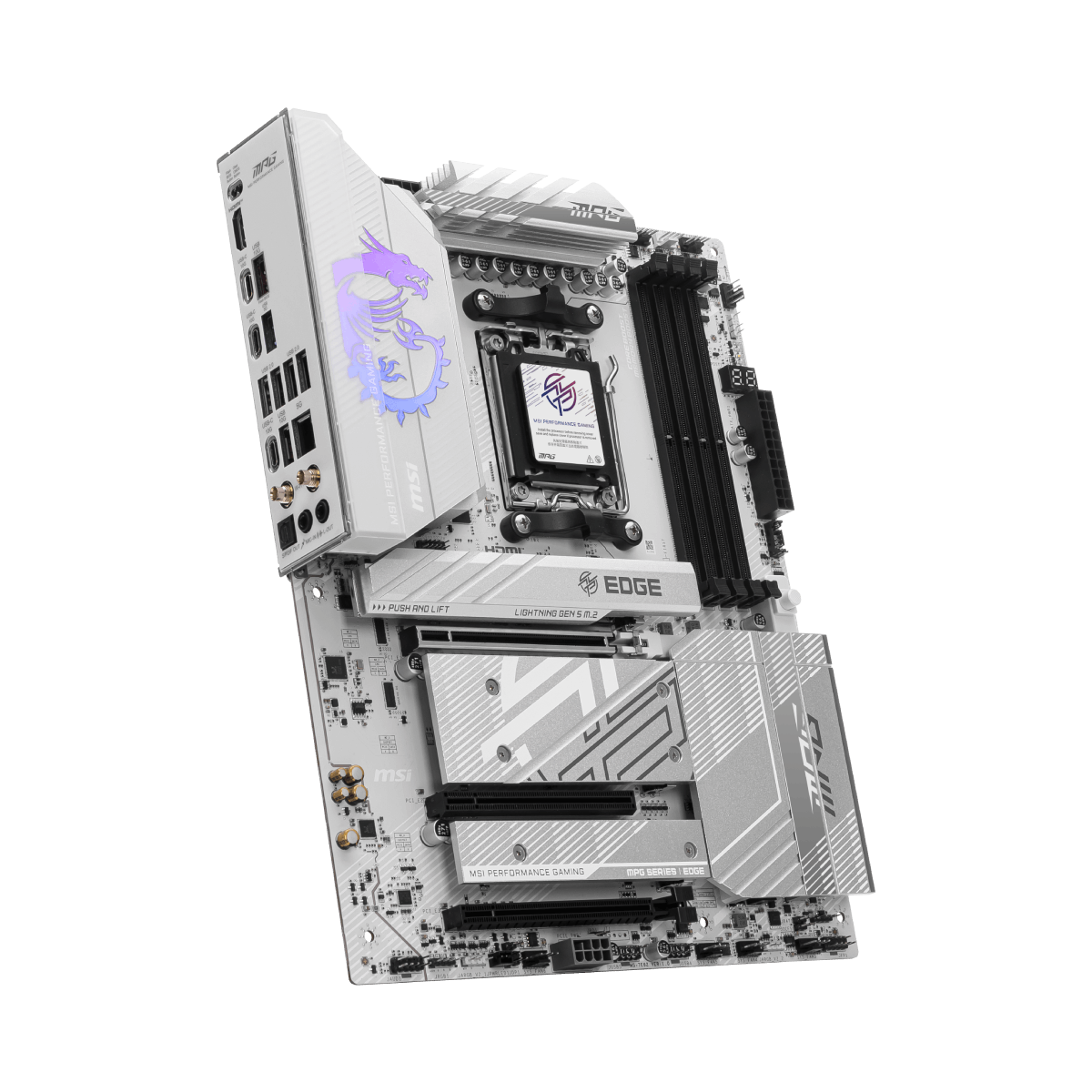

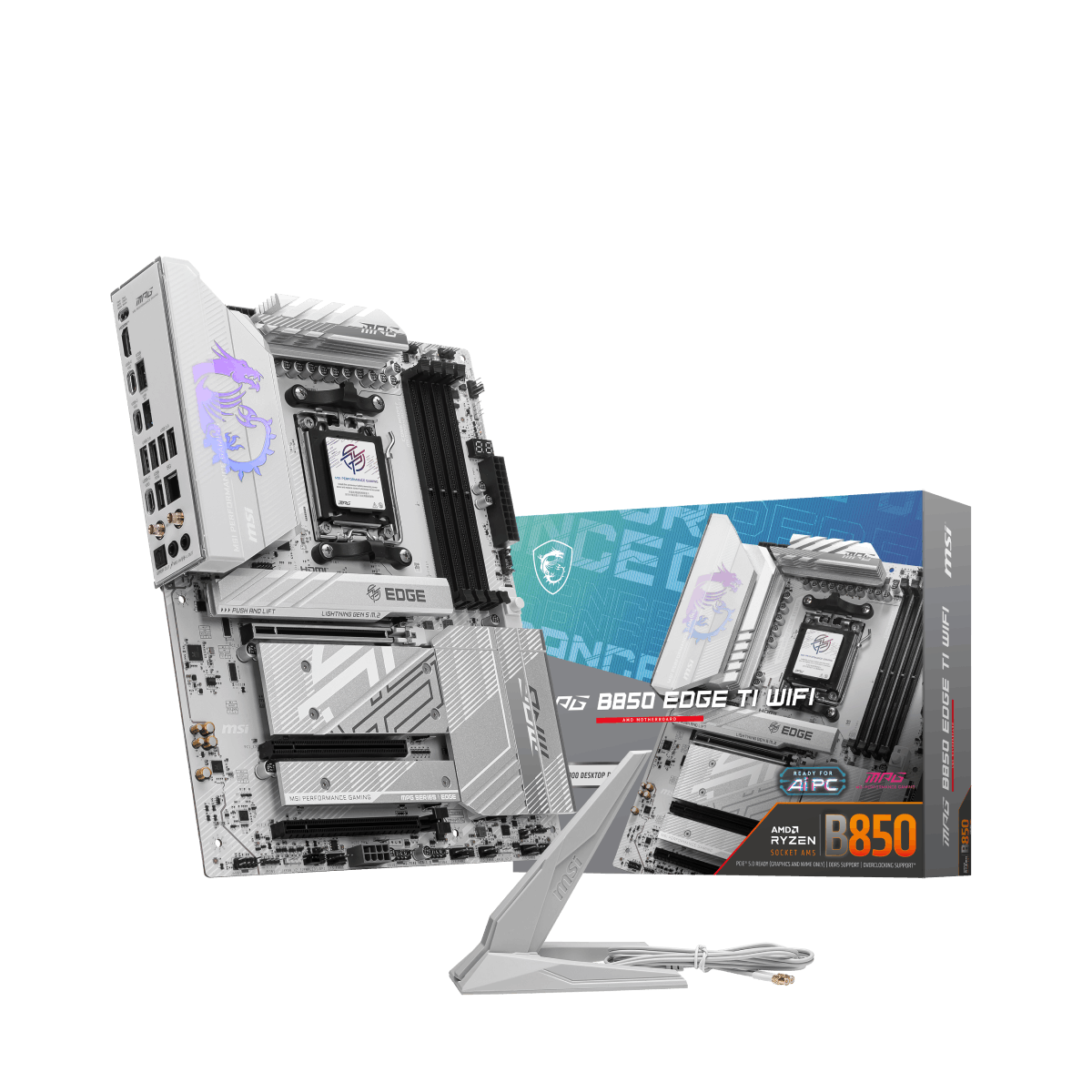

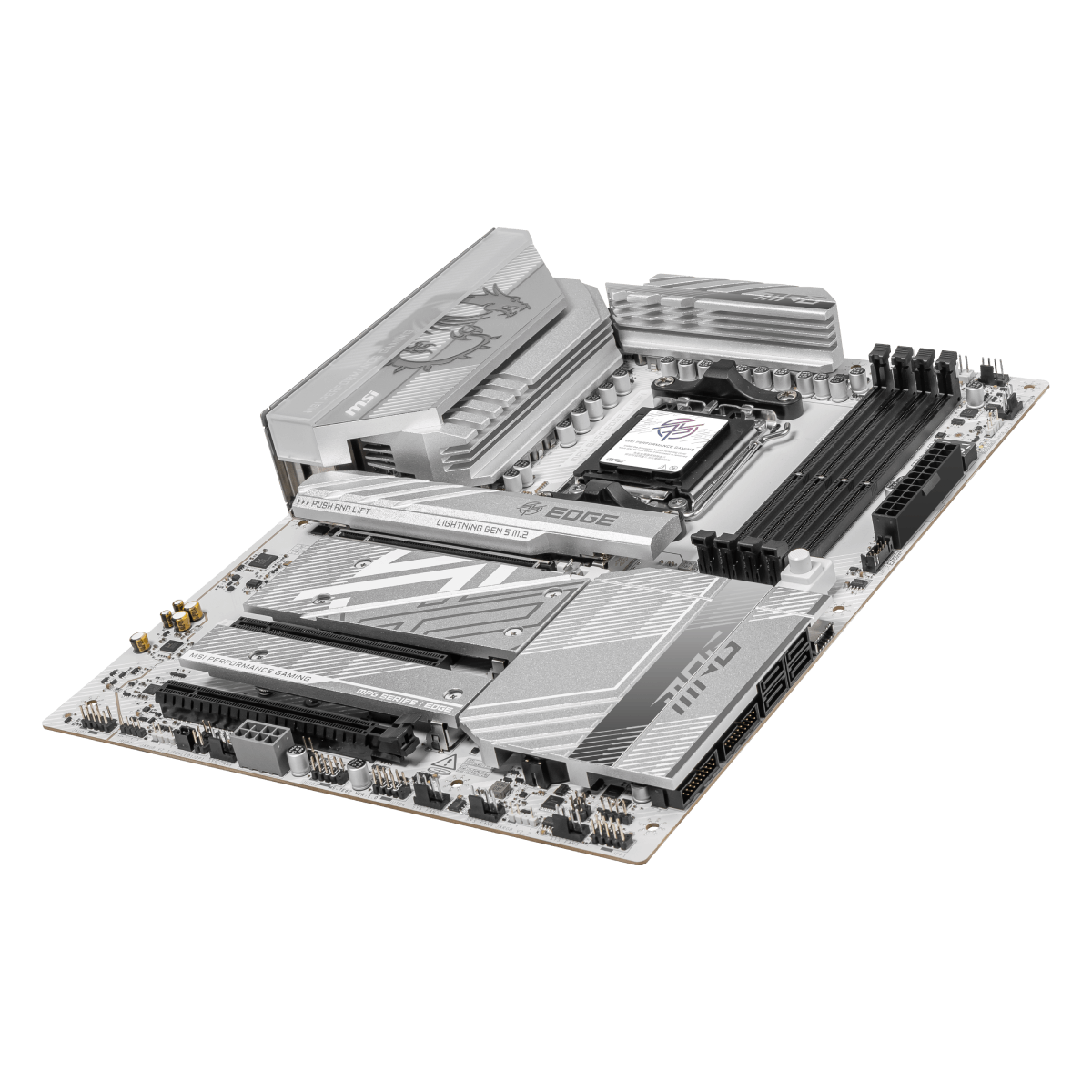

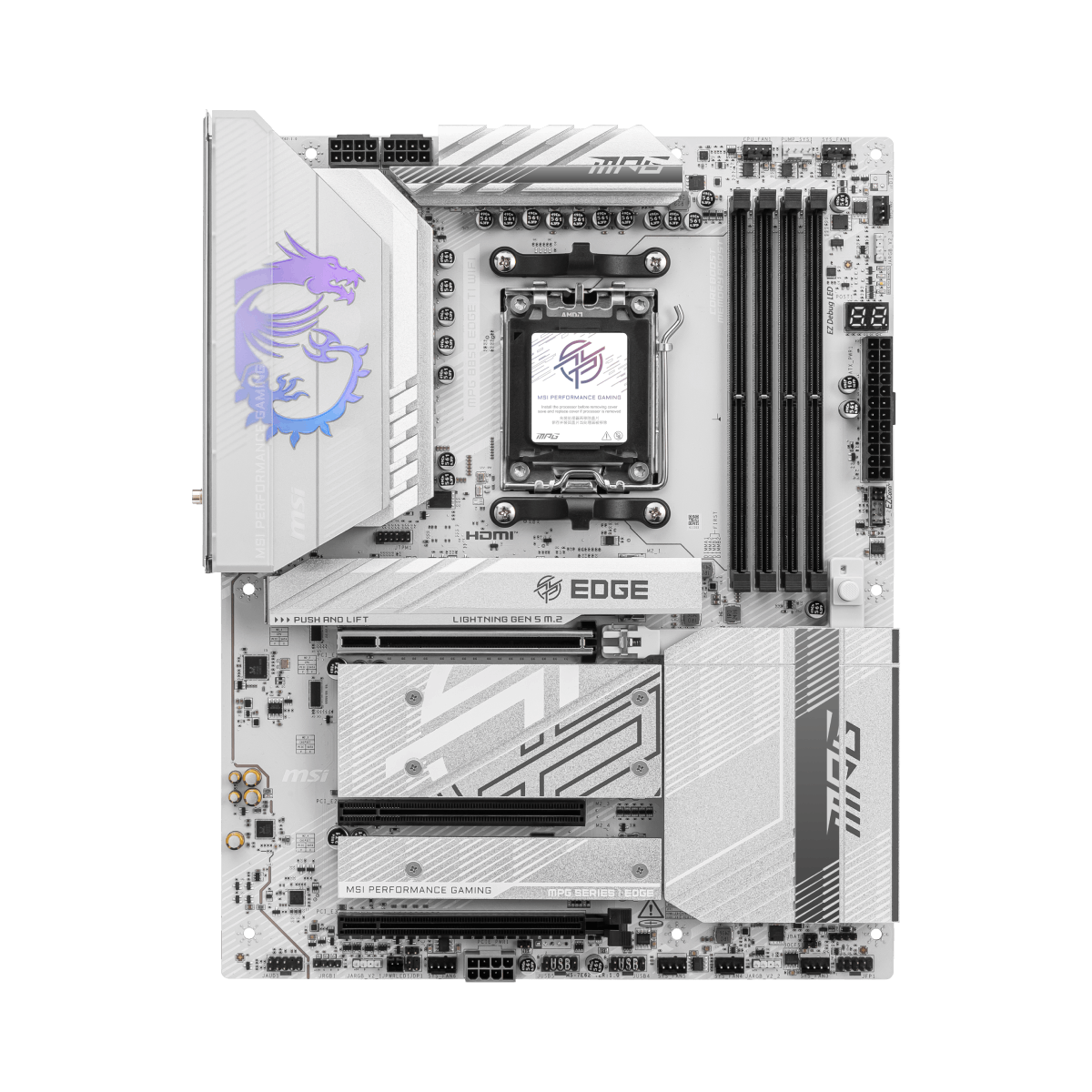

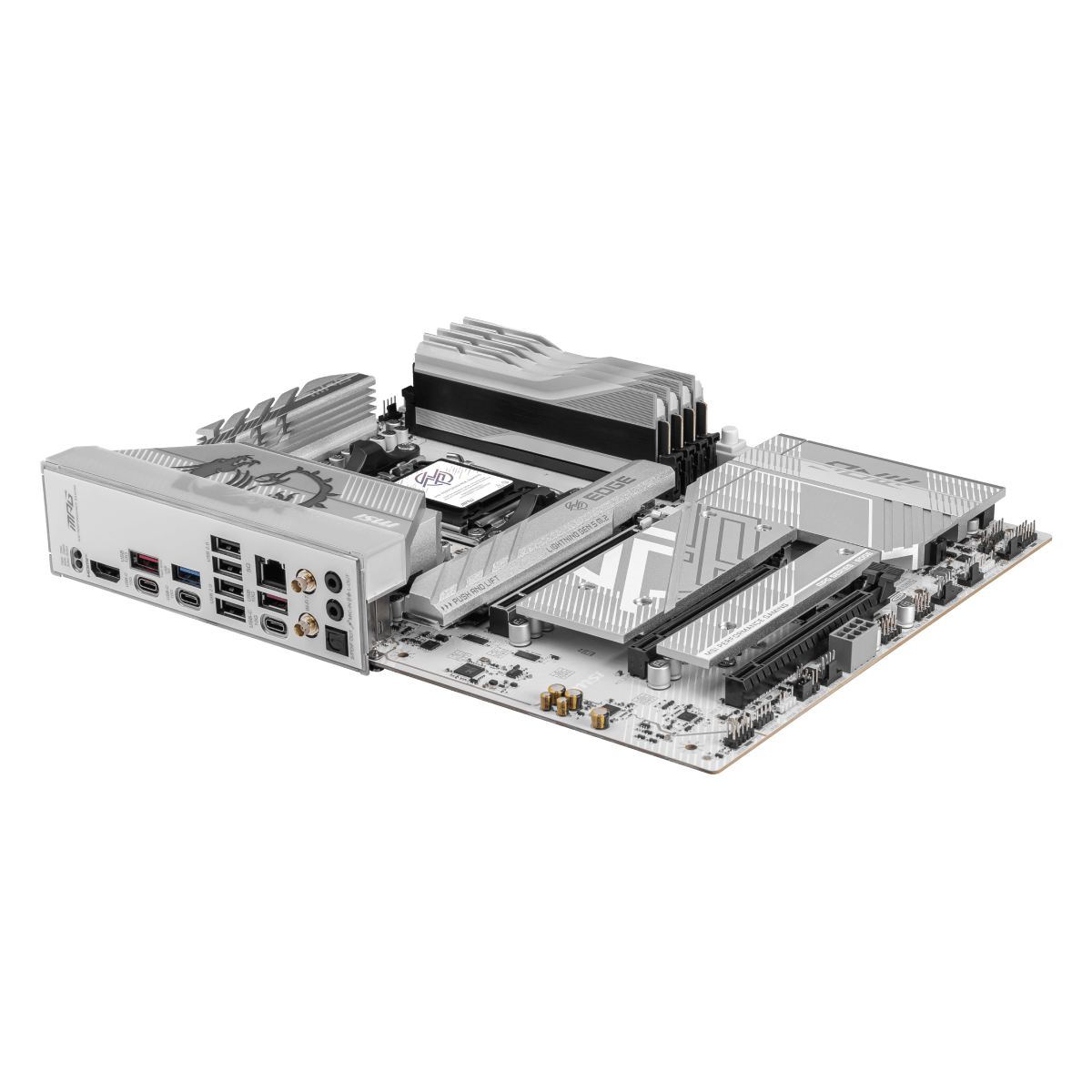

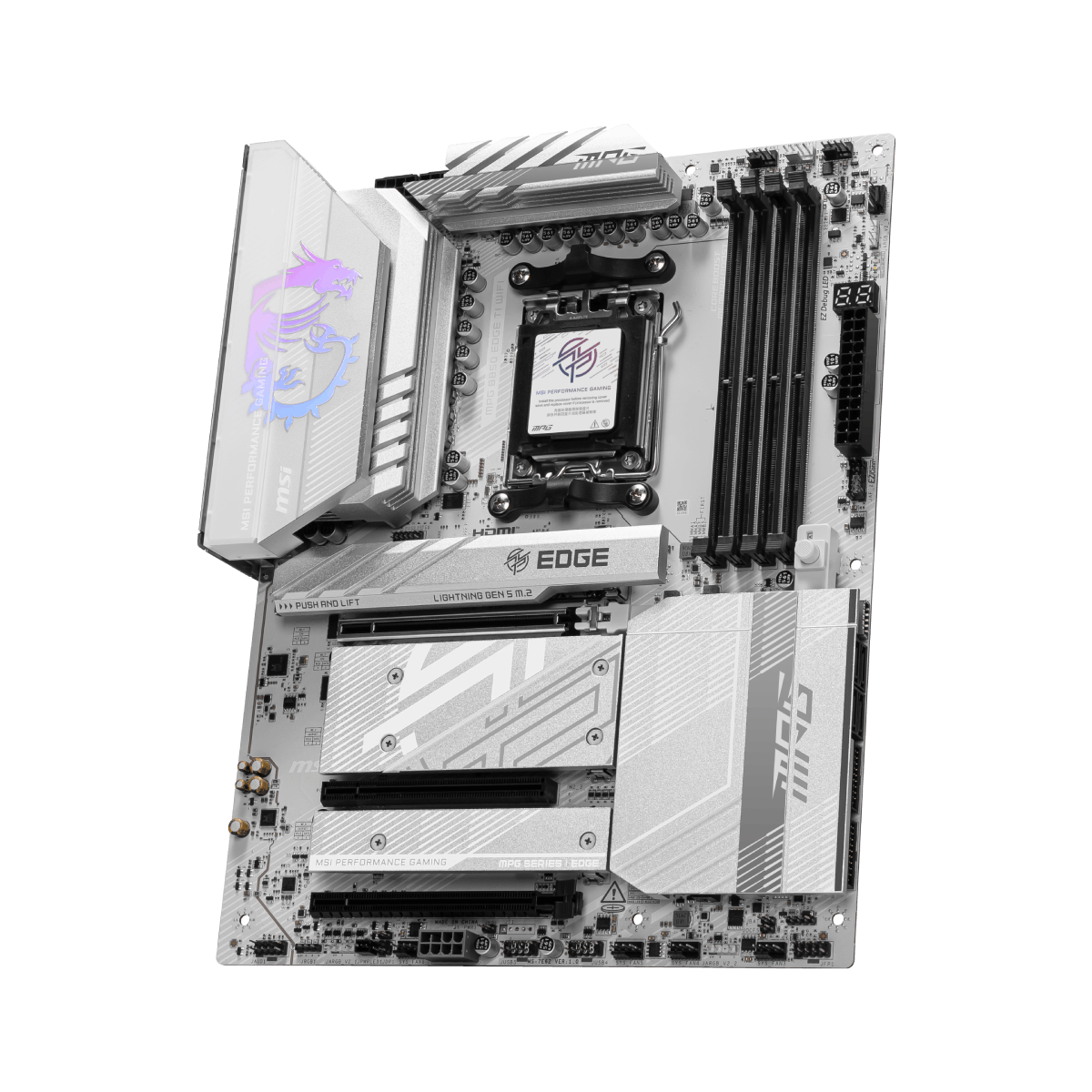

MPG B850 EDGE TI WIFI

Características:

  • Soporta procesadores de escritorio AMD Ryzen™ 9000 / 8000 / 7000 Series
  • Soporta memoria DDR5, Dual Channel DDR5 8400+ MT/s (OC)
  • Ultra rendimiento: Sistema de alimentación Duet Rail 14+2+1, conectores de alimentación dual de 8 pines para CPU, Core Boost, Memory Boost, PCB de 8 capas hecho de cobre grueso de 2oz y material de nivel servidor
  • Frozr Guard: Heatsink ampliado, almohadillas térmicas para MOSFET con clasificación de 7W/mk, almohadillas térmicas adicionales para bobinas y M.2 Shield Frozr diseñados para sistemas de alto rendimiento y experiencia de juego ininterrumpida
  • EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II y EZ Antenna
  • Experiencia gaming ultra rápida: ranura PCIe 5.0, Lightning Gen 5 M.2
  • Conectividad de alta velocidad: 5G LAN con solución Wi-Fi 7 y USB 20Gbps - La solución más reciente para uso profesional y multimedia, ofreciendo redes y transmisión de datos seguras, estables y de alta velocidad
  • Audio Boost 5: Deleita tus oídos con calidad de sonido de grado de estudio para la experiencia gaming más inmersiva

Chipset AMD B850
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max. overclocking frequency:

  • 1DPC 1R Max speed up to 8400+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

*CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
The DIMM slots on this motherboard only have single-sided latche.
Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics

1x HDMI™ (Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*)

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 3x PCI-E x16 slot (Qty)
    • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)



  • PCI_E1 slot
    • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

*PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot
Audio Realtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output
Storage
  • 4x M.2 (Qty)
    • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
    • M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
    • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 4x SATA 6G (Qty)

  • M.2_1 slot
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
  • M.2_2 slot
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processors)
    • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID

Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices

*RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 1x USB 5Gbps Type A (Rear)
  • 4x USB 5Gbps Type A (Front)
  • 2x USB 10Gbps Type A (Rear)
  • 3x USB 10Gbps Type C (Rear)
  • 1x USB 20Gbps Type C (Front)
LAN 1x Realtek® 8126 5G LAN
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Power Connector(PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x PUMP_SYS Fan
  • 6x System Fan
  • 1x ARGB+FAN+USB2.0 Header (JAF_2)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 4x USB 5Gbps Type A ports
  • 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED
1x EZ Digit Debug LED
1x EZ Memory Detection LED

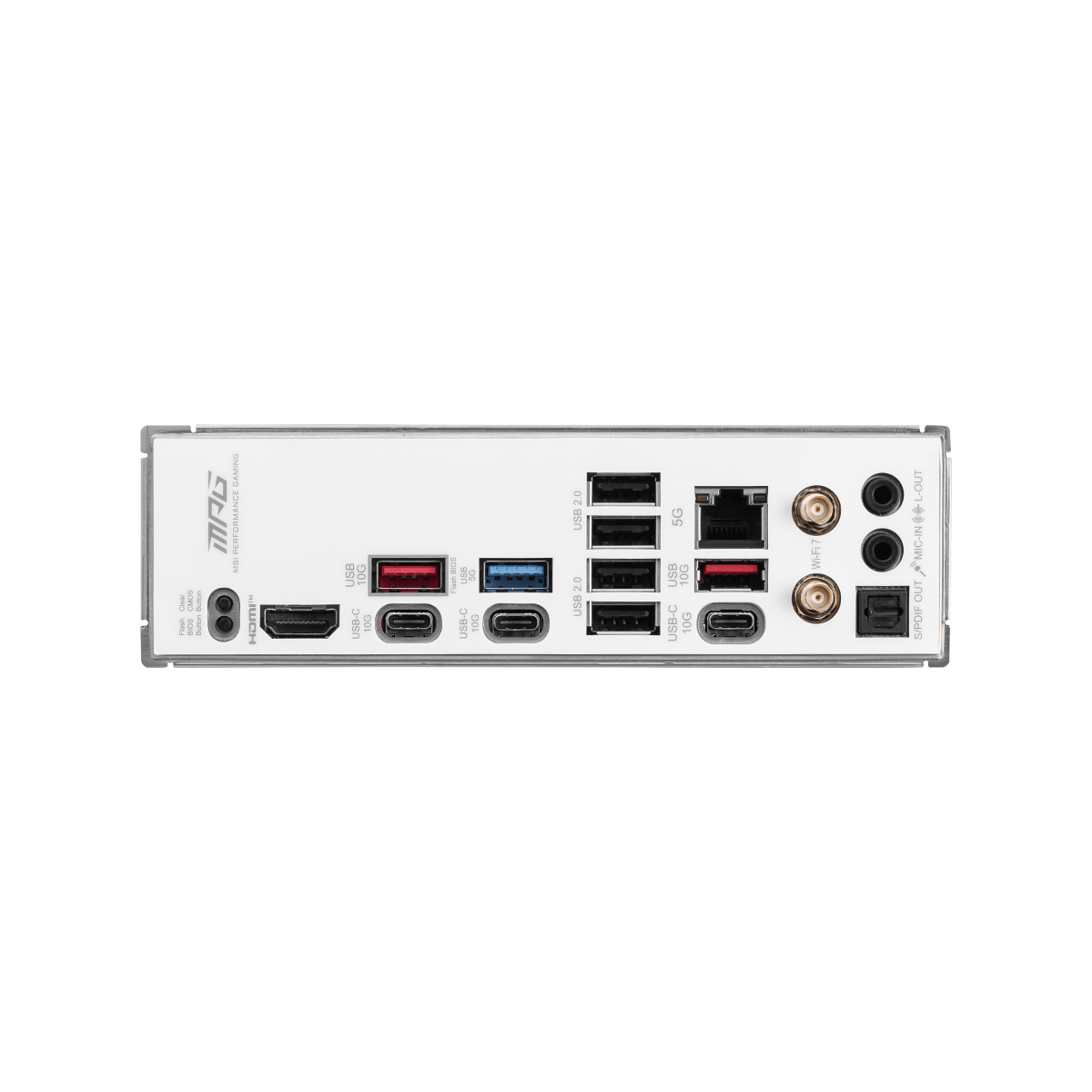

BACK PANEL PORTS
  1. Clear CMOS Button
  2. USB 10Gbps Type-A
  3. USB 5Gbps Type-A
  4. USB 2.0
  5. 5G LAN
  6. Wi-Fi / Bluetooth
  7. Audio Connectors
  8. Flash BIOS Button
  9. HDMI™
  10. USB 10Gbps Type-C
  11. USB 10Gbps Type-A
  12. USB 10Gbps Type-C
  13. Optical S/PDIF Out
OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
PCB Info ATX
304.8mmx243.84mm
