MSI B550M PRO-VDH | Placa Base
Couldn't load pickup availability
Ongoing campaigns
Garantizar
Garantizar
MSI CARE PLUS
You can insure your MSI device for a low fee with MSI Care Plus. MSI offers you warranty coverage even after the standard warranty period has expired. Benefits include:
- Less than 29.00 PLN/month for a one-year warranty extension.
- Priority repair processing.
- Coverage for hardware repairs, including parts replacement.
- Direct support from an MSI expert.
- The Extended Warranty Package is available for products purchased after 2021.
- The MSI Extended Warranty Package is available only to customers who purchased their MSI products in Poland.
- Proof of purchase for the MSI device is required; this may be a copy of the invoice or receipt.
- The product must be registered and the extended warranty activated online within one month of purchase.
- If the extended warranty package is not registered and activated after purchase, it may be returned within 14 days of purchase.
STEP 1
BECOME AN MSI MEMBER
Visit the MSI Member Center at https://account.msi.com/login and click "Members". | Follow the instructions on the page to become an MSI member.
STEP 2
REGISTER YOUR MSI PRODUCT
Log in to the MSI member site and click "Product Registration" in the left-hand menu to register your product by filling in the required information. If you have already registered your product, proceed to step 3.
STEP 3
ACTIVATE WARRANTY EXTENSION
Go to the MSI Member Center, click the "Activate MSI Care Plus" option in the left-hand menu, and follow these steps:
1. Select the registered product for which you want to obtain the warranty extension.
2. Enter the service code and active password from the digital warranty extension card you purchased.
3. Click "Activate" to complete the process.
Free Package
- AM4
- AMD B550
- mATX

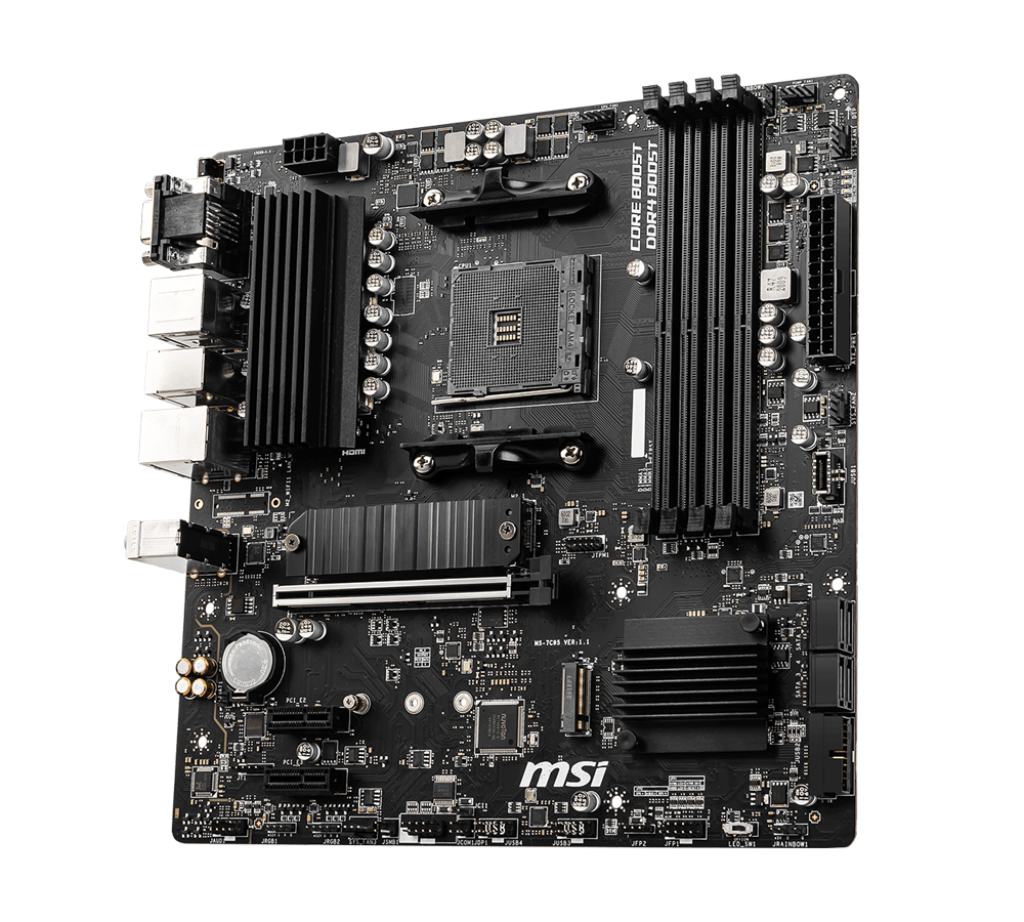

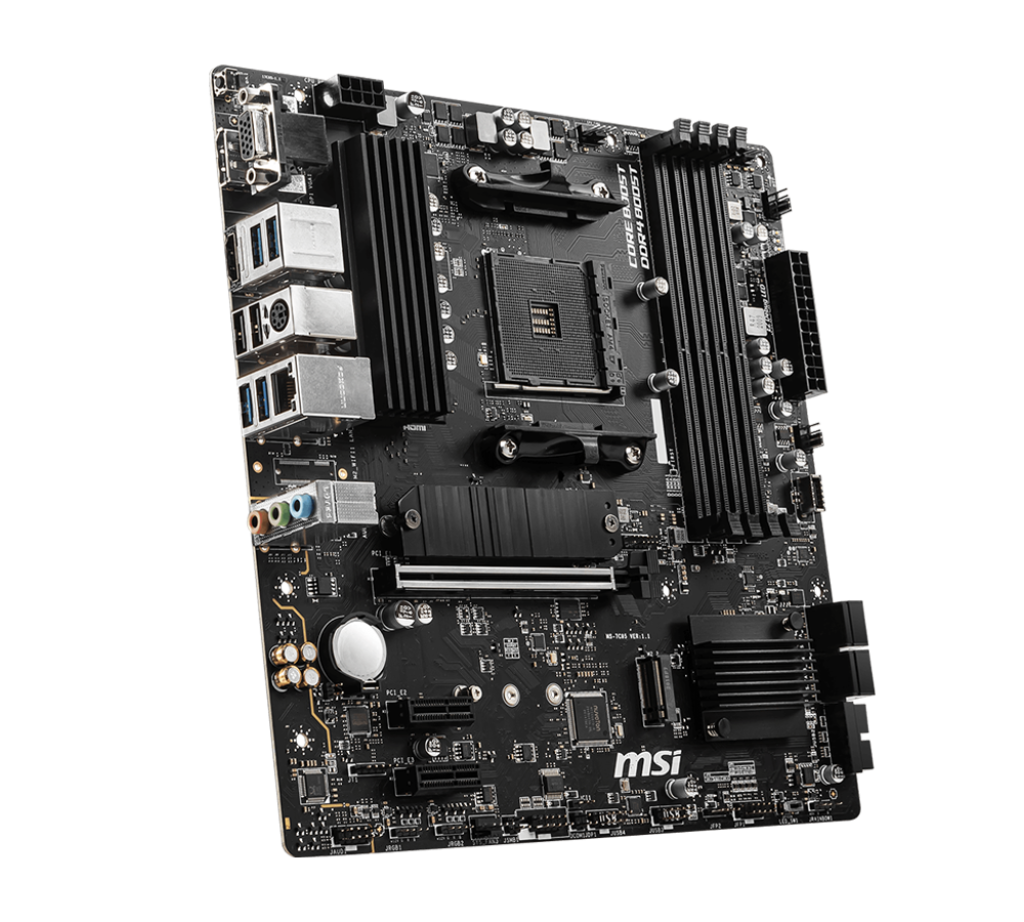

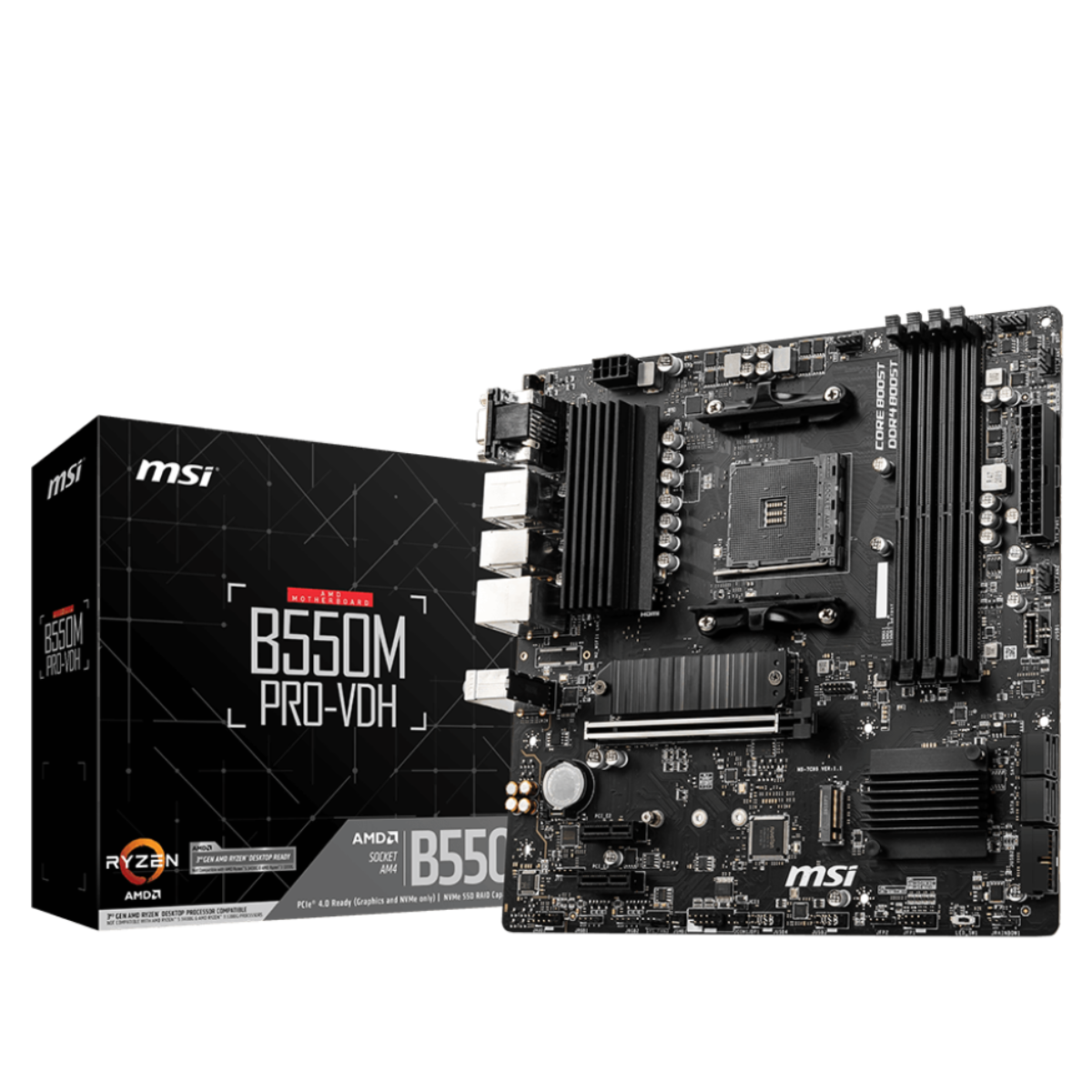

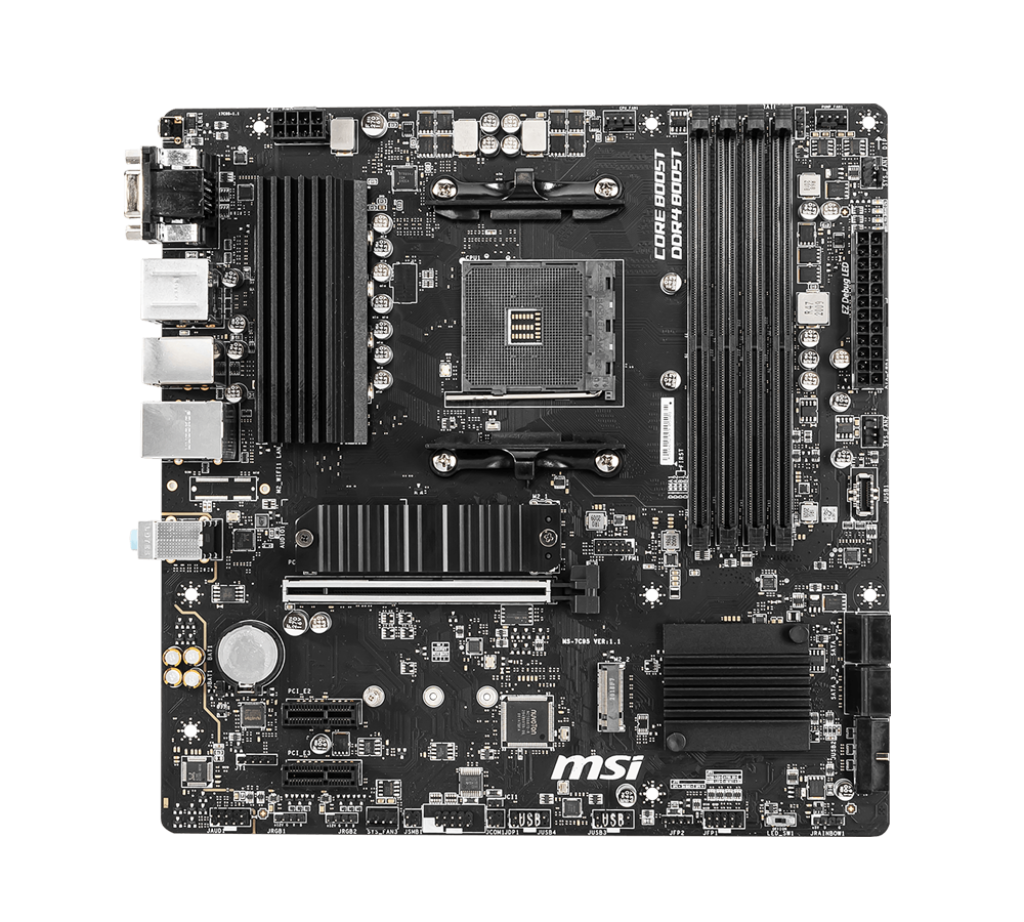

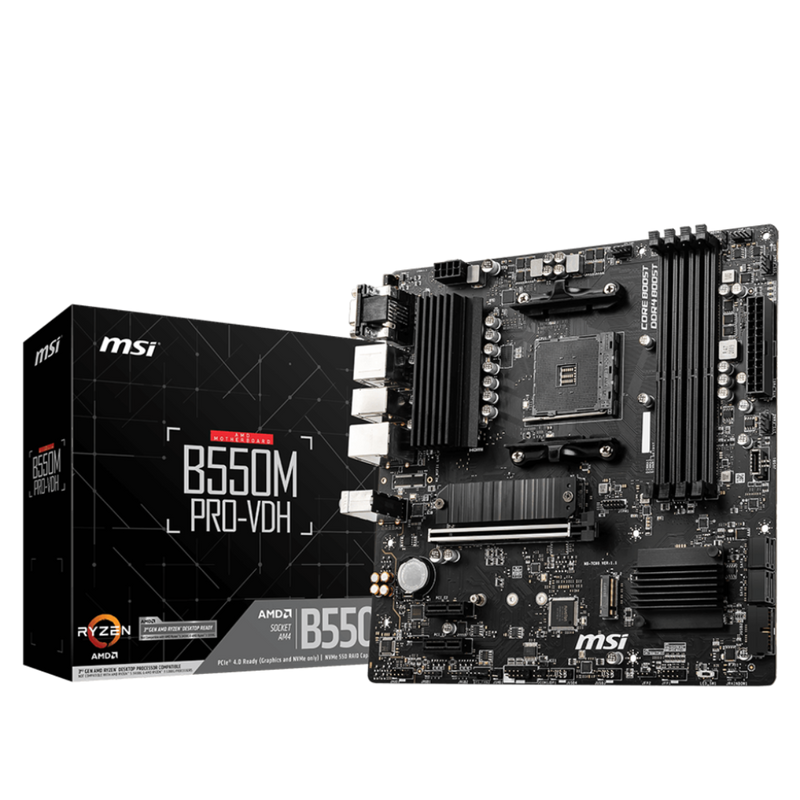

B550M PRO-VDH
- Compatible con procesadores AMD Ryzen™ de 3ª generación y futuros procesadores AMD Ryzen™ con actualización de la BIOS.
- Compatible con memoria DDR4, hasta 4400(OC) MHz.
- Experiencia a la velocidad del rayo: PCIe 4.0, Lightning Gen4 x4 M.2 con M.2 Shield Frozr
- Solución Térmica Premium: 7W/mK pad, adicional choke thermal pad y M.2 Shield Frozr están construidos para sistemas de alto rendimiento y trabajos sin parar
- Diseño potente: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
- Audio Boost: Recompensa a tus oídos con calidad de sonido de estudio
- Dragon Center: Un software totalmente nuevo que integra todas las herramientas exclusivas de MSI con una interfaz de usuario fácil de usar.
| DDR4 Memory | 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400 + Mhz by JEDEC and A-XMP OC MODE |
| Socket | AMD Socket AM4 |
| CPU (Max Soportado) | Support for 3rd Gen AMD® Ryzen™ processors and future AMD® Ryzen™ processors with BIOS update |
| M.2 port | 2 |
| Serial ports(Front) | 1 |
| Chipset | AMD® B550 Chipset |
| Canal de Memoria | Dual |
| USB 3.2 ports (Front) | 1(Gen 1, Type C), 2(Gen 1, Type A) |
| USB 3.2 ports (Rear) | 4(Gen 1, Type A) |
| Max Memoria (GB) | 128 |
| PCI-Ex16 | 1 |
| PCI-E Gen | Gen4 / Gen3 |
| PCI-Ex1 | 2 |
| SATAIII | 4 |
| USB 2.0 ports (Front) | 4 |
| LAN | 1x Realtek® RTL8111HN Gigabit LAN |
| TPM | 1 |
| Puertos USB 2.0 (Posterior) | 2 |

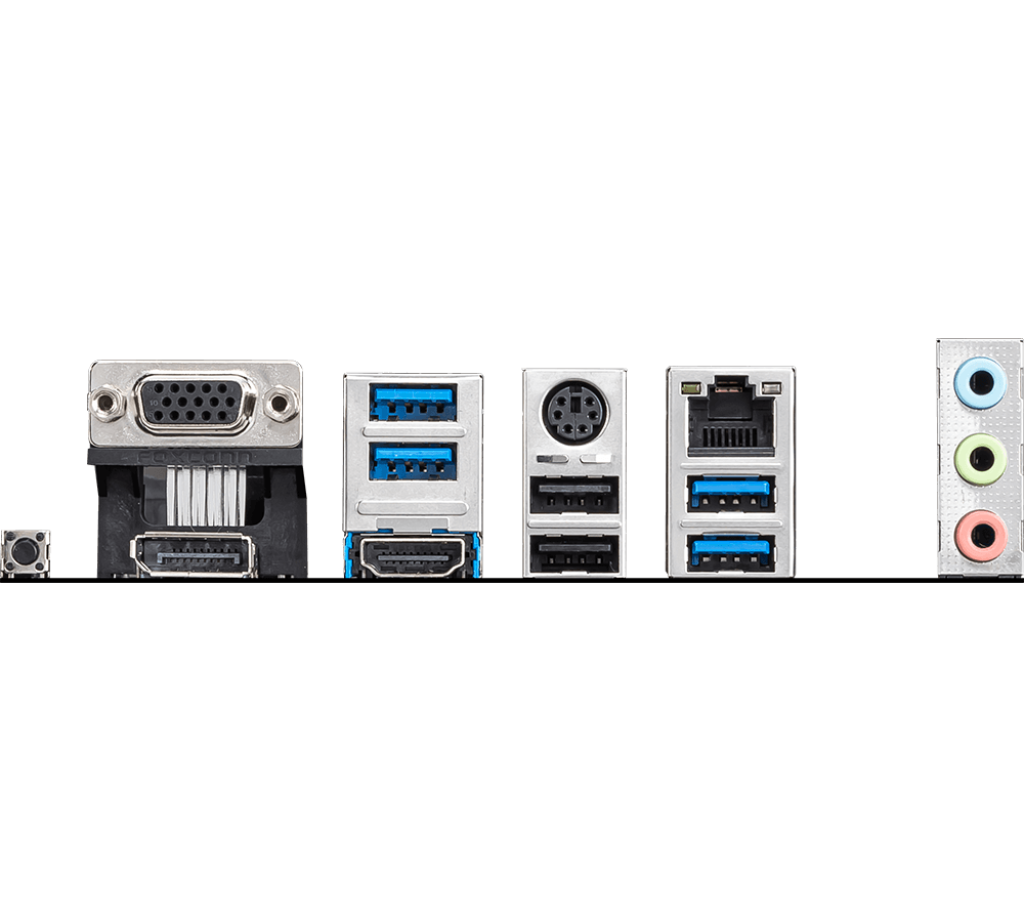

| Puerto Audio (Posterior) | 3 HD audio connectors |
| Puerto Display | 1 |
| VGA | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | MATX |
| Operating System | Support for Windows® 10 64-bit |
