MSI MAG Z790 TOMAHAWK MAX WIFI | Placa Base
Couldn't load pickup availability
Ongoing campaigns
Garantizar
Garantizar
MSI CARE PLUS
You can insure your MSI device for a low fee with MSI Care Plus. MSI offers you warranty coverage even after the standard warranty period has expired. Benefits include:
- Less than 29.00 PLN/month for a one-year warranty extension.
- Priority repair processing.
- Coverage for hardware repairs, including parts replacement.
- Direct support from an MSI expert.
- The Extended Warranty Package is available for products purchased after 2021.
- The MSI Extended Warranty Package is available only to customers who purchased their MSI products in Poland.
- Proof of purchase for the MSI device is required; this may be a copy of the invoice or receipt.
- The product must be registered and the extended warranty activated online within one month of purchase.
- If the extended warranty package is not registered and activated after purchase, it may be returned within 14 days of purchase.
STEP 1
BECOME AN MSI MEMBER
Visit the MSI Member Center at https://account.msi.com/login and click "Members". | Follow the instructions on the page to become an MSI member.
STEP 2
REGISTER YOUR MSI PRODUCT
Log in to the MSI member site and click "Product Registration" in the left-hand menu to register your product by filling in the required information. If you have already registered your product, proceed to step 3.
STEP 3
ACTIVATE WARRANTY EXTENSION
Go to the MSI Member Center, click the "Activate MSI Care Plus" option in the left-hand menu, and follow these steps:
1. Select the registered product for which you want to obtain the warranty extension.
2. Enter the service code and active password from the digital warranty extension card you purchased.
3. Click "Activate" to complete the process.
Free Package
- Intel Z790

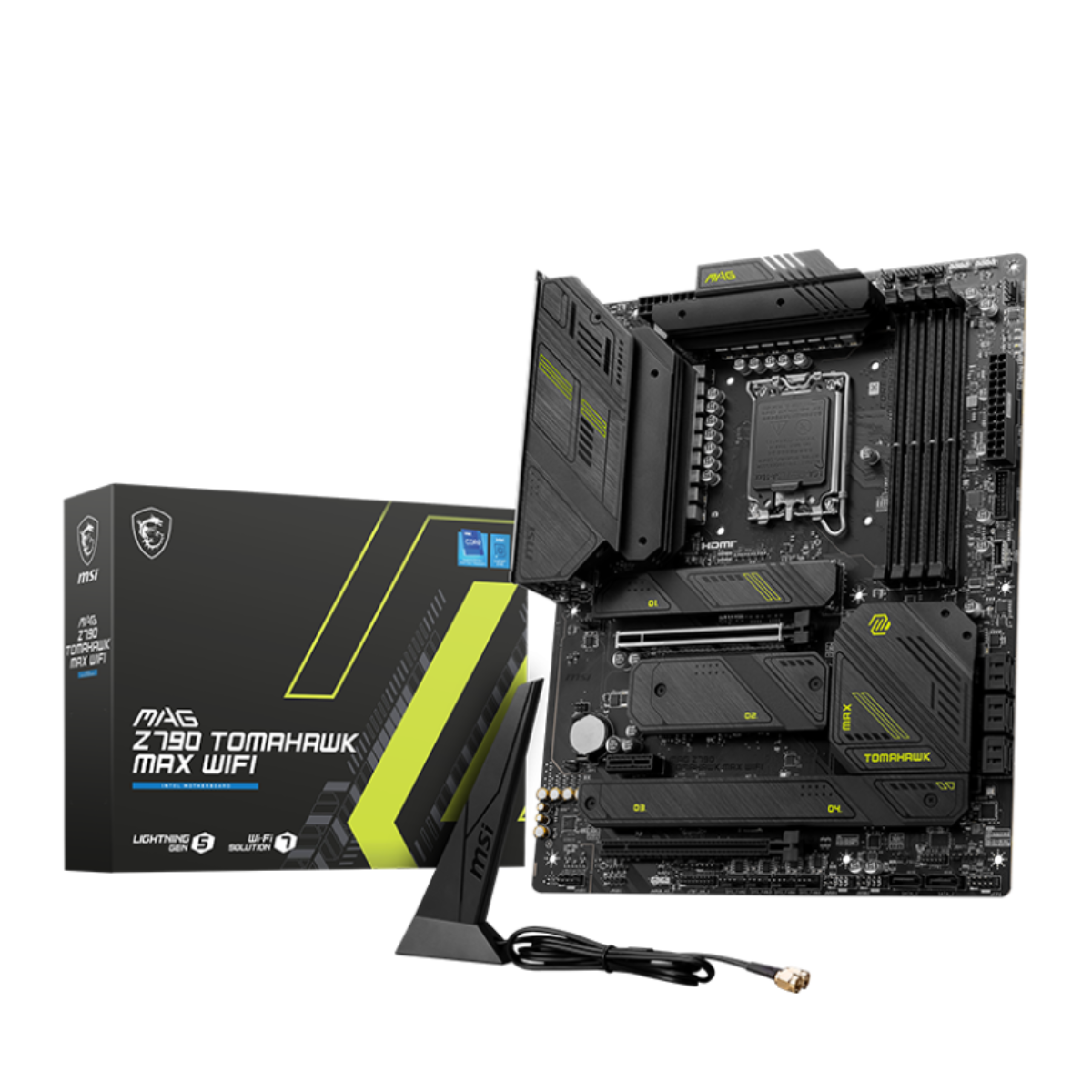

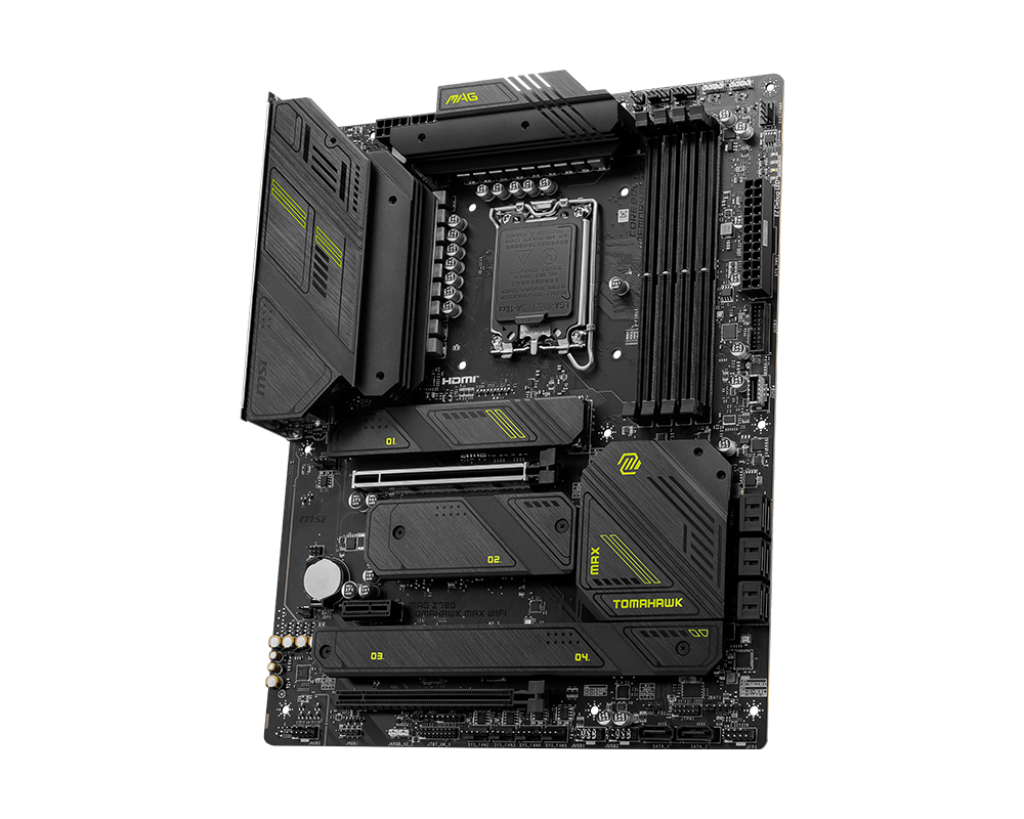

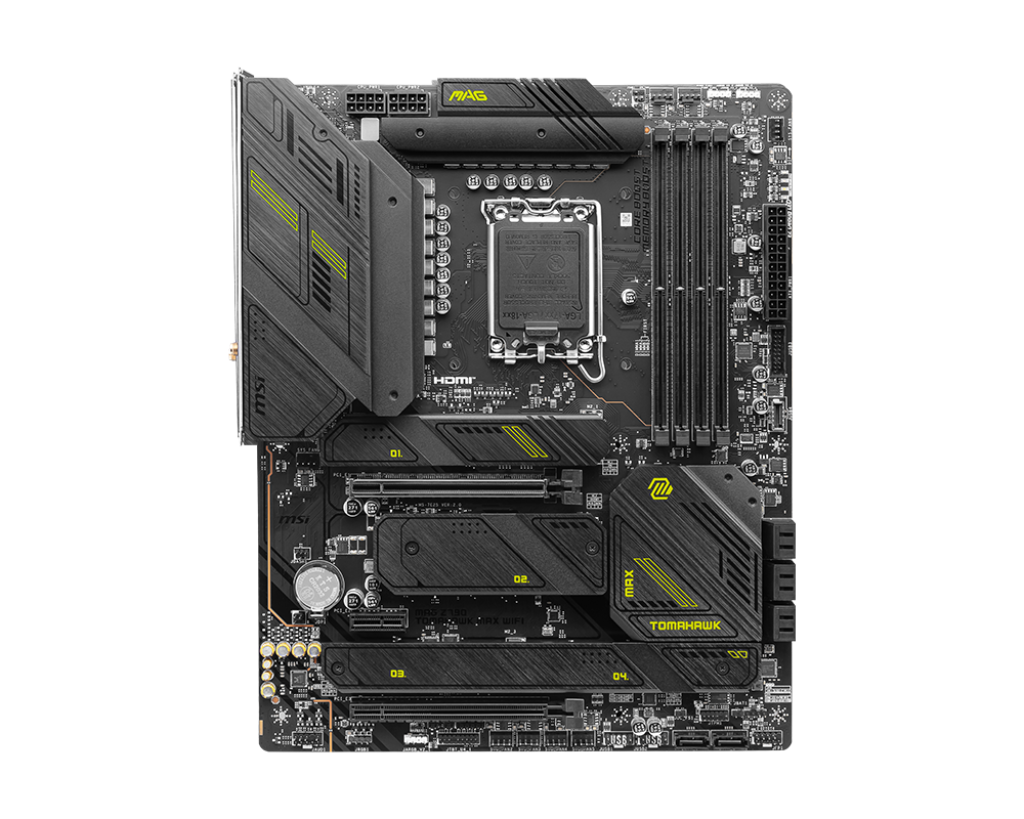

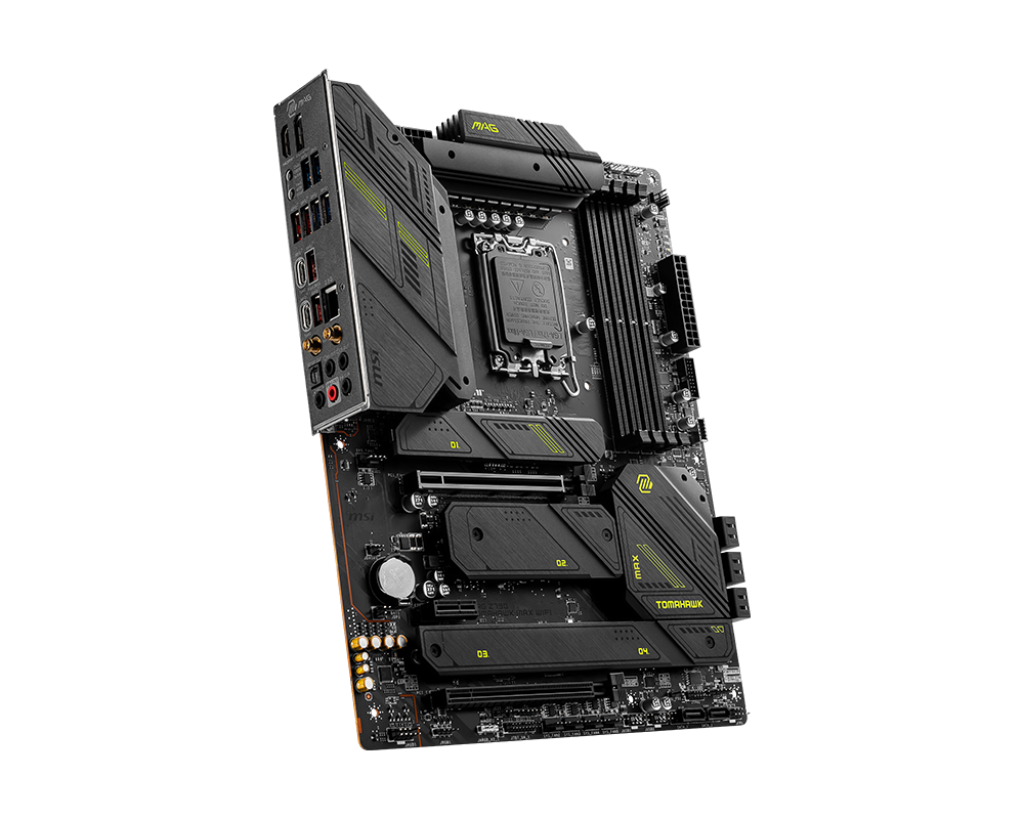

MAG Z790 TOMAHAWK MAX WIFI
Características:
- Compatible con procesadores Intel® Core™ de 14ª/ 13ª/ 12ª generación, procesadores Intel® Pentium® Gold y Celeron® para zócalo LGA 1700.
- Admite memoria DDR5, hasta 7800+(OC) MHz
- Diseño de alimentación mejorado: disposición de alimentación en espejo 16+1+1, conectores de alimentación de CPU duales de 8 patillas, Core Boost, Memory Boost.
- Experiencia de juego ultrarrápida: Ranura PCIe 5.0 Lightning Gen 5 x2, M.3.2 USB 2 Gen 2x2
- Solución térmica premium: Disipador térmico ampliado, almohadillas térmicas MOSFET de 2 W/mK, choke pads adicionales y M.2 Shield Frozr para un sistema de alto rendimiento y una experiencia de juego ininterrumpida.
- AUDIO BOOST: Recompensa a tus oídos con una calidad de sonido de estudio para disfrutar de la experiencia de juego más envolvente.
- PCB de alta calidad: PCB de 6 capas fabricado con cobre de 2 onzas de espesor y material de nivel de servidor
| Chipset | INTEL Z790 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Storage | 4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 8x SATA 6G (Qty) *PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot. *SATA_1 & SATA_2 will be unavailable when installing M.2 SATA SSD in the M2_3 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *SATA_A1_A2 do not support RAID function. |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH |
Wi-Fi 7 Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |

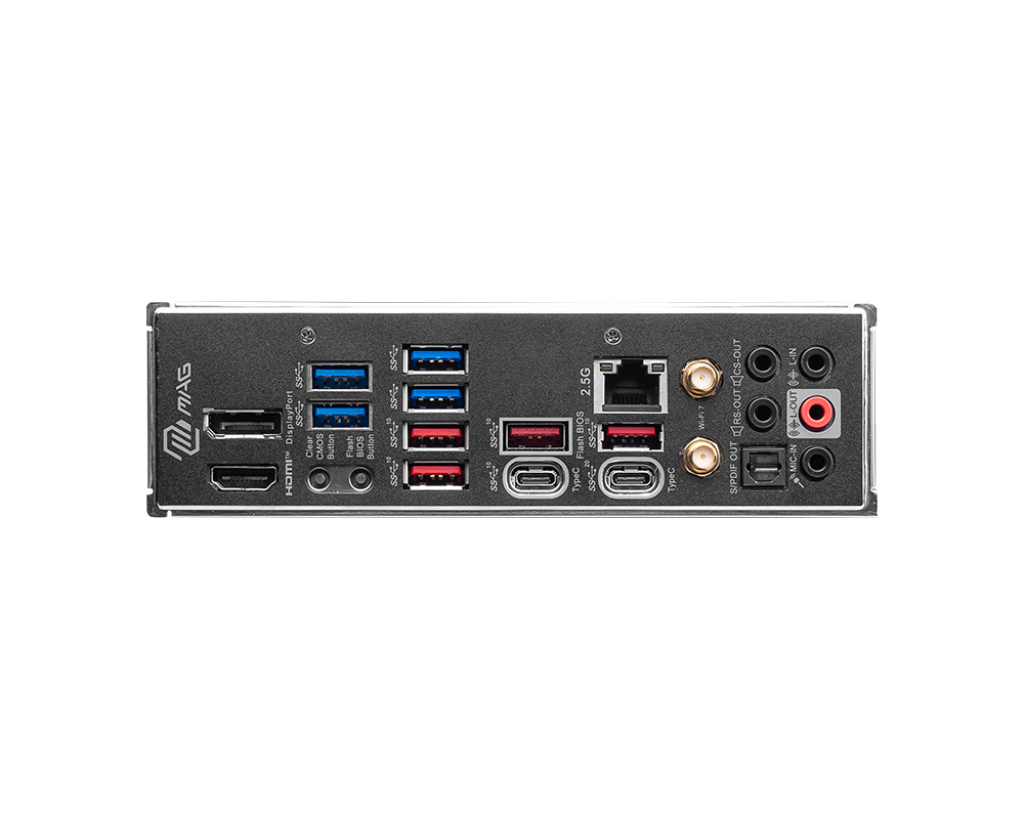

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | ATX 243.84mmx304.8mm |
| BOX CONTENT |  |
