MSI España  |  SKU: 911-7E32-003

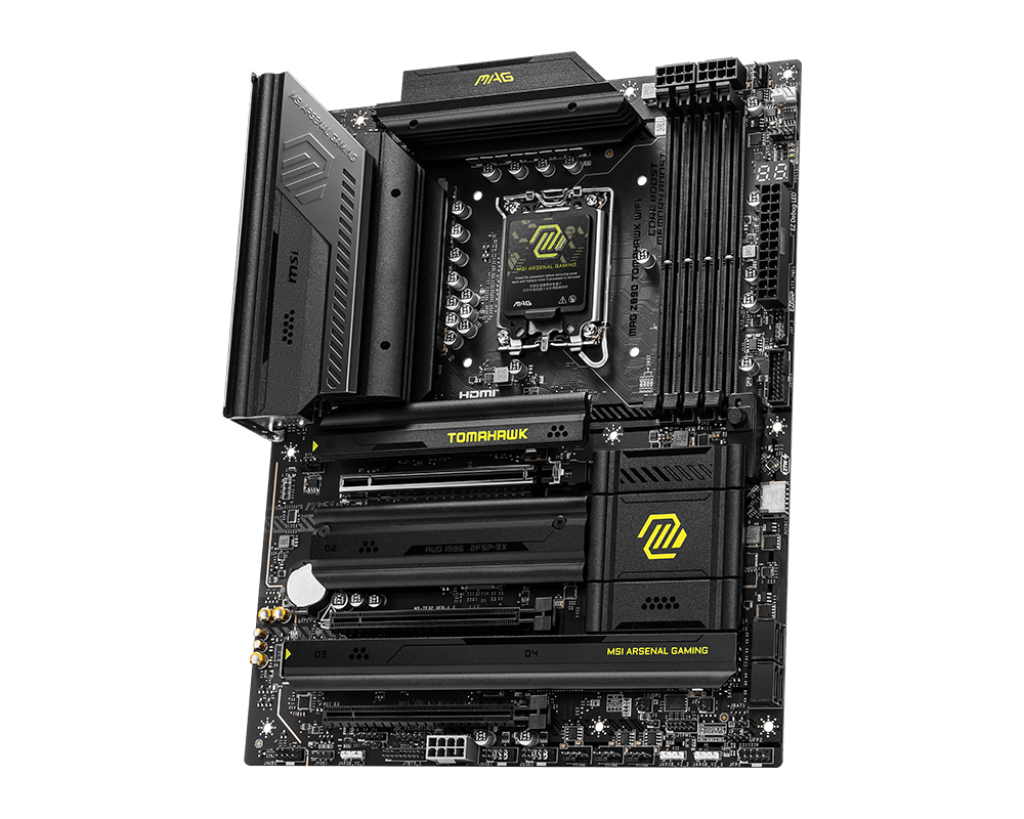

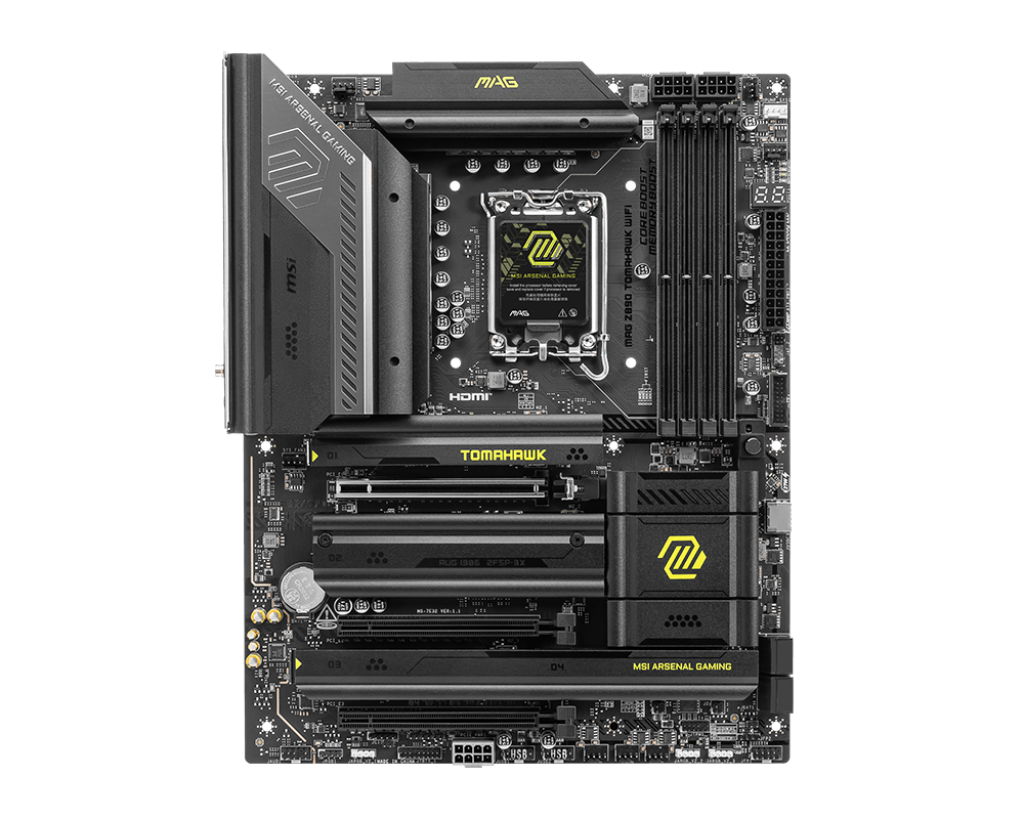

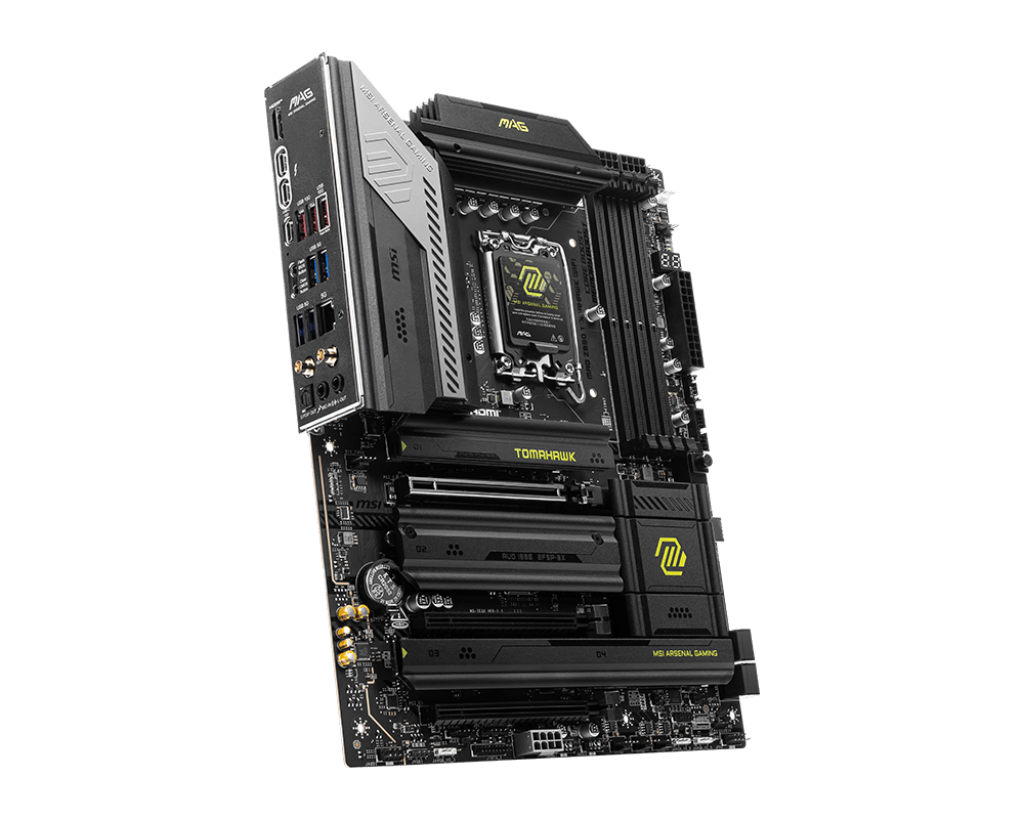

MSI MAG Z890 TOMAHAWK WIFI | Placa Base


to see prices

Ongoing campaigns

Garantizar

3 Year Warranty

Free Package

  • LGA 1851
  • Intel Z890
  • ATX

MAG Z890 TOMAHAWK WIFI

  • Compatible con procesadores Intel® Core™ Ultra (Serie 2) para el socket LGA 1851
  • Compatible con memoria DDR5, canal dual DDR5 9200+ MT/s (OC)
  • Rendimiento ultra: Sistema de energía de Duet Rail 16+1+1+1 con SPS de 90A, conectores de alimentación de CPU de 8 pines dobles, Core Boost, Memory Boost, PCB de 6 capas hecho con cobre de 2oz engrosado y material de nivel grado servidor
  • Frozr Guard: Disipador extendido, almohadillas térmicas MOSFET con una clasificación de 7W/mK, almohadillas térmicas adicionales para chokes y EZ M.2 Shield Frozr II están diseñados para sistemas de alto rendimiento y una experiencia continua
  • EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II y EZ Antena
  • Experiencia gaming ultrarrápida: Ranura PCIe 5.0, Lightning Gen 5 x4 M.2
  • Conexión ultra: Puerto Thunderbolt™ 4, Intel® Killer™ LAN 5G e Intel® Killer™ Wi-Fi 7 Solution: la última solución para uso profesional y multimedia, que ofrece una transmisión de datos y red segura, estable y de alta velocidad
  • Audio Boost 4: Disfruta de sonido de calidad de estudio para la experiencia de juego más inmersiva

Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

  • 1DPC 1R Max speed up to 9200+ MT/s
  • 1DPC 2R Max speed up to 7200+ MT/s
  • 2DPC 1R Max speed up to 4800+ MT/s
  • 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

  • The DIMM slots on this motherboard only have single-sided latches.
  • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
  • 1x HDMI™
    • Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*
  • 2x Type-C DisplayPort
    • Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 3x PCI-E x16 slot (Qty)
    • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
    • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
  • Realtek® ALC1220P Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
Storage
  • 4x M.2 (Qty)
    • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G (Qty)

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt
  • 2x Thunderbolt4 ports (Rear)
    • Supports up to 40Gbps transfer rate with Thunderbolt devices
    • Supports up to 20Gbps transfer rate with USB4 devices
    • Supports up to 10Gbps transfer rate with USB 3.2 devices
    • Supports up to 5V/3A,15W power charging
    • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
    • Supports up to 8K display
USB
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 3x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
  • 1x USB 20Gbps Type C (Front)

*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN Intel® Killer™ E5000 5Gbps LAN
Internal IO
  • 1x Thunderbolt5 card connector (JTBT5, support RTD3)
  • 1x Power Connector (ATX_PWR)
  • 2x Power Connector (CPU_PWR)
  • 1x Power Connector (PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x PUMP_SYS Fan
  • 6x System Fan
  • 1x ARGB+FAN+USB2.0 Header (JAF_2)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector (JRGB)
  • 1x TPM pin header (Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH
  • Intel® Killer™ BE1750x Wi-Fi 7
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE
  • 4x EZ Debug LED
  • 1x EZ Digit Debug LED

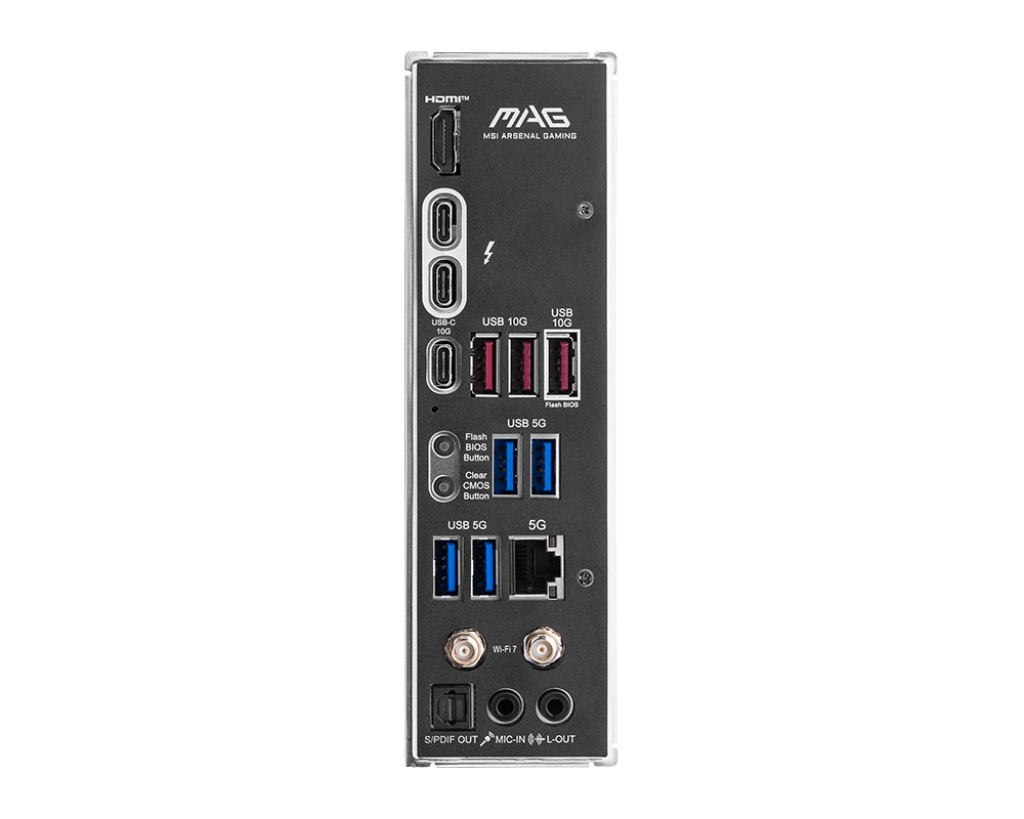

BACK PANEL PORTS
  1. USB 10Gbps Type-A
  2. USB 5Gbps Type-A
  3. 5G LAN
  4. Wi-Fi / Bluetooth
  5. Audio Connectors
  6. HDMI™
  7. Thunderbolt™ 4 40Gbps (Type-C)
  8. USB 10Gbps Type-C
  9. Flash BIOS Button
  10. Clear CMOS Button
  11. USB 5Gbps Type-A
  12. S/PDIF-OUT
OPERATING SYSTEM Support for Windows® 11 64-bit

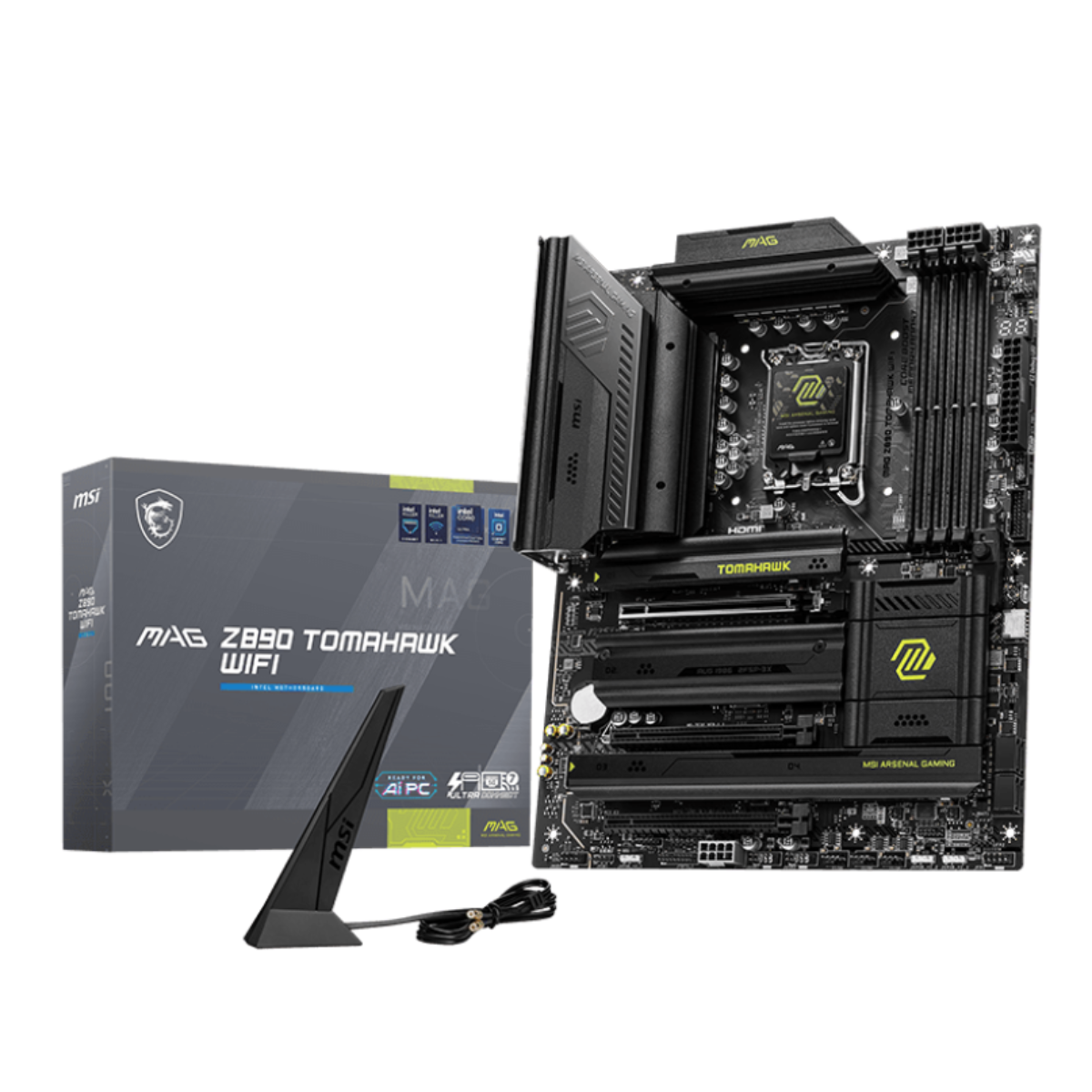

BOX CONTENT
PCB Info ATX
243.84mmx304.8mm
