MSI MPG Z790 CARBON WIFI | Placa Base
Couldn't load pickup availability
Ongoing campaigns
Garantizar
Garantizar
MSI CARE PLUS
You can insure your MSI device for a low fee with MSI Care Plus. MSI offers you warranty coverage even after the standard warranty period has expired. Benefits include:
- Less than 29.00 PLN/month for a one-year warranty extension.
- Priority repair processing.
- Coverage for hardware repairs, including parts replacement.
- Direct support from an MSI expert.
- The Extended Warranty Package is available for products purchased after 2021.
- The MSI Extended Warranty Package is available only to customers who purchased their MSI products in Poland.
- Proof of purchase for the MSI device is required; this may be a copy of the invoice or receipt.
- The product must be registered and the extended warranty activated online within one month of purchase.
- If the extended warranty package is not registered and activated after purchase, it may be returned within 14 days of purchase.
STEP 1
BECOME AN MSI MEMBER
Visit the MSI Member Center at https://account.msi.com/login and click "Members". | Follow the instructions on the page to become an MSI member.
STEP 2
REGISTER YOUR MSI PRODUCT
Log in to the MSI member site and click "Product Registration" in the left-hand menu to register your product by filling in the required information. If you have already registered your product, proceed to step 3.
STEP 3
ACTIVATE WARRANTY EXTENSION
Go to the MSI Member Center, click the "Activate MSI Care Plus" option in the left-hand menu, and follow these steps:
1. Select the registered product for which you want to obtain the warranty extension.
2. Enter the service code and active password from the digital warranty extension card you purchased.
3. Click "Activate" to complete the process.
Free Package
- LGA 1700
- Intel Z790
- ATX

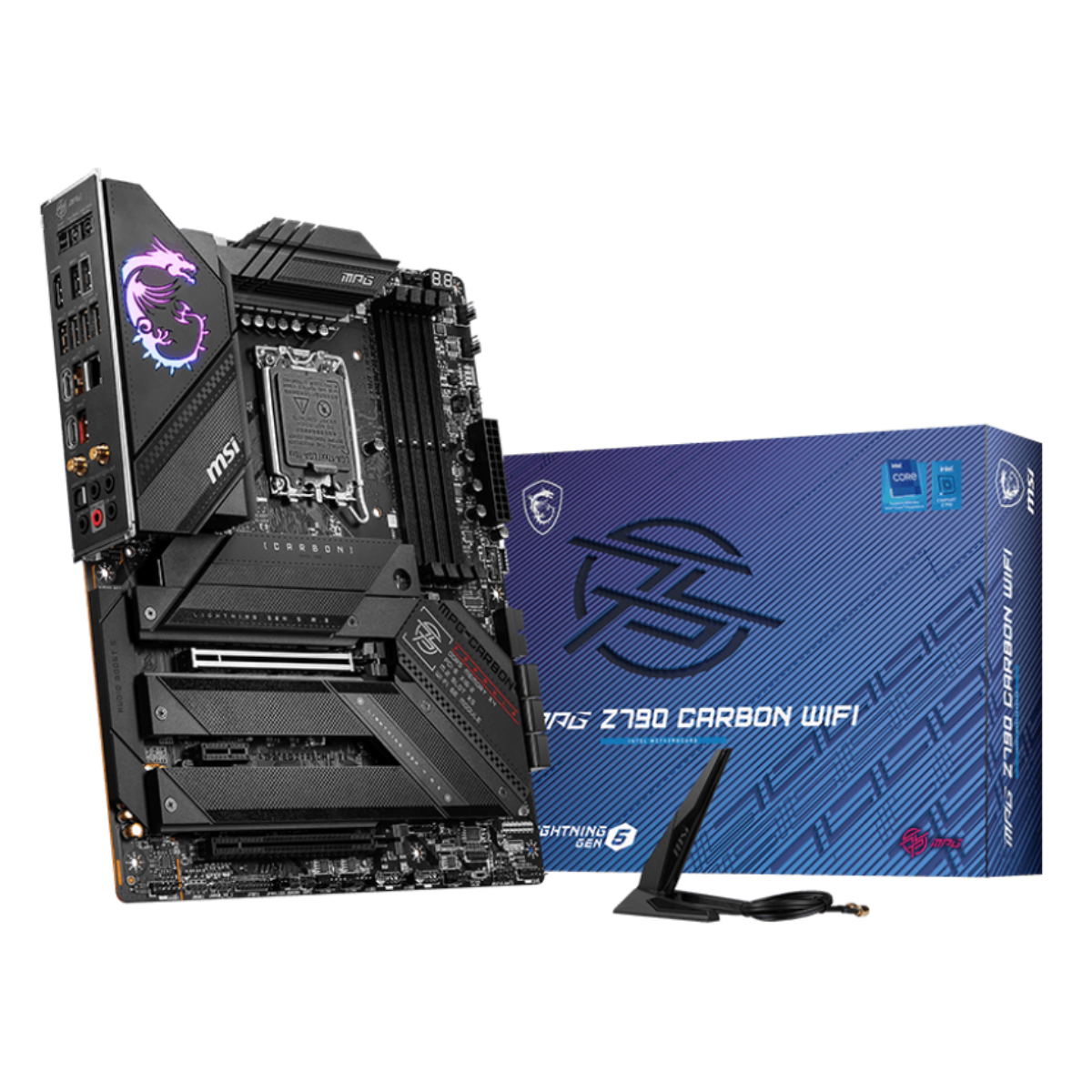

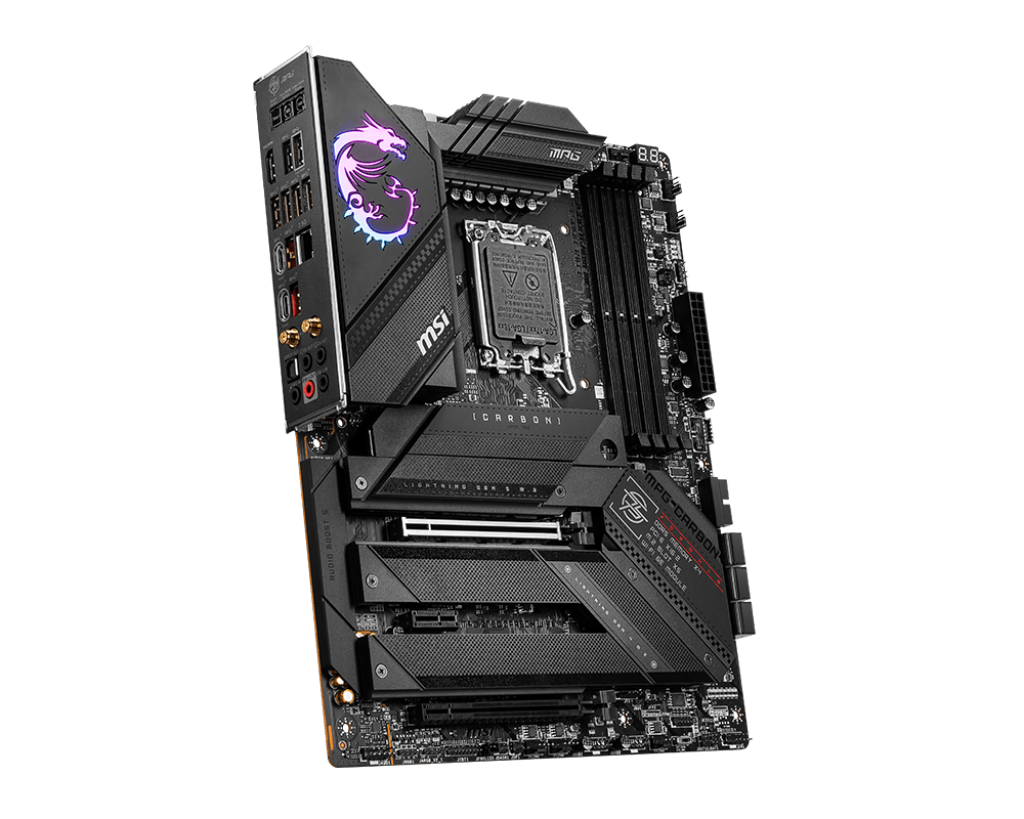

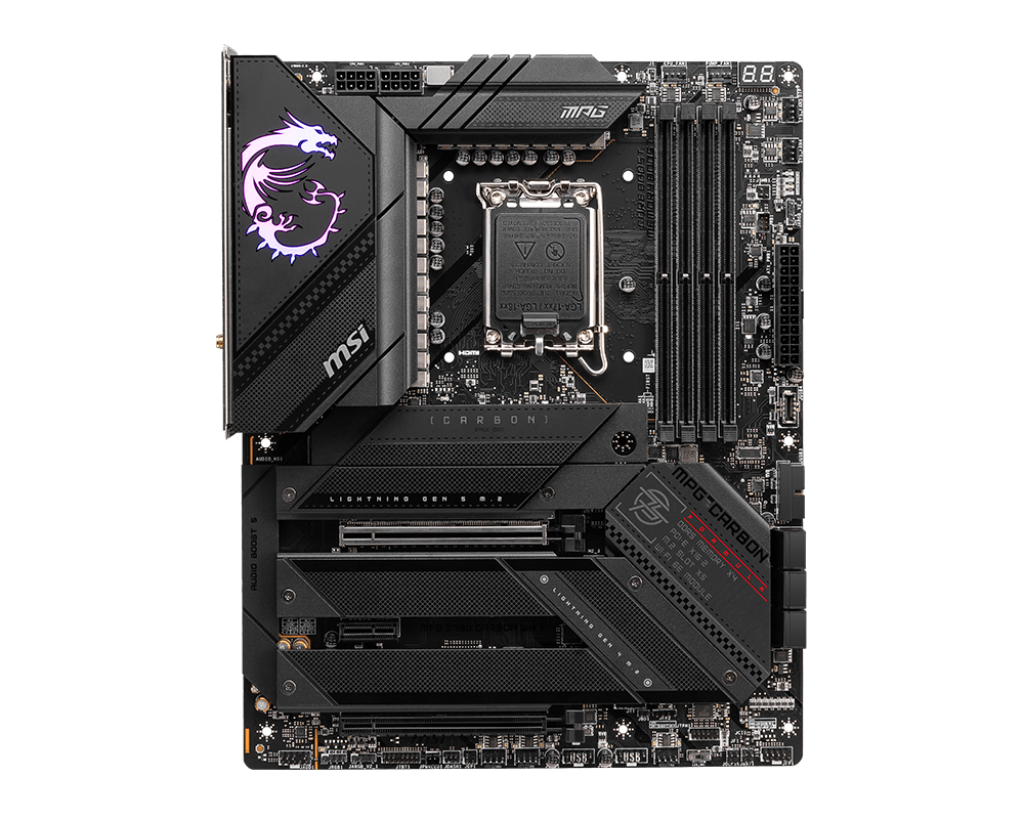

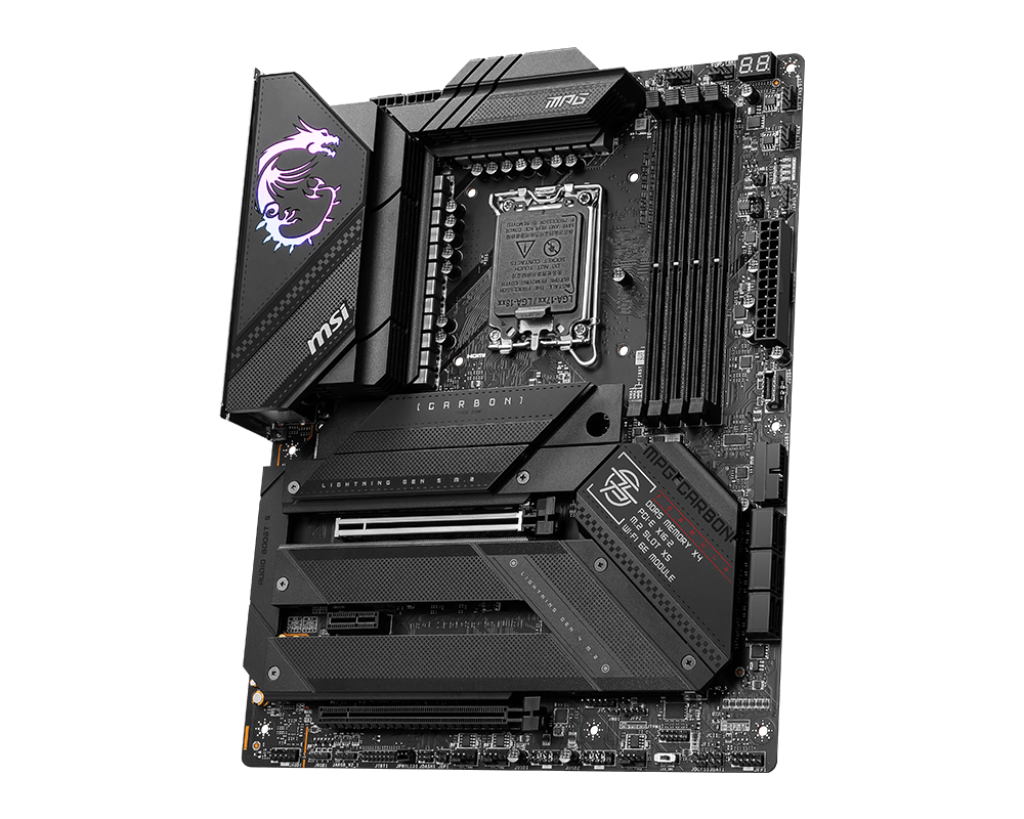

MPG Z790 CARBON WIFI
- Compatible con procesadores Intel® Core™ de 14ª/ 13ª/ 12ª generación, procesadores Intel® Pentium® Gold y Celeron® para zócalo LGA 1700.
- Compatible con memoria DDR5, hasta 7600+(OC) MHz
- Experiencia de juego ultrarrápida: Ranura PCIe 5.0, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
- Diseño de alimentación mejorado: Alimentación directa en 19+1+1 fases, Core Boost, Memory Boost
- Solución térmica premium: Disipador térmico ampliado con tubo de calor, almohadillas térmicas MOSFET de 7 W/mk, almohadillas térmicas de estrangulamiento adicionales y M.2 Shield Frozr para un sistema de alto rendimiento y una experiencia de juego ininterrumpida.
- LAN 2.5G y solución Intel Wi-Fi 6E: Solución de red mejorada para uso profesional y multimedia. Ofrece una conexión de red segura, estable y rápida
- AUDIO BOOST 5: deleite a sus oídos con una calidad de sonido de estudio para disfrutar de la experiencia de juego más envolvente.
- PCB de alta calidad: PCB de 8 capas fabricado con material de nivel de servidor
Escudo de E/S preinstalado: Mejor protección EMI y mayor comodidad de instalación
| Chipset | INTEL Z790 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory |
4x DDR5, Maximum Memory Capacity 256GB 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Storage |
5x M.2 (Qty) • Supports up to PCIe 4.0 x4 *PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_2 slot. |
| LAN | Intel® 2.5Gbps LAN |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function. |
| USB | 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 6x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| LED FEATURE | 1x EZ LED Control switch 1x 2-Digit Debug Code LED 4x EZ Debug LED |

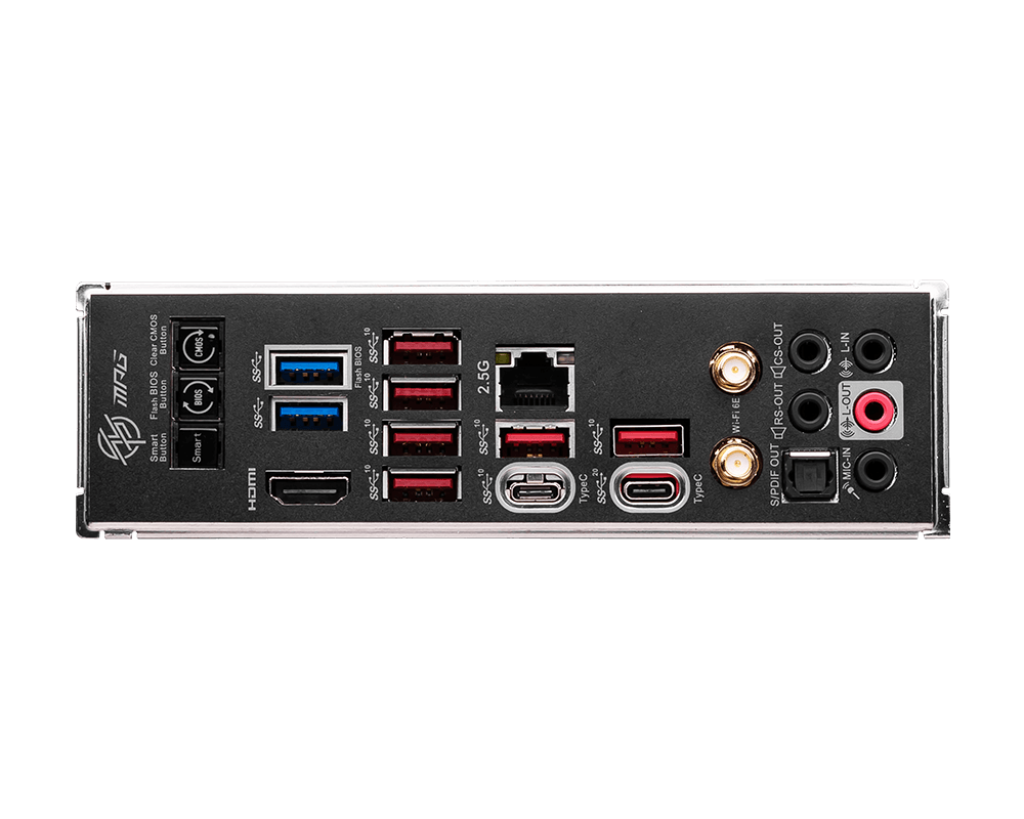

| BACK PANEL PORTS |
|
| PCB Info | ATX 243.84mmx304.8mm |
| BOX CONTENT |  |
