Free Package
- AM5
- AMD A620
- mATX

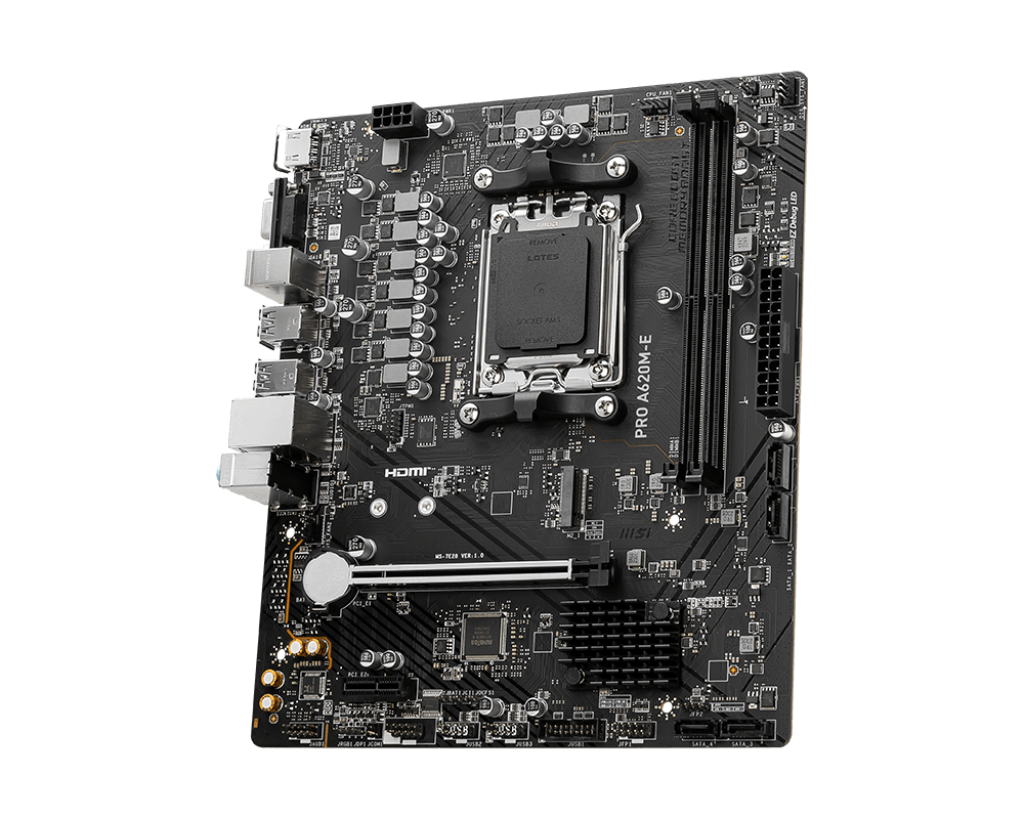

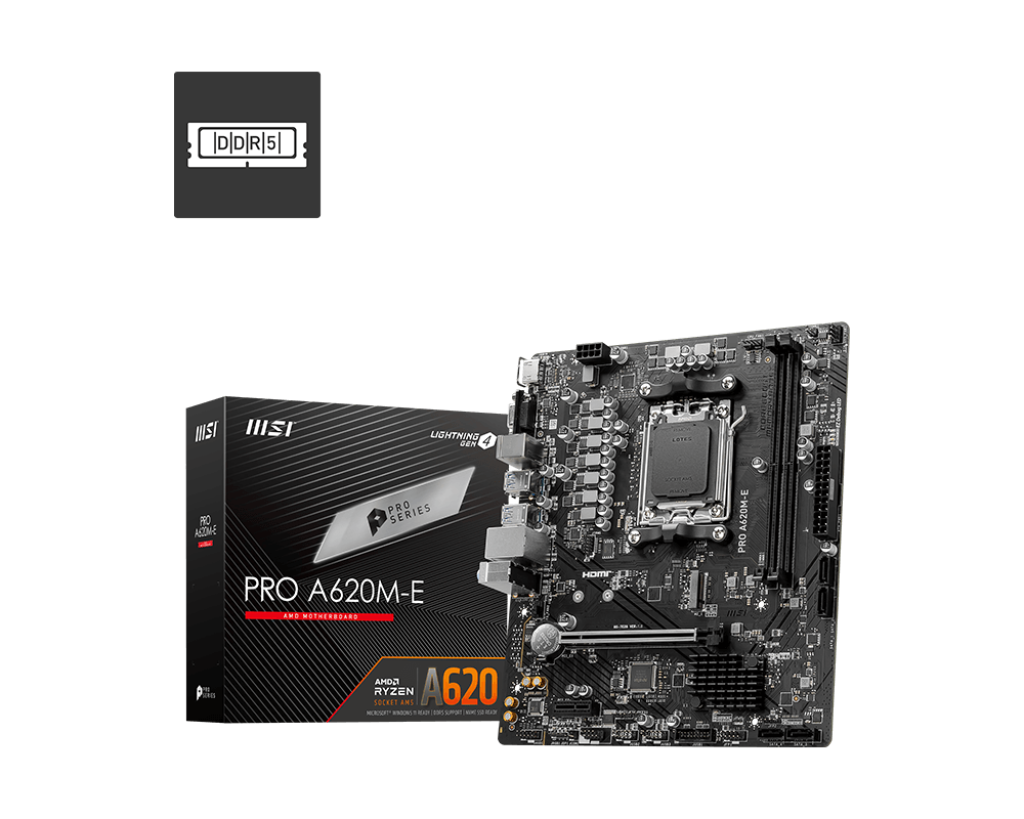

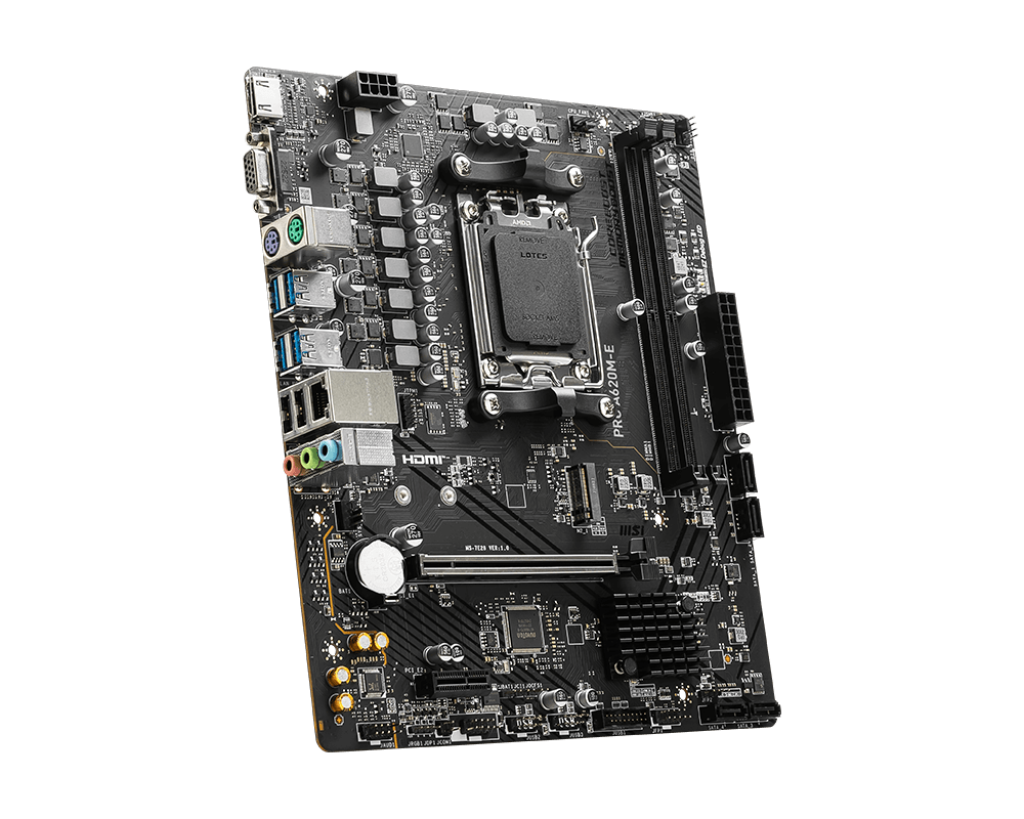

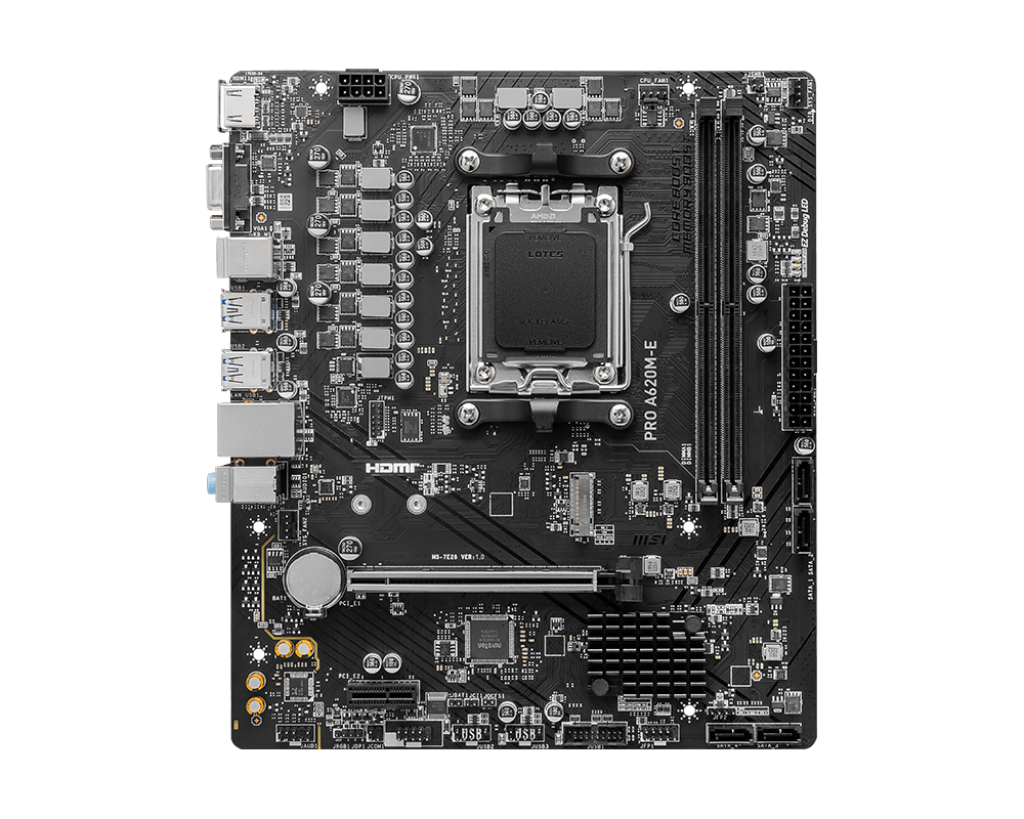

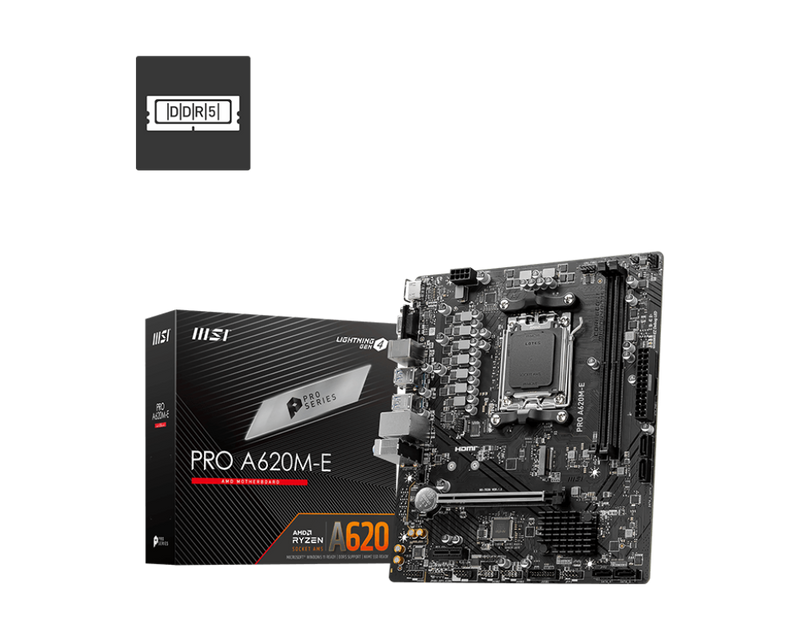

PRO A620M-E
-
Compatible con procesadores de sobremesa AMD Ryzen™ serie 8000 / 7000.
-
Soporta memoria DDR5, doble canal DDR5 6800+MHz (OC)
-
Core Boost : Con disposición premium y diseño de potencia digital para soportar más núcleos y proporcionar un mejor rendimiento
-
Memoria Boost: Tecnología avanzada para ofrecer señales de datos puros para el mejor rendimiento, estabilidad y compatibilidad
-
Experiencia de juego ultrarrápida: Ranura PCIe 4.0, Lightning Gen 4 x4 M.2
-
AUDIO BOOST: Recompensa a tus oídos con calidad de sonido de estudio para la experiencia de juego más envolvente
- Steel Armor: protección de las tarjetas VGA contra la flexión y las interferencias electromagnéticas para mejorar el rendimiento, la estabilidad y la resistencia
| Chipset | AMD A620 |
| CPU | Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 1x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot (Qty) • Supports x16 (For Ryzen™ 7000 Series processors) • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED |

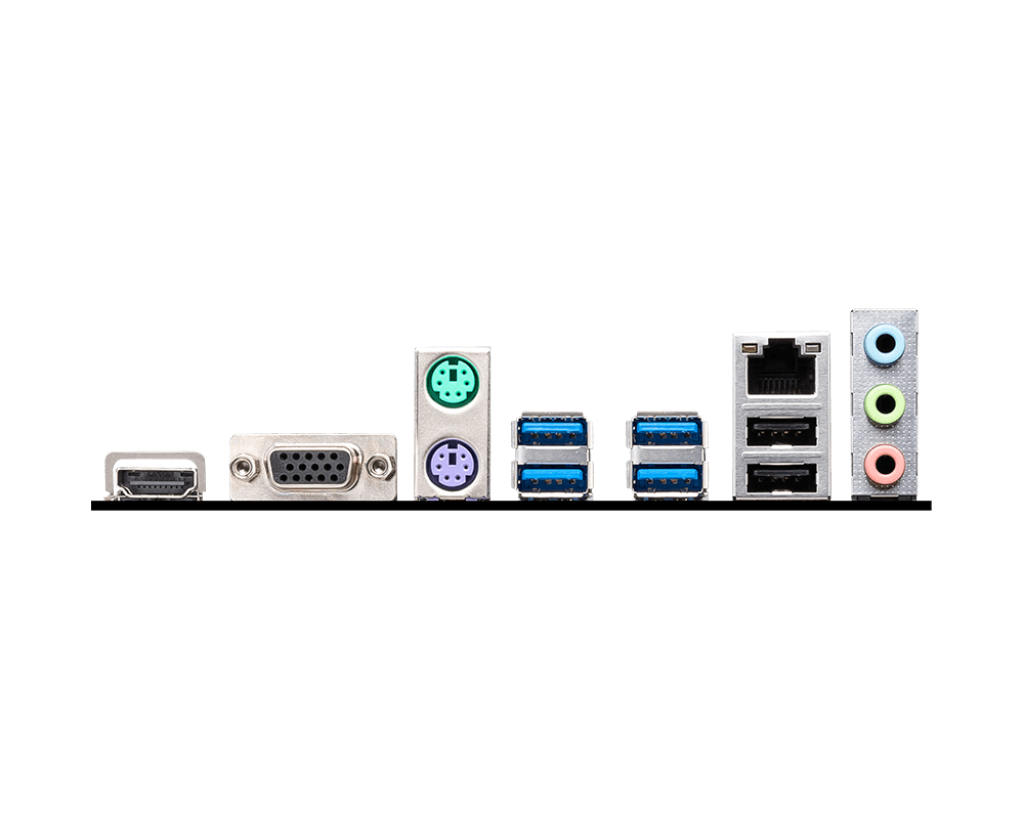

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | mATX 211mmx243.84mm |
| BOX CONTENT |  |
