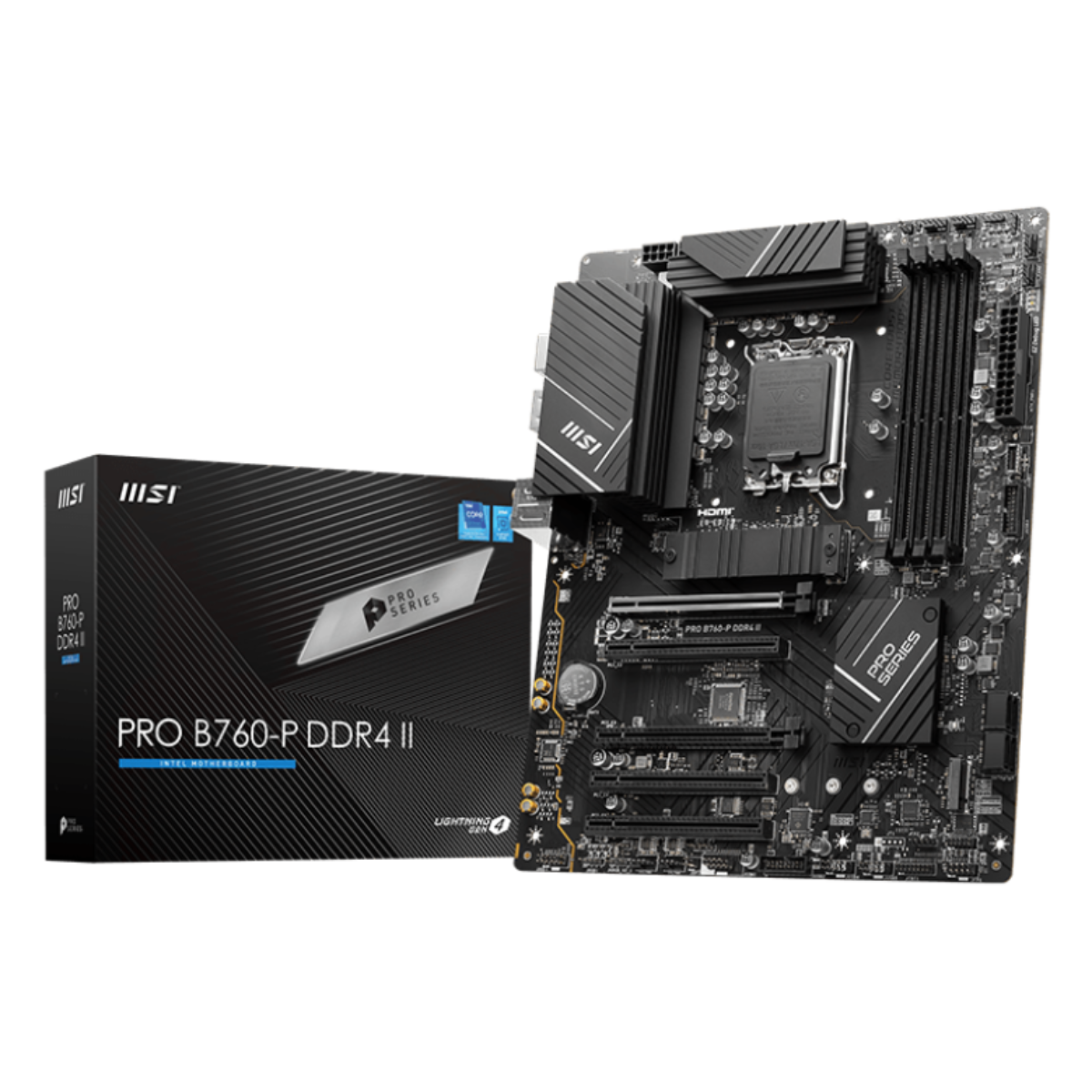

MSI PRO B760-P DDR4 II | Placa Base
Couldn't load pickup availability
Ongoing campaigns
Garantizar
Garantizar
MSI CARE PLUS
You can insure your MSI device for a low fee with MSI Care Plus. MSI offers you warranty coverage even after the standard warranty period has expired. Benefits include:
- Less than 29.00 PLN/month for a one-year warranty extension.
- Priority repair processing.
- Coverage for hardware repairs, including parts replacement.
- Direct support from an MSI expert.
- The Extended Warranty Package is available for products purchased after 2021.
- The MSI Extended Warranty Package is available only to customers who purchased their MSI products in Poland.
- Proof of purchase for the MSI device is required; this may be a copy of the invoice or receipt.
- The product must be registered and the extended warranty activated online within one month of purchase.
- If the extended warranty package is not registered and activated after purchase, it may be returned within 14 days of purchase.
STEP 1
BECOME AN MSI MEMBER
Visit the MSI Member Center at https://account.msi.com/login and click "Members". | Follow the instructions on the page to become an MSI member.
STEP 2
REGISTER YOUR MSI PRODUCT
Log in to the MSI member site and click "Product Registration" in the left-hand menu to register your product by filling in the required information. If you have already registered your product, proceed to step 3.
STEP 3
ACTIVATE WARRANTY EXTENSION
Go to the MSI Member Center, click the "Activate MSI Care Plus" option in the left-hand menu, and follow these steps:
1. Select the registered product for which you want to obtain the warranty extension.
2. Enter the service code and active password from the digital warranty extension card you purchased.
3. Click "Activate" to complete the process.
MSI PRO B760-P DDR4 II | Placa Base
Free Package
- LGA 1700
- Intel B760
- ATX

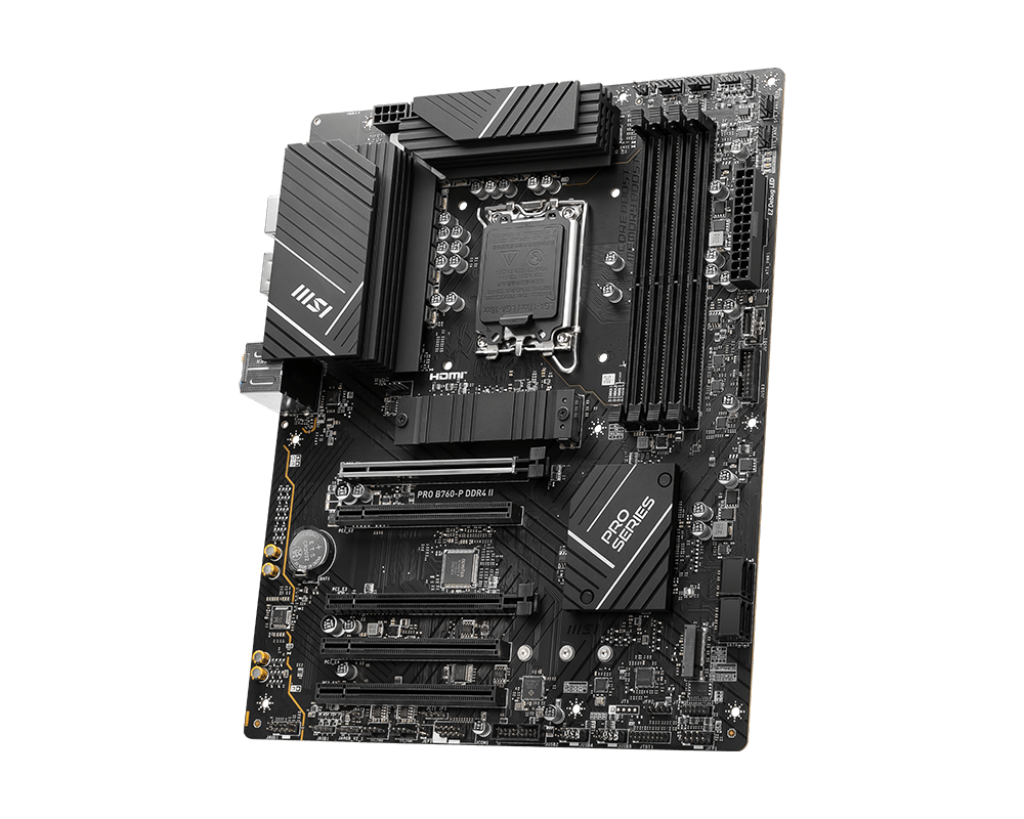

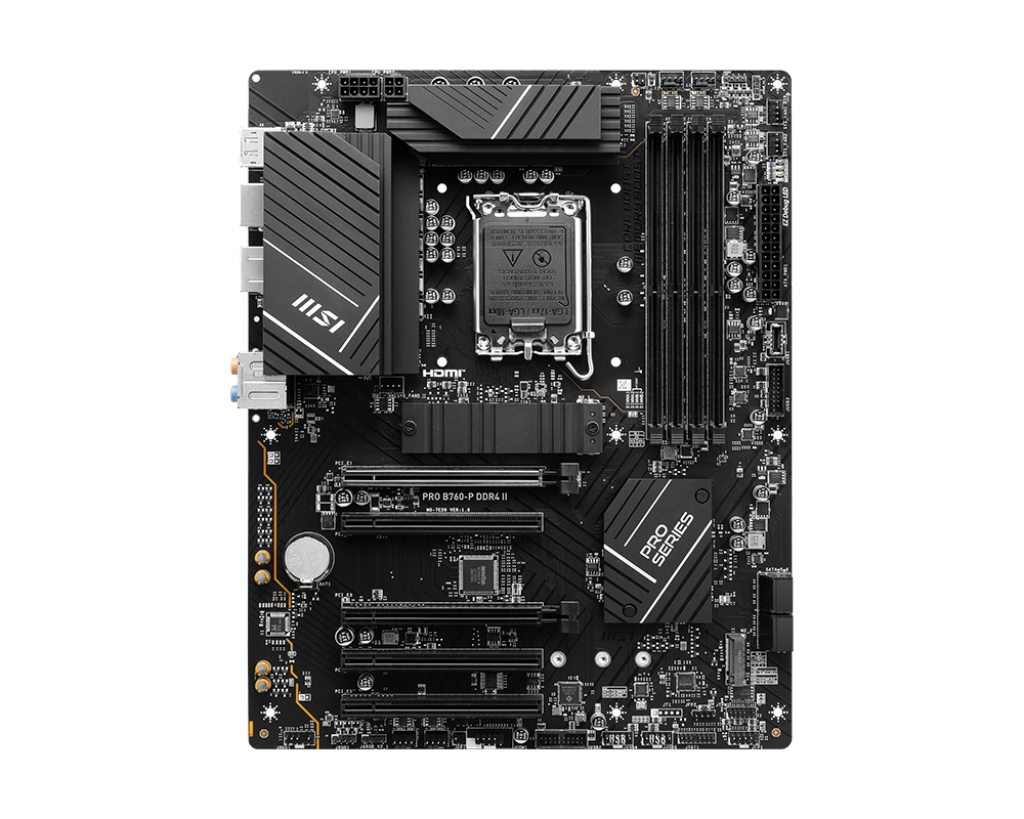

PRO B760-P DDR4 II
- Soporte para los procesadores Intel® Core™, Pentium® Gold y Celeron® de 12ª/13ª generación para zócalo LGA 1700.
- Soporta memoria DDR4, doble canal DDR4 5333+MHz (OC)
- Diseño de alimentación mejorado: sistema de alimentación Duet Rail 12+1 con P-PAK, conectores de alimentación de CPU de 8 patillas + 4 patillas, Core Boost, Memory Boost.
- Solución térmica premium: Disipador térmico ampliado, almohadillas térmicas MOSFET de 7 W/mK, choke pads adicionales y M.2 Shield Frozr para un sistema de alto rendimiento y una experiencia de juego ininterrumpida.
- PCB de alta calidad: PCB de 6 capas fabricado con cobre de 2 onzas de espesor y material de nivel de servidor
- Experiencia de juego a gran velocidad: Ranura PCIe 4.0, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: impulsado por el controlador Intel USB 3.2 Gen2, Turbo USB garantiza una conexión ininterrumpida con más estabilidad y las velocidades USB más rápidas.
- LAN 2,5G: solución de red mejorada para uso profesional y multimedia. Proporciona una conexión de red segura, estable y rápida
- AUDIO BOOST: Recompensa a tus oídos con una calidad de sonido de estudio para disfrutar de la experiencia de juego más envolvente.
| Chipset | INTEL B760 |
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| Memory |
4x DDR4, Maximum Memory Capacity 128GB 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Storage |
2x M.2 (Qty) 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 5x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type C (Rear) |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |

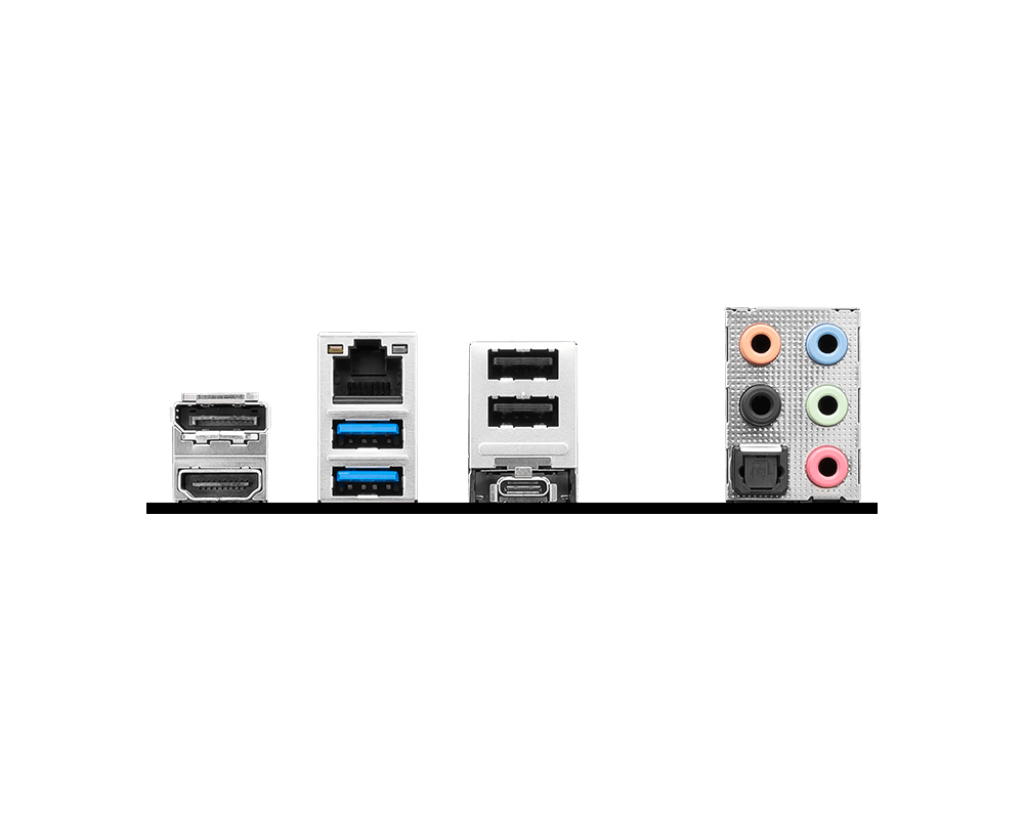

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | ATX 243.84mmx304.8mm |
| BOX CONTENT |  |
