MSI PRO B760-P WIFI DDR4 | Placa Base
Free Package
- LGA 1700
- Intel B760
- ATX

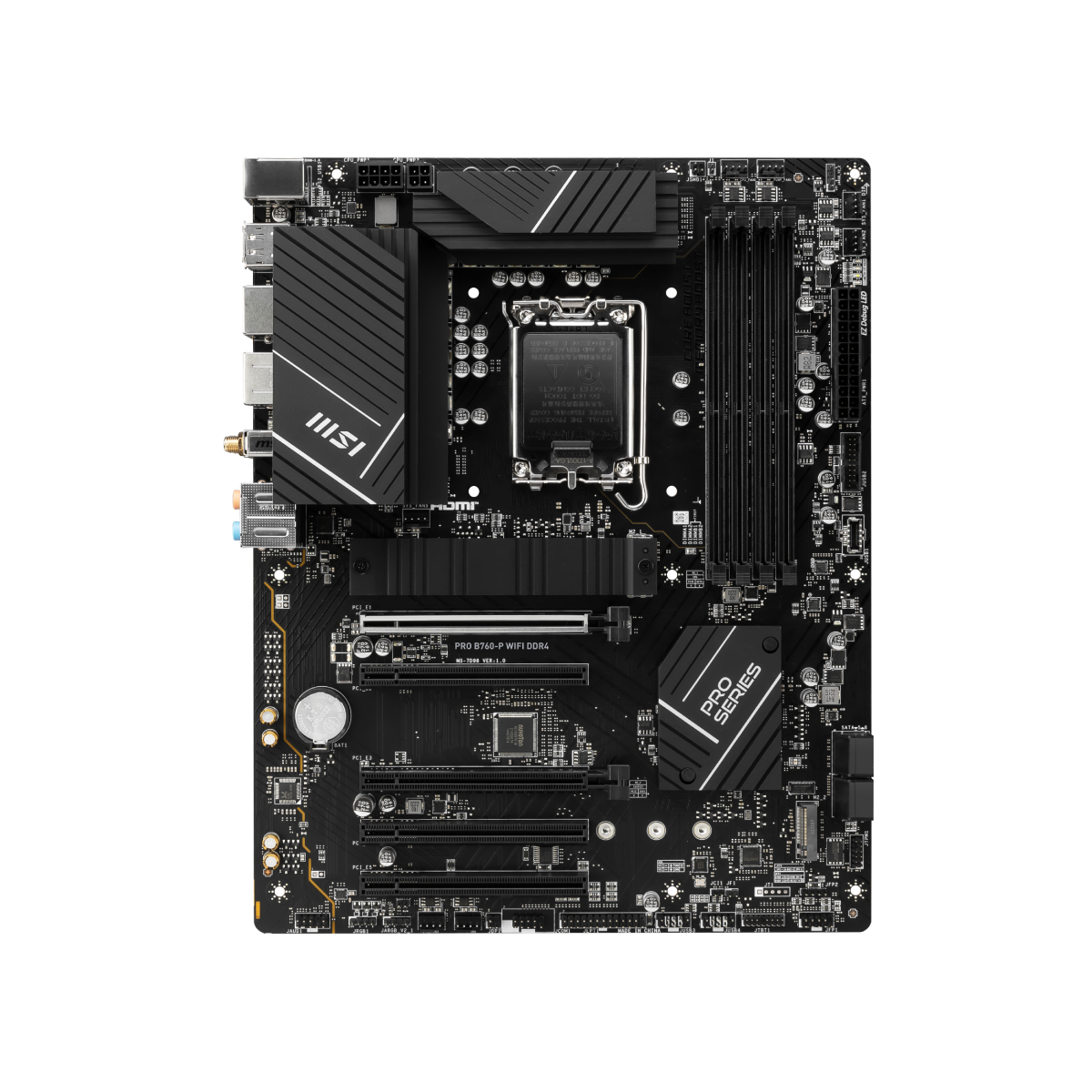

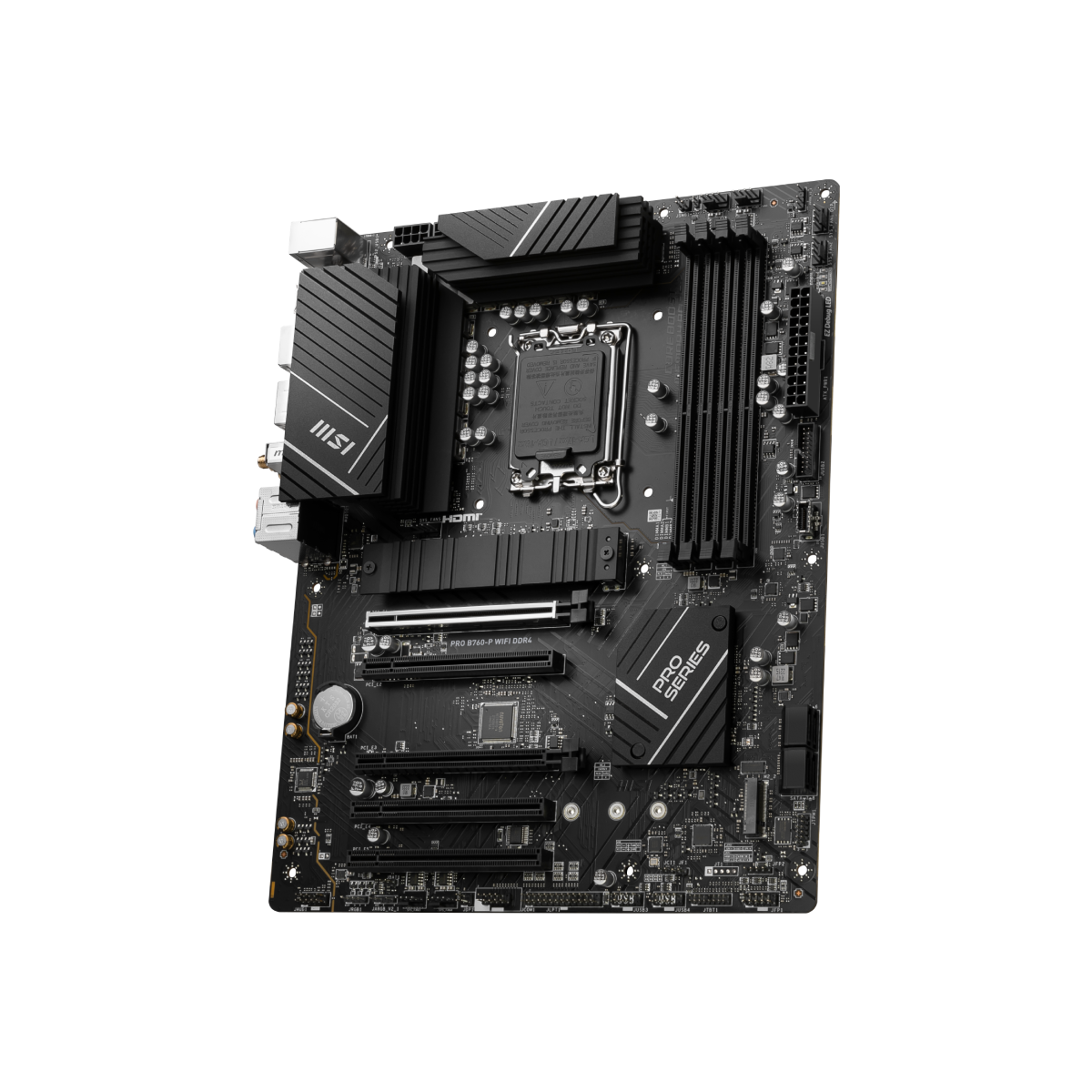

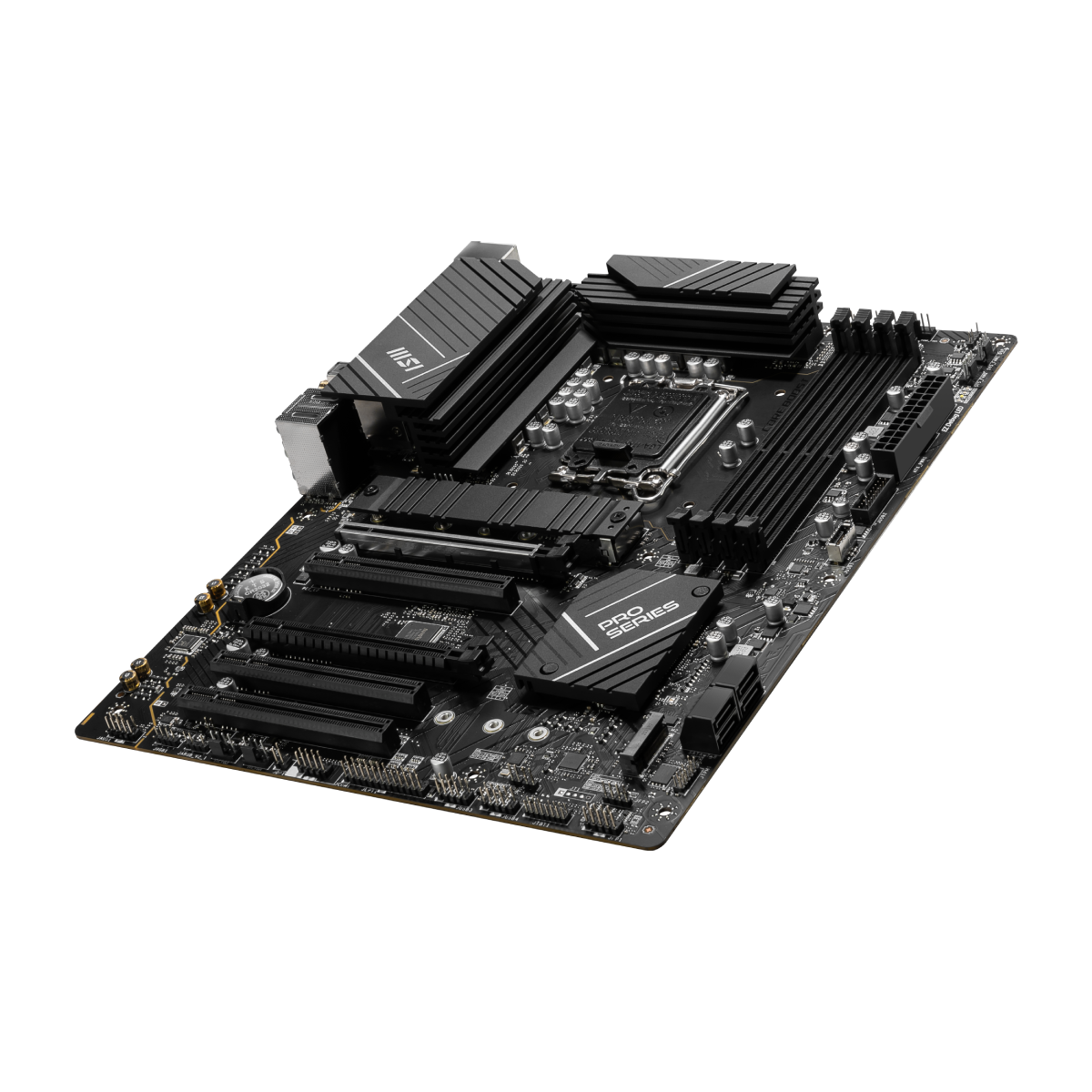

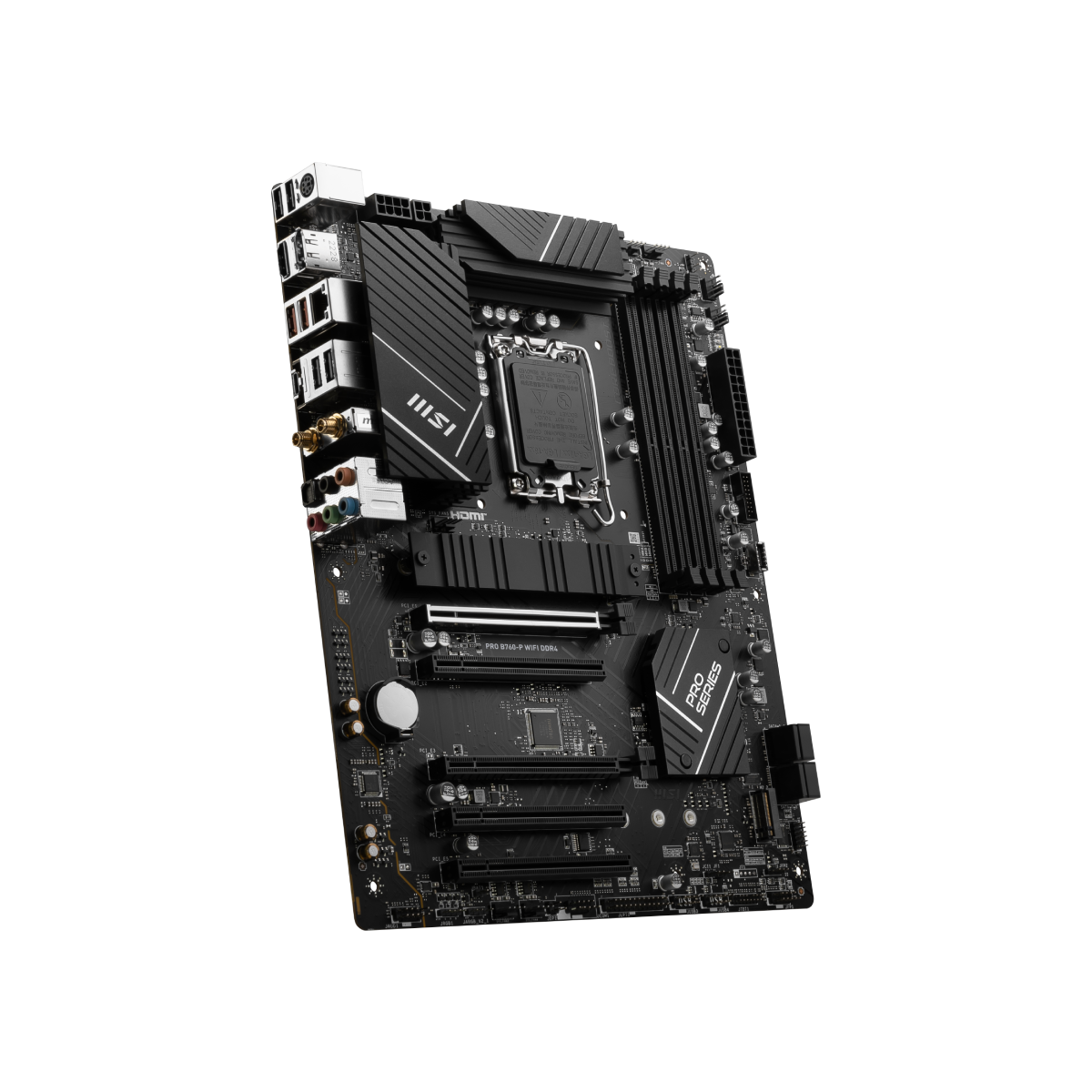

PRO B760-P WIFI DDR4
- Compatible con procesadores Intel® Core™, Pentium® Gold y Celeron® de 12ª/13ª generación para zócalo LGA 1700
- Soporta memoria DDR4, doble canal DDR4 5333+MHz (OC)
- Diseño de alimentación mejorado: Sistema de alimentación Duet Rail 12+1 con P-PAK, conectores de alimentación de CPU de 8 patillas + 4 patillas, Core Boost, Memory Boost
- Solución térmica premium: Disipador térmico ampliado, almohadillas térmicas MOSFET de 7 W/mK, choke pads adicionales y M.2 Shield Frozr para un sistema de alto rendimiento y una experiencia de juego ininterrumpida
- PCB de alta calidad: PCB de 6 capas fabricado con cobre de 2 onzas de espesor y material de nivel de servidor
- Experiencia gaming ultrarápida: Ranura PCIe 4.0, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: Impulsado por el controlador Intel USB 3.2 Gen2, Turbo USB garantiza una conexión ininterrumpida con más estabilidad y las velocidades USB más rápidas
- Solución LAN 2.5G y Wi-Fi 6: Solución de red mejorada para uso profesional y multimedia. Proporciona una conexión de red segura, estable y rápida
- AUDIO BOOST: Recompensa a tus oídos con una calidad de sonido de estudio para disfrutar de la experiencia gaming más envolvente
| Chipset | INTEL B760 |
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700 |
| Memory |
4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)
Supports Dual-Channel mode |
| Onboard Graphics |
|
| Slot |
|
| Audio |
|
| Storage |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
|
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Internal IO |
|
| WIRELESS LAN & BLUETOOTH |
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| BOX CONTENT |  |
| PCB Info | ATX 243.84mmx304.8mm |
