- LGA 1700
- Intel H610
- mATX

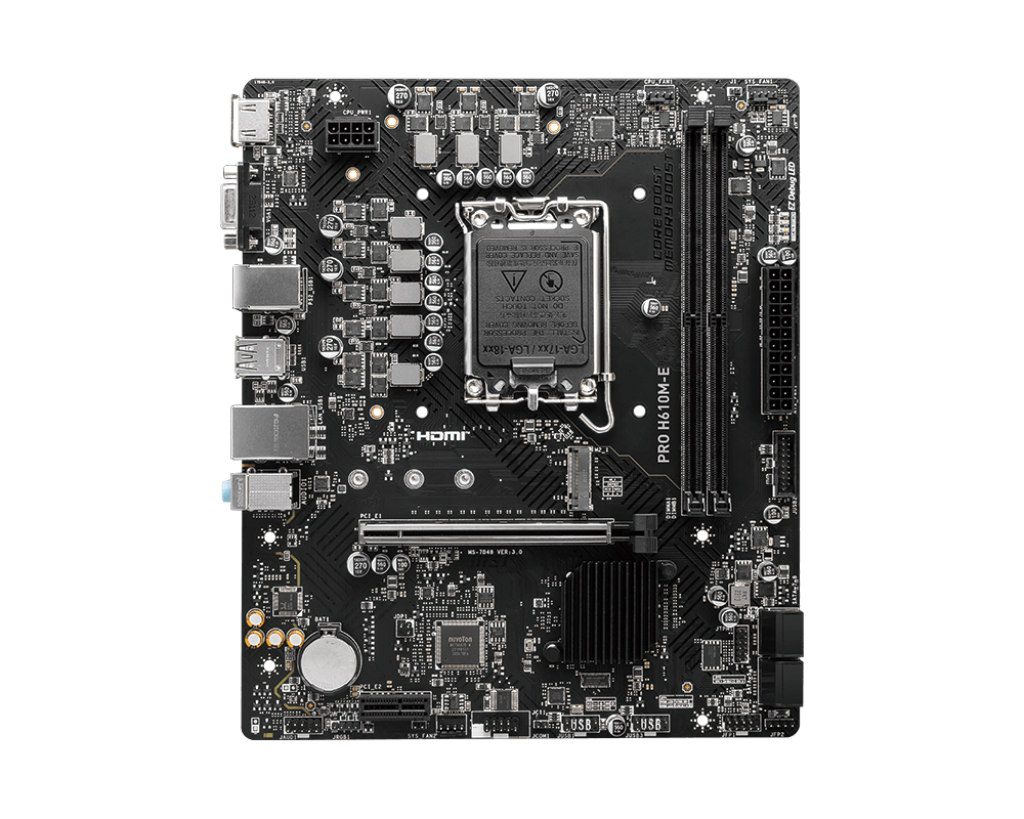

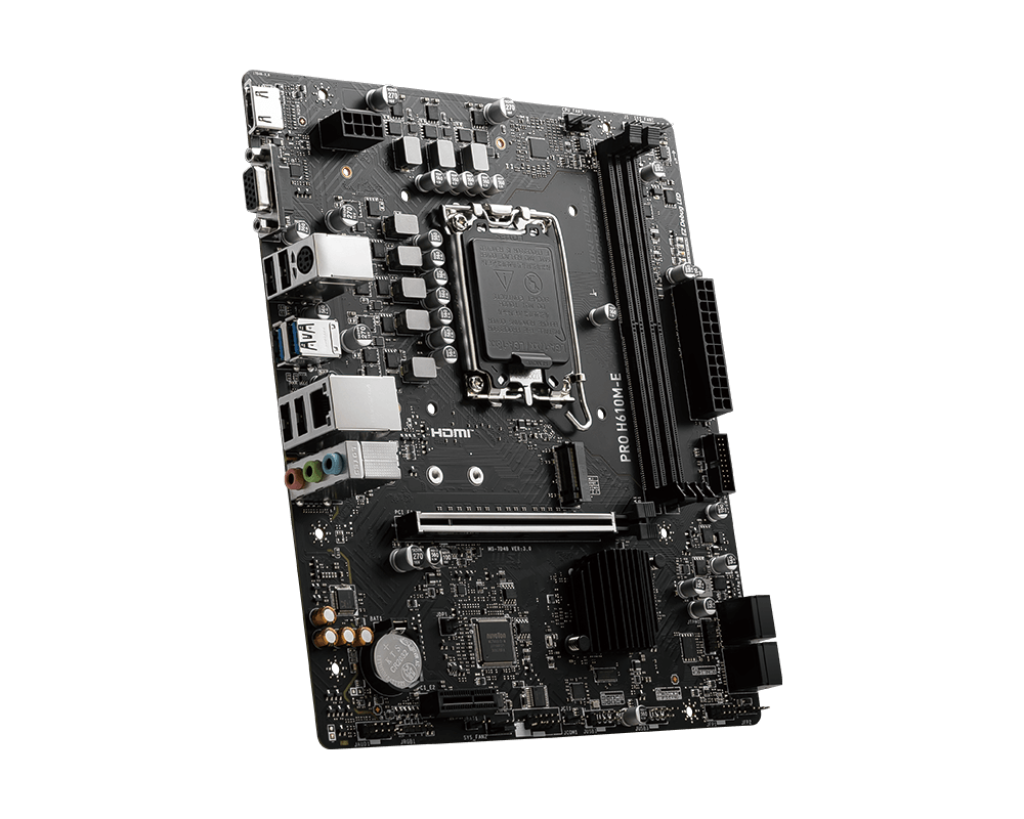

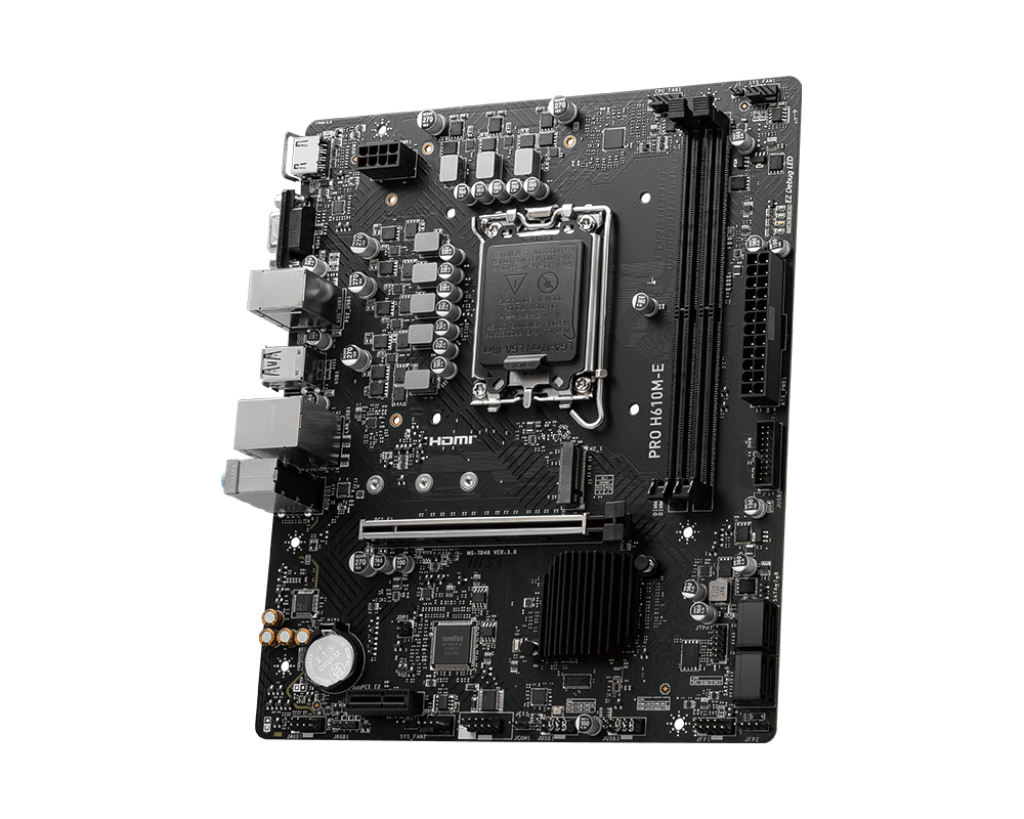

PRO H610M-E
- Compatible con procesadores Intel® Core™ de 14ª/ 13ª/ 12ª generación, procesadores Intel® Pentium® Gold y Celeron® para zócalo LGA 1700.
- Admite memoria DDR5, hasta 5600(MAX) MHz
- Core Boost : Con un diseño premium y un diseño de potencia digital para soportar más núcleos y proporcionar un mejor rendimiento.
- Memoria Boost: Tecnología avanzada para ofrecer señales de datos puras para el mejor rendimiento, estabilidad y compatibilidad.
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Recompensa a tus oídos con una calidad de sonido de estudio
- Steel Armor: Protege las tarjetas VGA contra la flexión y las interferencias electromagnéticas para mejorar el rendimiento, la estabilidad y la resistencia.
| Chipset | INTEL H610 |
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| Memory |
2x DDR5, Maximum Memory Capacity 96GB
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage |
1x M.2 (Qty) supports 2280/2260/2242 devices |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Onboard Graphics |
1x HDMI™ 1920x1200 60Hz Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED |

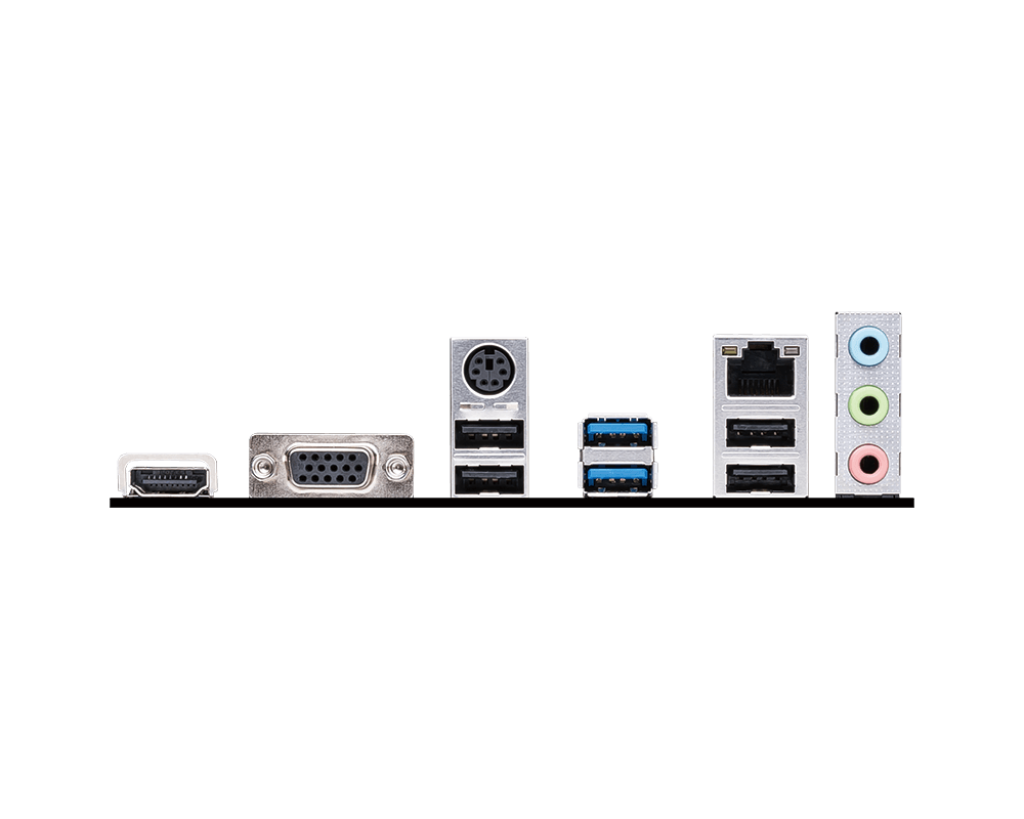

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | mATX 200mmx236.16mm |
| BOX CONTENT |  |
