- LGA 1700
- Intel H610
- mATX

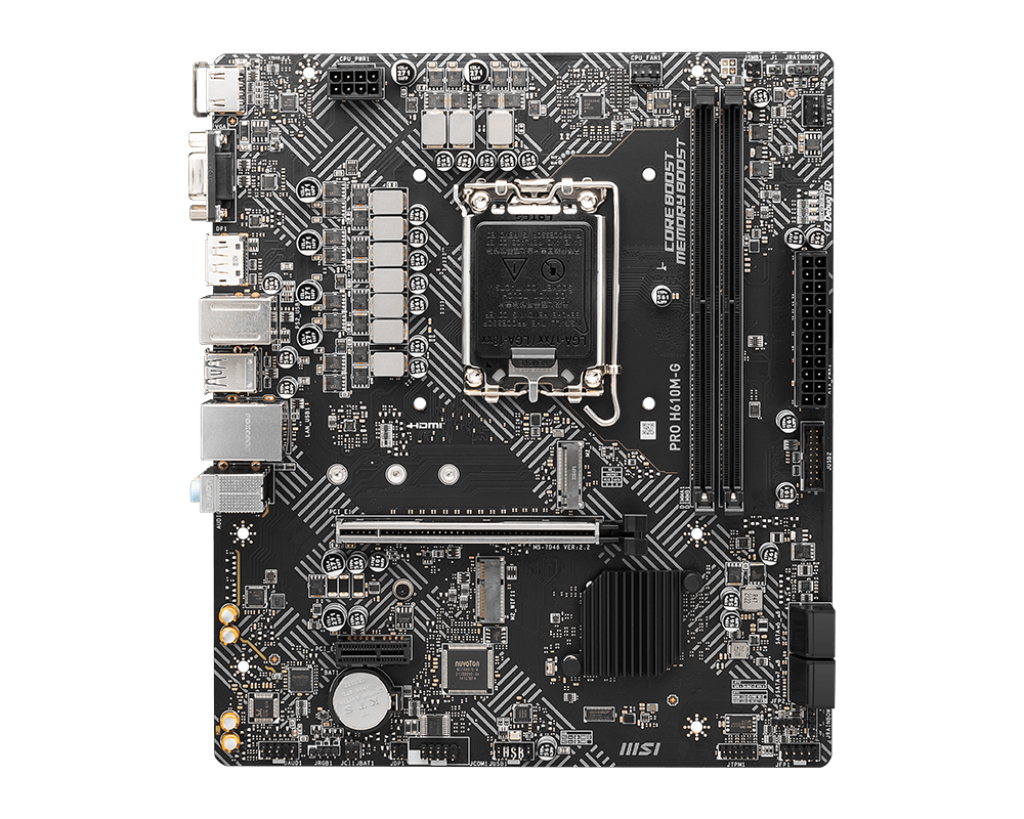

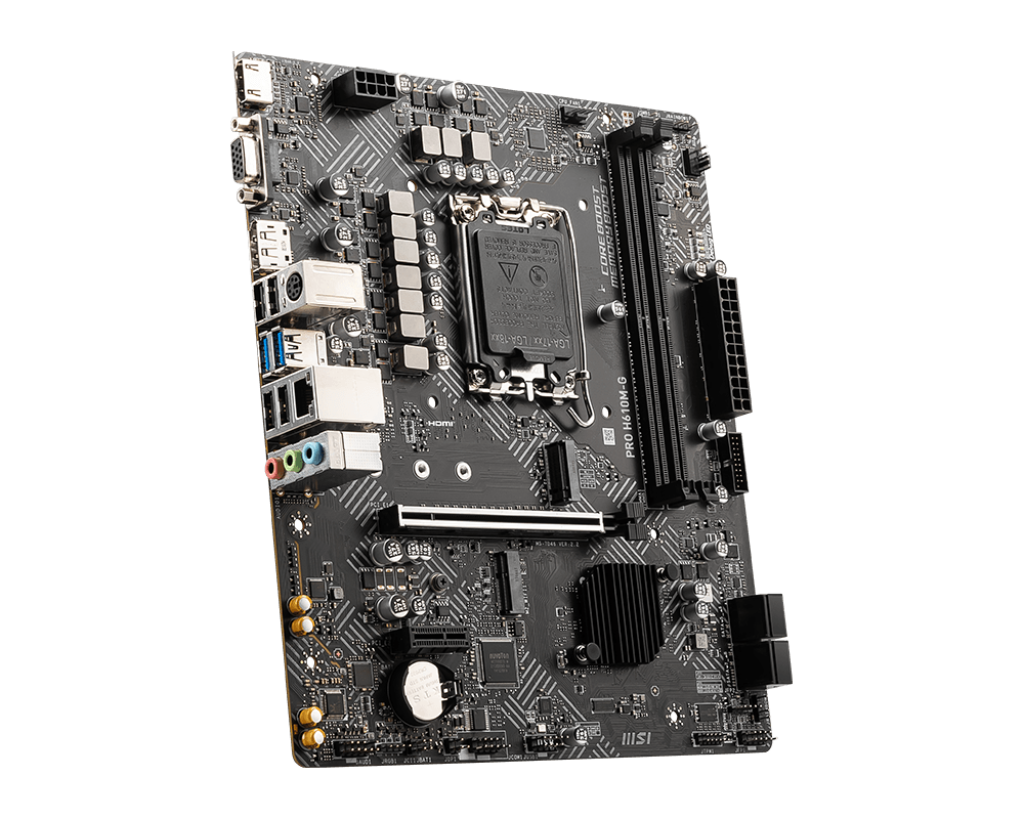

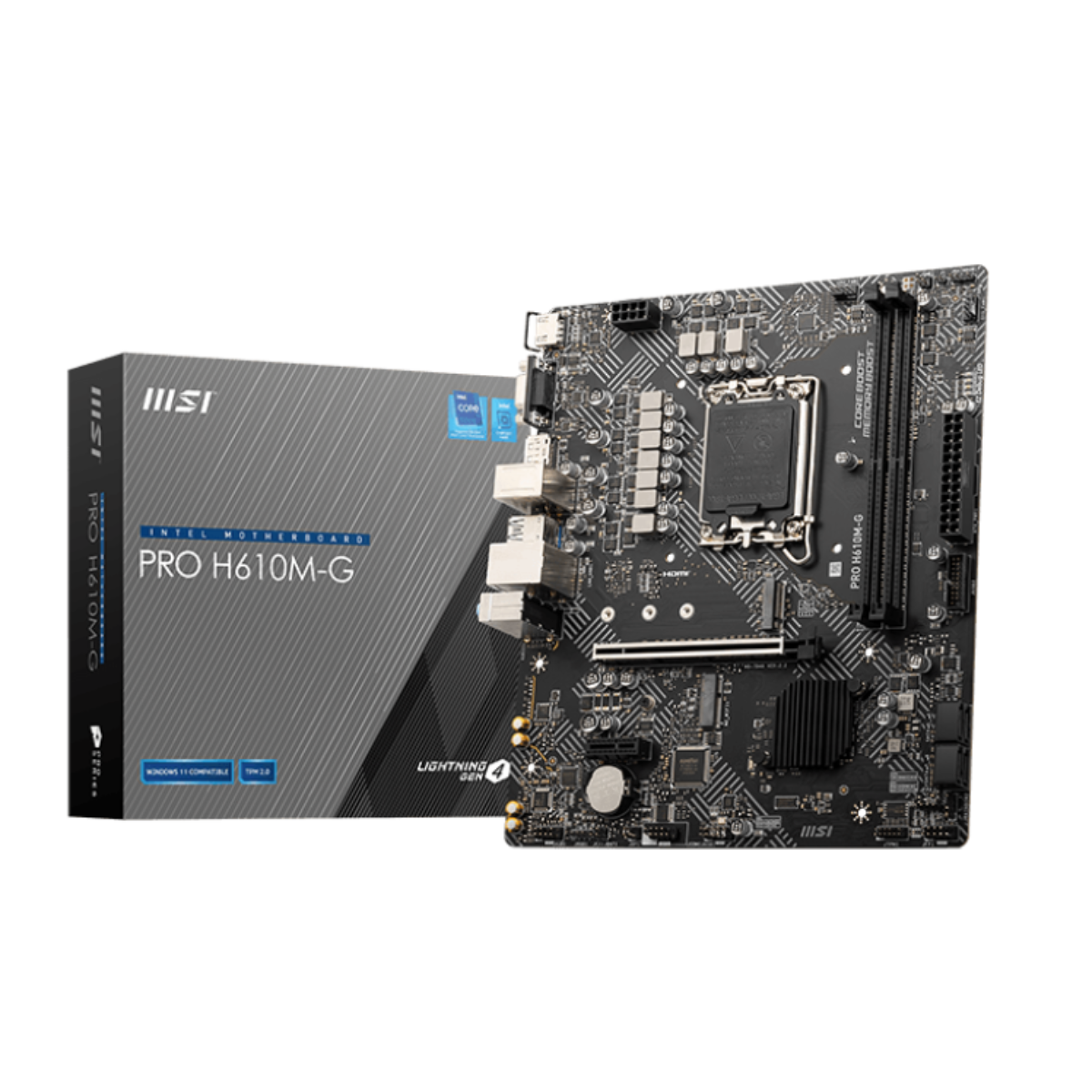

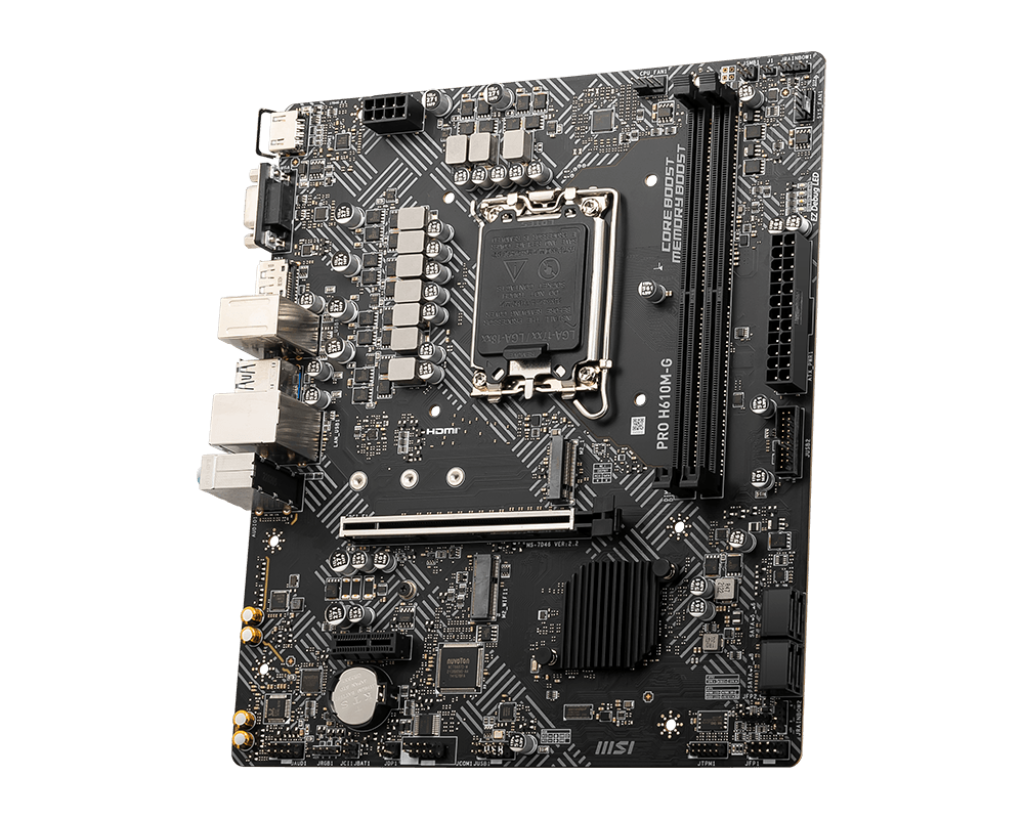

PRO H610M-G
- Compatible con procesadores Intel® Core™ de 14ª, 13ª y 12ª generación, procesadores Intel® Pentium® Gold y Celeron® para socket LGA 1700
- Compatible con memoria DDR5, hasta 5600 (MÁX) MHz
- Core Boost: Con diseño de alimentación digital y una disposición premium para soportar más núcleos y proporcionar un mejor rendimiento
- Memory Boost: Tecnología avanzada para entregar señales de datos puras para el mejor rendimiento, estabilidad y compatibilidad
- Experiencia Rápida como un Rayo: PCIe 4.0
- Audio Boost: Recompensa tus oídos con calidad de sonido de grado de estudio
- Steel Armor: Protege las tarjetas VGA contra la flexión y EMI para un mejor rendimiento, estabilidad y resistencia
| Chipset | INTEL H610 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) 1x M.2 slot with E-key for PCIe WiFi module only |
| Storage | 1x M.2 (Qty) M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| USB | 4x USB 2.0 (Rear) 2x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN | Intel® I219V 1Gbps LAN controller |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED |

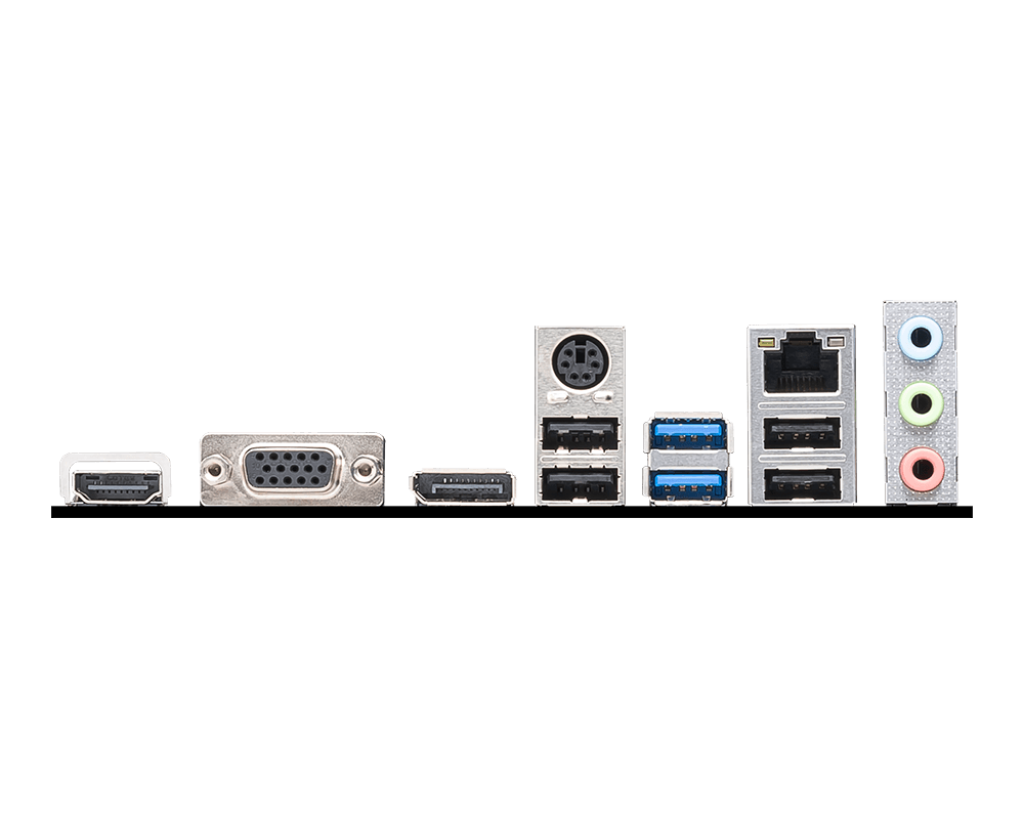

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| BOX CONTENT |  |
| PCB Info | mATX 211mmx243.84mm |
