MSI España  |  SKU: 911-7D14-023

MSI PRO B550M-B | Placa Base


to see prices

fecha de entrega

Garantizar

3 Year Warranty

Free Package

  • AM4
  • AMD B550
  • mATX

PRO B550M-B

Características:

  • Compatible con los procesadores AMD Ryzen™ de las series 5000, 5000 G, 4000 G, 3000 y 3000 G
  • Compatible con memoria DDR4, hasta 4600+ MT/s (overclocking)
  • Experiencia ultrarrápida: Slot PCIe 4.0 y Lightning Gen4 x4 M.2
  • EZ DIY: LED EZ Debug, montaje EZ
  • Audio Boost: Deleita tus oídos con una calidad de sonido de nivel profesional
  • MSI Center: Un software totalmente nuevo que integra todas las herramientas exclusivas de MSI con una interfaz de usuario intuitiva.

Chipset AMD B550
CPU

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors

Socket AM4
Memory

2x DDR4, Maximum Memory Capacity 64GB

Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE

Max. overclocking:

  • 1DPC 1R Max speed up to 4600+ MT/s
  • 1DPC 2R Max speed up to 3866+ MT/s
  • Supports JEDEC Speed
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Memory Overclocking by A-XMP OC mode

    The DIMM slots on this motherboard have double-sided latches.
    Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
    Onboard Graphics
    • 1x HDMI™ (Support HDMITM 2.1, maximum resolution of 4K 60Hz*)
    • 1x DisplayPort (Supports DP 1.2, maximum resolution of 4K 60Hz*)

    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot
    • 1x PCI-E x16 slot (Qty)
      • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

    *The supported specification depends on installed processor.
    Audio Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Storage
    • 2x M.2 (Qty)
      • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
      • M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices
    • 4x SATA 6G (Qty)

    *The supported specification depends on installed processor.
    RAID Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices*
    Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
    USB
    • 2x USB 2.0 (Rear)
    • 4x USB 2.0 (Front)
    • 4x USB 5Gbps Type A (Rear)
    • 2x USB 5Gbps Type A (Front)
    • 1x USB 5Gbps Type C (Front)
    LAN Realtek® RTL8111H 1Gbps LAN
    Internal IO
    • 1x Power Connector (ATX_PWR)
    • 1x Power Connector (CPU_PWR)
    • 1x CPU Fan
    • 1x System Fan
    • 2x Front Panel (JFP)
    • 1x Chassis Intrusion (JCI)
    • 1x Front Audio (JAUD)
    • 1x Com Port (JCOM)
    • 3x Addressable V2 RGB LED connector (JARGB_V2)
    • 1x RGB LED connector (JRGB)
    • 1x TPM pin header (Support TPM 2.0)
    • 4x USB 2.0 ports
    • 2x USB 5Gbps Type A ports
    • 1x USB 5Gbps Type C ports
    LED FEATURE 4x EZ Debug LED

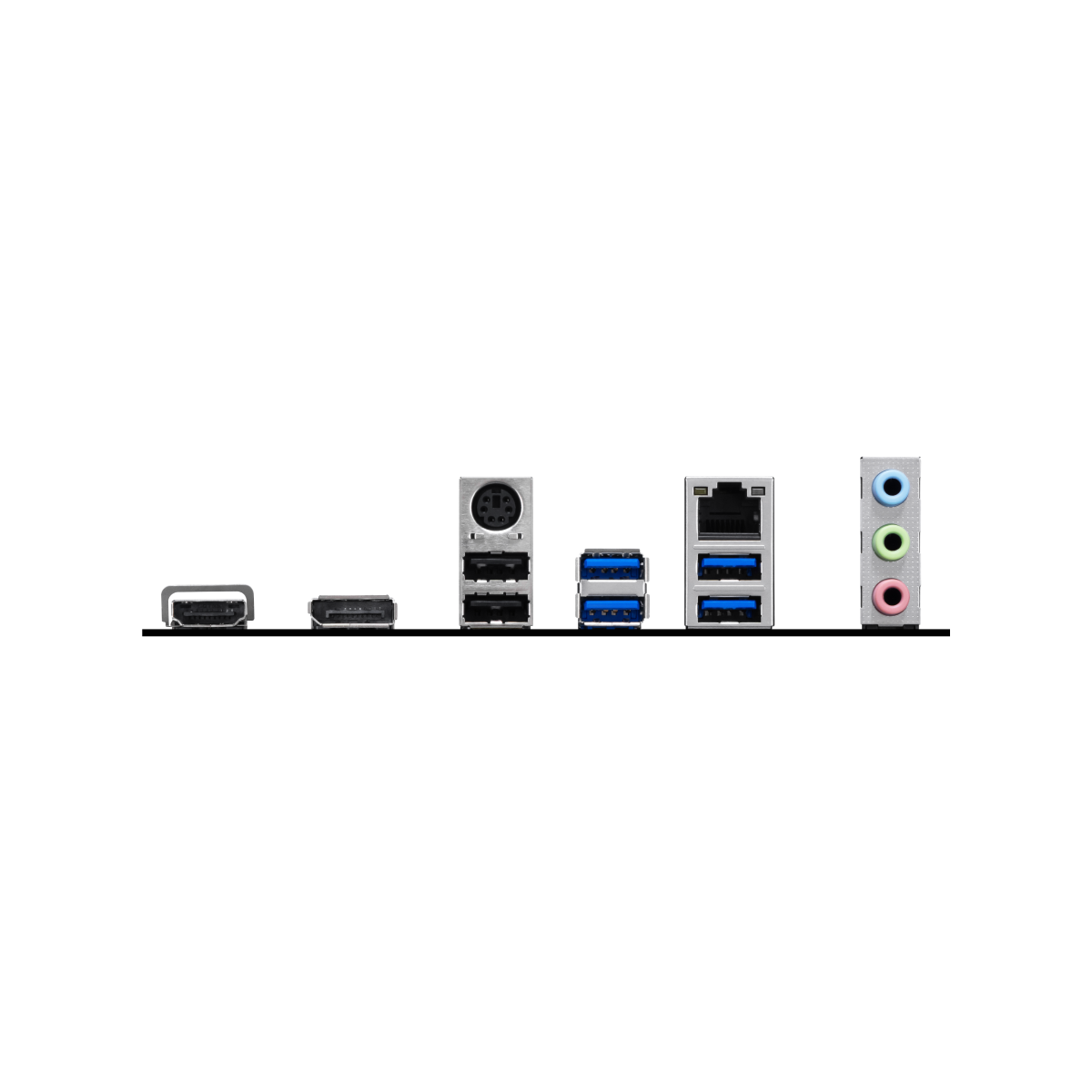

    BACK PANEL PORTS
    1. HDMI™
    2. DisplayPort
    3. Keyboard / Mouse
    4. USB 5Gbps Type-A
    5. LAN Port
    6. Audio connectors
    7. USB 2.0
    8. USB 5Gbps Type-A
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    BOX CONTENT
    PCB Info mATX
    220mmx243.84mm
