MSI France | SKU:
911-7E07-020
PRO Z790-A MAX WIFI
Couldn't load pickup availability
Ongoing campaigns
Garantie
Garantie
3 Year Warranty
MSI CARE PLUS
You can insure your MSI device for a low fee with MSI Care Plus. MSI offers you warranty coverage even after the standard warranty period has expired. Benefits include:
- Less than 29.00 PLN/month for a one-year warranty extension.
- Priority repair processing.
- Coverage for hardware repairs, including parts replacement.
- Direct support from an MSI expert.
WYMAGANIA
- The Extended Warranty Package is available for products purchased after 2021.
- The MSI Extended Warranty Package is available only to customers who purchased their MSI products in Poland.
- Proof of purchase for the MSI device is required; this may be a copy of the invoice or receipt.
- The product must be registered and the extended warranty activated online within one month of purchase.
- If the extended warranty package is not registered and activated after purchase, it may be returned within 14 days of purchase.
Activating the MSI Warranty Extension Package
STEP 1
BECOME AN MSI MEMBER
Visit the MSI Member Center at https://account.msi.com/login and click "Members". | Follow the instructions on the page to become an MSI member.
STEP 2
REGISTER YOUR MSI PRODUCT
Log in to the MSI member site and click "Product Registration" in the left-hand menu to register your product by filling in the required information. If you have already registered your product, proceed to step 3.
STEP 3
ACTIVATE WARRANTY EXTENSION
Go to the MSI Member Center, click the "Activate MSI Care Plus" option in the left-hand menu, and follow these steps:
1. Select the registered product for which you want to obtain the warranty extension.
2. Enter the service code and active password from the digital warranty extension card you purchased.
3. Click "Activate" to complete the process.
Please review the full terms of use before purchasing the MSI Care Plus warranty extension. If you need assistance with the activation process, please contact us by phone or email.
65-603-7512
de-shop@msi.com
Free Package
- LGA 1700
- Intel Z790
- ATX

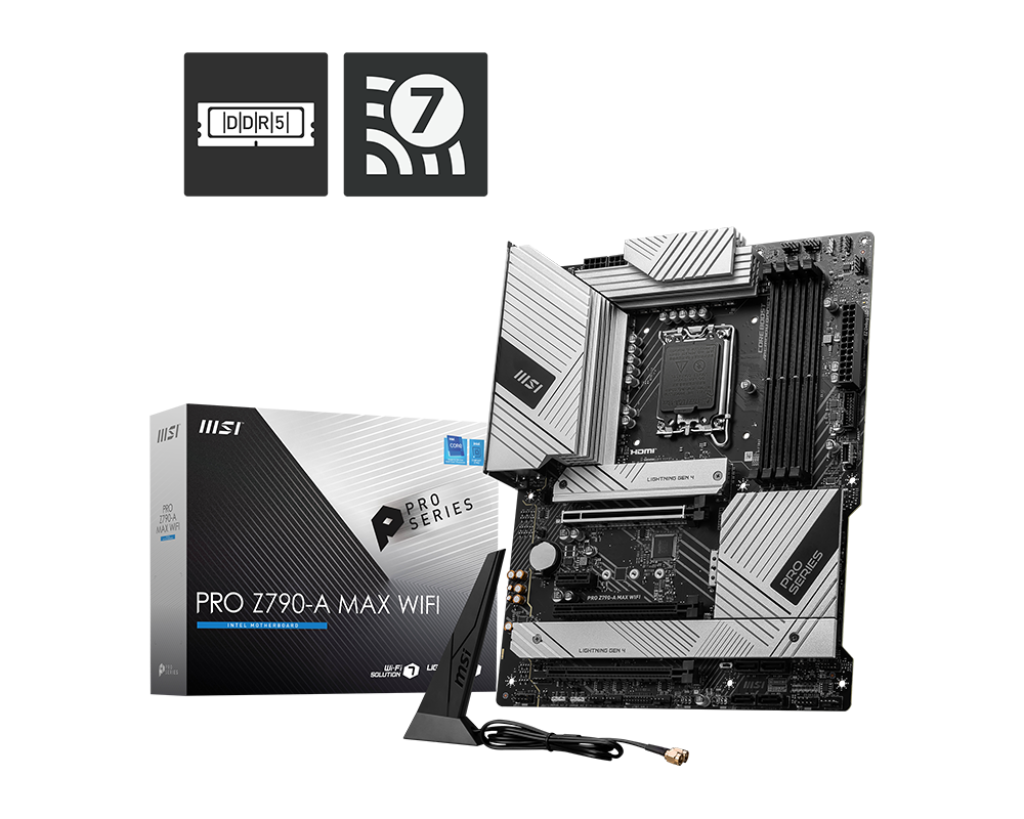

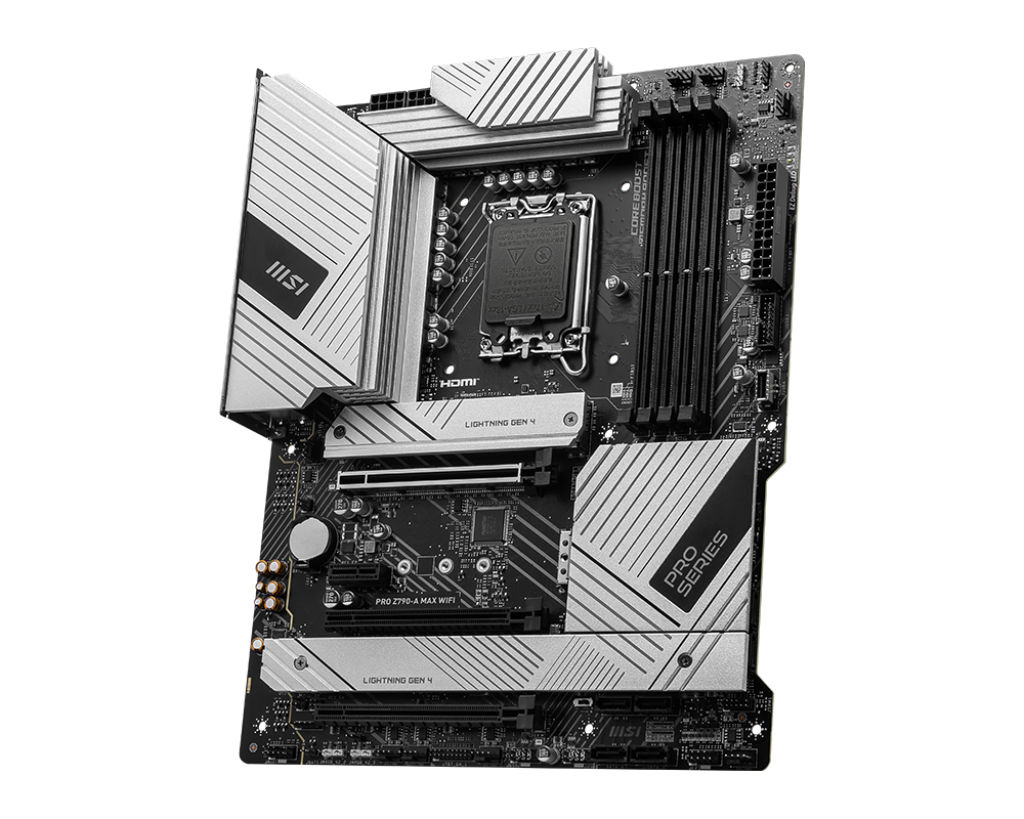

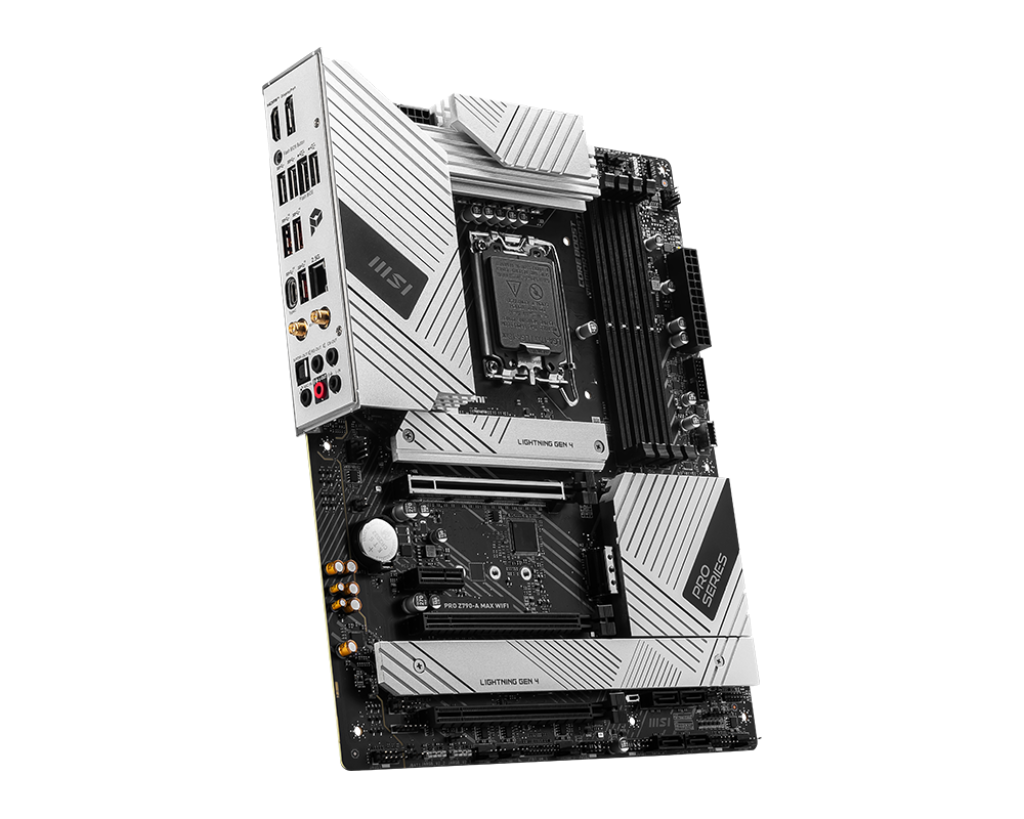

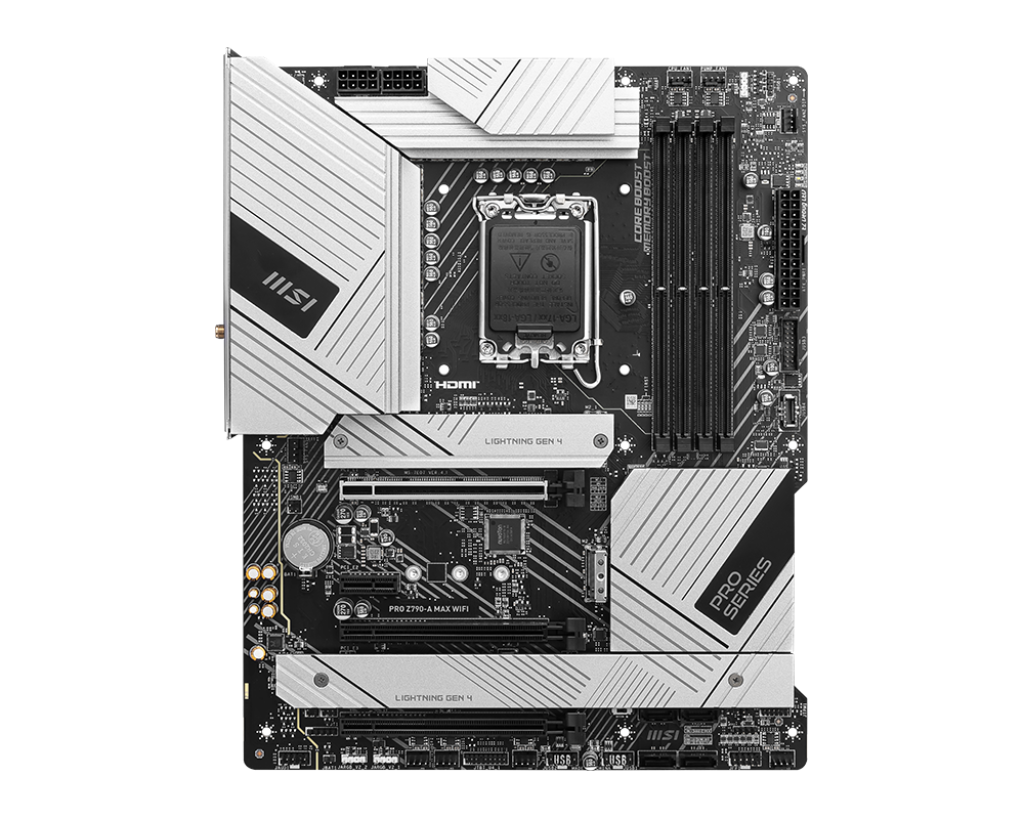

PRO Z790-A MAX WIFI
- Support des processeurs Intel® Core™ de 12è, 13è et 14è génération, Intel® Pentium® Gold et Celeron® pour socket LGA 1700
- Support mémoire DDR5, jusqu'à 7200+ (OC) MHz
- Alimentation à 16+1+1 DRPS avec SPS 80A, deux connecteurs d'alimentation processeur à 8 broches et technologies Core Boost et Memory Boost
- Solution de refroidissement complète avec dissipateur plus large, pads thermiques MOSFET 7 W/mk, pads thermiques supplémentaires pour inductances de puissance et slots M.2 Shield Frozr
- Circuit imprimé de classe serveur à 6 couches de cuivre de 2 onces
- Expérience ultrarapide avec des slots PCIe 5.0, Lightning M.2 Gen4 x4 et ports USB 3.2 Gen2 x2
- Solution Intel Turbo USB 3.2 Gen2 avec contrôleur USB 3.2 Gen2x2 pour des transferts de données ultrarapides
- Connecteur 2,5G LAN et norme Wi-Fi 7 pour une connexion fluide et rapide
- Audio Boost 5 pour un son de qualité et une expérience immersive
- Fiche technique
-
- DisplayPort
- USB 2.0
- 2.5G LAN
- Wi-Fi / Bluetooth
- Audio Connectors
- HDMI™
- Flash BIOS Button
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 3.2 Gen 2 10Gbps (Type-A)
- USB 3.2 Gen 2x2 20Gbps (Type-C)
- S/PDIF-OUT
| Chipset | INTEL Z790 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 3x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
| Storage | 4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G (Qty) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
| LED FEATURE | 4x EZ Debug LED |

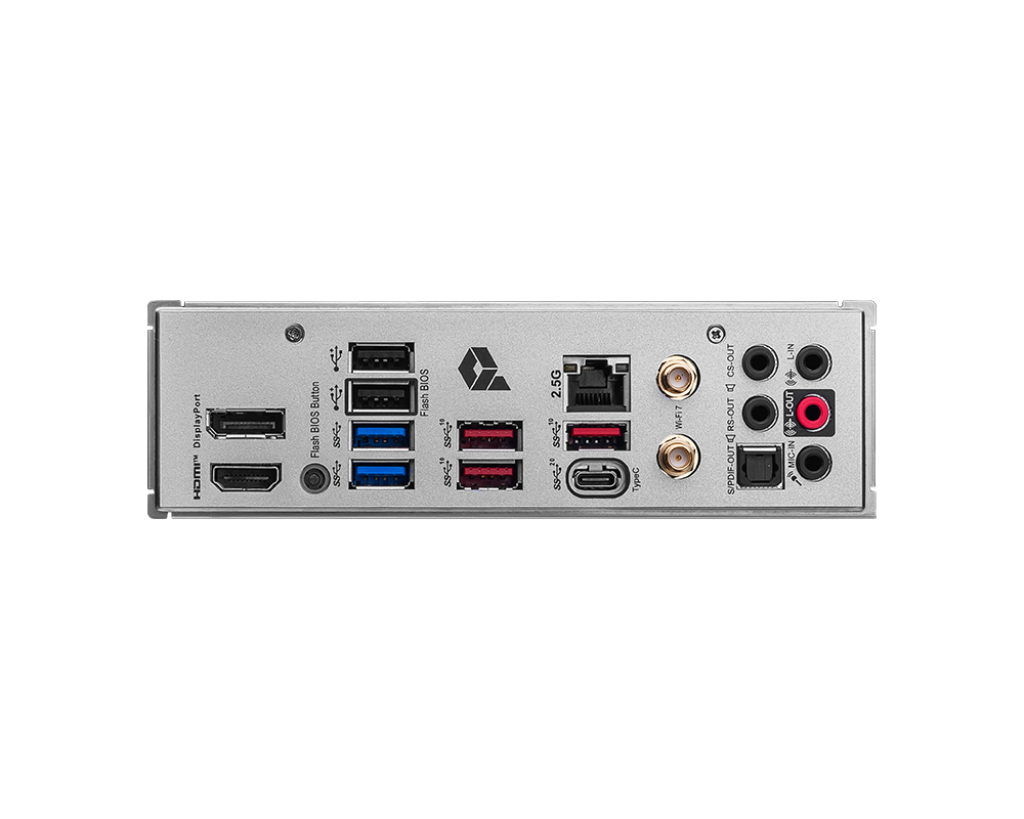

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| BOX CONTENT |  |
| PCB Info | ATX 243.84mmx304.8mm |
