MSI Z890 GAMING WIFI | Placa Base


to see prices

Ongoing campaigns

Garantie

3 Year Warranty

Free Package

  • LGA 1851
  • Intel Z890
  • ATX

Z890 GAMING WIFI

Características:

  • Compatible con procesadores Intel® Core™ Ultra (serie 2) para zócalo LGA 1851
  • Compatible con memoria DDR5, doble canal DDR5 8800+ MT/s (OC)
  • Diseño de alimentación mejorado: sistema de alimentación Duet Rail 12+1+1+1 con P-PAK, conectores de alimentación de CPU de 8 pines duales, Core Boost, Memory Boost, PCB de 6 capas de grado servidor
  • Frozr Guard: disipador térmico ampliado, almohadillas térmicas MOSFET con una potencia nominal de 7 W/mK, almohadillas térmicas adicionales para bobinas y M.2 Shield Frozr, diseñados para sistemas de alto rendimiento y una experiencia ininterrumpida
  • EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II y EZ Antenna
  • Experiencia gaming ultrarrápida: ranura PCIe 5.0 y Lightning Gen 5 x4 M.2.
  • Thunderbolt™ 4: lleva Thunderbolt a USB-C a velocidades reales de 40 Gb/s, compatibilidad con pantallas 8K, conexión en cadena, arquitectura de accesorios multipuerto y compatibilidad con USB 4.0.
  • LAN 2,5G con solución Intel Wi-Fi 7: solución de red mejorada para uso profesional y multimedia, que ofrece una conexión segura, estable y de alta velocidad
  • Audio Boost: deleita tus oídos con una calidad de sonido de nivel profesional para disfrutar de la experiencia gaming más inmersiva

Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

  • 1DPC 1R Max speed up to 8800+ MT/s
  • 1DPC 2R Max speed up to 7200+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

  • The DIMM slots on this motherboard have double-sided latches.
  • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
  • 1x HDMI™
    • Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
  • 1x DisplayPort
    • Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
  • 1x Type-C DisplayPort
    • Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 4x PCI-E x16 slot (Qty)
    • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    • PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage
  • 3x M.2 (Qty)
    • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
    • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G (Qty)

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Onboard Thunderbolt
  • 1x Thunderbolt4 ports (Rear)
    • Supports up to 40Gbps transfer rate with Thunderbolt devices
    • Supports up to 20Gbps transfer rate with USB4 devices
    • Supports up to 10Gbps transfer rate with USB 3.2 devices
    • Supports up to 5V/3A,15W power charging
    • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
    • Supports up to 8K display
USB
  • 4x USB 2.0 (Front)
  • 6x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 20Gbps Type C (Rear)
  • 1x USB 20Gbps Type C (Front)
LAN Realtek® 8125D 2.5Gbps LAN
Internal IO
  • 1x Thunderbolt5 card connector(JTBT5, support RTD3)
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Power Connector(PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x PUMP_SYS Fan
  • 4x System Fan
  • 1x ARGB+FAN Header (JAF_1)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH
  • Intel® Wi-Fi 7
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED

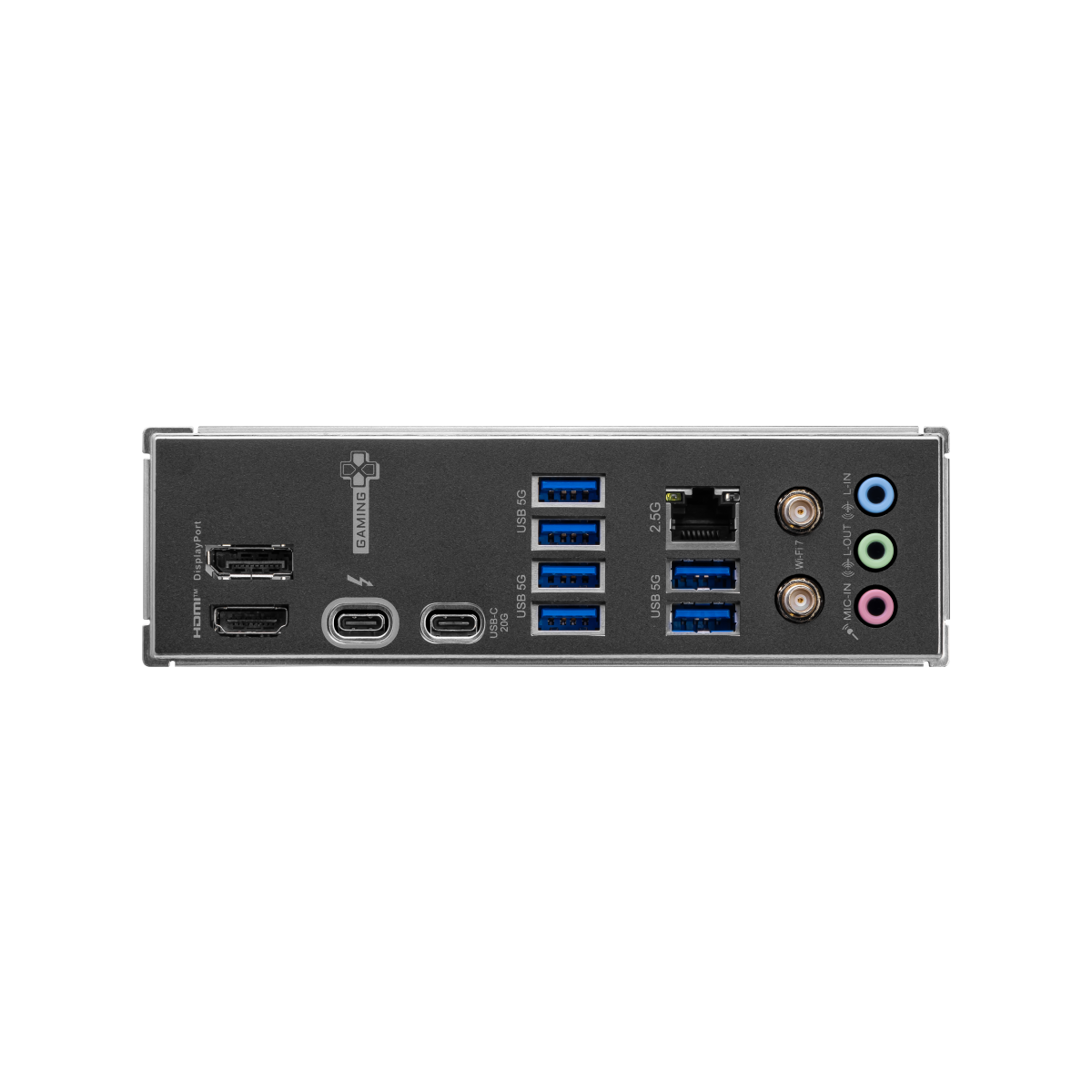

BACK PANEL PORTS
  1. DisplayPort
  2. USB 5Gbps Type-A ports
  3. 2.5G LAN
  4. Wi-Fi / Bluetooth
  5. Audio Connectors
  6. HDMI™
  7. Thunderbolt™ 4 40Gbps (Type-C)
  8. USB 20Gbps Type-C port
  9. USB 5Gbps Type-A ports
OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
PCB Info ATX
243.84mmx304.8mm
