4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max. overclocking frequency:

• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

• 1x HDMI™
  • Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• 2x PCI-E x16 slot (Qty)
• 1x PCI-E x1 slot (Qty)
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

• PCI_E1 slot
  • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

• Realtek^® ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports up to 32-bit/384kHz playback on front panel
• Supports S/PDIF output

• 3x M.2 (Qty)
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From CPU) supports up to
  • PCIe 4.0 x4 , supports 22110/2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 4x SATA 6G (Qty)

• M2_1 slot
  • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
• M2_2 slot
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
  • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
• M2_3 slot
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)

* Please refer to the manual for M.2 SSD heatsink restrictions

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 2x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Rear)
• 1x USB 10Gbps Type C (Front)
• 1x USB 20Gbps Type C (Rear)

• 1x Power Connector (ATX_PWR)
• 2x Power Connector (CPU_PWR)
• 1x Power Connector (PCIE_PWR 8pin)
• 1x CPU Fan
• 1x PUMP_SYS Fan
• 6x System Fan
• 1x ARGB+FAN+USB2.0 Header (JAF_2)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Tuning Controller connector (JDASH)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector (JRGB)
• 1x TPM pin header (Support TPM 2.0)
• 2x BCLK Frequency Jumpers (JBCLK)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

• Wi-Fi 7 Solution
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth^® 5.4**, MLO, 4KQAM

*6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

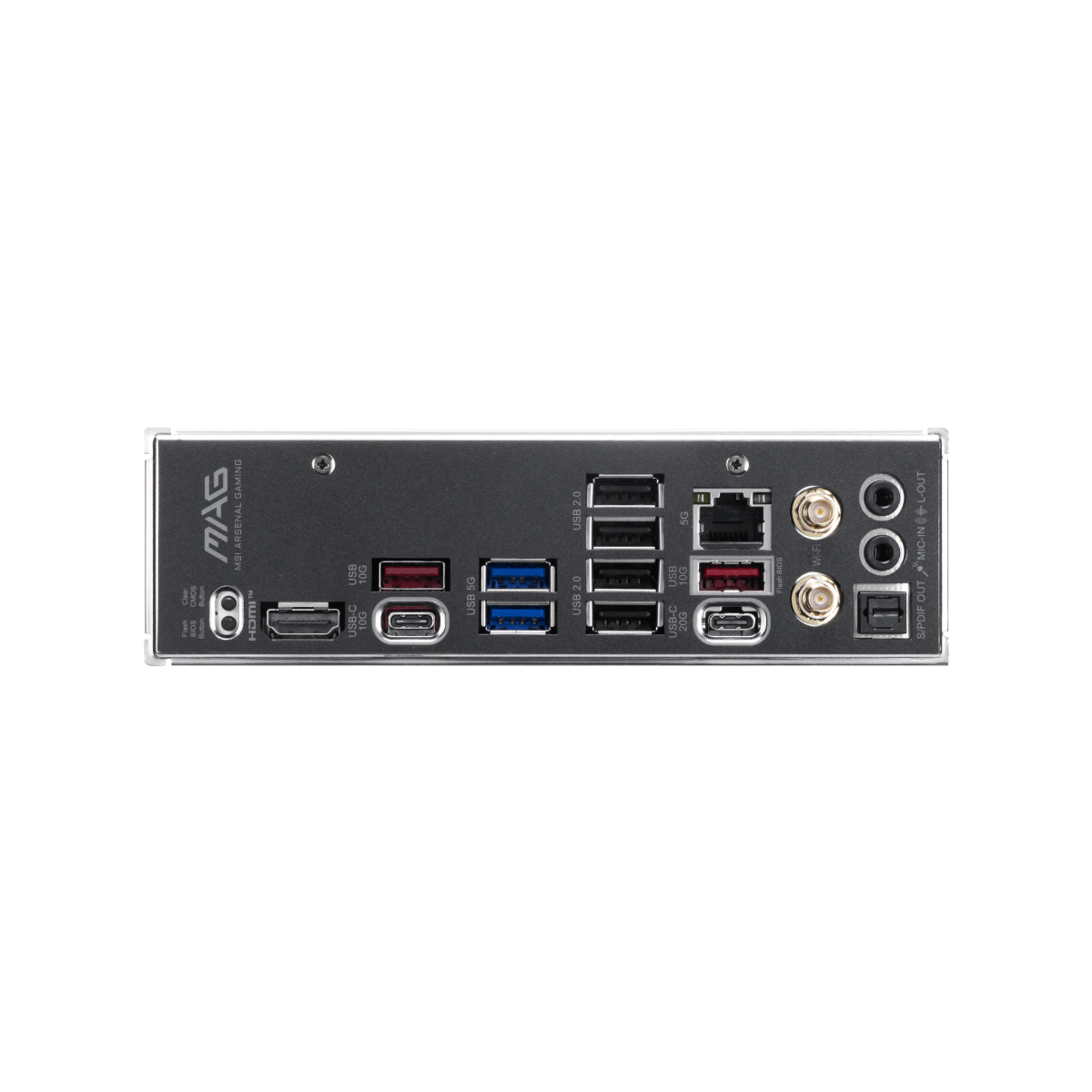

1. Clear CMOS Button
2. USB 10Gbps Type-A
3. USB 5Gbps Type-A
4. USB 2.0
5. 5G LAN
6. Wi-Fi / Bluetooth
7. Audio Connectors
8. Flash BIOS Button
9. HDMI™
10. USB 10Gbps Type-C
11. USB 20Gbps Type-C
12. USB 10Gbps Type-A
13. Optical S/PDIF Out
