MSI España  |  SKU: 911-7E21-002

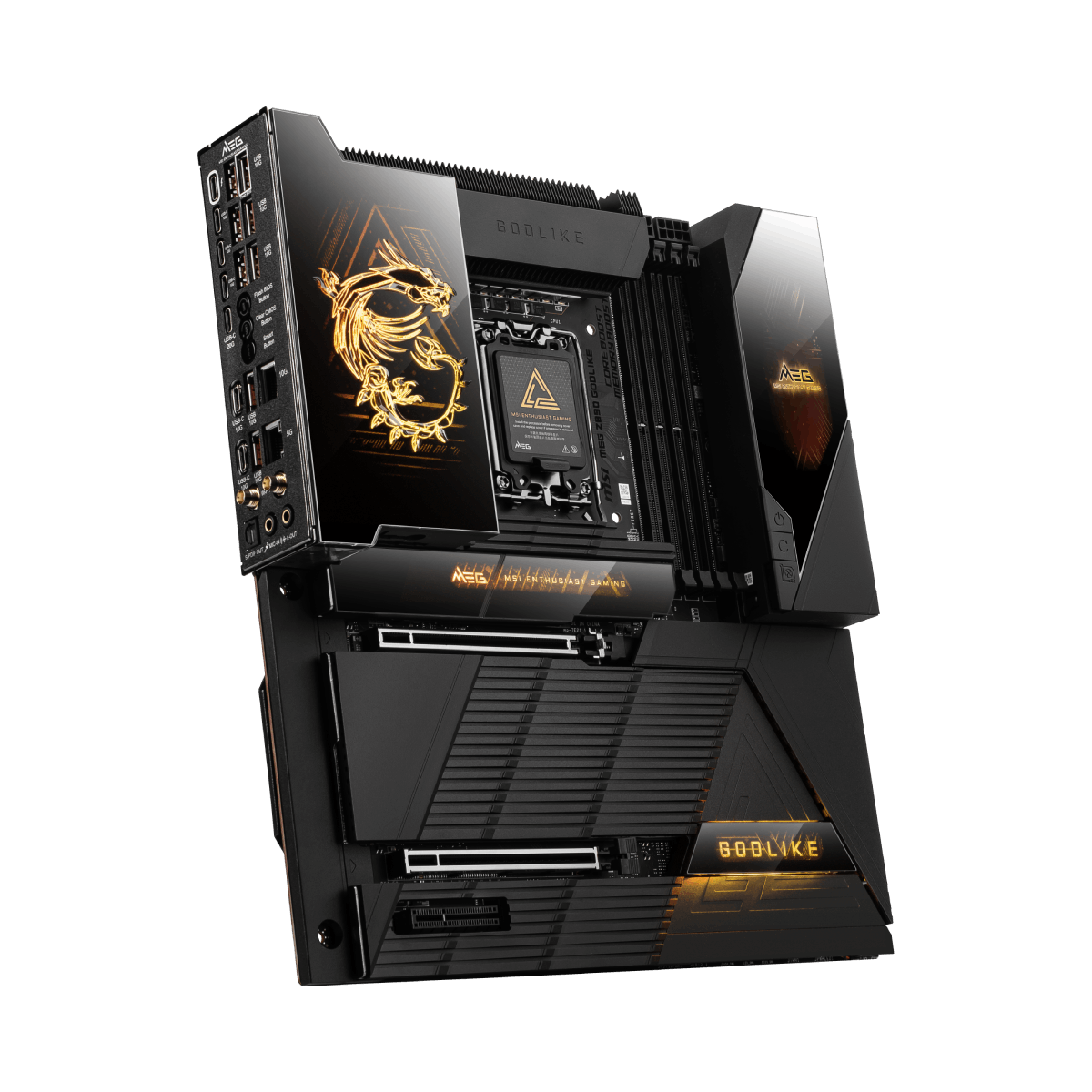

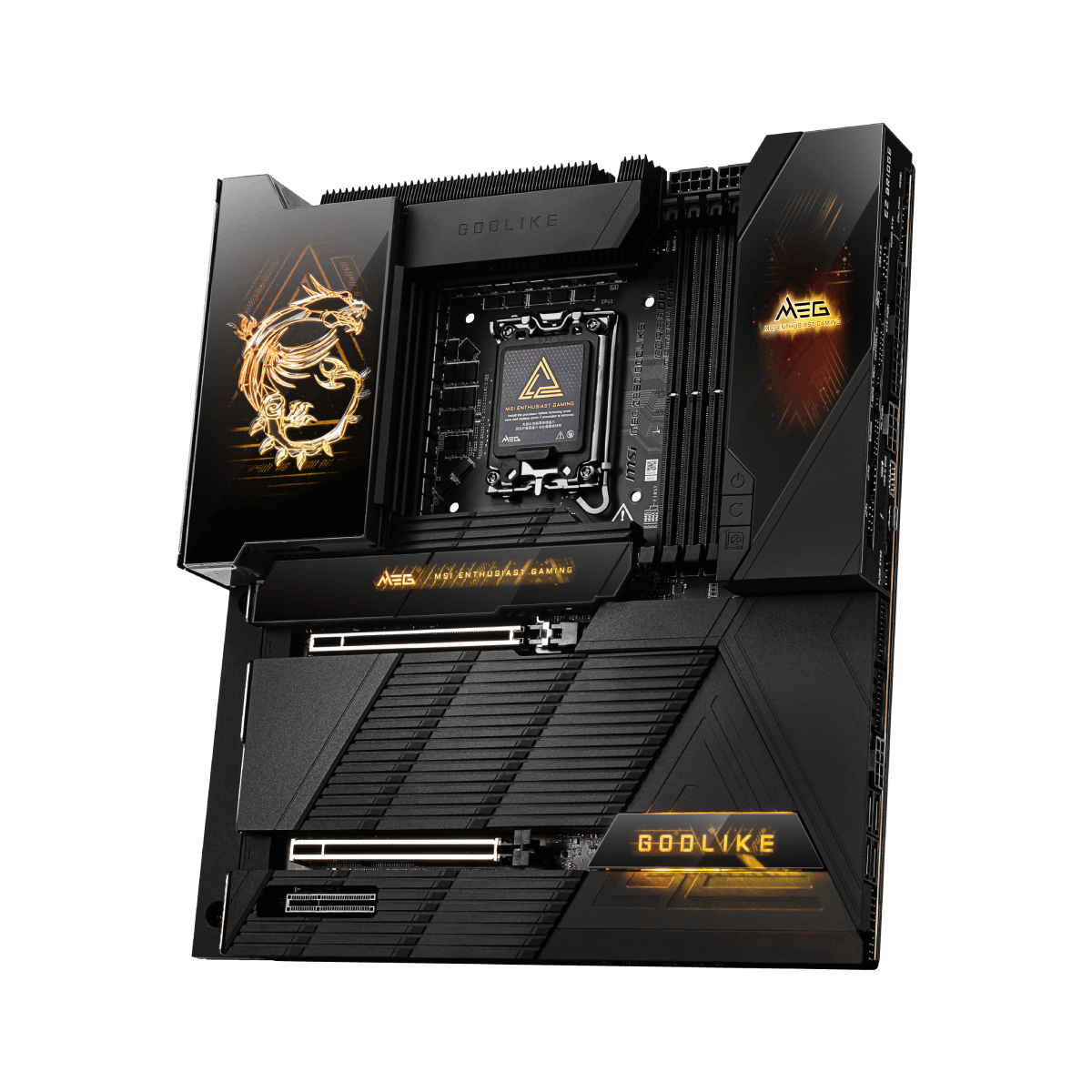

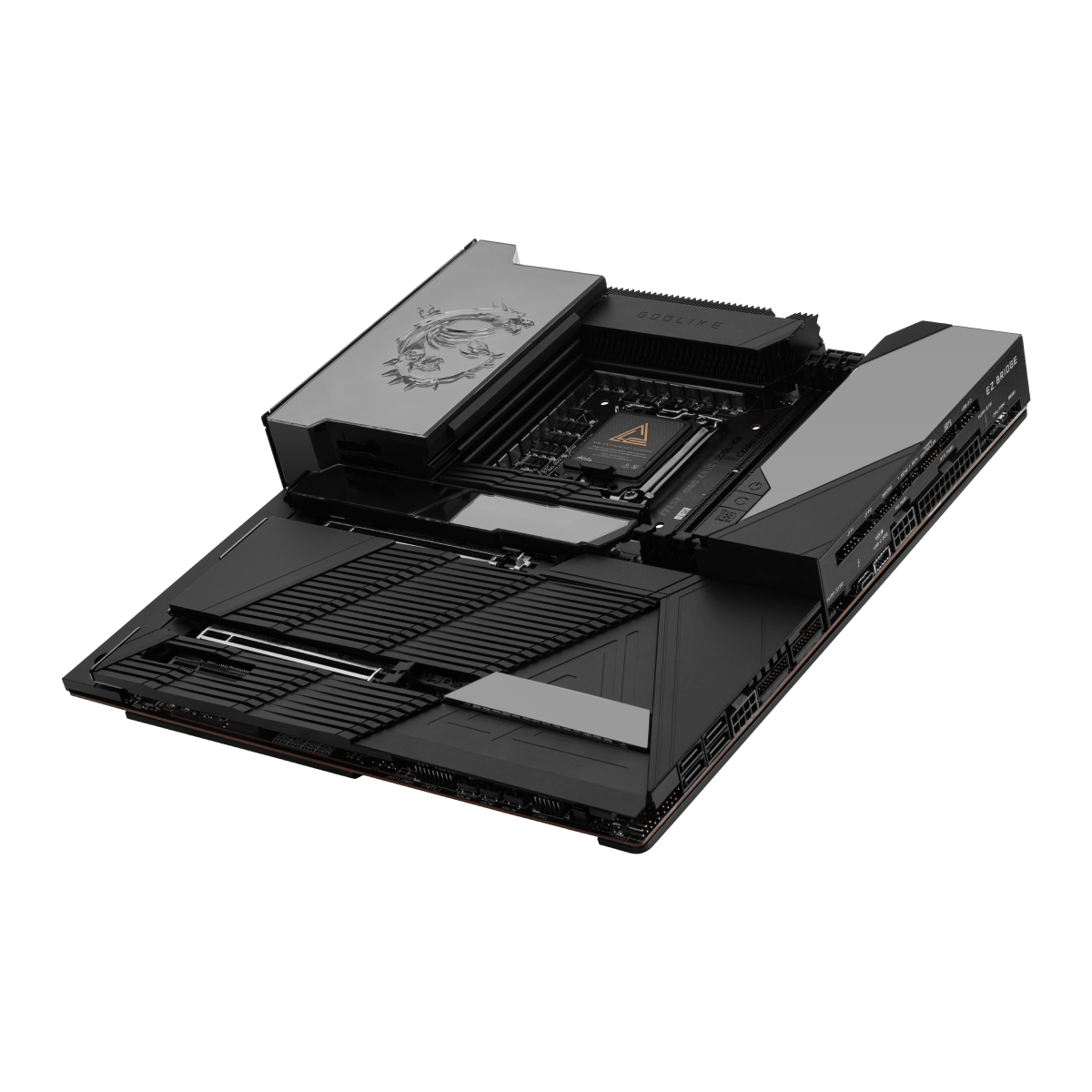

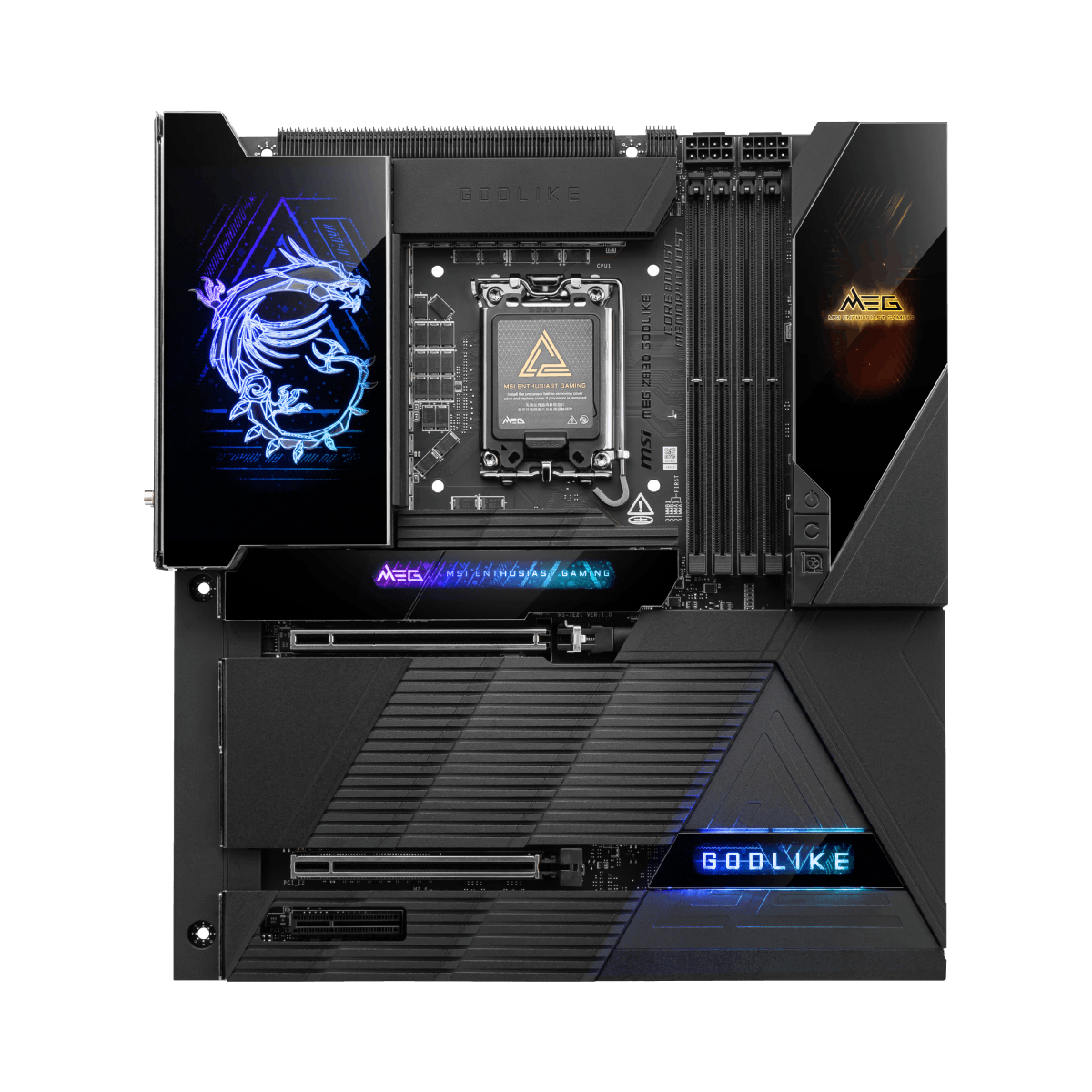

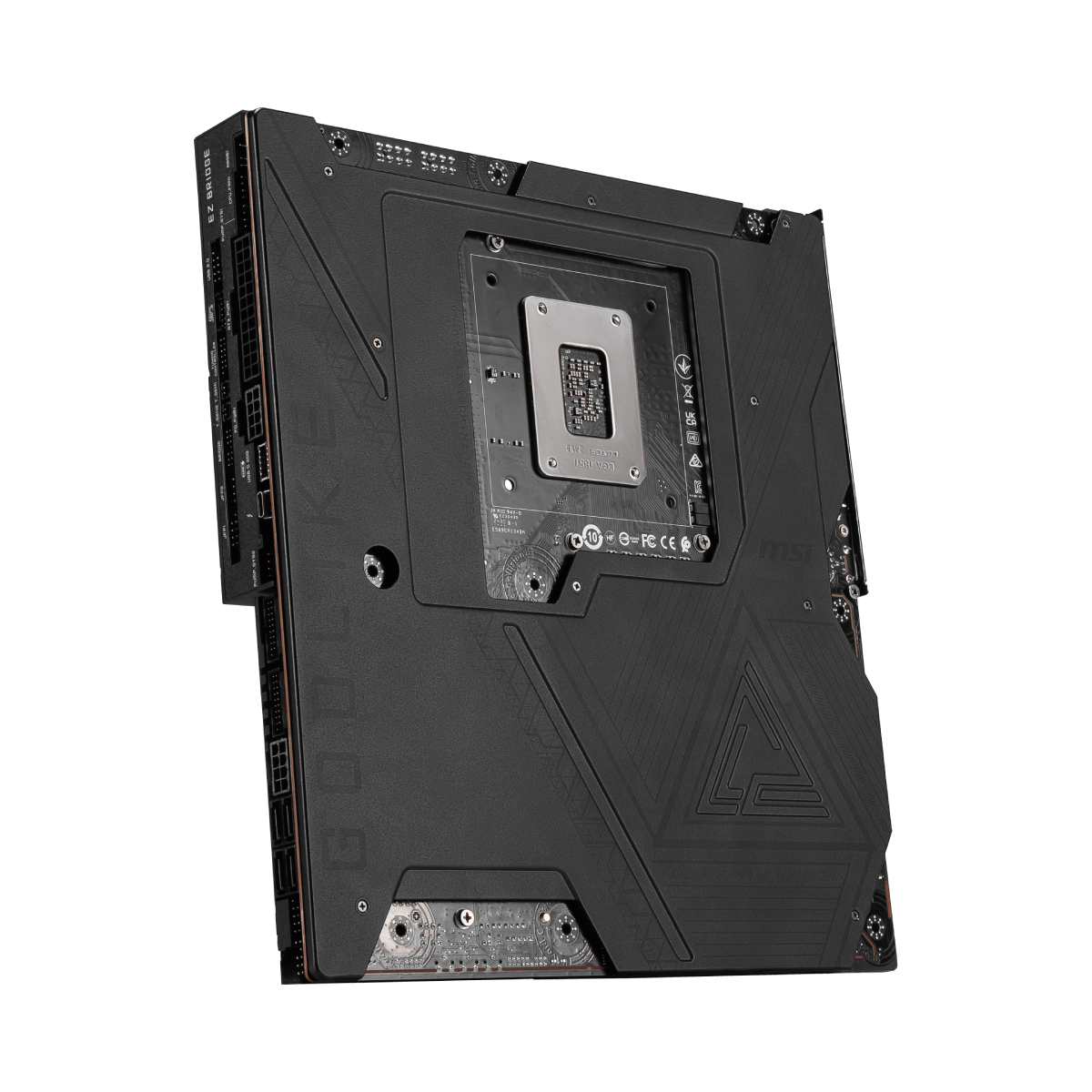

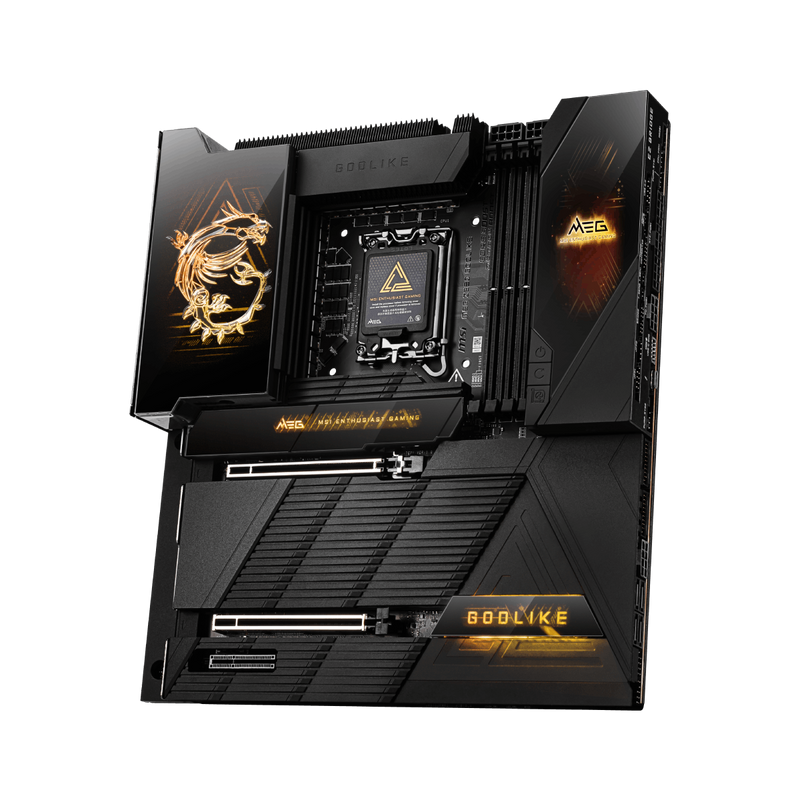

MSI MEG Z890 GODLIKE | Placa Base


para ver precios

Campañas en curso

Garantía

3 años de garantía

Free Package

  • LGA 1851
  • Intel Z890
  • E-ATX

MEG Z890 GODLIKE

Características:

  • Compatible con procesadores Intel® Core™ Ultra (Serie 2) para el socket LGA 1851
  • Compatible con memoria DDR5, canal dual DDR5 9200+ MT/s (OC)
  • Dynamic Dashboard III: Una pantalla LCD de 3.99 pulgadas para monitoreo en tiempo real del hardware, resolución de problemas, actualizaciones de BIOS y opciones de visualización personalizadas, mejorando la experiencia del usuario
  • M.2 XPANDER-Z SLIDER GEN5: La tarjeta de expansión M.2 de un solo slot cuenta con dos ranuras Gen5 M.2 de alta velocidad, y el diseño EZ Slide facilita las actualizaciones de SSD
  • THUNDERBOL 5: La tarjeta accesoria Thunderbolt 5 incluye dos puertos Thunderbolt 5, ofreciendo hasta 160Gbps de ancho de banda total y hasta 27W de carga rápida para dispositivos
  • Rendimiento ultra: Sistema de energía de riel dual 26+2+1+1, SPS de 110A, OC Engine, conectores de alimentación de CPU de 8 pines dobles, Core Boost, Memory Boost, PCB de 10 capas hecho con cobre de 2oz espesado y material de nivel grado servidor
  • Frozr Guard: Diseño de aletas onduladas, tubo de calor transversal de contacto directo, placa base MOSFET, almohadillas térmicas de 9W/mK, M.2 Shield Frozr de doble cara y software Frozr AI para garantizar el máximo rendimiento con baja temperatura
  • EZ DIY: EZ Link, EZ PCIe Release, EZ M.2 Shield Frozr II magnético, EZ M.2 Clip II y EZ Antena
  • Conexión ultra: Puertos duales Thunderbolt™ 4, LAN de 10G + LAN de 5G y solución Intel® Killer™ Wi-Fi 7 a máxima velocidad: la última solución para uso profesional y multimedia, que ofrece una red y transmisión de datos segura, estable y de alta velocidad
  • Experiencia gaming ultrarrápida: Ranuras PCIe 5.0, un total de 8 conectores M.2 con solución Lightning Gen 5, USB frontal 20G con suministro de energía USB de 60W
  • Audio Boost 5 HD: Solución de audio definitiva con el último procesador de audio premium ALC4082, que combina DAC de audio ESS y amplificador para ofrecer una experiencia impresionante

Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

  • 1DPC 1R Max speed up to 9200+ MT/s
  • 1DPC 2R Max speed up to 7200+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

*The DIMM slots on this motherboard only have single-sided latches.
**Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics

2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 2x PCI-E x16 slot (Qty)
  • 1x PCI-E x4 slot
    • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
    • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

* PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_6 slot.
** PCI_E3 will be unavailable when installing M.2 SSD in the M2_5 slot.
Audio Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage
  • 8x M.2 (Qty)
    • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
    • M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
    • M.2_6 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 2280/2242 devices
  • 4x SATA 6G (Qty)
    • M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
    • M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices

*Supports onboard 6x M.2 slots and additional 2x M.2 slots via M.2 card.
** M.2_6 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.
*** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_6 slot.
**** Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt
  • 1x Thunderbolt4 ports (Rear)
  • 1x Thunderbolt4 ports (Front)
Support up to 40Gbps transfer rate with Thunderbolt devices
Support up to 20Gbps transfer rate with USB4 devices
Support up to 10Gbps transfer rate with USB 3.2 devices
Support up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Support up to 8K display
USB
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Front)
  • 8x USB 10Gbps Type A (Rear)
  • 5x USB 10Gbps Type C (Rear)
  • 1x USB 20Gbps Type C (Rear)
  • 1x USB 20Gbps Type C (Front)

*To achieve USB PD 60W fast charging for JUSBC2, the PD_PWR1 connector needs to be connected to the power supply unit.
LAN
  • 1x Marvell® AQC113CS 10Gbps LAN
  • 1x Intel® Killer™ E5000B 5G LAN
Internal IO
  • 1x Thunderbolt5 card connector(JTBT5, support RTD3)
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Power Connector(PCIE_PWR 8pin)
  • 1x Front Type-C Quick Charge Connector(PD_PWR1)
  • 1x CPU Fan
  • 2x PUMP_SYS Fan
  • 7x System Fan
  • 1x ARGB+FAN+USB2.0 Header (JAF_2)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Water Flow connector
  • 1x Slow Mode Booting Jumper(JSLOW)
  • 1x Front Audio (JAUD)
  • 2x Thermal Sensor connectors(T_SEN)
  • 1x Tuning Controller connector(JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • V-check point
  • 4x USB 2.0 ports
  • 4x USB 5Gbps Type A ports
  • 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH

Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE
  • 1x Dynamic Dashboard III
  • 1x EZ Digit Debug LED
  • 1x EZ LED Control switch

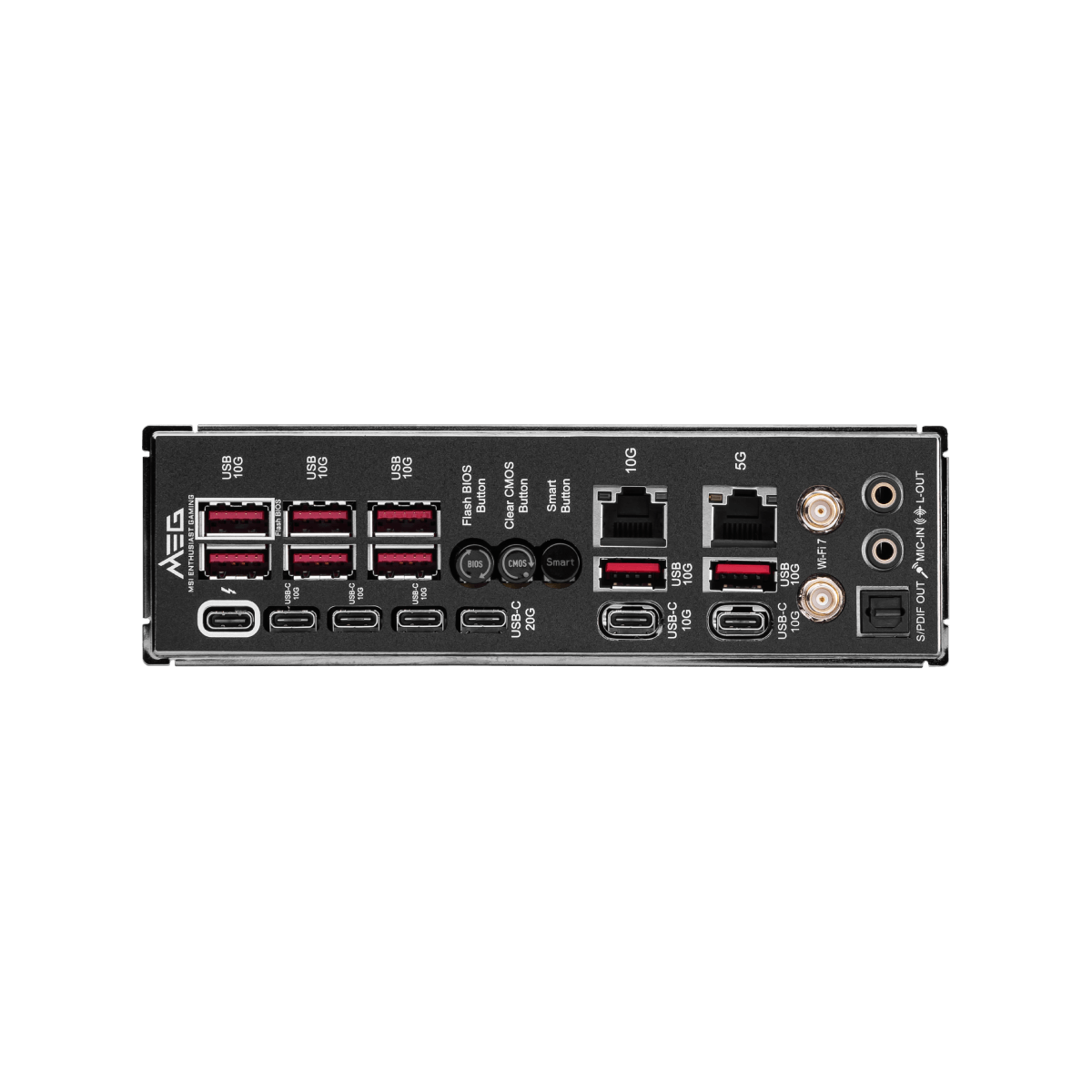

BACK PANEL PORTS
  1. USB 10Gbps (Type-A)
  2. Flash BIOS Button
  3. Clear CMOS Button
  4. Smart Button
  5. 10G LAN
  6. 5G LAN
  7. Wi-Fi / Bluetooth
  8. HD Audio Connectors
  9. Thunderbolt 4 40Gbps (Type-C)
  10. USB 10Gbps (Type-C)
  11. USB 20Gbps (Type-C)
  12. USB 10Gbps (Type-C)
  13. USB 10Gbps (Type-A)
  14. Optical S/PDIF-Out
OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
PCB Info E-ATX
277mmx304.8mm
