MSI España  |  SKU: 911-7D70-016

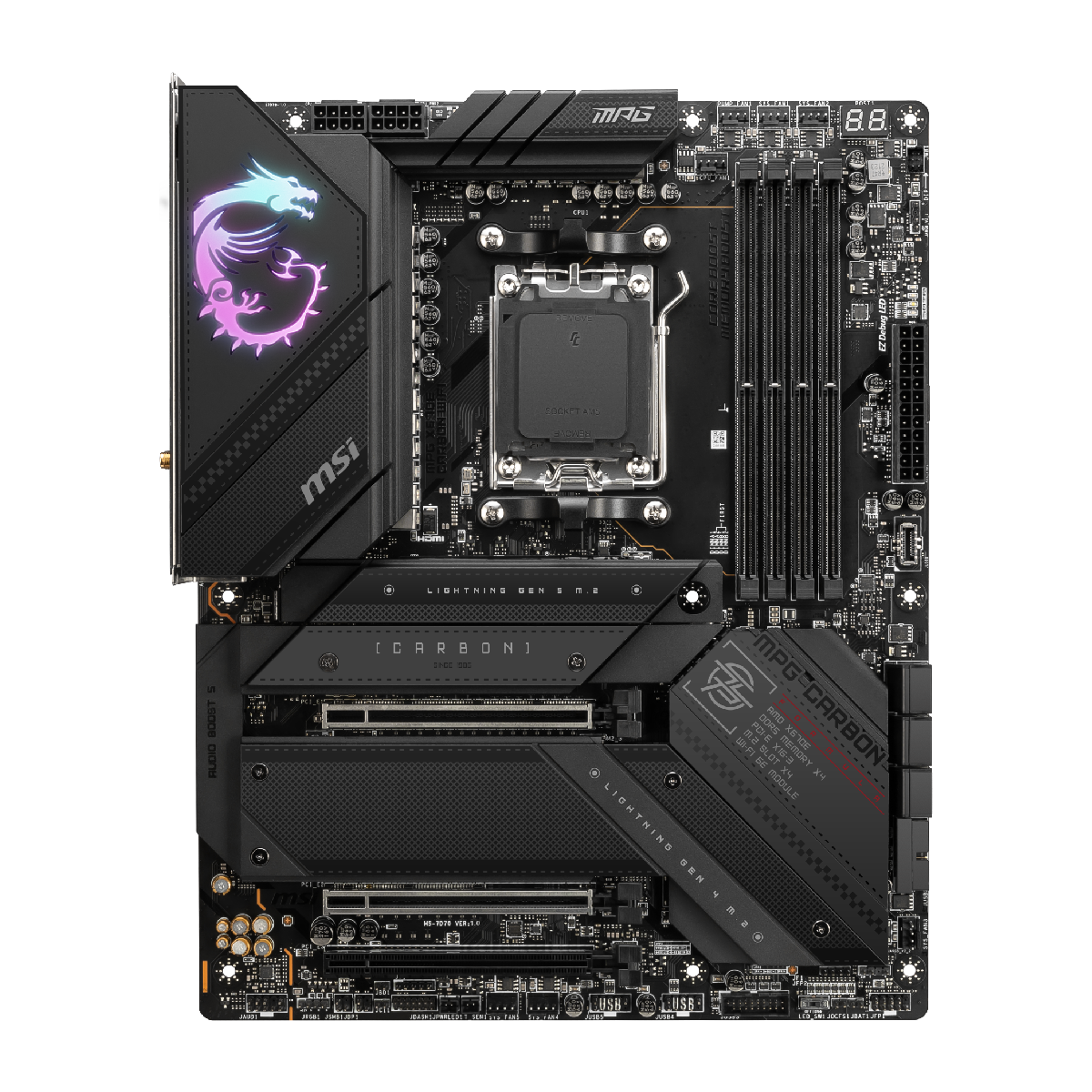

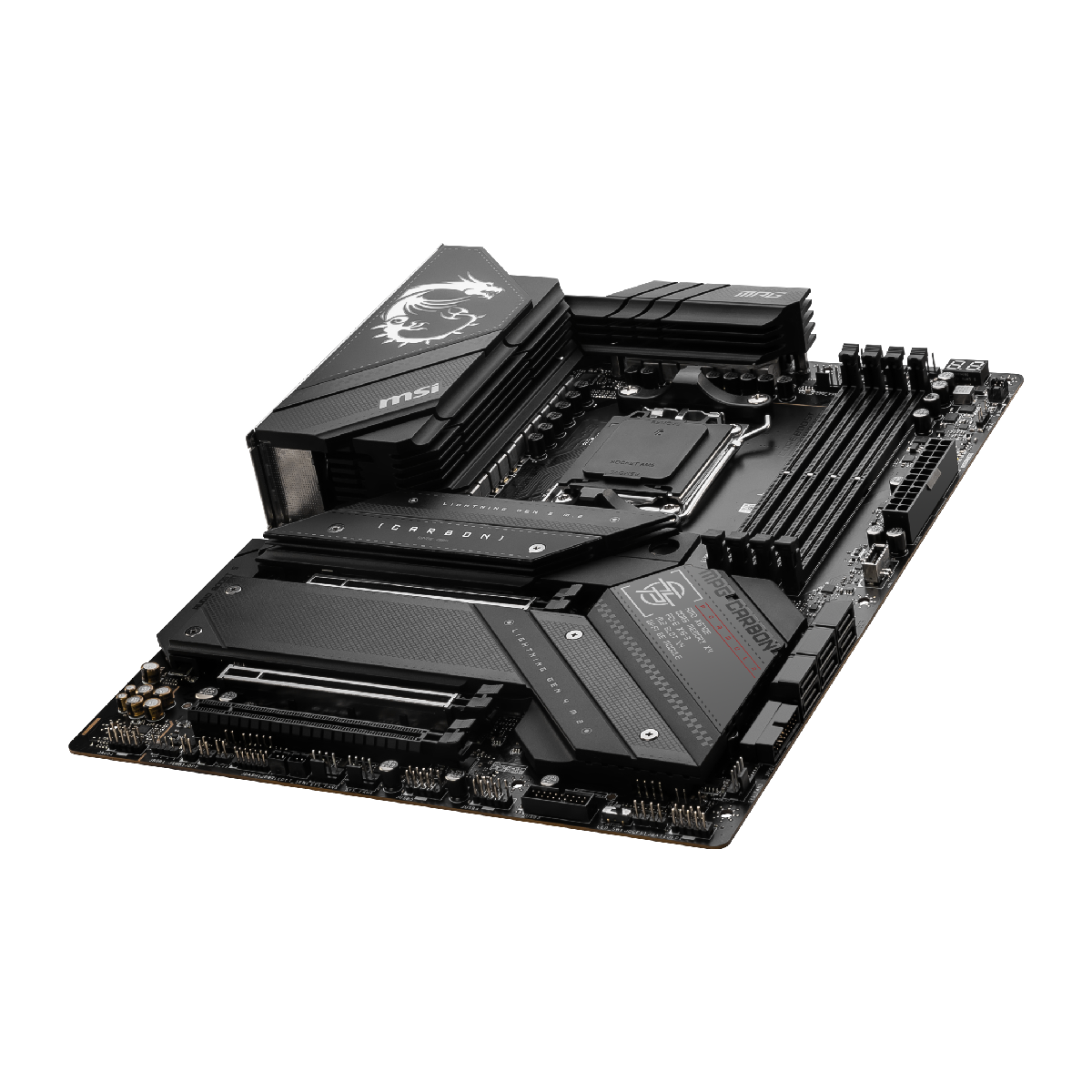

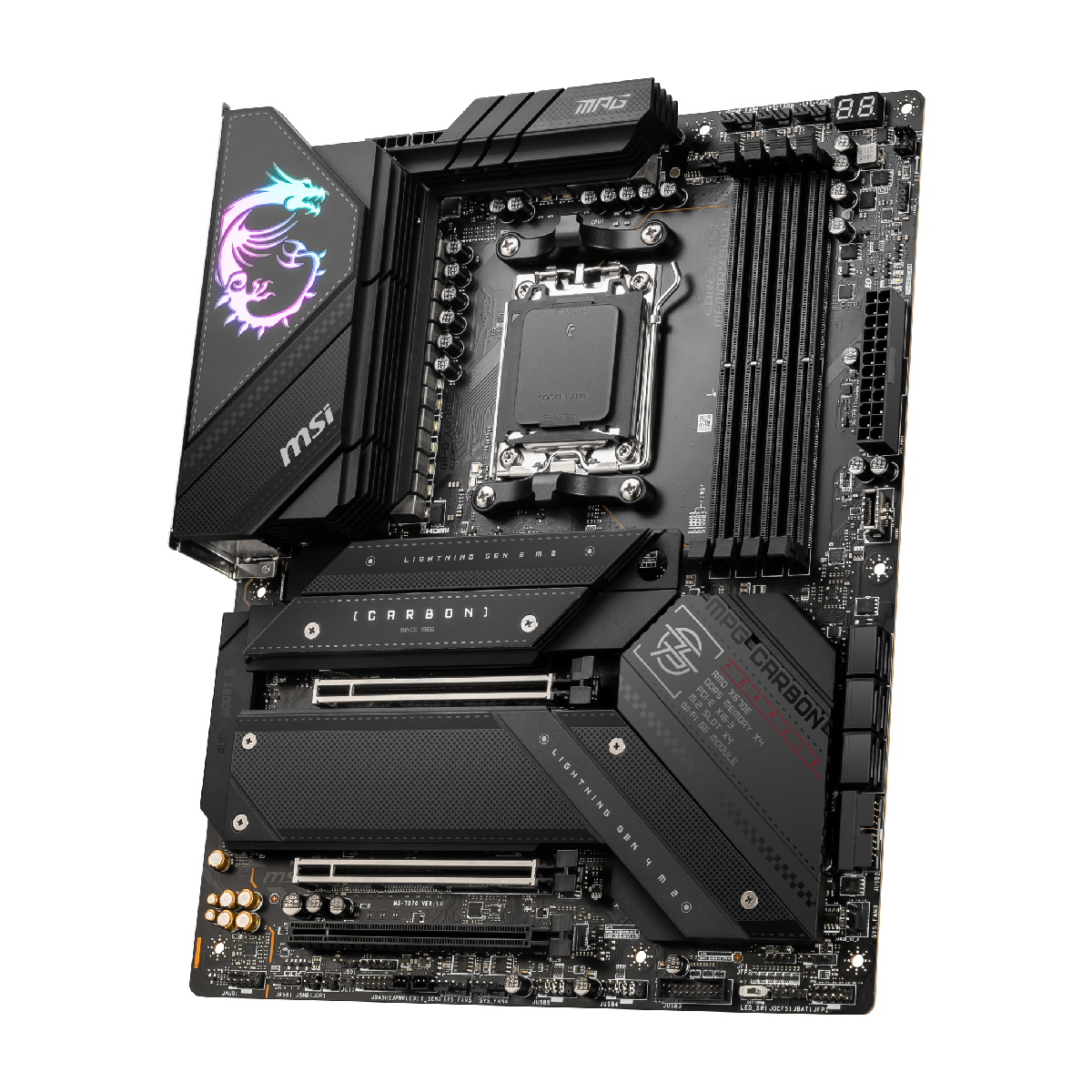

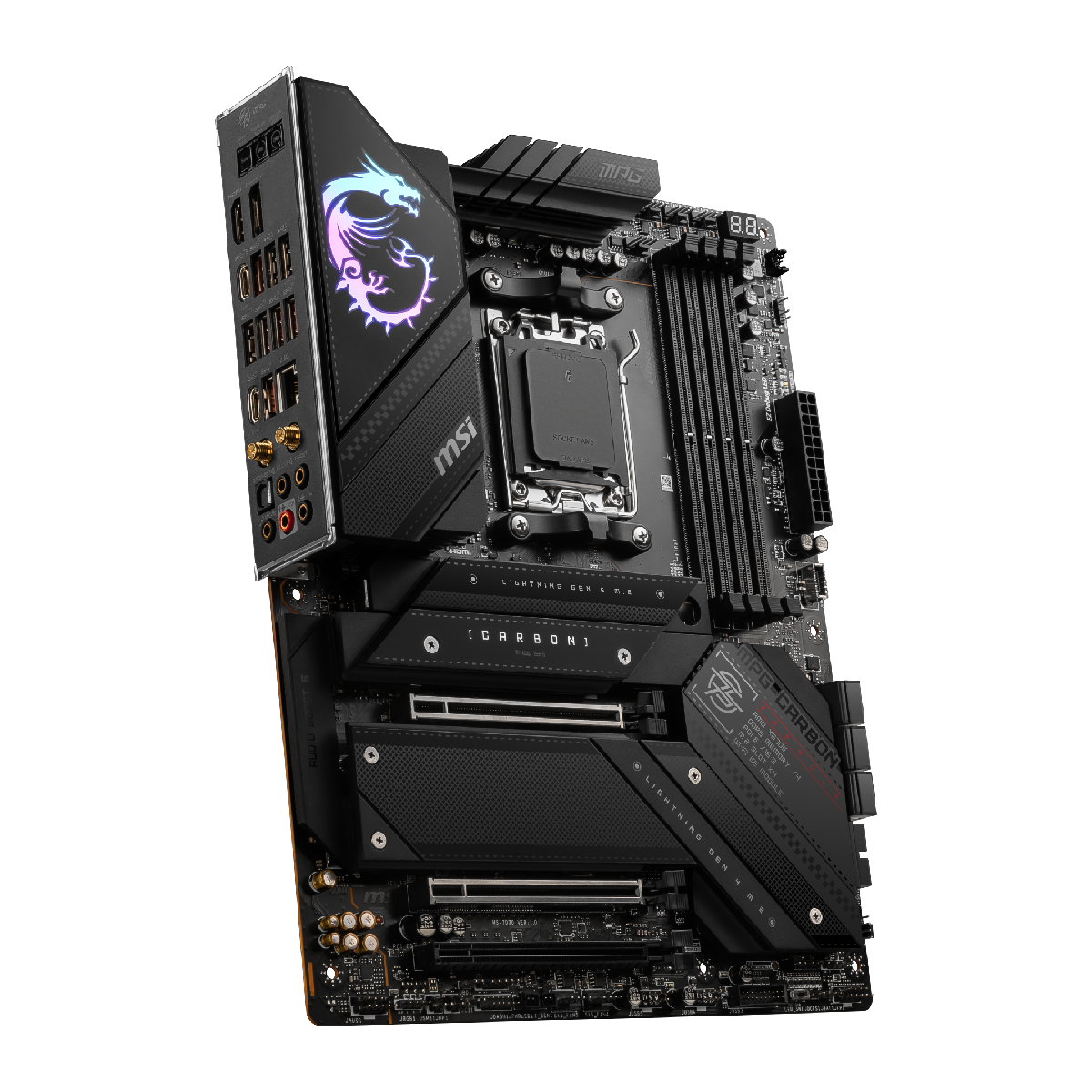

MSI MPG X670E CARBON WIFI | Placa Base


para ver precios

Campañas en curso

Garantía

3 años de garantía

Free Package

  • AM5
  • AMD X670
  • ATX

MPG X670E CARBON WIFI

Características:

  • Soporta procesadores de escritorio AMD Ryzen™ de la Serie 9000 / 8000 / 7000
  • Soporta memoria DDR5, DDR5 de doble canal a 7800+MHz (OC)
  • Diseño de alimentación mejorado: Sistema de alimentación Duet Rail de 18+2+1, conectores de alimentación de CPU de doble 8 pines, Core Boost, Memory Boost
  • Solución térmica premium: Disipador extendido con tubo de calor de contacto directo, almohadillas térmicas MOSFET con una clasificación de 7W/mK, almohadillas térmicas adicionales para bobinas y M.2 Shield Frozr de doble cara construidos para sistemas de alto rendimiento y experiencias de juego continuas
  • PCB de alta calidad: PCB de 8 capas hecho con cobre de 2 onzas y material de nivel de servidor
  • Diseño fácil de bricolaje: M.2 Shield Frozr patentado sin tornillos, clips EZ M.2, botón inteligente, blindaje I/O preinstalado, Armor de acero
  • Experiencia de juego ultrarrápida: Ranuras PCIe 5.0, M.2 Lightning Gen 5 x4, USB 3.2 Gen 2x2
  • Solución LAN de 2.5G y Wi-Fi 6E: Solución de red mejorada para uso profesional y multimedia. Ofrece una conexión de red segura, estable y rápida
  • MYSTIC LIGHT: 16.8 millones de colores / efectos de iluminación elegantes controlados con un clic. MYSTIC LIGHT SYNC soporta las últimas tiras ARGB Gen2, tiras RGB y dispositivos Ambient
  • AUDIO BOOST 5: Recompensa tus oídos con una calidad de sonido de nivel profesional para la experiencia de juego más inmersiva

Chipset AMD X670
CPU Supports AMD Ryzen™ 9000 / 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7800+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Onboard Graphics
  • 1x HDMI™ (Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*)
  • 1x DisplayPort (Support DP 1.4, maximum resolution of 4K 60Hz*)
  • 1x Type-C DisplayPort (Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz)
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage
  • 4x M.2 (Qty)
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
  • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 6x SATA 6G (Qty)
  • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
Slot

3x PCI-E x16 slot (Qty

  • Supports x16/x0/x4 or x8/x8/x4 (For Ryzen™ 7000 Series processors)
  • Supports x8/x0/x4(For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
  • Supports x4/x0/x4 (For Ryzen™ 5 8500G processor)

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
  • Realtek® ALC4080 Codec
  • 7.1-Channel USB High Performance Audio
  • Supports S/PDIF output
  • Supports up to 32-Bit/384 kHz playback on front panel
Multi-GPU AMD MULTI-GPU Support
LAN Realtek® RTL8125BG 2.5Gbps LAN
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 2.0 ports (Rear)
  • 4x USB 2.0 ports (Front)
  • 4x USB 5Gbps Type A (Front)
  • 6x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
  • 1x USB 10Gbps Type C (Front)
  • 1x USB 20Gbps Type C (Rear)
WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
LED FEATURE 1x EZ LED Control switch
4x EZ Debug LED
1x 2-Digit Debug Code LED

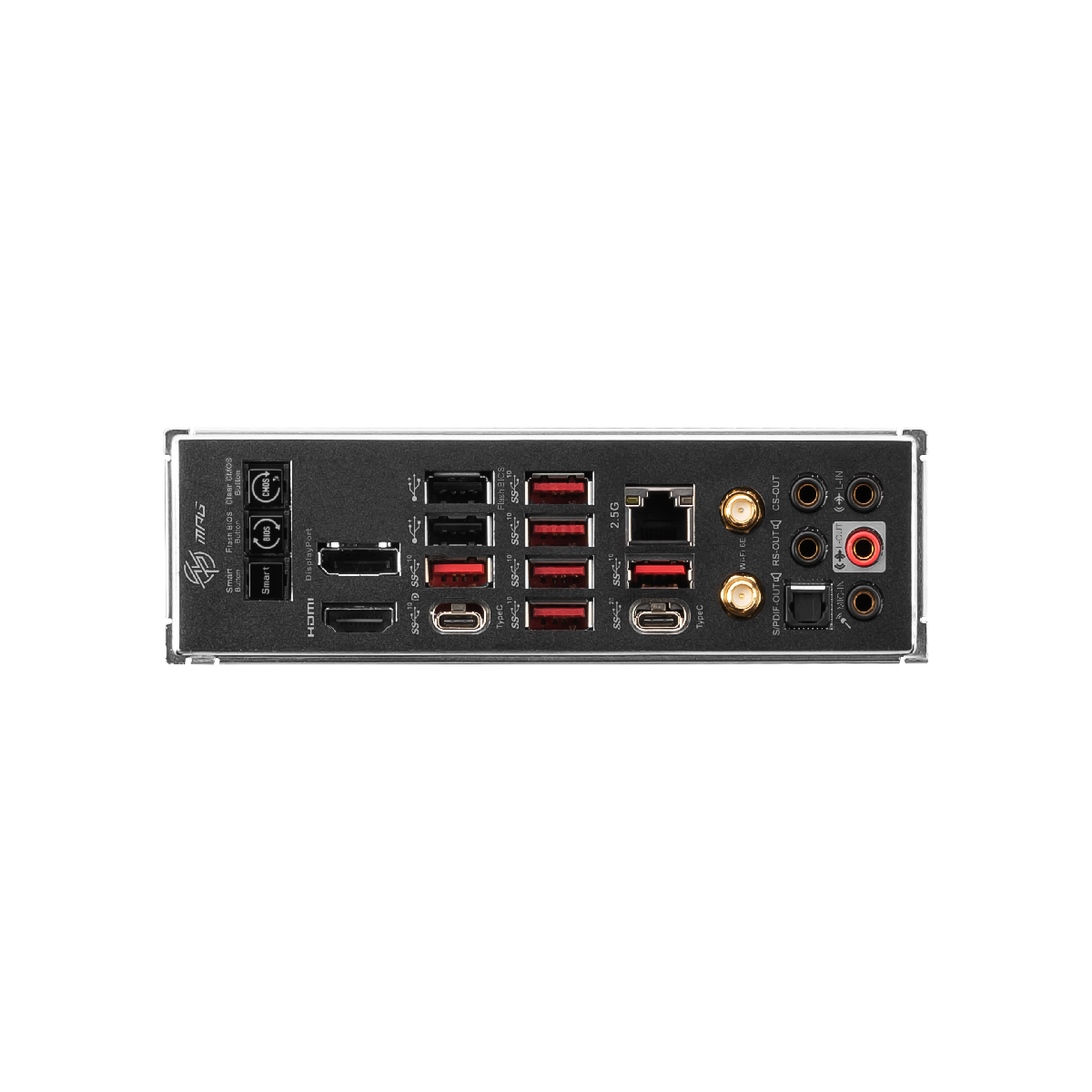

BACK PANEL PORTS
  1. Clear CMOS Button
  2. Flash BIOS Button
  3. DisplayPort
  4. USB 2.0
  5. 2.5G LAN
  6. Audio Connectors
  7. Smart Button
  8. HDMI™
  9. USB 10Gbps (Type-C Display port)
  10. USB 10Gbps (Type-A)
  11. USB 20Gbps (Type-C)
  12. Wireless / Bluetooth
  13. S/PDIF-Out
OPERATING SYSTEM

Support for Windows® 11 64-bit

Windows® 10 64-bit
PCB Info ATX
304.8mmx243.84mm

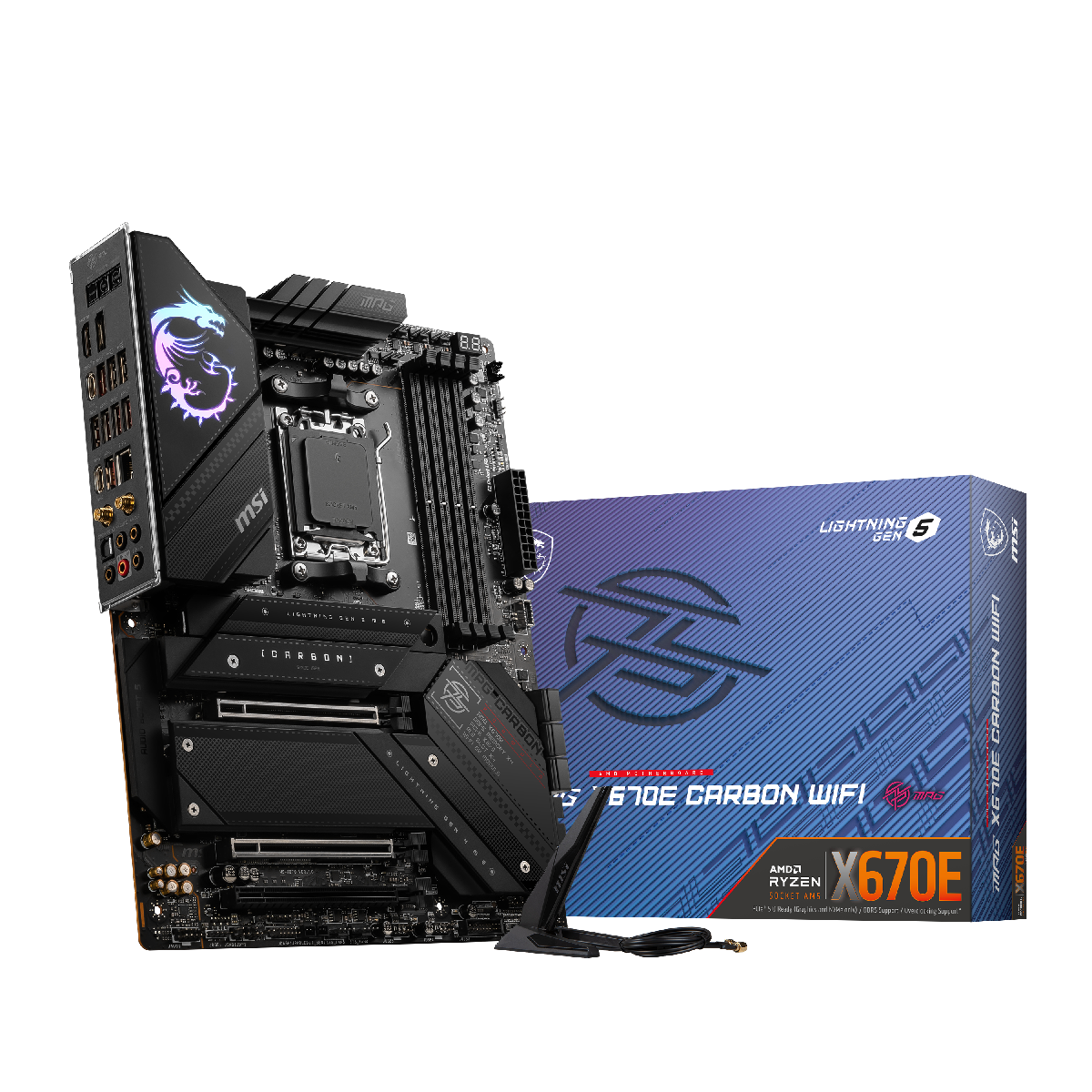

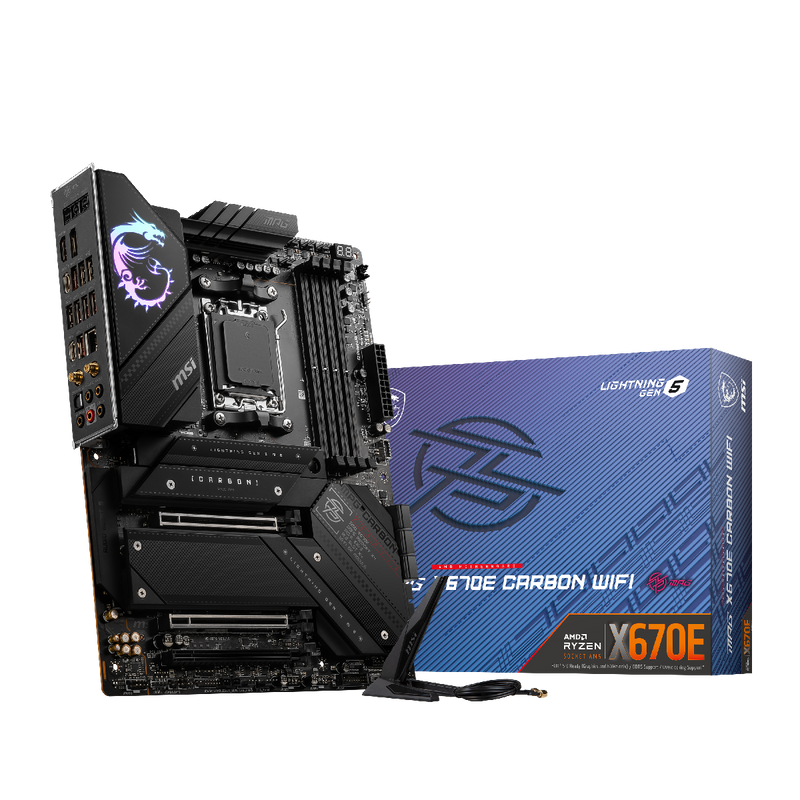

BOX CONTENT
