1 6
MSI España  |  SKU: 911-7D98-044

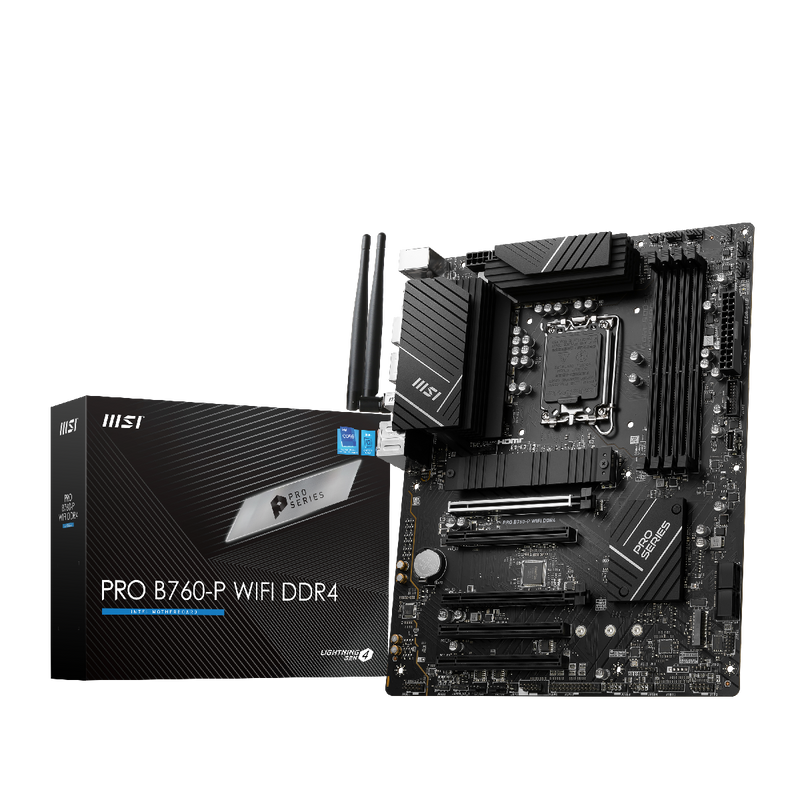

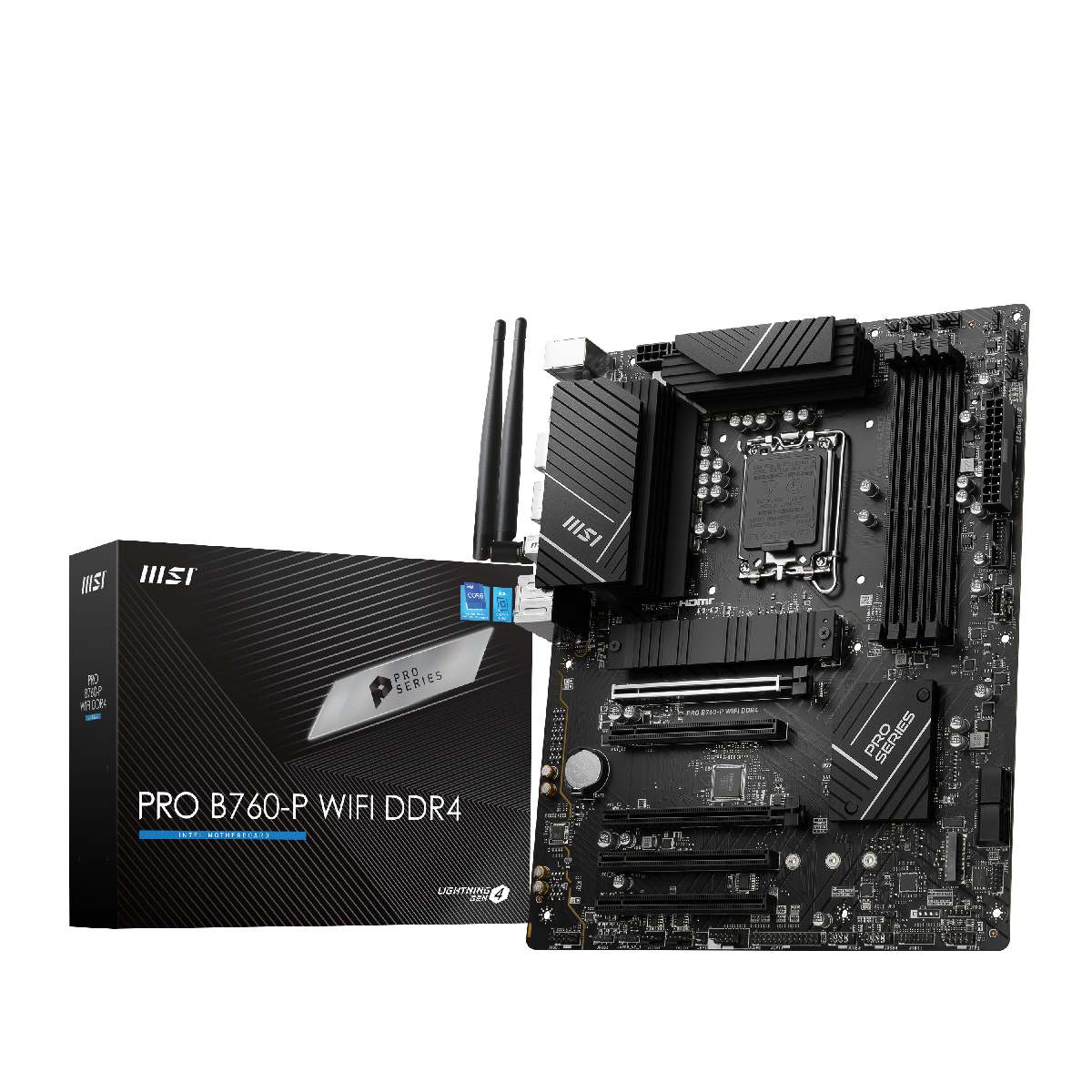

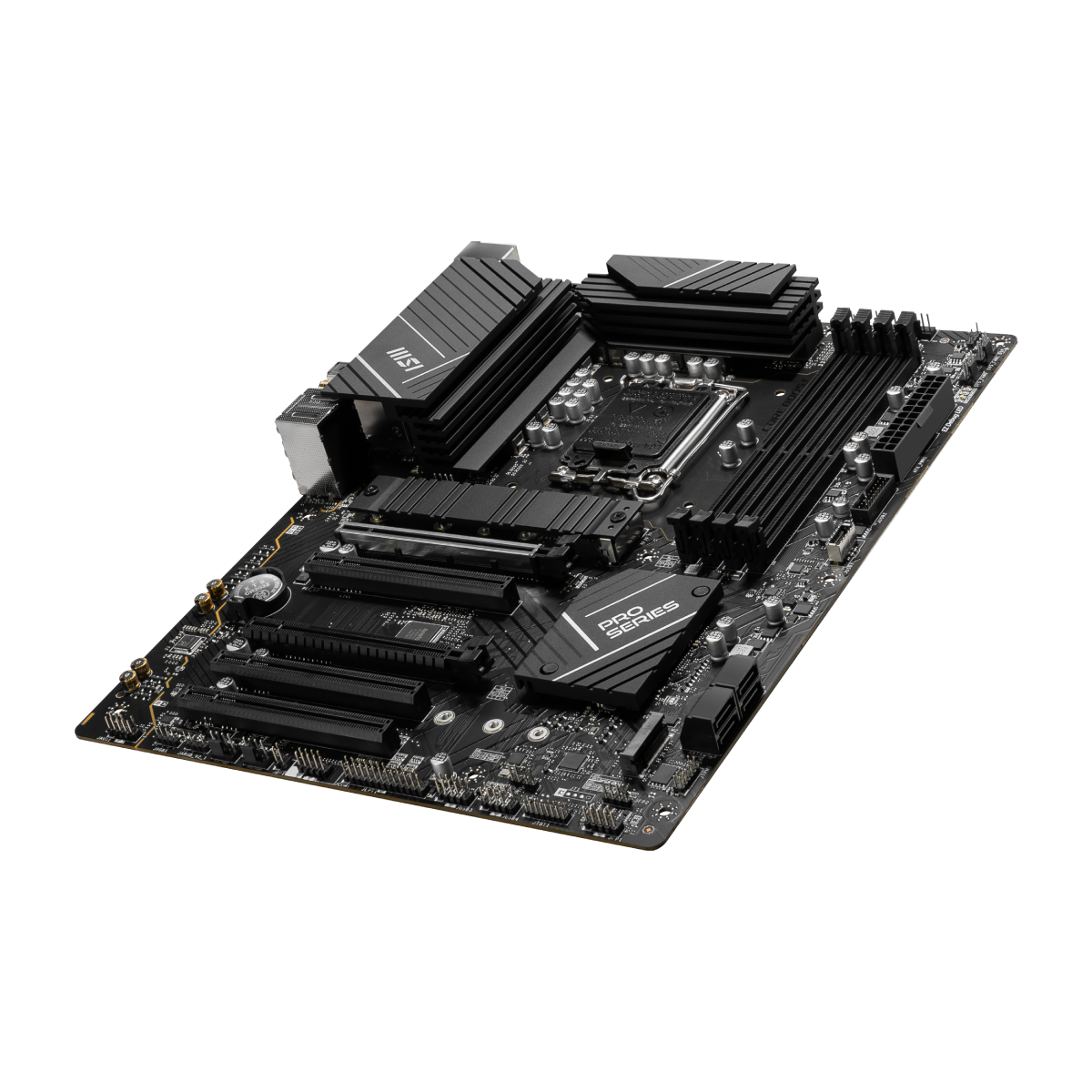

MSI PRO B760-P WIFI DDR4 | Placa Base


para ver precios

Campañas en curso

Garantía

3 años de garantía

Free Package

  • LGA 1700
  • Intel B760
  • ATX

PRO B760-P WIFI DDR4

  • Compatible con procesadores Intel® Core™, Pentium® Gold y Celeron® de 12ª/13ª generación para zócalo LGA 1700
  • Soporta memoria DDR4, doble canal DDR4 5333+MHz (OC)
  • Diseño de alimentación mejorado: Sistema de alimentación Duet Rail 12+1 con P-PAK, conectores de alimentación de CPU de 8 patillas + 4 patillas, Core Boost, Memory Boost
  • Solución térmica premium: Disipador térmico ampliado, almohadillas térmicas MOSFET de 7 W/mK, choke pads adicionales y M.2 Shield Frozr para un sistema de alto rendimiento y una experiencia de juego ininterrumpida
  • PCB de alta calidad: PCB de 6 capas fabricado con cobre de 2 onzas de espesor y material de nivel de servidor
  • Experiencia gaming ultrarápida: Ranura PCIe 4.0, Lightning Gen 4 x4 M.2
  • Intel Turbo USB 3.2 Gen 2: Impulsado por el controlador Intel USB 3.2 Gen2, Turbo USB garantiza una conexión ininterrumpida con más estabilidad y las velocidades USB más rápidas
  • Solución LAN 2.5G y Wi-Fi 6: Solución de red mejorada para uso profesional y multimedia. Proporciona una conexión de red segura, estable y rápida
  • AUDIO BOOST: Recompensa a tus oídos con una calidad de sonido de estudio para disfrutar de la experiencia gaming más envolvente

Chipset INTEL B760
CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors

Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700
Memory

4x DDR4, Maximum Memory Capacity 128GB

Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)
3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

Max. overclocking frequency:
  • 1DPC 1R Max speed up to 5333+ MHz
  • 1DPC 2R Max speed up to 4800+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics
  • 1x HDMI™ (Support HDMI™ 2.1, maximum resolution of 4K 60Hz*)
  • 1x DisplayPort (Support DP 1.4, maximum resolution of 4K 60Hz*)
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 5x PCI-E x16 slot (Qty)
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
Storage
  • 2x M.2 (Qty)
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 4x SATA 6G (Qty)
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
  • 2x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
LAN Realtek® RTL8125BG 2.5G LAN
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 5x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Printer Port (JLPT)
  • 1x Com Port (JCOM)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH
  • Intel® Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  1. Keyboard / Mouse
  2. DisplayPort
  3. 2.5G LAN
  4. USB 2.0
  5. Wi-Fi / Bluetooth
  6. Audio Connectors
  7. USB 2.0
  8. HDMI™
  9. USB 3.2 Gen 2 10Gbps (Type-A)
  10. USB 3.2 Gen 2 10Gbps (Type-C)
  11. S/PDIF-OUT
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT
PCB Info ATX
243.84mmx304.8mm
