4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s


Supports Intel^® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel^® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

The DIMM slots on this motherboard only have single-sided latches.
Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

• 1x HDMI™ (Support HDMI™ 2.1, maximum resolution of 4K 60Hz*)
• 1x DisplayPort (Support DisplayPort 1.4, maximum resolution of 4K 60Hz*)
• 1x Type-C DisplayPort (Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*)

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• 4x PCI-E x16 slot (Qty)
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)

• 3x M.2 (Qty)
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
• 4x SATA 6G (Qty)

*Please refer to the manual for M.2 SSD heatsink restrictions.

• 1x Thunderbolt4 ports (Rear)
  • Supports up to 40Gbps transfer rate with Thunderbolt devices
  • Supports up to 20Gbps transfer rate with USB4 devices
  • Supports up to 10Gbps transfer rate with USB 3.2 devices
  • Supports up to 5V/3A,15W power charging

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Rear)
• 4x USB 5Gbps Type A (Front)
• 2x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Front)

• 1x Thunderbolt5 card connector(JTBT5, support RTD3)
• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x Power Connector(PCIE_PWR 8pin)
• 1x CPU Fan
• 1x PUMP_SYS Fan
• 4x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 1x Tuning Controller connector(JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 4x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

Intel^® Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth^® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

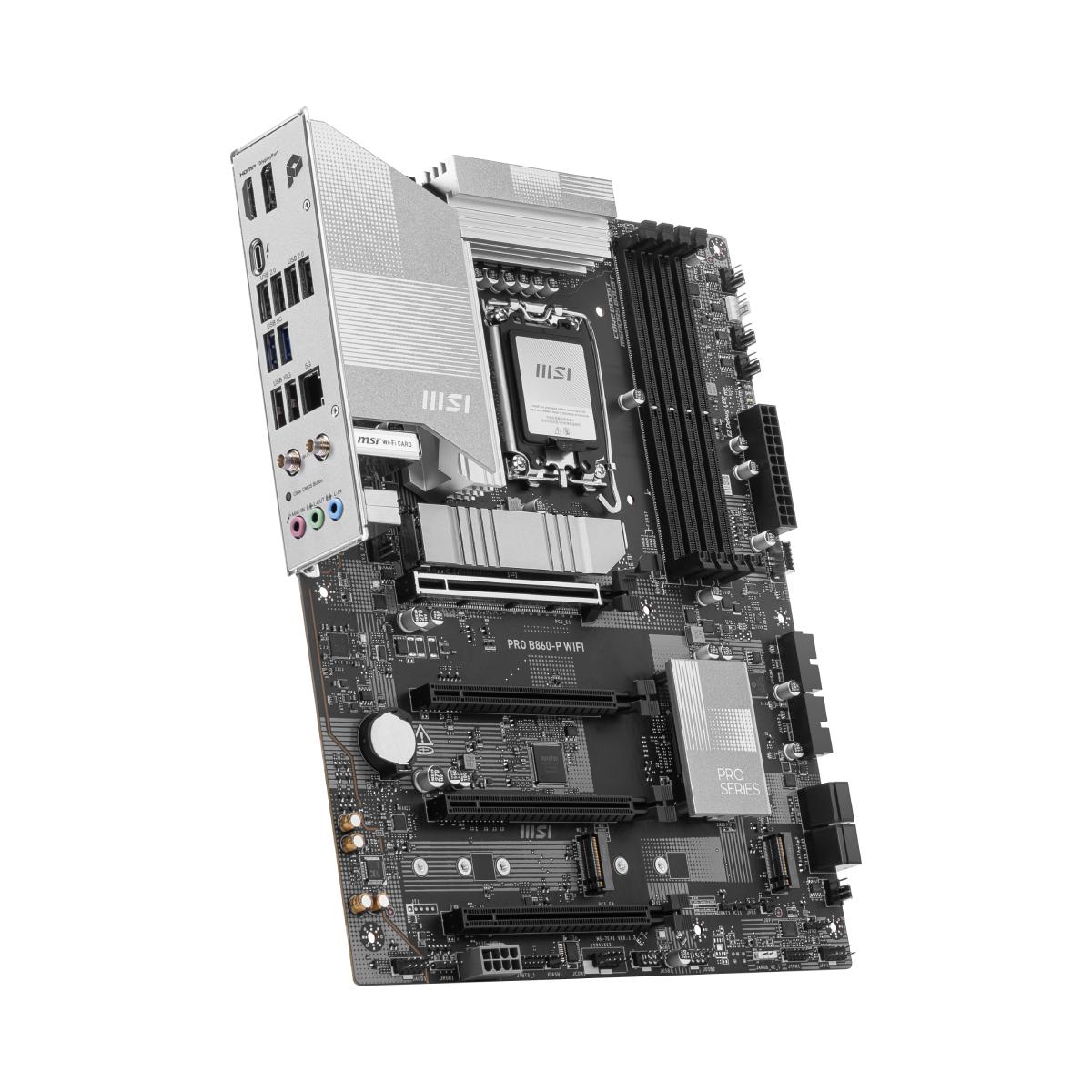

1. DisplayPort
2. USB 2.0
3. USB 5Gbps Type-A
4. 5G LAN
5. Wi-Fi / Bluetooth
6. Audio Connectors
7. HDMI™
8. Thunderbolt™ 4 40Gbps (Type-C)
9. USB 10Gbps Type-A
10. Clear CMOS Button
