4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel^®
XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

• 1x HDMI™ (Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz*)
• 1x DisplayPort (Support DP 1.4, maximum resolution of 4K 60Hz*)

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• 3x PCI-E x16 slot (Qty)
• 1x PCI-E x1 slot (Qty)
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

• 4x M.2 (Qty)
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 6x SATA 6G (Qty)

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Rear)
• 4x USB 5Gbps Type A (Front)
• 1x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Front)
• 1x USB 20Gbps Type C (Rear)

Intel^® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth^® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 6x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x TBT connector (JTBT, supports RTD3)
• 1x Tuning Controller connector(JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 1x USB4 card connector (JTBT_U4_1, supports RTD3)
• 4x USB 2.0 ports
• 4x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

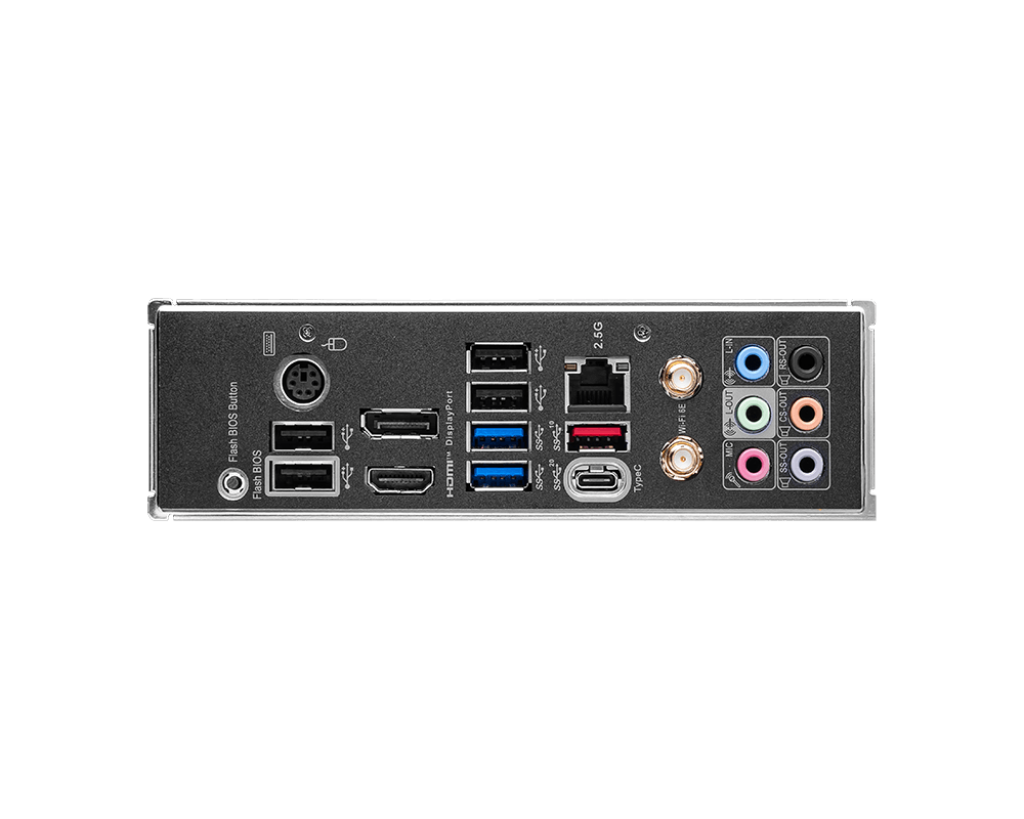

1. Keyboard / Mouse
2. DisplayPort
3. USB 2.0
4. 2.5G LAN Port
5. Wi-Fi / Bluetooth Antenna
6. Audio Connectors
7. Flash BIOS Button
8. USB 2.0
9. HDMI™ 2.1 Port
10. USB 3.2 Gen 1 5Gbps Type-A
11. USB 3.2 Gen 2x2 20Gbps Type-C
12. USB 3.2 Gen 2 10Gbps Type-A
