2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 7200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/

• 1x HDMI™
  • Support HDMI^TM 2.1, maximum resolution of 4K 60Hz*
• 1x DisplayPort
  • Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• 1x PCI-E x16 slot (Qty)
• 1x PCI-E x1 slot (Qty)
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• 2x M.2 (Qty)
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 4x SATA 6G (Qty)

• M2_2 slot
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
  • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

• 2x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 1x USB 5Gbps Type C (Front)

• 1x Power Connector (ATX_PWR)
• 1x Power Connector (CPU_PWR)
• 1x CPU Fan
• 2x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector (JRGB)
• 1x TPM pin header (Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 5Gbps Type C ports

• Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth^® 5.3**, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11..
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.

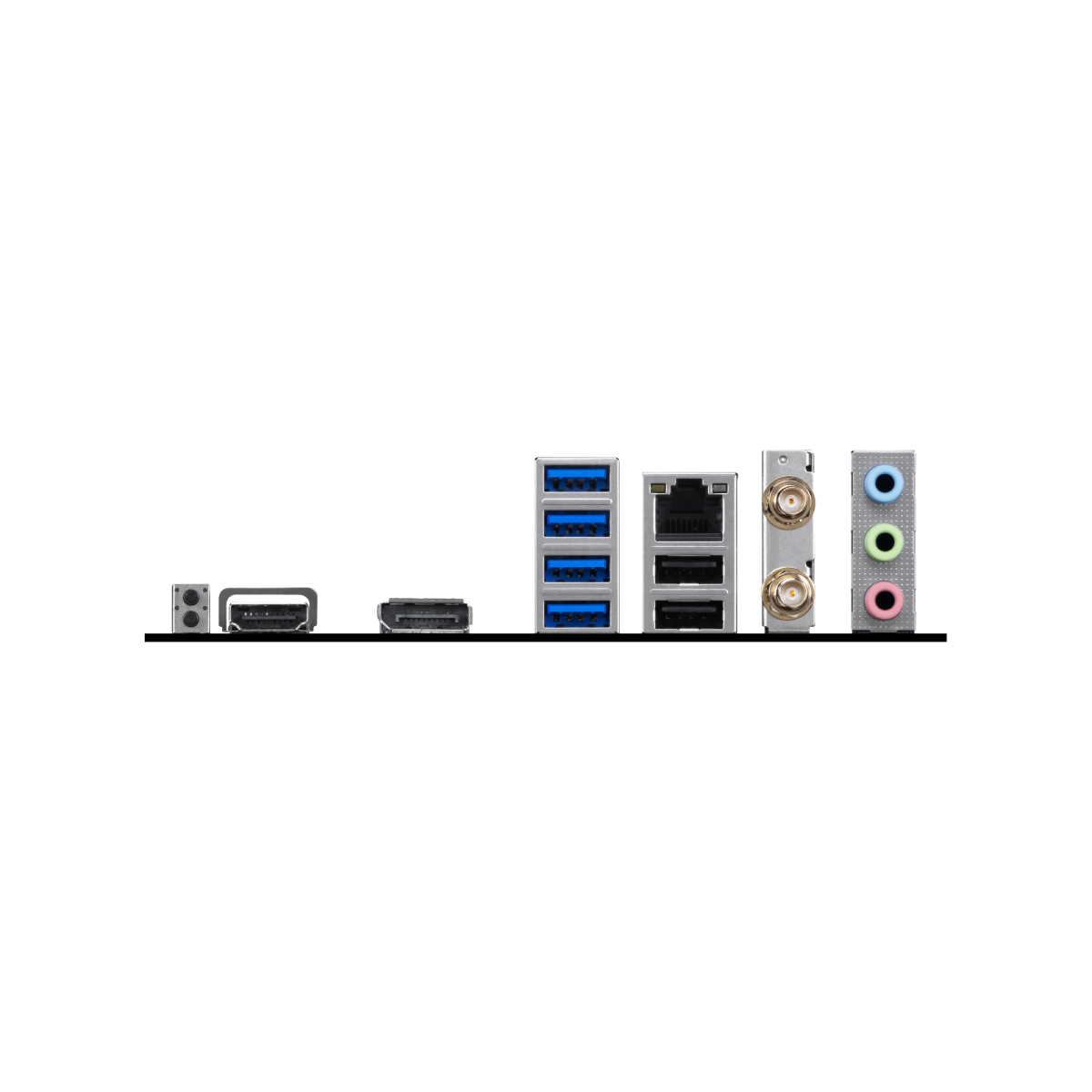

1. Clear CMOS Button
2. HDMI™
3. DisplayPort
4. USB 5Gbps Type-A
5. 2.5G LAN
6. Wi-Fi / Bluetooth
7. Audio connectors
8. Flash BIOS Button
9. USB 2.0
