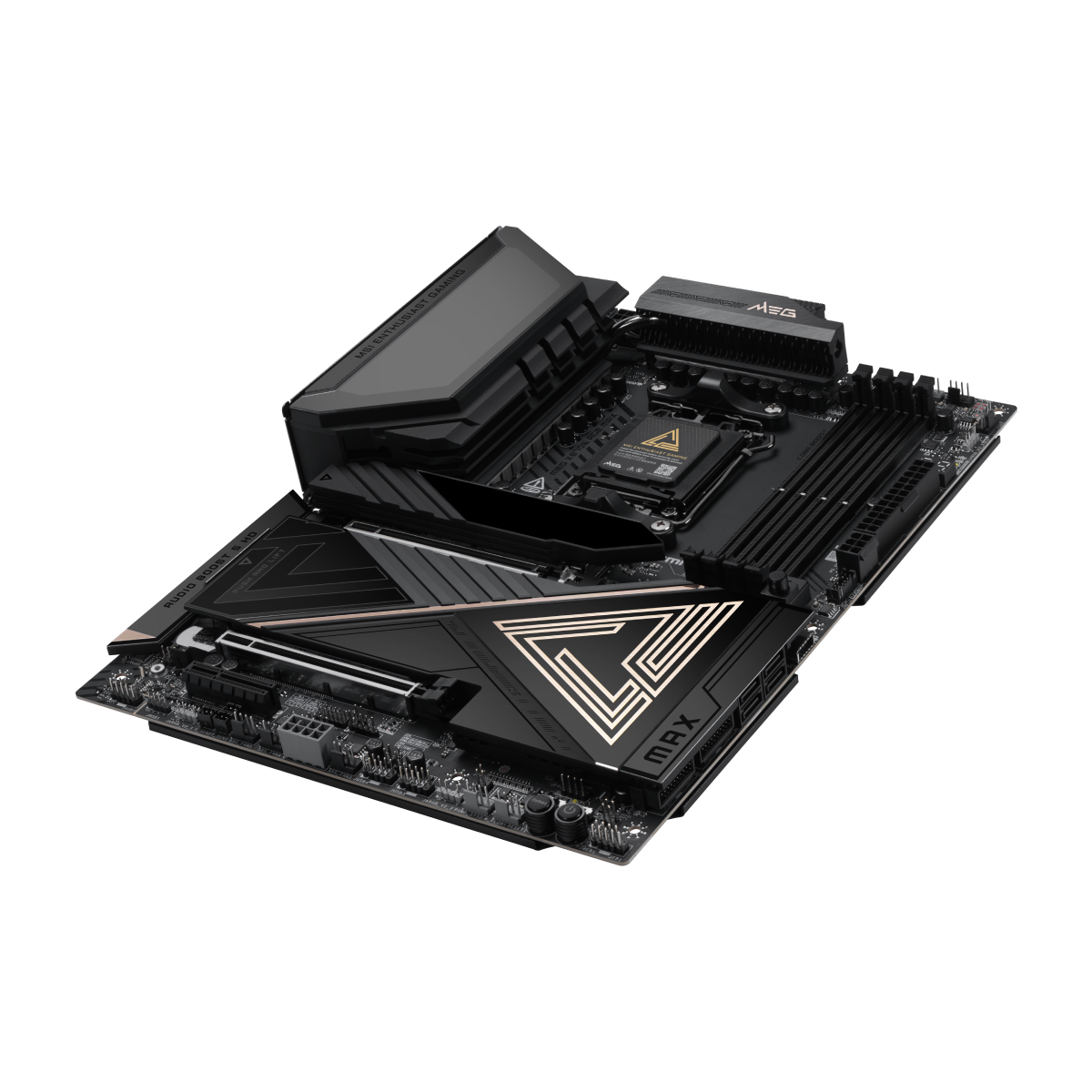

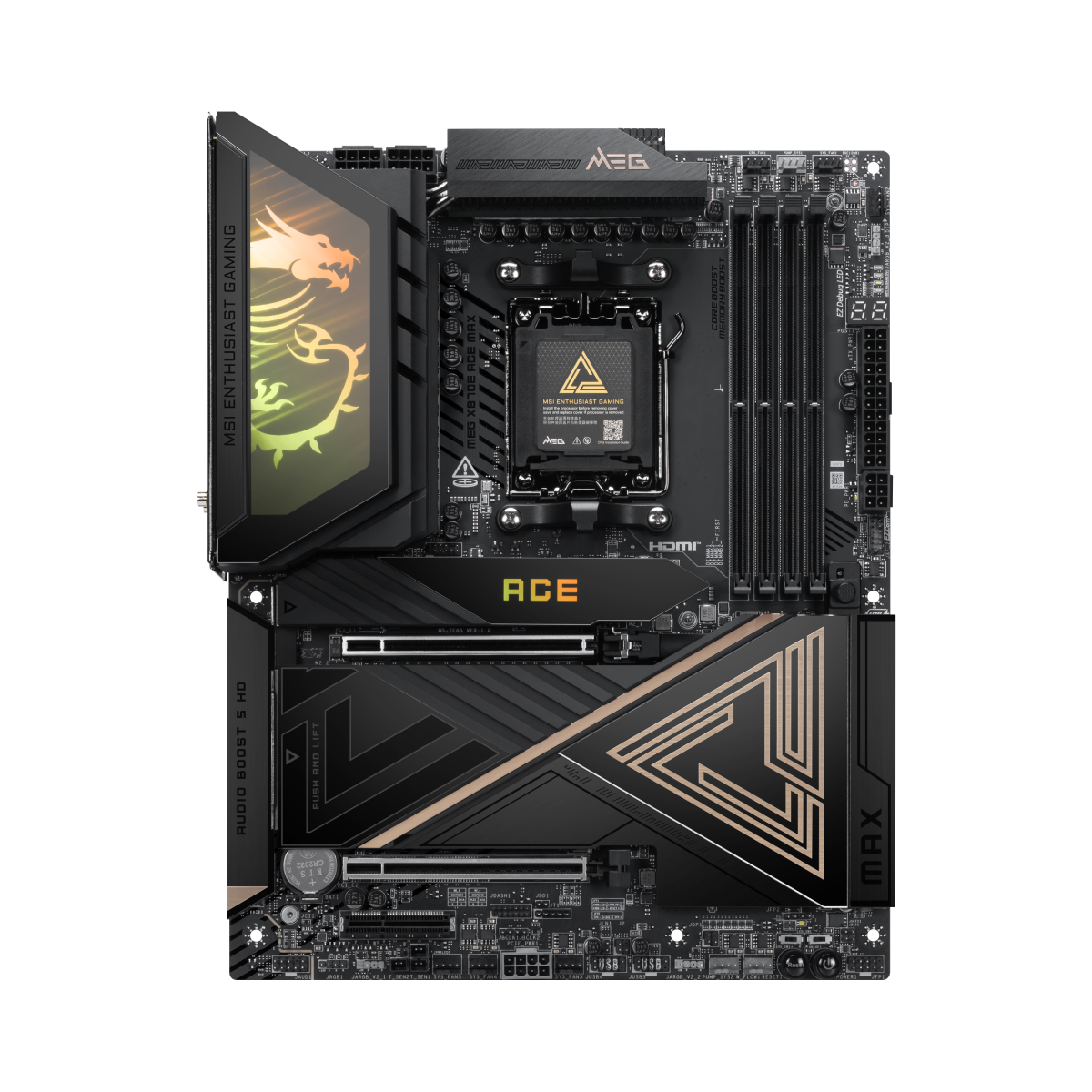

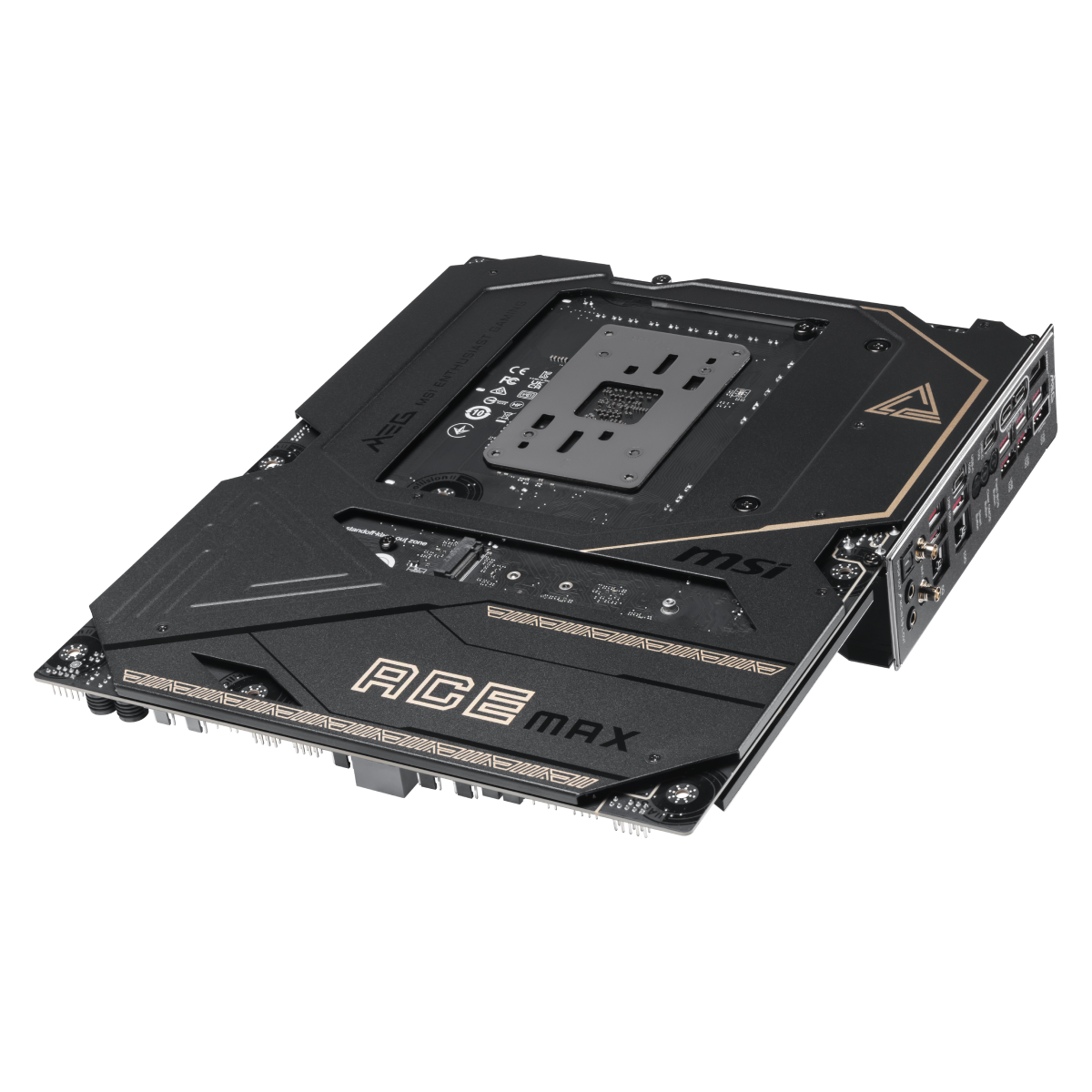

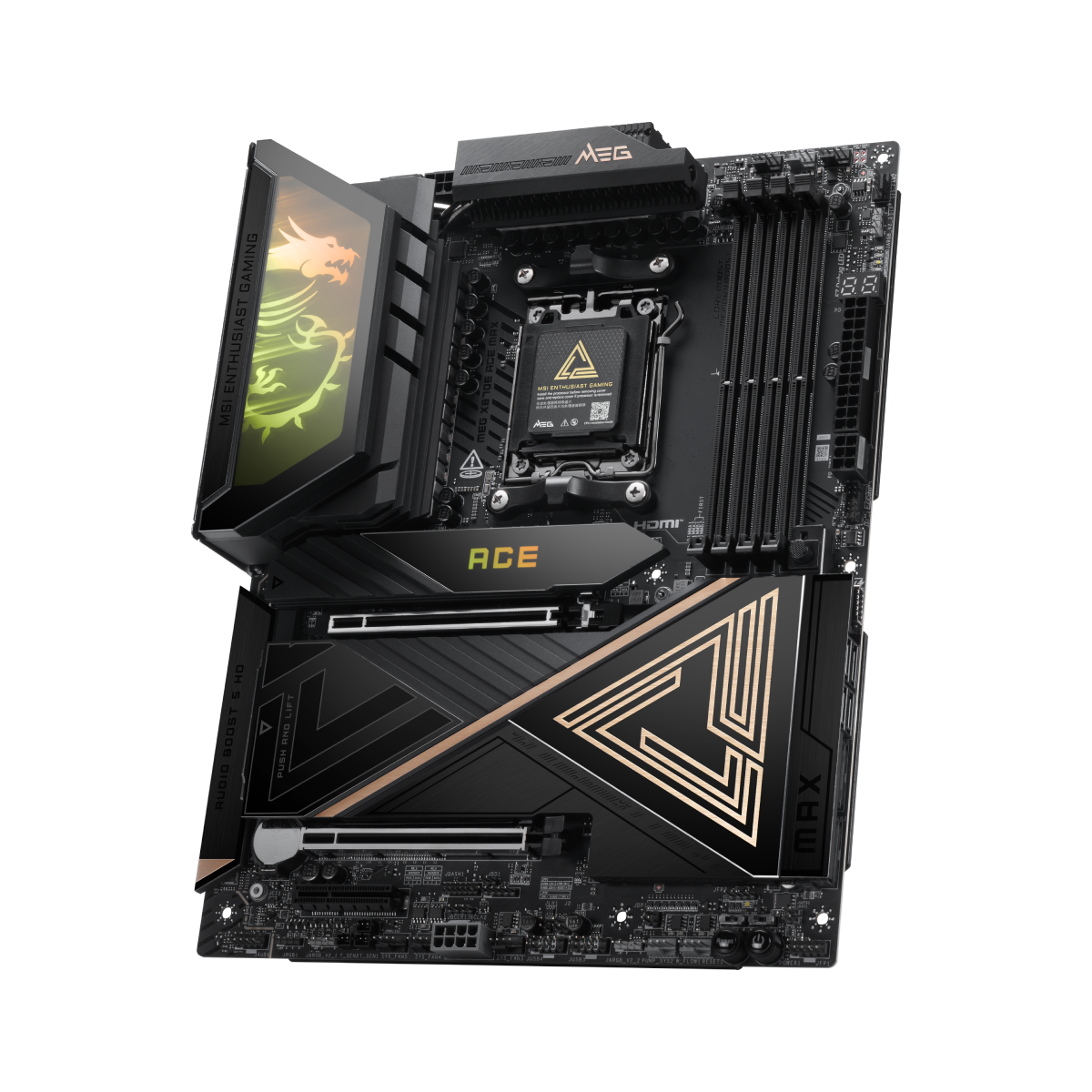

MEG X870E ACE MAX

Características:

  • Compatible con procesadores de PC de sobremesa AMD Ryzen™ series 9000/8000/7000
  • Compatible con memoria DDR5, doble canal DDR5 8400+ MT/s (OC)
  • Rendimiento Ultra: sistema de alimentación Duet Rail 18+2+1, SPS de 110 A, OC Engine, conectores de alimentación de CPU de 8 pines dobles, Core Boost, Memory Boost, PCB de 8 capas fabricado con cobre de 2 oz de grosor y material de nivel de servidor.
  • Frozr Guard: diseño de aletas onduladas, tubo de calor Direct Touch Cross, placa base MOSFET, almohadillas térmicas de 9 W/mK, blindaje M.2 de doble cara Frozr y software Frozr AI que garantizan el máximo rendimiento con baja temperatura.
  • EZ DIY: EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II, EZ Antenna y EZ Conn-Design.
  • Ultra Connect: LAN 10G + LAN 5G, solución Wi-Fi 7 a máxima velocidad, USB4 y BIOS ROM de 64 MB: la última solución para uso profesional y multimedia, que ofrece una red y una transmisión de datos seguras, estables y de alta velocidad.
  • Experiencia gaming ultrarrápida: ranuras PCIe 5.0, 5 conectores M.2 integrados con solución Lightning Gen 5, USB 20G frontal con suministro de energía USB de 60 W.
  • Audio Boost 5 HD: la solución de audio definitiva con el último procesador de audio ALC4082 de alta calidad, que combina el DAC de audio ESS y el amplificador para ofrecer una experiencia impresionante.

Chipset AMD X870E
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max. overclocking frequency:

  • 1DPC 1R Max speed up to 8400+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 6400+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* The DIMM slots on this motherboard only have single-sided latches.
** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
*** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/
Onboard Graphics
  • 1x HDMI™
    • Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
  • 2x Type-C DisplayPort
    • USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz*

* Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
Slot
  • 2x PCI-E x16 slot (Qty)
    • 1x PCI-E x4 slot
    • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
    • PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU)
  • PCI_E1 & PCI_E2 slots
    • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)

* PCI_E3 & M.2_1 share the bandwidth. M.2_1 will run at x2 speed when installing device in the PCI_E3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M.2_1 slot.
** Please refer to the PCIe configuration table in the manual for more details.
Audio Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage
  • 5x M.2 (Qty)
    • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
    • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    • M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
  • 4x SATA 6G (Qty)

  • M.2_1:
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
  • M.2_2:
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

* The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
** M.2_1 & PCI_E3 share the bandwidth. M.2_1 will run at x2 speed when installing device in the PCI_E3 slot. You can switch M.2_1 slot to x4 in the BIOS, but this will disable the PCI_E3 slot.
*** USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M.2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports.
**** Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
  • Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

*RAID 5/ 10 configuration is only supported by Ryzen™ 9000/ 7000 series processors.
USB
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Front)
  • 9x USB 10Gbps Type A (Rear)
  • 2x USB 10Gbps Type C (Rear)
  • 1x USB 20Gbps Type C (Front)
  • 2x USB 40Gbps Type C (Rear)

* USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors.
* USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M.2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports.
LAN
  • 1x Marvell® AQC113CS 10Gbps LAN
  • 1x Realtek® 8126 5Gbps LAN
Internal IO
  • 1x Power Connector (ATX_PWR)
  • 2x Power Connector (CPU_PWR)
  • 1x Power Connector (PCIE_PWR 8pin)
  • 1x Front Type-C Quick Charge Connector (PD_PWR1)
  • 1x CPU Fan
  • 2x PUMP_SYS Fan
  • 5x System Fan
  • 1x ARGB+FAN+USB2.0 Header (JAF_2)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Water Flow connector
  • 1x Front Audio (JAUD)
  • 2x Thermal Sensor connectors (T_SEN)
  • 1x Tuning Controller connector (JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector (JRGB)
  • 1x TPM pin header (Support TPM 2.0)
  • V-check point
  • 2x BCLK Frequency Jumpers (JBCLK)
  • 4x USB 2.0 ports
  • 4x USB 5Gbps Type A ports
  • 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH
  • Wi-Fi 7 Solution
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE
  • 1x EZ Digi-Debug LED
  • 4x EZ Debug LED
  • 1x EZ Memory Detection LED
  • 1x EZ LED Control switch

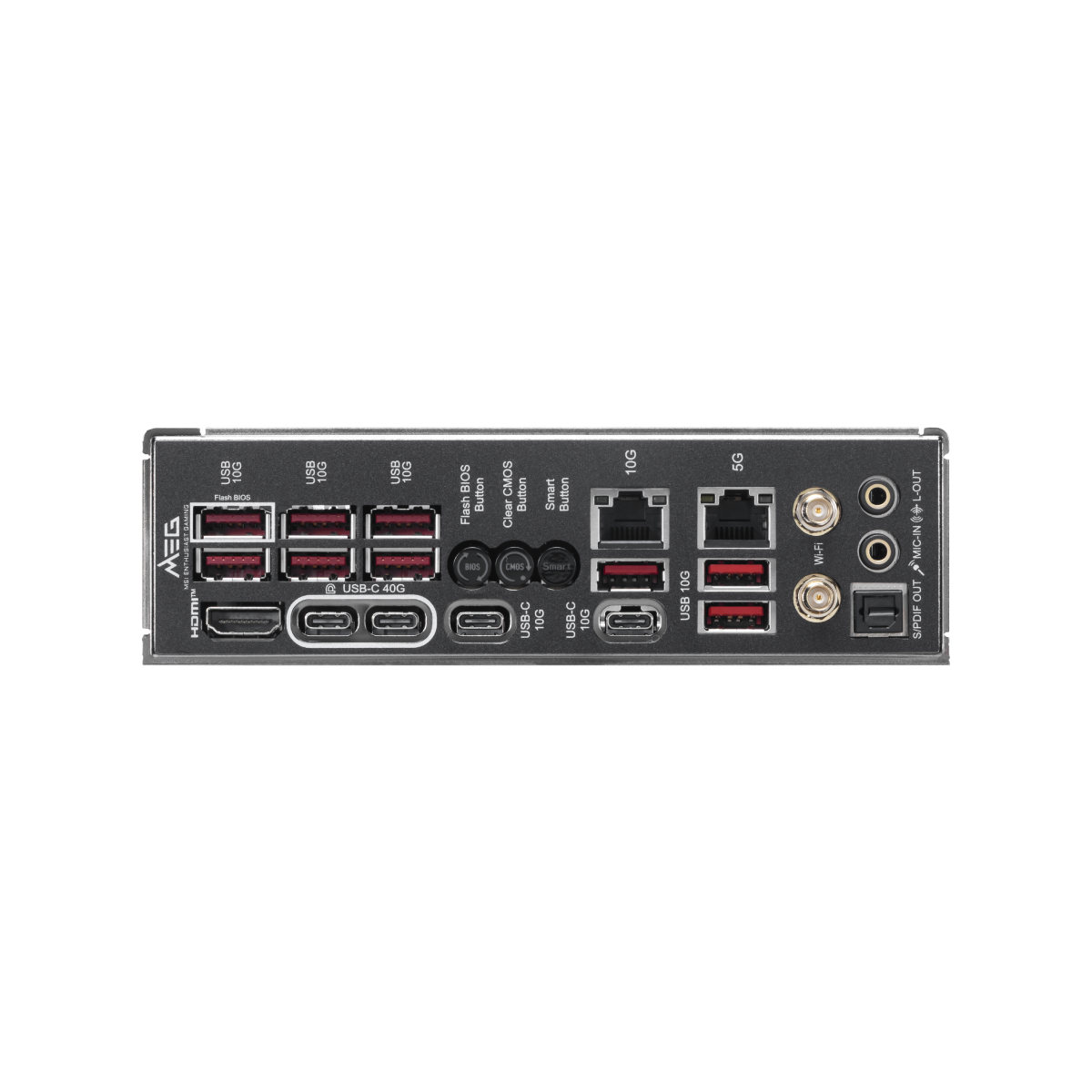

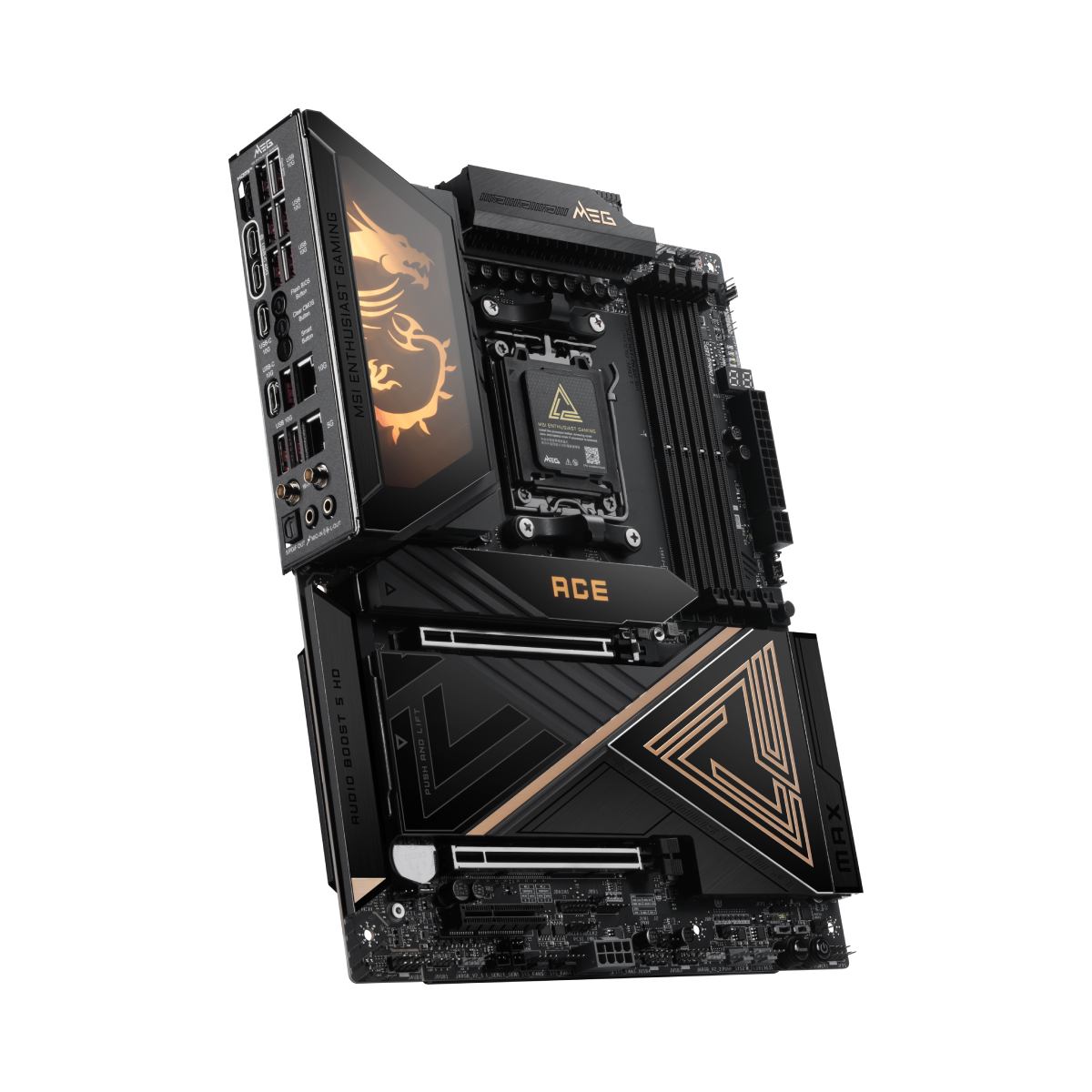

BACK PANEL PORTS
  1. USB 10Gbps (Type-A)
  2. Flash BIOS Button
  3. Clear CMOS Button
  4. Smart Button
  5. 10G LAN
  6. 5G LAN
  7. Wi-Fi / Bluetooth
  8. HD Audio Connectors
  9. HDMI™ 2.1 Port
  10. USB 40Gbps (Type-C)
  11. USB 10Gbps (Type-C)
  12. USB 10Gbps (Type-A)
  13. Optical S/PDIF-Out
OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
PCB Info ATX
243.84mmx304.8mm
