MSI France  |  SKU : 911-7E06-065

PRO Z790-P WIFI


pour voir les prix

Offres promotionnelles en cours

Garantie

3 ans de garantie

Free Package

  • LGA 1700
  • Intel Z790
  • ATX

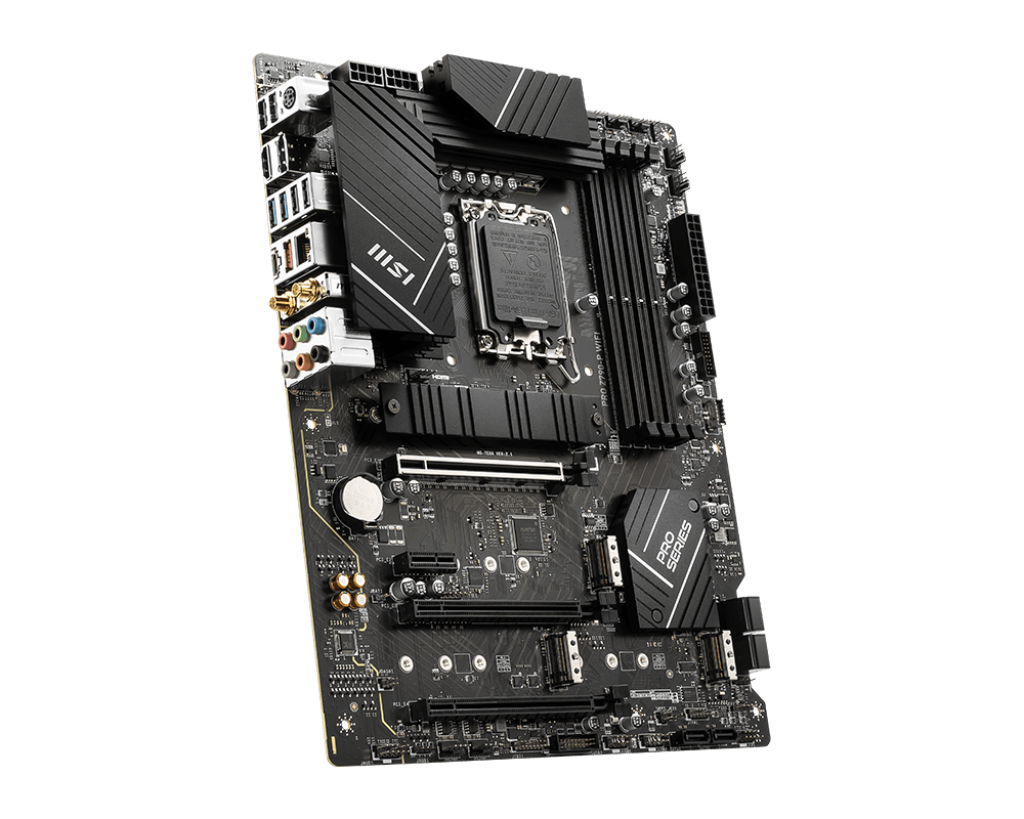

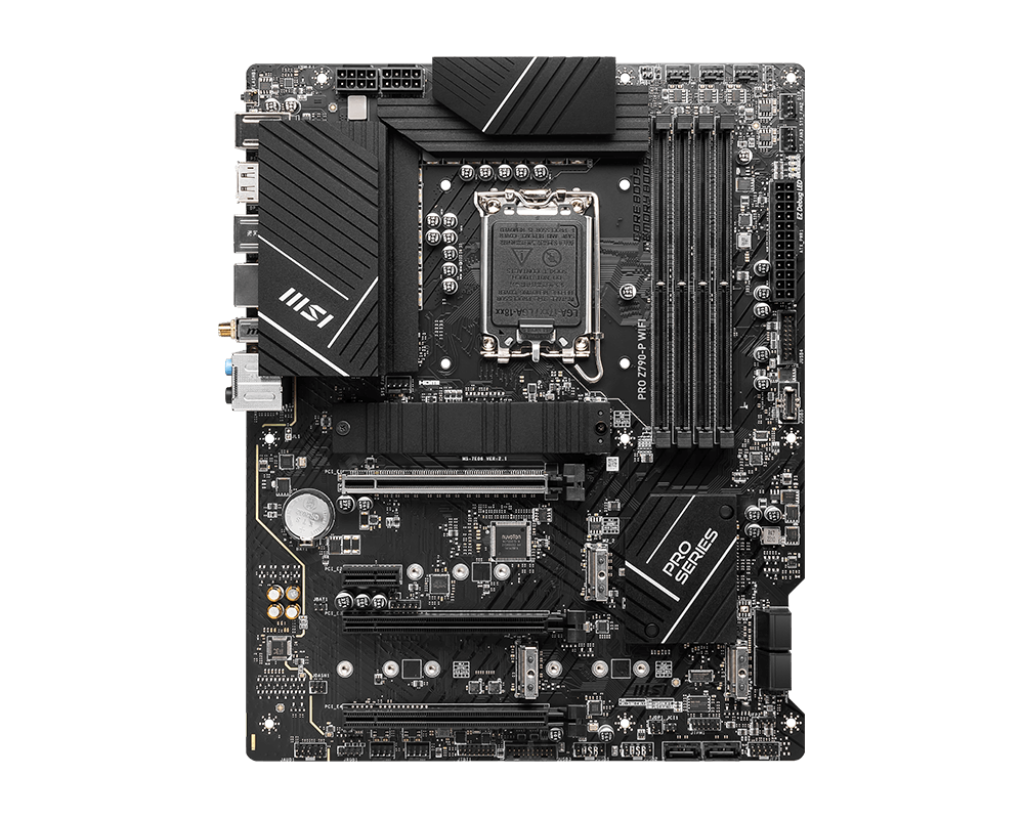

PRO Z790-P WIFI

  • Support des processeurs Intel® Core™ de 12ème et 13ème génération, Pentium® Gold et Celeron® pour socket LGA 1700
  • Support mémoire DDR5 Dual Channel 7000+ MHz (OC)
  • Alimentation double rail à 14+1+1 avec DrMOS 55A, deux connecteurs d'alimentation processeur à 8 broches et technologies Core Boost et Memory Boost
  • Solution de refroidissement complète avec dissipateur plus large, pads thermiques MOSFET 7 W/mk, pads thermiques supplémentaires pour inductances de puissance et slots M.2 Shield Frozr
  • Circuit imprimé de classe serveur à 6 couches de cuivre de 2 onces
  • Expérience ultrarapide avec des slots PCIe 5.0, Lightning M.2 Gen4 x4 et ports USB 3.2 Gen2x2
  • Solution Intel Turbo USB 3.2 Gen2 avec contrôleur USB 3.2 Gen2x2 pour des transferts de données ultrarapides
  • Connecteur 2,5G LAN et norme Wi-Fi 6E pour une connexion fluide et rapide
  • Audio Boost pour un son de qualité et une expérience immersive
  • Fiche technique
    Chipset INTEL Z790
    CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700
    Memory 4x DDR5, Maximum Memory Capacity 256GB
    Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7000+ MHz
    • 1DPC 2R Max speed up to 6600+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Onboard Graphics 1x HDMI™
    Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 3x PCI-E x16 slot (Qty)
    1x PCI-E x1 slot (Qty)
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
    Audio Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Storage 4x M.2 (Qty)
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    6x SATA 6G (Qty)
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
    USB 4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    4x USB 2.0 ports (Rear)
    4x USB 2.0 ports (Front)
    2x USB 5Gbps Type A (Rear)
    4x USB 5Gbps Type A (Front)
    1x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Front)
    1x USB 20Gbps Type C (Rear)
    LAN Intel® 2.5Gbps LAN
    Internal IO 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    6x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Tuning Controller connector(JDASH)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    4x USB 5Gbps Type A ports
    1x USB 10Gbps Type C ports
    WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    LED FEATURE 4x EZ Debug LED

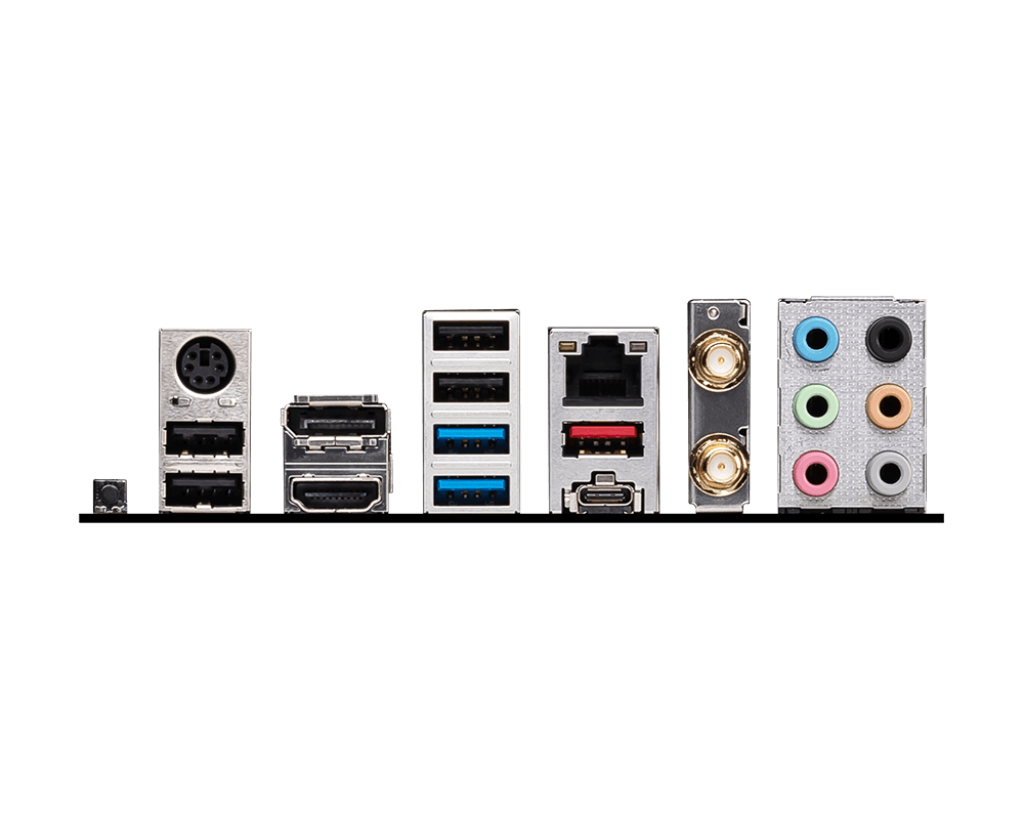

    BACK PANEL PORTS
    1. Keyboard / Mouse
    2. DisplayPort
    3. USB 2.0
    4. 2.5G LAN
    5. Wi-Fi / Bluetooth
    6. Audio Connectors
    7. Flash BIOS Button
    8. USB 2.0
    9. HDMI™
    10. USB 3.2 Gen 1 5Gbps (Type-A)
    11. USB 3.2 Gen 2x2 20Gbps (Type-C)
    12. USB 3.2 Gen 2 10Gbps (Type-A)
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    BOX CONTENT
    PCB Info ATX
    243.84mmx304.8mm
